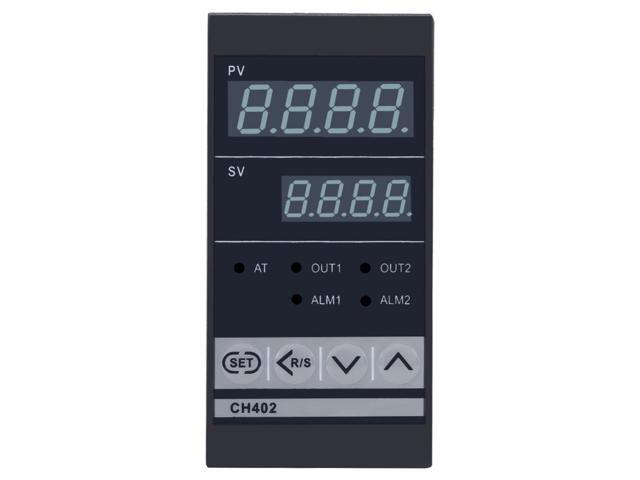

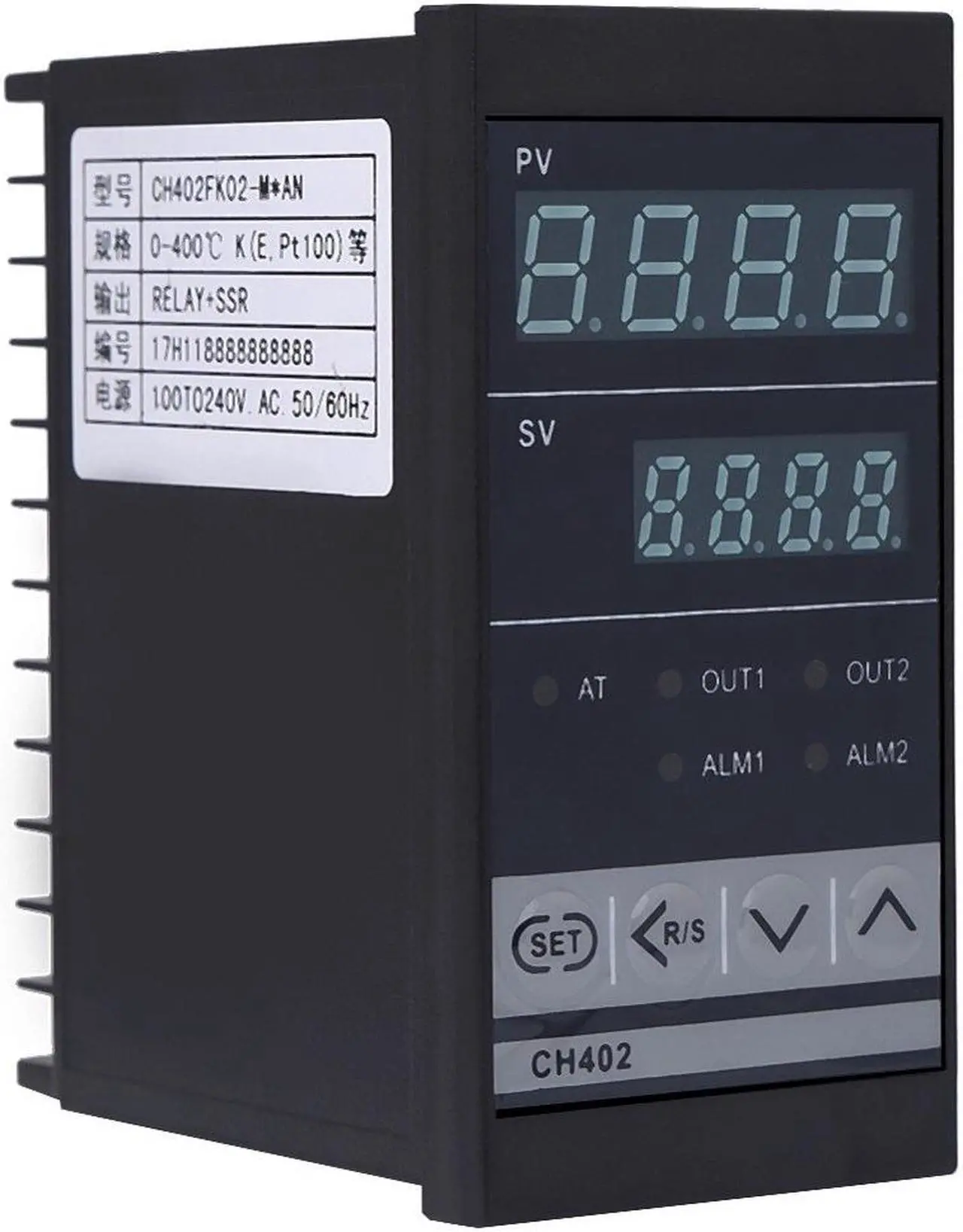

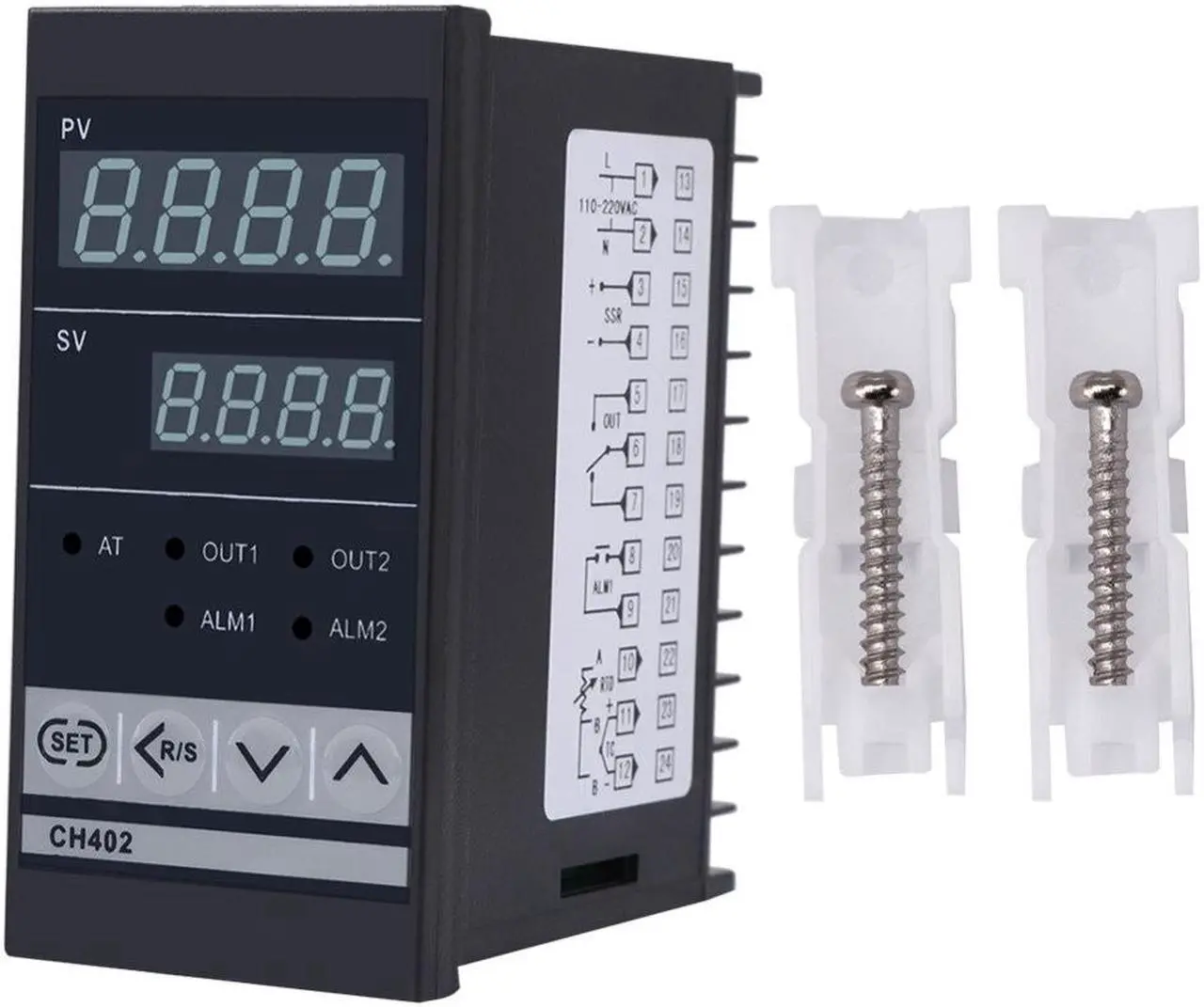

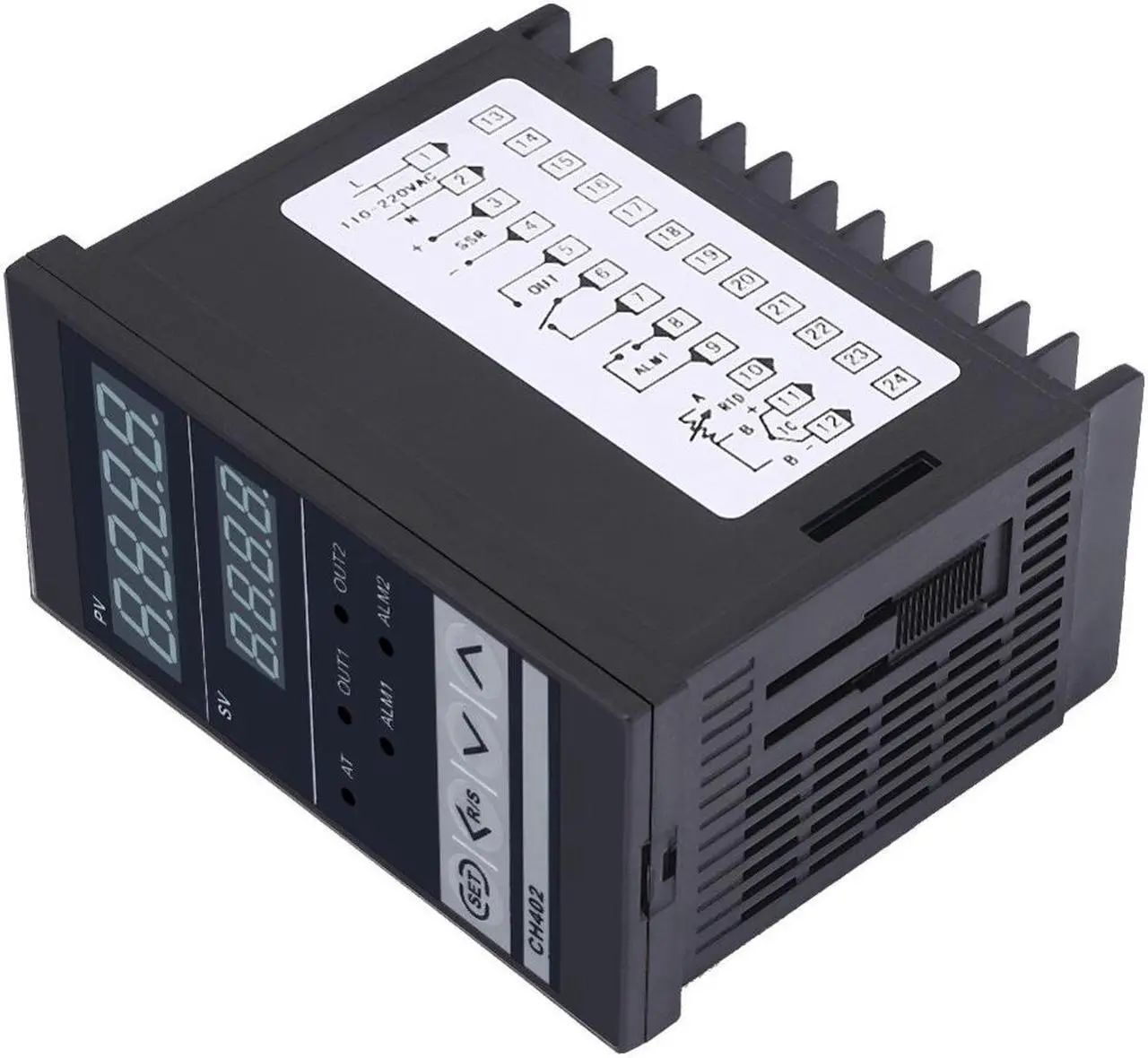

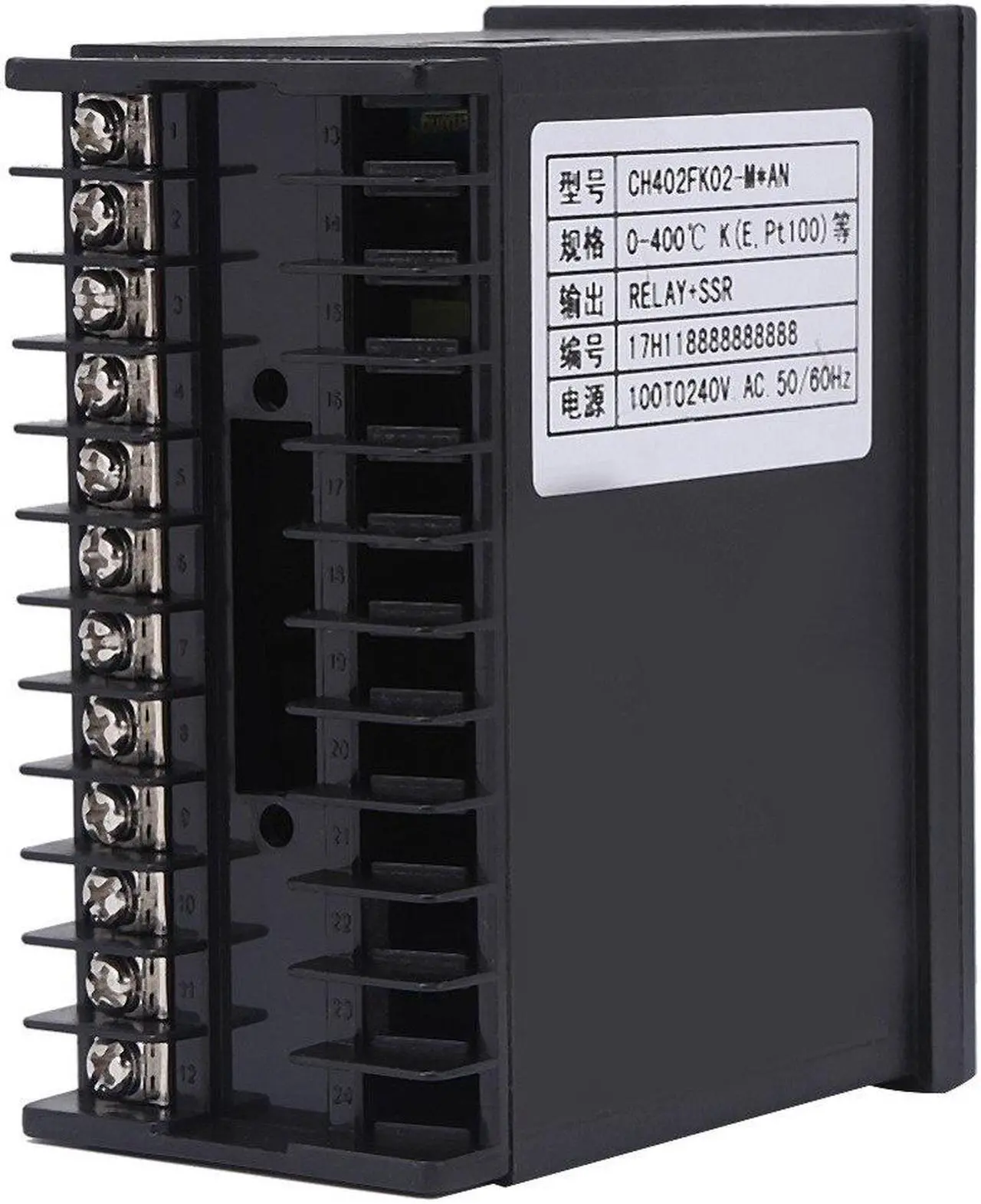

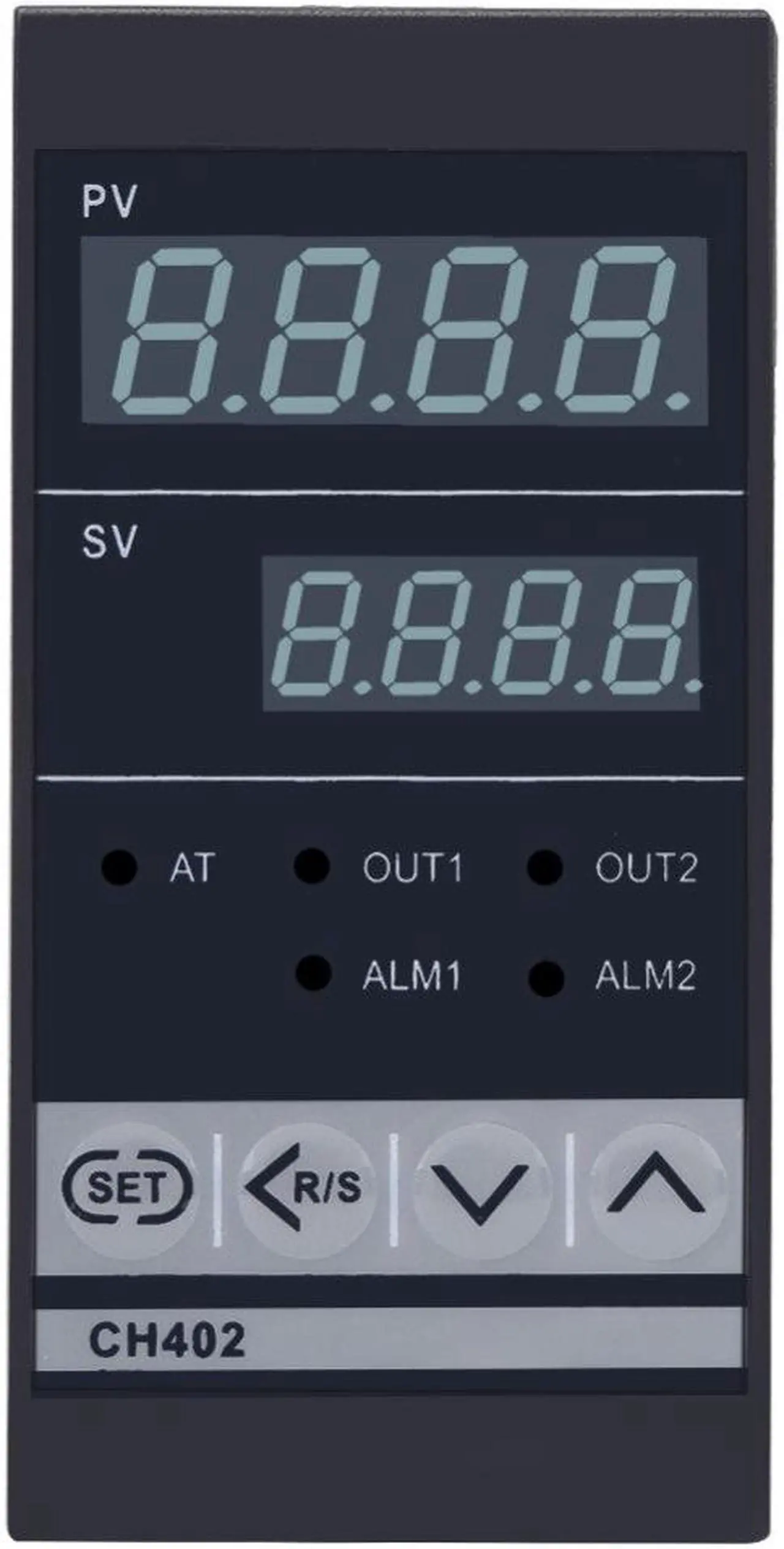

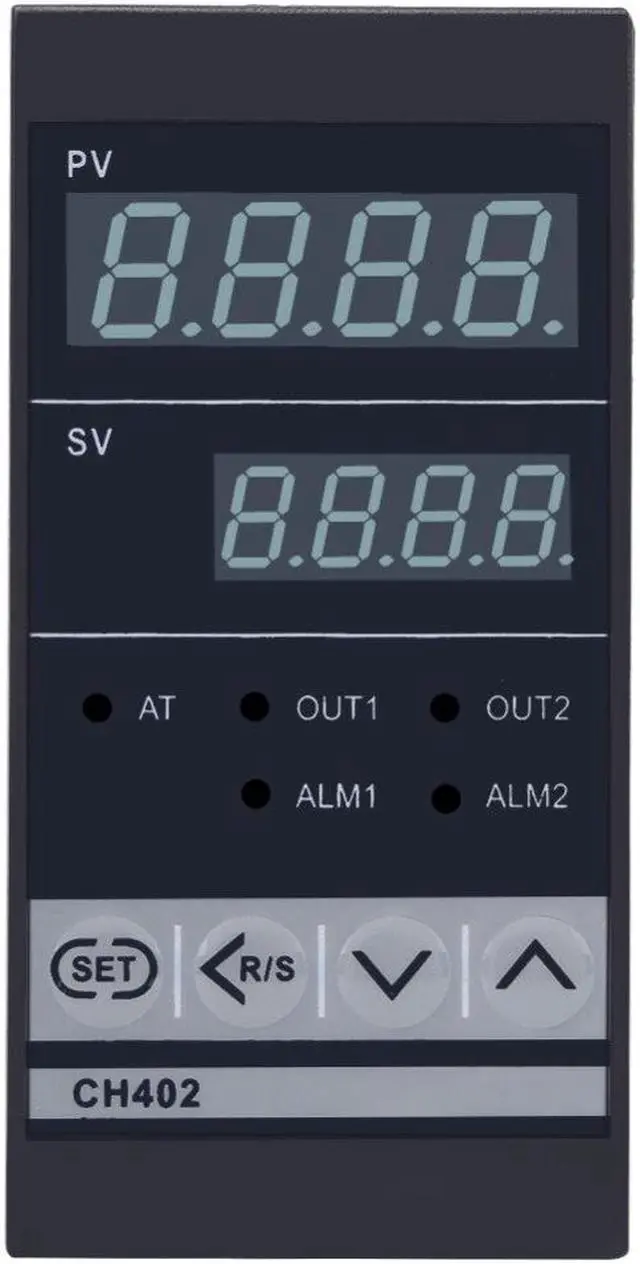

PID Temperature Controller Digital Thermostat Relay Control Switch AC85-264V High Accuracy Smart Temperature Controller Tools

PID Temperature Controller Digital Thermostat Relay Control Switch AC85-264V High Accuracy Smart Temperature
Controller Tools Specifications:

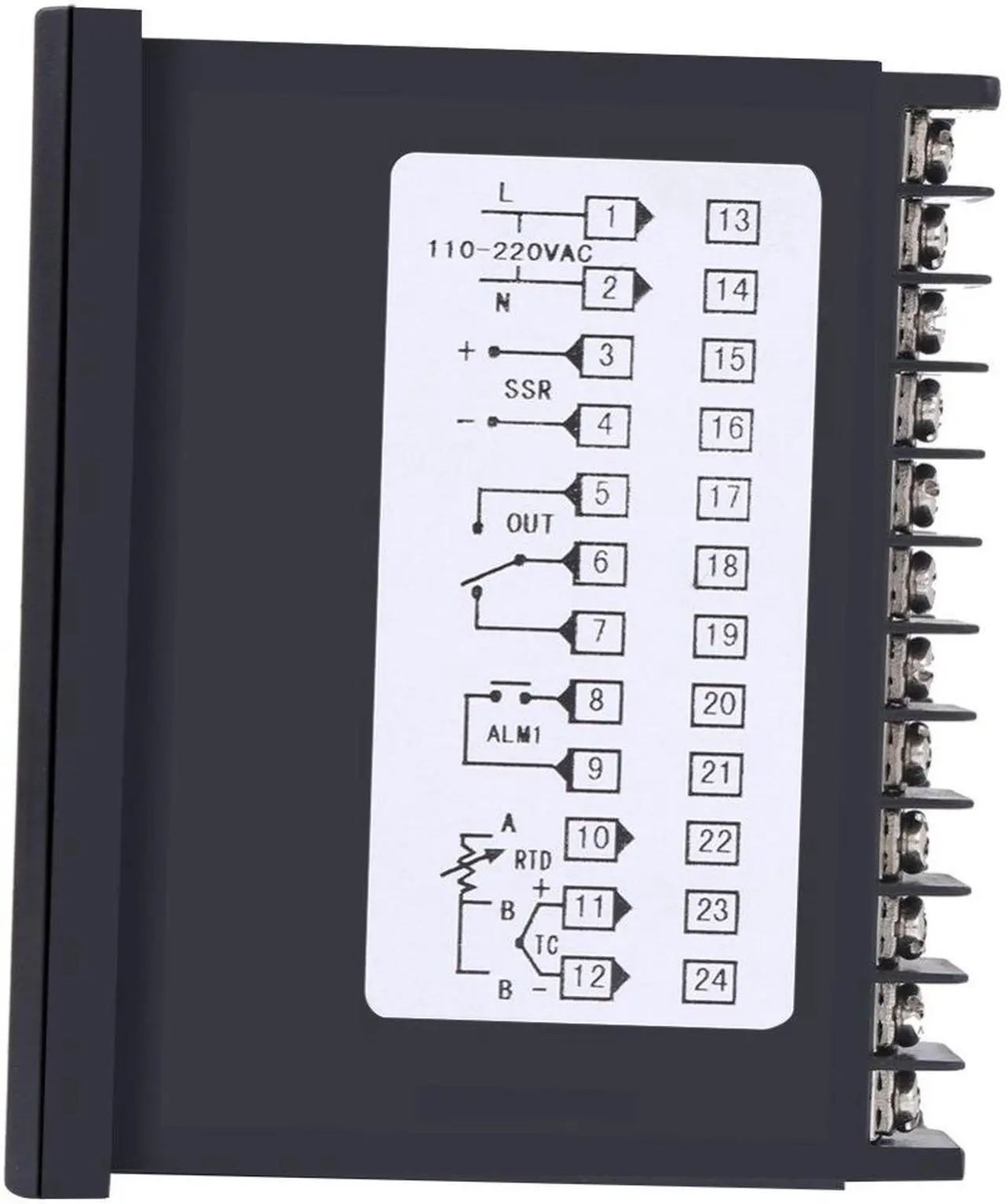

Input: Thermocouple (TC) (K, J, R, S, B, E, N, T), thermal resistance (RTD) (PT100, JPT100, Cu50) standard voltage current signalTemperature
Range: 0~1300Basic
Error: 0.5 %1digit of full range inputResolution: 1, 0.1S ampling
Speed: 3 times/secAlarm
Output: Relay contact AC250V 3A (resistive)
Control Output: Relay contact AC250V 3A (resistive)
Logic Level: DC 0/12V (with solid state relay) Zero Crossing
Trigger Pulse: Optocoupler SCR output 1A 600V; 0-10mA current output (load resistance is less than 600); 0-20mA current output (load resistance is less than 600); 4-20mA current output (load resistance is less than 600)
Control Mode: Fuzzy PID control, position controlPower
Supply Voltage: AC85-264V (50/60Hz), ( rated 100-240VAC)100-240V universal switch power supplyOperating
Temperature: 0~50Operating
Humidity: <85%RHPower
Consumption: <5VA
