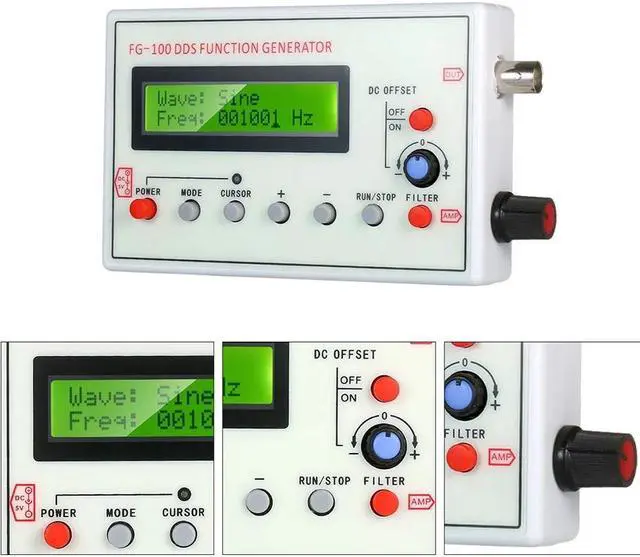

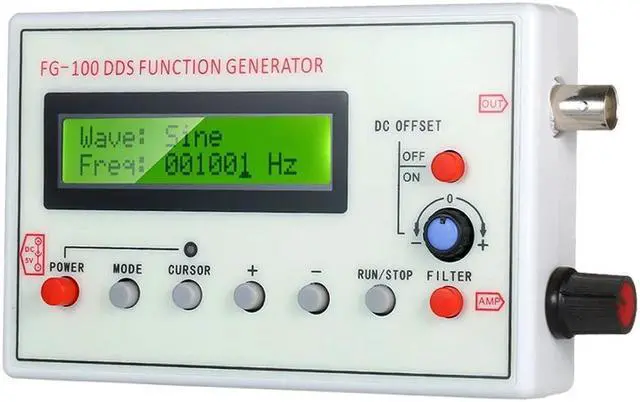

1HZ-500KHZ FG-100 DDS Functional Signal Generator Sine Triangle Square Sawtooth ECG Noise Output Frequency Meter Signal Source Module Frequency Counter

Specification: Power
Supply: DC
4-10VCurrent: 250mAFrequency
Range: sine
wave 1-500kHzResolution: 1
HzSine wave distortion: <1% below 1kHz, < 0.5 % above 1kHzOutput
Amplitude: Maximum
+/- 10V(p-p)Output impedance: 50 ohmsDC

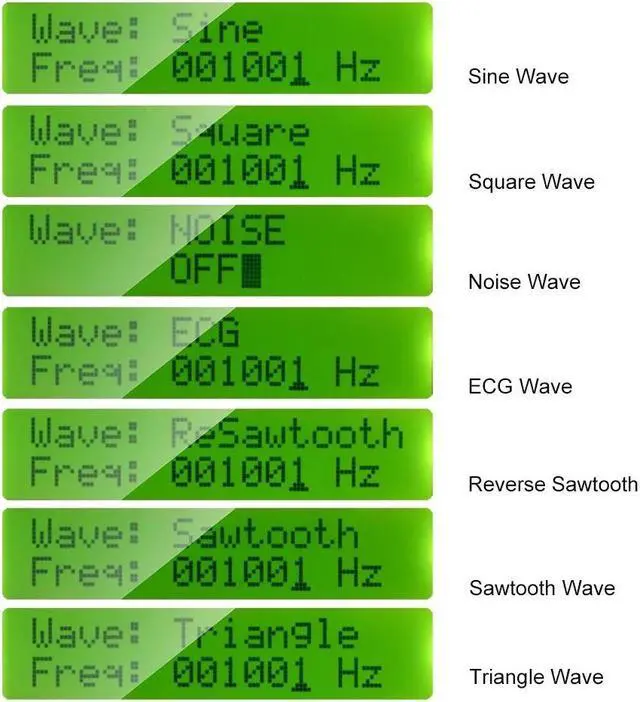

Offset: Maximum +/- 10V, whit shutdown functionAll Setting Parameters Can Be SavedOutput Waveform: sine wave, square wave, triangle wave, forward sawtooth wave, reverse sawtooth wave, electrocardiogram wave, noise waveItem

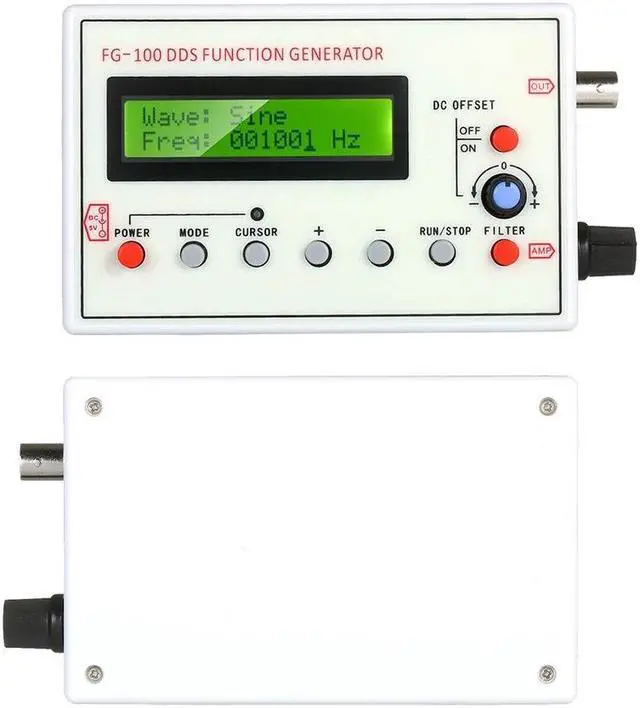

Size: 140 * 80 * 27mm / 5.5 * 3.1 * 1.1 inItem
Weight: 144g / 5.1 oz

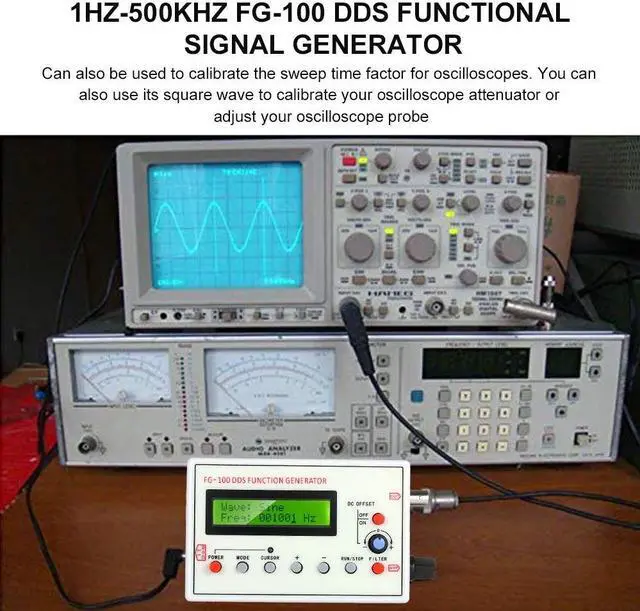

Features: Output Waveform -- Sine, wave, square wave, triangle wave, forward sawtooth wave, reverse sawtooth wave, electrocardiogram wave (ECG wave), noise wave. DDS Frequency Range -- Sine wave 1- 500KHz (the output amplitude will decrease with the further increase of frequency), other waveforms 1 Hz-50KHz (but the upper limit of adjustable frequency is not limited, if the distortion and shaking requirements are not high, use the frequency can be further increased). Application -- Due to the excellent DSS accuracy and frequency stability, it can also be used to calibrate the sweep time factor for oscilloscopes. You can also use its square wave to calibrate your oscilloscope attenuator or adjust your oscilloscope probeVersatile Power Supply -- Its power supply can be either DC adaptor or a Lithium battery. Power supply range DC 4-10V, it is recommended to choose DC 5V when using the adapter, and 3.7V lithium battery when using battery power. Large LCD Screen -- Large LCD display with backlight for easy instant reading. Labeled function button for easy operation. Working with an oscilloscope, it can be used to troubleshoot the electronic circuit, characterize the audio amplifier frequency response or measure the impulse response.

Have a filter (can be opened and closed) to suit the output of sine wave and pulse wave.
