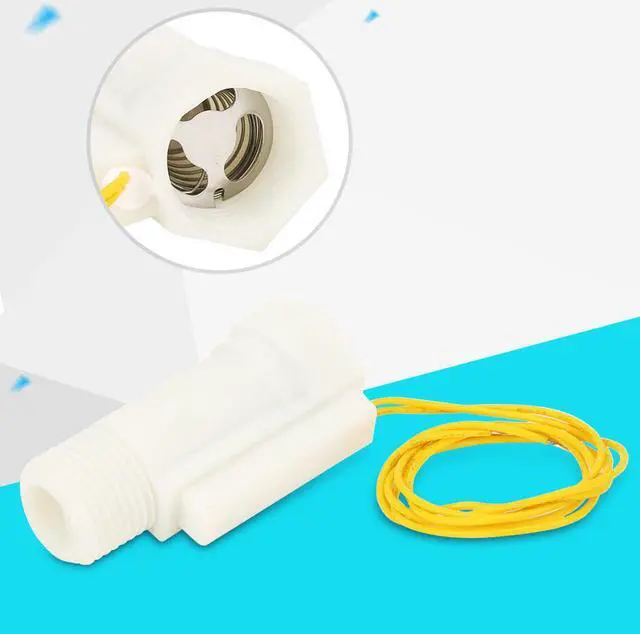

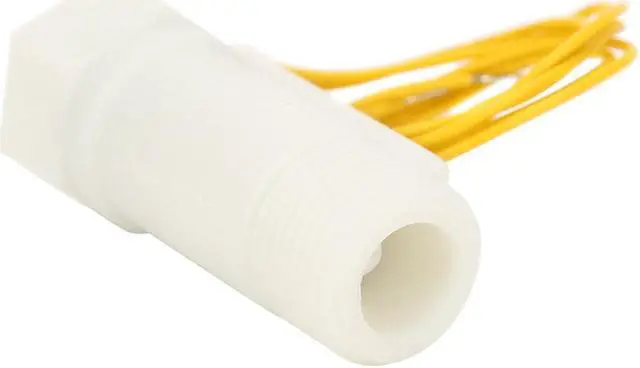

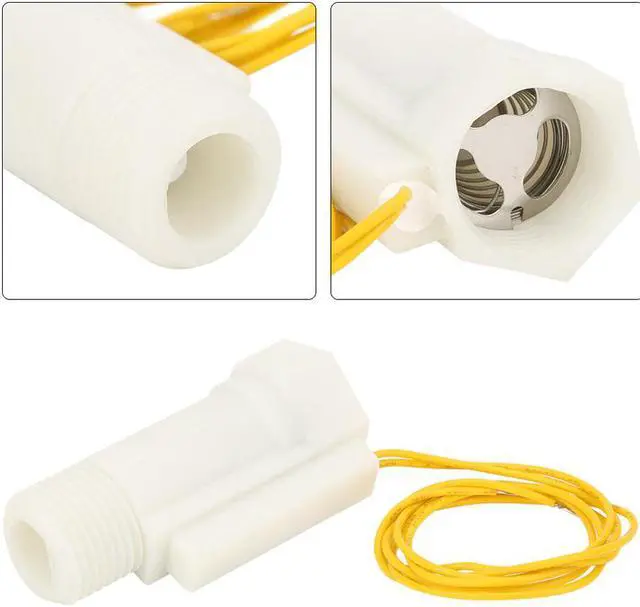

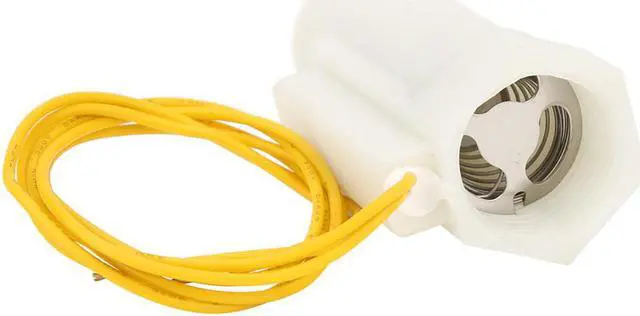

DC0-110V Plastic Water Flow Sensor Switch Piston Type G1/2in Male/Female Thread Water Flow Switch
- Feature:1. The flow switch is a sensor device that converts water flow into a switch-type electrical signal when a certain flow is reached 2. The flow switch consists of magnetic core, return spring, wrought copper or polycarbon housing and sensor 3. The shell is made of H58 forged copper or polycarbon, the magnetic core is made of NdFeB permanent magnet material, and the sensor magnetic control switch is an imported medium power component 4. The inlet and outlet ports are G1 / 2in standard pipe threads, which is convenient for connection 5. The flow switch has the advantages of high sensitivity and strong durability.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification: Item
Type: Plastic
Water Flow Sensor SwitchModel: Fs-1 / 2-nylon
Interface Thread Size: Male/Female threads are
G1/2in Material: Nylon
Working Voltage: DC0-110V
Working Current: 0.5 -1A Medium
Specific Gravity: 0.7 Signal

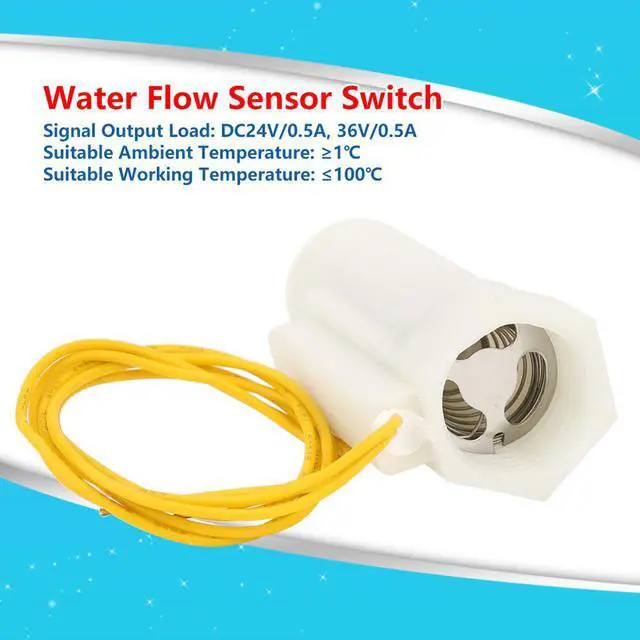

Output Load: DC24V/ 0.5A, 36V/ 0.5A Suitable
Ambient Temperature: 1 Suitable
Working Temperature: 100
Minimum Starting Flow: 0.75L /min
Maximum Throughput: 5L/min Rated
Working Pressure: 0.65M pa Maximum Pressure of
The Shell: 1.5M

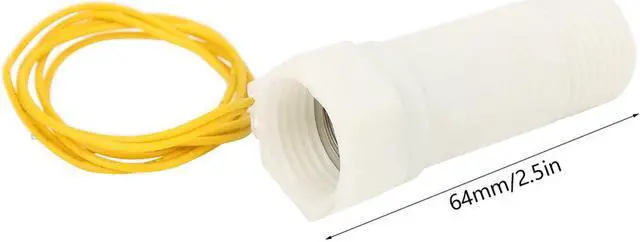

paLength: Approx. 64mm / 2.5 in
Working Principle: When the water flow in the pipeline is greater than 0.75L /min, the magnetic core is displaced under the action of the water flow and drives the magnetic source to generate a magnetron effect to cause the sensor to output a "1" switching signal, which is input to the equipment control system, After power amplification, the purpose of water flow control is achieved. When the water flow in the pipeline is less than 0.75L / min, the magnetic core will drive the magnetic source back under the force of the return spring, so that the sensor outputs a "0" switching signal to stop the system Adaptation Scope and
Conditions: (1) The ambient temperature is not lower than
0. Do not knock on the case. Keep away from magnetic objects (2) The output of the signal is a switch value, so the connection method of the control object must also be a switch control relationship. (3) The power of the control object must not be greater than the signal load capacity (4) This device is a water medium control device and cannot be used for other medium control.
Feature: 1. The flow switch is a sensor device that converts water flow into a switch-type electrical signal when a certain flow is reached
2. The flow switch consists of magnetic core, return spring, wrought copper or polycarbon housing and sensor
3. The shell is made of H58 forged copper or polycarbon, the magnetic core is made of NdFeB permanent magnet material, and the sensor magnetic control switch is an imported medium power component
4. The inlet and outlet ports are G1 / 2in standard pipe threads, which is convenient for connection
5. The flow switch has the advantages of high sensitivity and strong durability.
Type: Plastic
Water Flow Sensor SwitchModel: Fs-1 / 2-nylon
Interface Thread Size: Male/Female threads are
G1/2in Material: Nylon
Working Voltage: DC0-110V
Working Current: 0.5 -1A Medium
Specific Gravity: 0.7 Signal
Output Load: DC24V/ 0.5A, 36V/ 0.5A Suitable
Ambient Temperature: 1 Suitable
Working Temperature: 100
Minimum Starting Flow: 0.75L /min
Maximum Throughput: 5L/min Rated
Working Pressure: 0.65M pa Maximum Pressure of
The Shell: 1.5M
paLength: Approx. 64mm / 2.5 in
Working Principle: When the water flow in the pipeline is greater than 0.75L /min, the magnetic core is displaced under the action of the water flow and drives the magnetic source to generate a magnetron effect to cause the sensor to output a "1" switching signal, which is input to the equipment control system, After power amplification, the purpose of water flow control is achieved. When the water flow in the pipeline is less than 0.75L / min, the magnetic core will drive the magnetic source back under the force of the return spring, so that the sensor outputs a "0" switching signal to stop the system Adaptation Scope and
Conditions: (1) The ambient temperature is not lower than
0. Do not knock on the case. Keep away from magnetic objects (2) The output of the signal is a switch value, so the connection method of the control object must also be a switch control relationship. (3) The power of the control object must not be greater than the signal load capacity (4) This device is a water medium control device and cannot be used for other medium control.
Feature: 1. The flow switch is a sensor device that converts water flow into a switch-type electrical signal when a certain flow is reached
2. The flow switch consists of magnetic core, return spring, wrought copper or polycarbon housing and sensor
3. The shell is made of H58 forged copper or polycarbon, the magnetic core is made of NdFeB permanent magnet material, and the sensor magnetic control switch is an imported medium power component
4. The inlet and outlet ports are G1 / 2in standard pipe threads, which is convenient for connection
5. The flow switch has the advantages of high sensitivity and strong durability.
