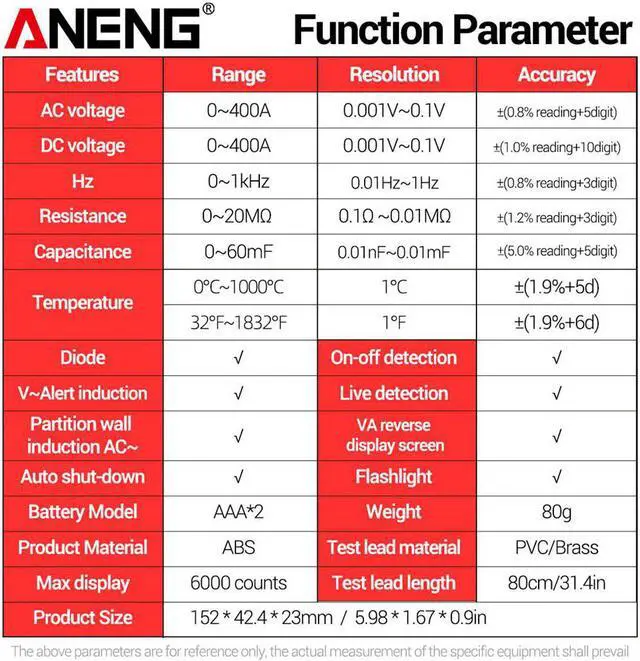

Specifications: 1. Automatic range. 2. Full range overload protection. 3. The maximum allowable voltage between the measuring terminal and the ground: 400V DC or AC 400Vrms4.
Working height: up to 2000m. 5.
Display: 6000countsLCD liquid crystal display display6.
Maximum display value: 5999 digits7.
Polarity indication: automatic indication, - means negative polarity. 8.
Over-range display: OL or -OL. 9.
Sampling time: about 3 times/sec10.
Unit display: with function and power unit display. 11.
Automatic shutdown time: about 15 minutes when there is no signal12.
Power supply: DC power supply 3.0V, 13.
Battery type: AAA*2 (not include) 14.
Battery undervoltage indication: LCD displays symbols. 15.
Temperature coefficient: less than 0.1X accuracy/C16.
Working temperature: 18C ~ 28C17.
Storage temperature: -10C~50C (remove the battery) 18.

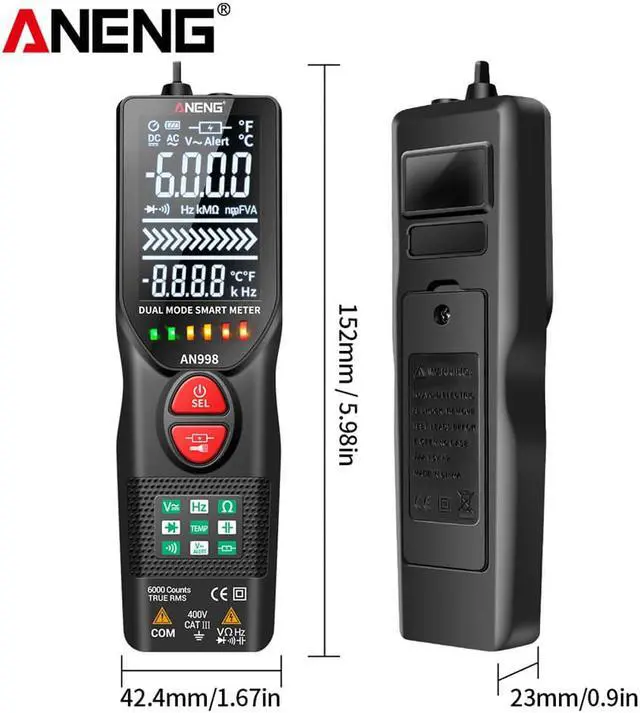

Size: 152 (L) X42 (W) X23 (H) mm

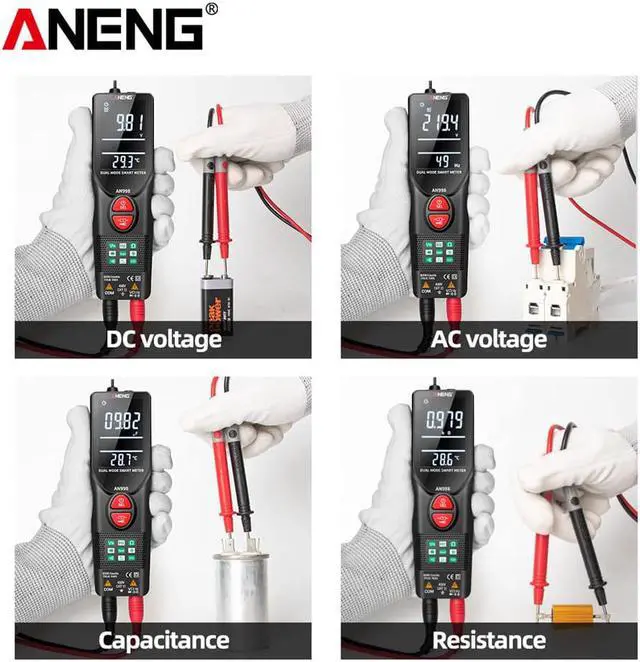

Description: The meter is a portable, professional measuring instrument, with LCD digital display, and a backlight. Users can read the data easily. One-handed operation of the range switch facilitates measurement, with overload protection and low battery indication. Whether for the professionals, factories, schools, hobbyists and families, it is an ideal multifunction instrument. -The meter is for the AC DC Voltage, sine wave true RMS, duty cycle, resistance, capacitance, frequency, measurement and firing line. diode test, temperature measurement. -Meter is with automatic range function. -Meter has a reading hold function. -Meter with automatic shutdown function.
