$48.99
Ships from China.
Meet Your Seller

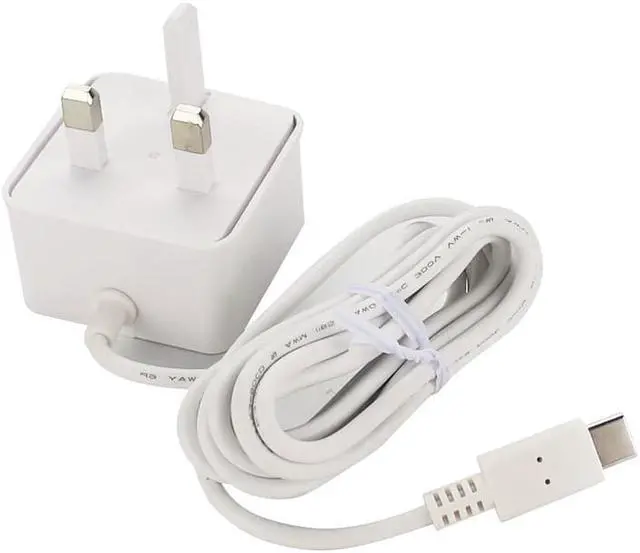

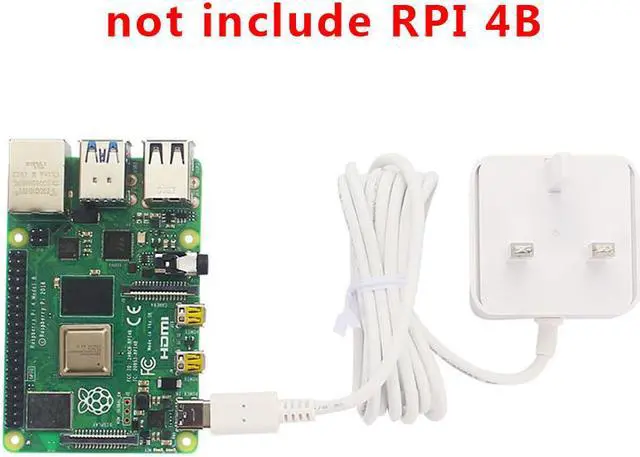

Raspberry Pi Rasmi 4 USB-C Bekalan Kuasa UK 5.1V 3A Penyesuai Kuasa Rasmi 15.3W Putih Kuasa Pengecas untuk Raspberry pi 4 Model B
- Specification: UK
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification
Output
Output voltage: +5.1V DC
Minimum load current: 0A
Nominal load current: 3.0A
Maximum power: 15.3W
Load regulation: ±5%
Line regulation: ±2%
Ripple & noise: 120mVp-p
Rise time: 100ms maximum to regulation limits for DC outputs
Turn-on delay: 3000ms maximum at nominal input AC voltage and full load
Protection: Short circuit protection Overcurrent protection Over temperature protection
Efficiency: 81% minimum (output current from 100%, 75%, 50%, 25%) 72% minimum at 10% load
Output cable: 1.5m 18AWG
Output connector: USB Type-C
Input
Voltage range: 100-240Vac (rated) 96-264Vac (operating)
Frequency: 50/60Hz ±3Hz
Current: 0.5A maximum
Power consumption (no load): 0.075W maximum
Inrush current: No damage shall occur and the input fuse shall not blow
1 x Raspberry Pi 4 Official Power Supply----UK
Output
Output voltage: +5.1V DC
Minimum load current: 0A
Nominal load current: 3.0A
Maximum power: 15.3W
Load regulation: ±5%
Line regulation: ±2%
Ripple & noise: 120mVp-p
Rise time: 100ms maximum to regulation limits for DC outputs
Turn-on delay: 3000ms maximum at nominal input AC voltage and full load
Protection: Short circuit protection Overcurrent protection Over temperature protection
Efficiency: 81% minimum (output current from 100%, 75%, 50%, 25%) 72% minimum at 10% load
Output cable: 1.5m 18AWG
Output connector: USB Type-C
Input
Voltage range: 100-240Vac (rated) 96-264Vac (operating)
Frequency: 50/60Hz ±3Hz
Current: 0.5A maximum
Power consumption (no load): 0.075W maximum
Inrush current: No damage shall occur and the input fuse shall not blow
1 x Raspberry Pi 4 Official Power Supply----UK
