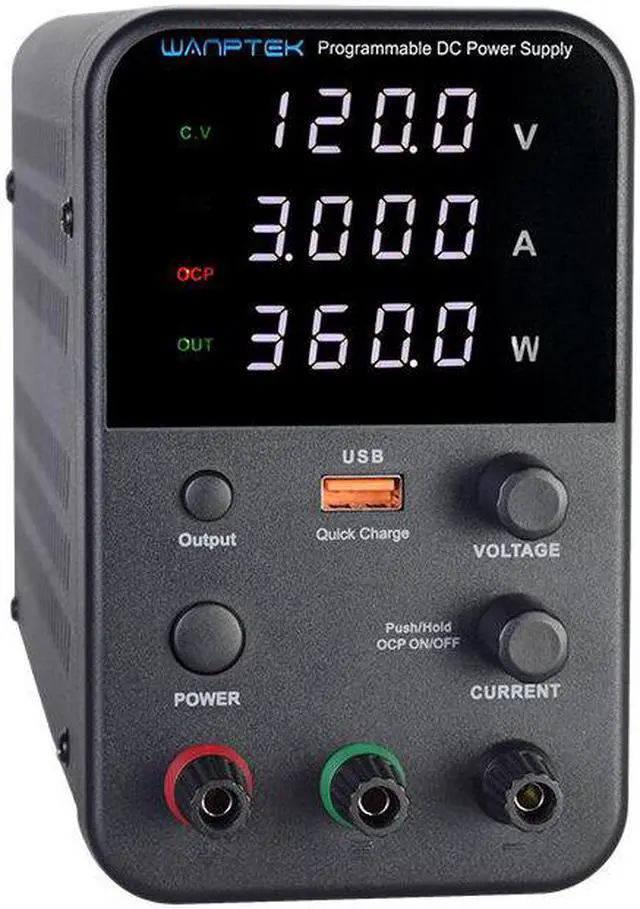

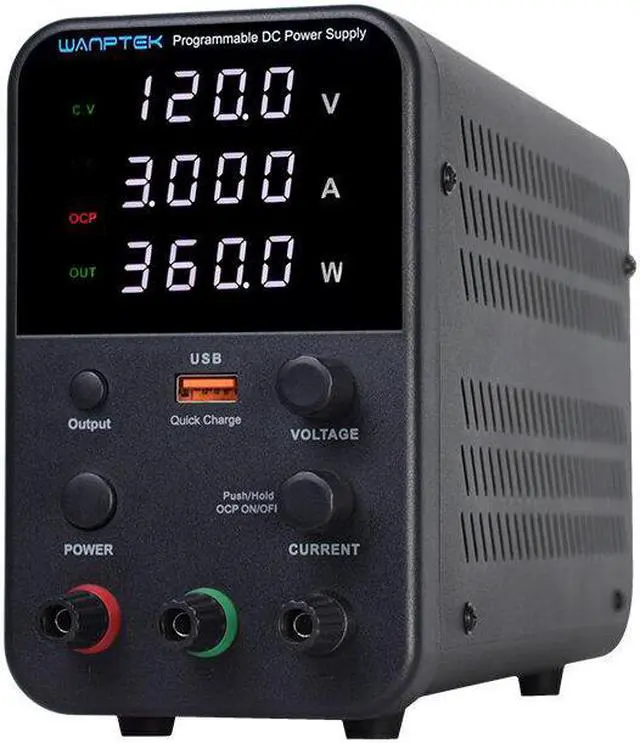

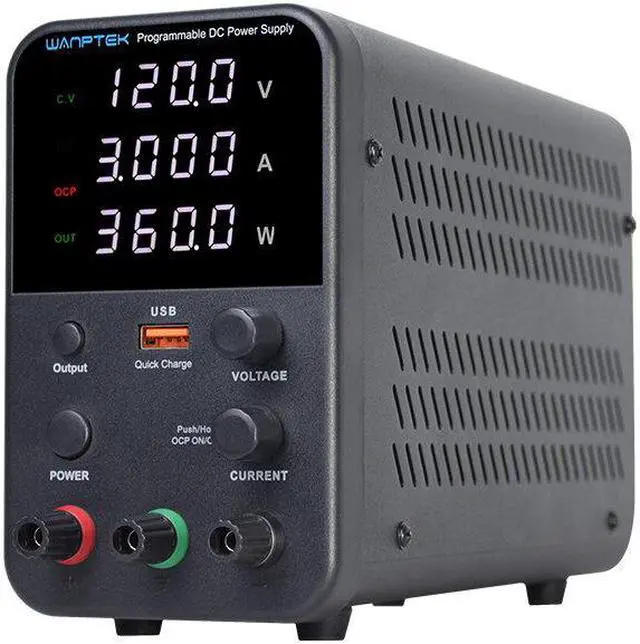

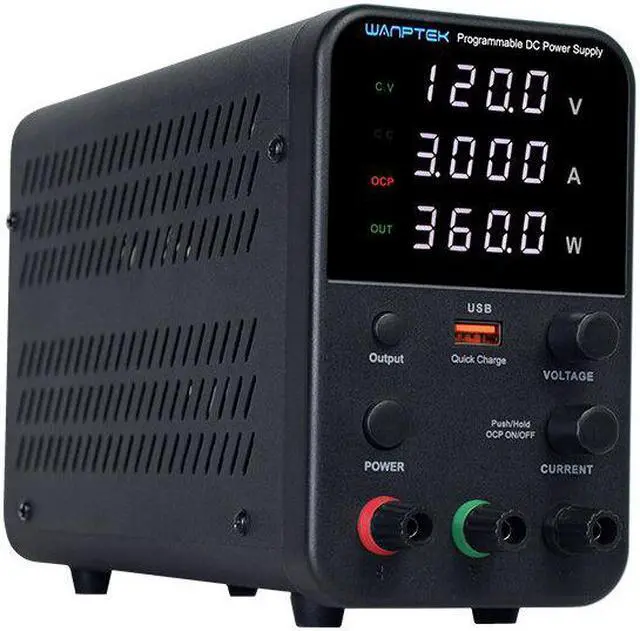

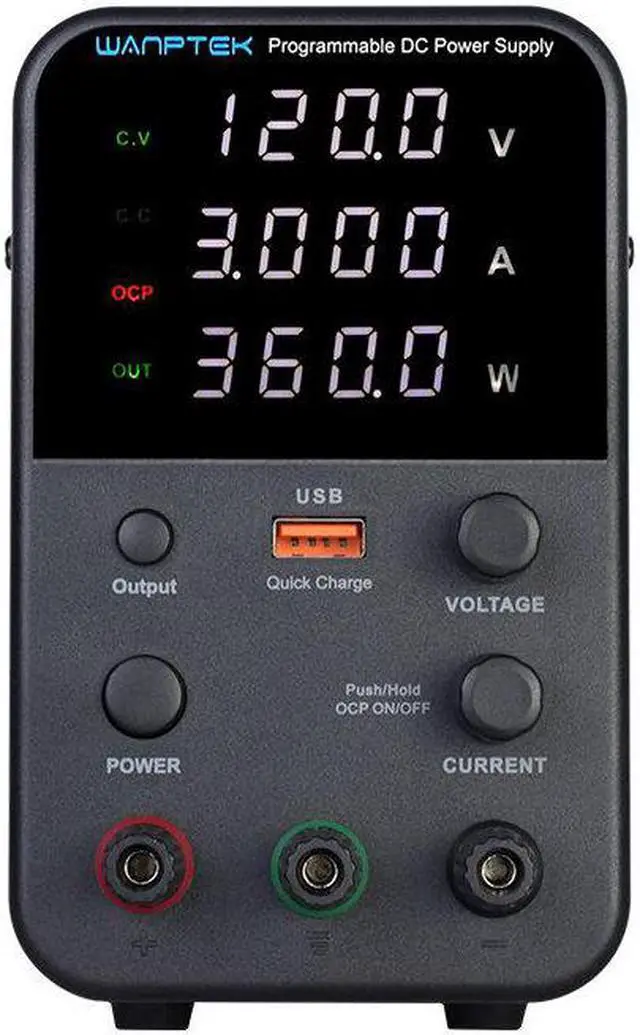

WPS1203H 120V 3A Adjustable DC Power Supply Programmable 110/220V 4 Digits LED Display Switching Regulated Power Supply

Description:
's new series products. This model is a miniature switching DC power supply. The output voltage and current can be controlled and adjusted by variable resistors respectively, so it provides more convenience and accuracy in the adjustment of voltage and current. The panel also provides high-precision two/three-window digital tube display of voltage, current and power, so that users can intuitively see the current use status and various parameters of the machine
Specification
Brand

Model
WPS305H
WPS605H
WPS3010H
WPS1203H
WPS1602H
ID
Output voltage
0~30V
0~60V
0~30V
0~120V
0~160V
Output current
0~5A
0~5A
0~10A
0~3A
0~2A
Output Power
150W
300W
300W
360W
320W
W
orking environment
I
nput voltage:AC 230V/115V
±10%
;50Hz/60Hz Switchable
Working temperature:0?~
40?;relative humidity:<80%RH
Storage temperature:-10?~
70?;relative humidity:<70%RH
Constant voltage CV
Voltage stability:0.1%±3mV
Load stability: 0.2%±3mV
Ripple voltage:=0.5% Vp-p
0 to rated voltage continuously adjustable
C
onstant current CC
Current stability:0.1%±3mA
Load stability: 0.2%±3mA
Ripple current:=0.5% Vp-p
Recovery time:=500µS
Temperature coefficient:=100ppm/?
0 to rated current continuously adjustable
D
isplay
LED digit display
Display accuracy:0.5%±digits
Display resolution: voltage  0.01V, current  0.001A
Features:
? Small size, light weight and high power density.
? Constant pressure and constant current switch automatically.
