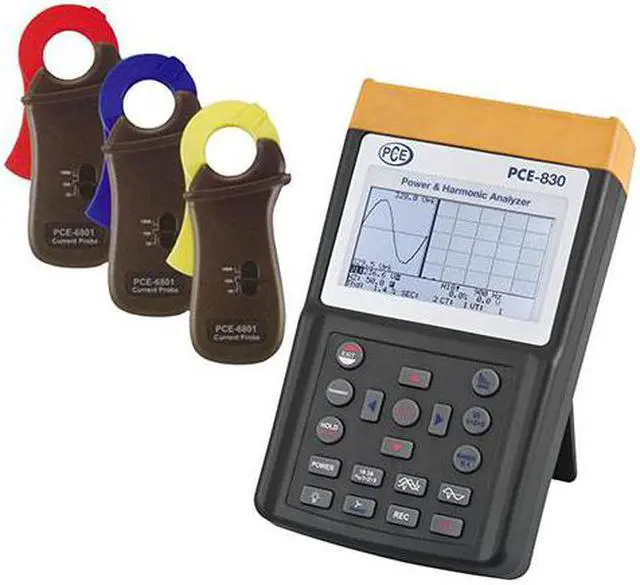

PCE-830-1 Three-Phase Power Meter, Data Logger

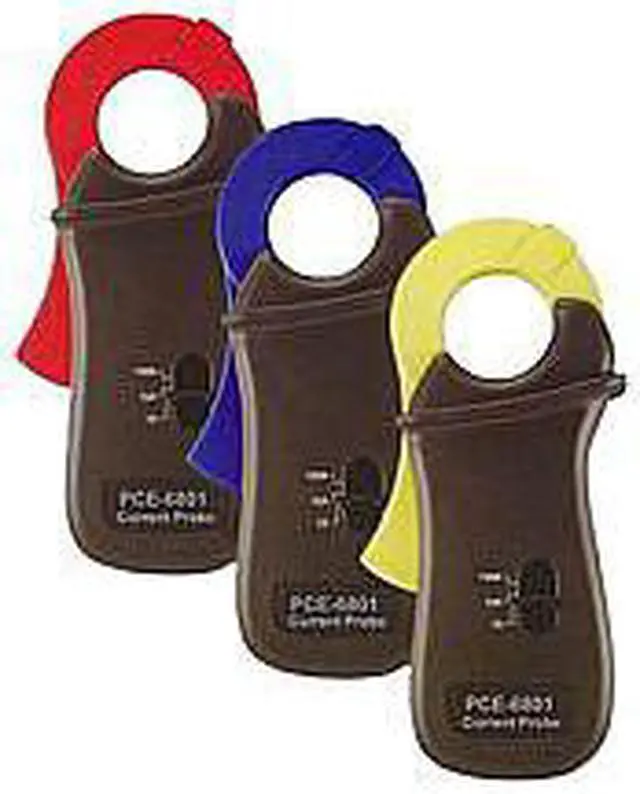

- PCE-830 + PCE-6801 amp clamp (100 A)
- Electrical conductor pick-up: 30 mm / 1.1 in diameter
- Range selection: manual (1 A, 10 A, 100 A)
- Clamp dimensions: 210 mm x 62 mm x 36 mm / 8.2 in x 2.4 in x 1.4 in
- Sampling rate: 2 sec.
- Memory size: 512 kB (max. 52,000 values (single phase)
- Analysis of a network of 3 phases / 4 conductors, 3 phases / 3 conductors, 1 phase / 2 conductors, 1 phase / 3 conductors
- Measures effective real value (V 123 and I 123)
- Measures active power (W, KW, MW, GW)
- Measures apparent and reactive power (KVA, KVAR)
- Power Factor (PF), phase angle ()
- Measures energy and work (Wh, KWh, KVARh, PFh)
- Measures current from 0.1 mA to 3000 A, allowing for the reserve power of a factory to be determined

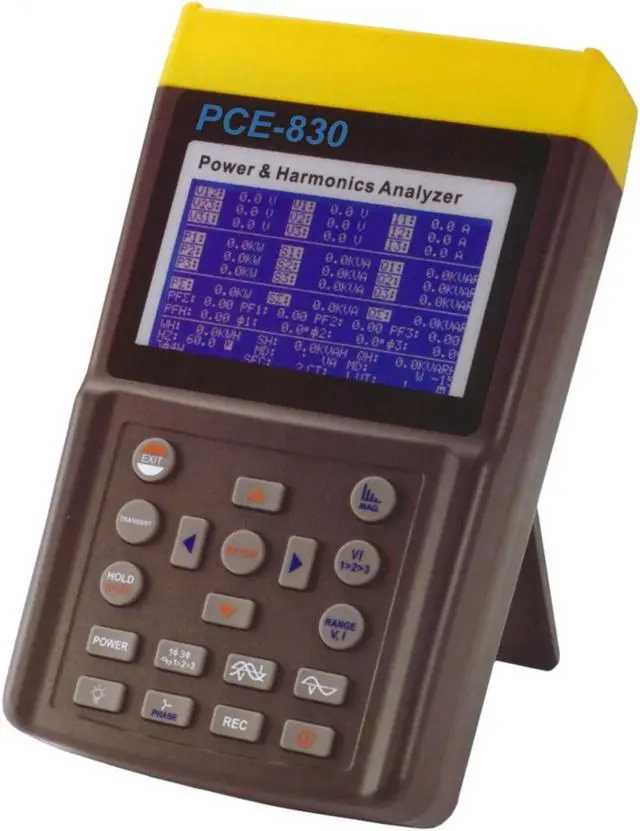

- Large LCD that shows up to 35 parameters simultaneously (3P4W [=3 phases/4 conductors])
- CT conditions (1 to 600) and PT (1 to 3000) are programmable
- Indicates current wave forms and voltage overlap.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Clamp Meter with 3 phases / Measures power and analyses harmonics with memory / Interface and software. Analysis of a network of 3 phases / 4 conductors, 3 phases / 3 conductors, 1 phase / 2 conductors, 1 phase / 3 conductors. Measures effective real value (V 123 and I 123) Measures active power (W, KW, MW, GW) Measures apparent and reactive power (KVA, KVAR) Power Factor (PF), phase angle () Measures energy and work (Wh, KWh, KVARh, PFh) Measure current from 0.1 mA to 3000 A, allowing for the reserve power of a factory to be determined.
Large LCD that shows up to 35 parameters simultaneously (3P4W [=3 phases/4 conductors]) CT conditions (1 to 600) and PT (1 to 3000) are programmable. Indicates current waveforms and voltage overlap. 512 KB of memory with programmable intervals to save data every 2 to 3000 seconds, 17, 470 readings using the system of 3 phases / 4 conductors. Indicates wave forms, efficiency parameters, and harmonic distortion.
Large LCD that shows up to 35 parameters simultaneously (3P4W [=3 phases/4 conductors]) CT conditions (1 to 600) and PT (1 to 3000) are programmable. Indicates current waveforms and voltage overlap. 512 KB of memory with programmable intervals to save data every 2 to 3000 seconds, 17, 470 readings using the system of 3 phases / 4 conductors. Indicates wave forms, efficiency parameters, and harmonic distortion.
