PCE-917 Differential Pressure Meter, ± 5 to 7000 mbar
- Pressure measuring range: ± 700 kPa / ± 101.5 psi / ± 7 bar
- Resolution: 500 Pa / 0.0725 psi / 0.005 bar
- 10 measurement units: psi, mbar, inH2O, mH2O, inHg, mmHg, Torr, Pa / kPa, atm, kg/cm²
- Optional PC software with RS-232 cable sold separately as a data transfer accessory
- ± 5 to 7000 mbar (± 0.05 / 0.1 to 101.5 psi) measuring range
- Designed to measure air, gas and non-corrosive liquid pressures
- Min, max and data hold functions
- RS-232 port / interface
- 15 mm / 0.6 in LCD screen
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

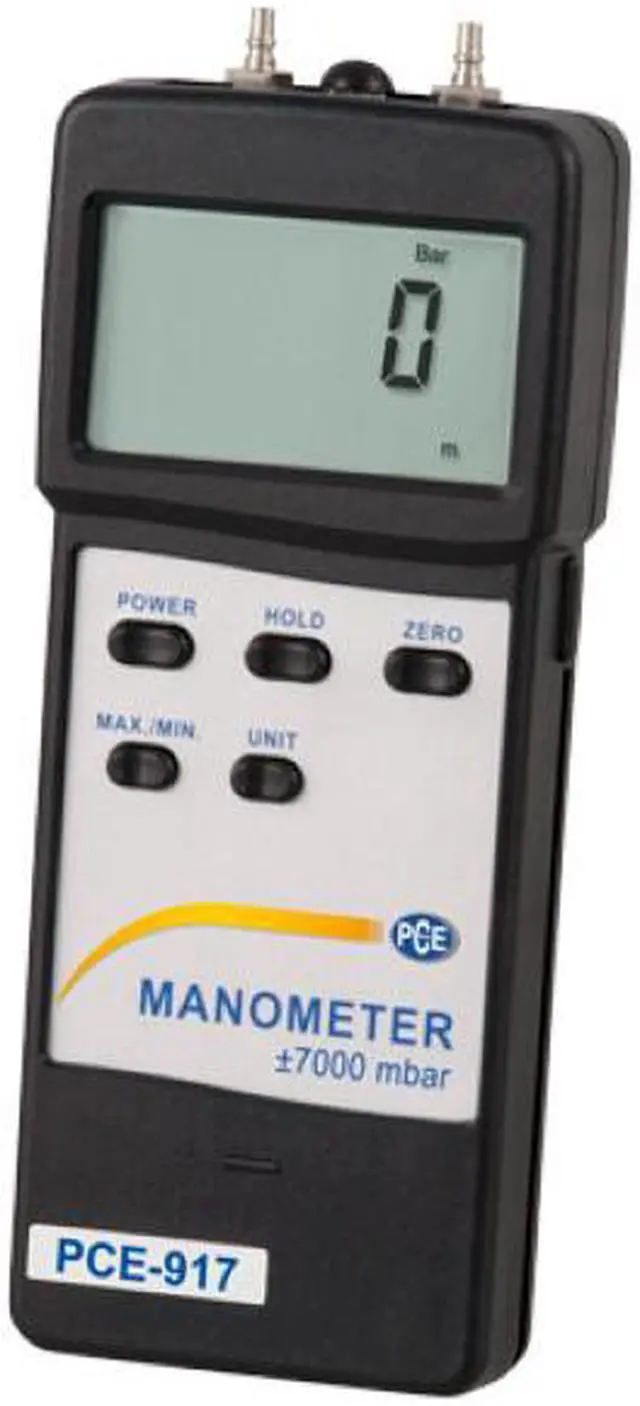

PCE-917 is a portable handheld digital differential pressure meter or manometer used to measure differential pressure in pneumatic, compressor and pump installations, valves, tanks and heating, ventilation and air conditioning (HVAC) systems. The PCE-917 features a dust-proof, splash-resistant housing, allowing the meter to be used under adverse conditions.

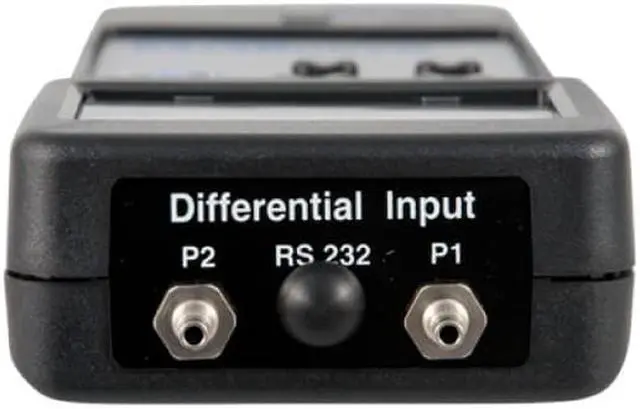

The PCE-917 differential pressure manometer comes with 1 x 1 m / 3 ft long silicon tube, 2 x stainless steel tube adapters and 1 x 9V block battery. Optional PC software with RS-232 cable sold separately as a data transfer accessory. The software can be used to transmit the data to a computer for evaluating, documenting and storing pressure fluctuations. Simply connect the differential manometer via RS-232 to your computer for analysis.
The PCE-917 differential pressure manometer comes with 1 x 1 m / 3 ft long silicon tube, 2 x stainless steel tube adapters and 1 x 9V block battery. Optional PC software with RS-232 cable sold separately as a data transfer accessory. The software can be used to transmit the data to a computer for evaluating, documenting and storing pressure fluctuations. Simply connect the differential manometer via RS-232 to your computer for analysis.
