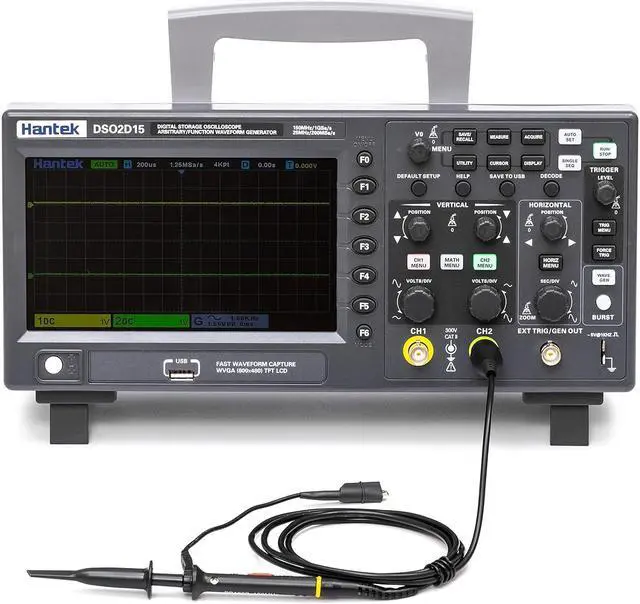

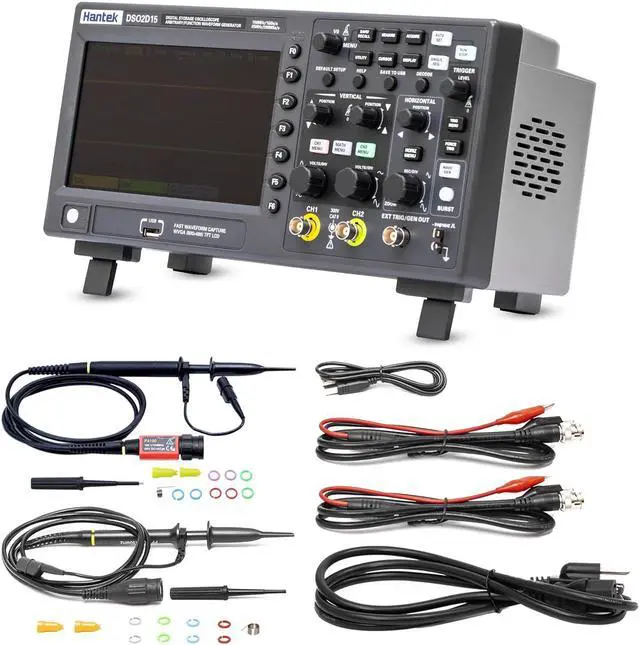

Digital Storage Lab Oscilloscopes150MHz Bandwidth 2CH Dual Channel 1GSa/s 8M Memory Depth with 1CH Waveform Generator

Key Features
Vertical range 2mV/div ~ 10V/div
Trigger: Edge, Pulse, Video, Slope, Overtime, Window, Pattern, Interval, Under Amp, UART, LIN, CAN, SPI, IIC
BUS decode and protocol analysis: RS232/UART, I2C, SPI, CAN, LIN
Save multiple data formats, such as settings, waveforms, reference waveforms, CSV, pictures
A 3-digit digital voltage meter and a 6-digit hardware frequency indicator
32 kinds of auto measurements with statistics, real-time statistics of maximum, minimum, standard deviation and etc.
2 sets of digital voltmeters
Support threshold testing, free measurements within the screen
Abundant SCPI remote command control
USB Host/Device.

1CH 25MHz waveform generator, support arbitrary waveform burst output, support modulation waveform output

32 kinds of auto measurements with statistics

Can save 10 sets of reference waveforms, CSV waveforms and settings. The USB one-click screenshot function.

2 sets of DVM, 3-digit digital voltage meter and 6-digit hardware frequency indicator functions

8M memory depth, reducing waveform distortion and restore real waveforms

Serial bus trigger and decode, with the protocol monitoring function

PASS/FAIL

X-Y format and display in dual windows
