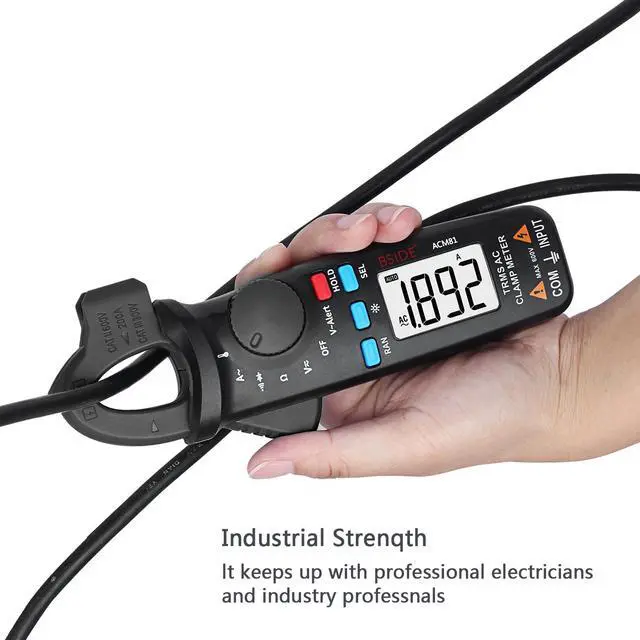

DURFICST ACM81 Leakage Current Clamp Meter 2000 Counts Multimeter Auto Range Current Voltage Tester AC DC Ammeters High Precision Digital Display Current Sensor
- Multi-purpose: The leakage clamp meter can accurately test the distortion of AC voltage and current signals, and is suitable for safely and accurately eliminating various automotive and household electrical problems.
- Basic parameters: The AC ammeter model is ACM81, supports 2000 count display, the clamp size is 20mm, the working altitude is 0~2000m, the conversion speed is 3 times/second, and the working temperature is 0~40.
- Multi-function: The digital display ammeter supports temperature testing, data retention, automatic shutdown and over-range indication functions, and adopts non-contact voltage detection to expand the use environment.

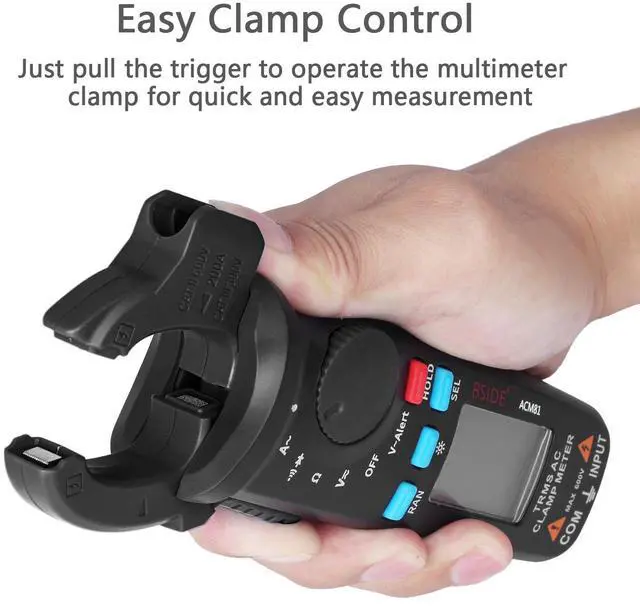

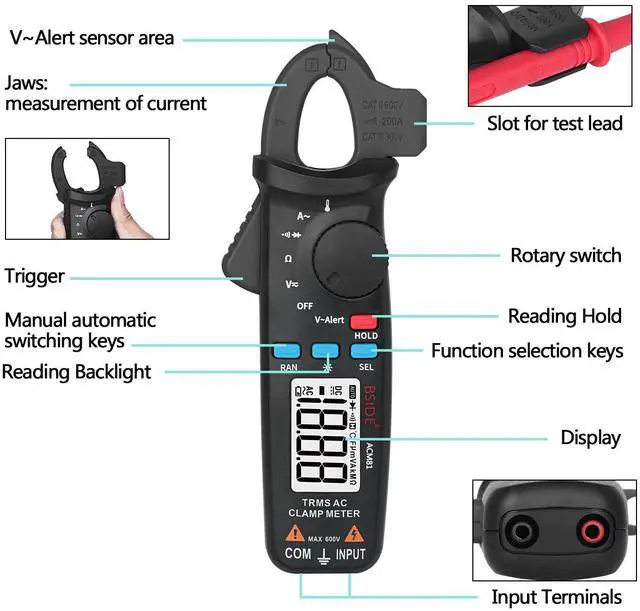

- Unique design: The handheld multimeter adopts LCD backlight display design, which can be used even in dark environments. The jaws are optimized and the test pen clip is added for easy one-handed operation.
- Easy to carry: The current sensor is small in size and light in weight. Suitable for use in narrow spaces.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
:Model: ACM81
Display: 2000 counts
DC Voltage: 2V/20V/200V/600V/ 0.001V / 0.01V / 0.1V /1V ( 1.0 % + 3 digits)
AC Voltage: 2V/20V/200V/600V/ 0.001V / 0.01V / 0.1V /1V ( 1.0 % + 3 digits)
Resistance: 200/2k/20k/200k/2M/ 0.1 / 0.001 k/ 0.01 k/ 0.1 k/ 0.001M ±( 1.0 % + 3 digits)
20M/ 0.1M ±( 1.2 % + 20 (digits)
Buzzer: If the tested circuit has a resistance less than 30, the buzzer will sound an alarm.
Temperature: -20°C~500°C/-4~932°C/1°C/2°C ( 2.0 %+2 digits)
Clamp Size: 20 mm
Operating Temperature: 0°C~40°C
Storage Temperature: -10°C~50°C
Relative Humidity: 75%
Operating Altitude: 0~2, 000 m
Conversion Speed: 3 times/sec.
Over-Range Indicator: The LCD will display "OL"
Polarity: Automatic
Auto Power Off: 15 minutes, buzzer.
Power Supply: 2 x 1.5V AAA Batteries (NOT included)
Weight: 340g/ 12.0 oz (approx. )
Package List:
1 x Current Clamp Meter (Batteries are not included)

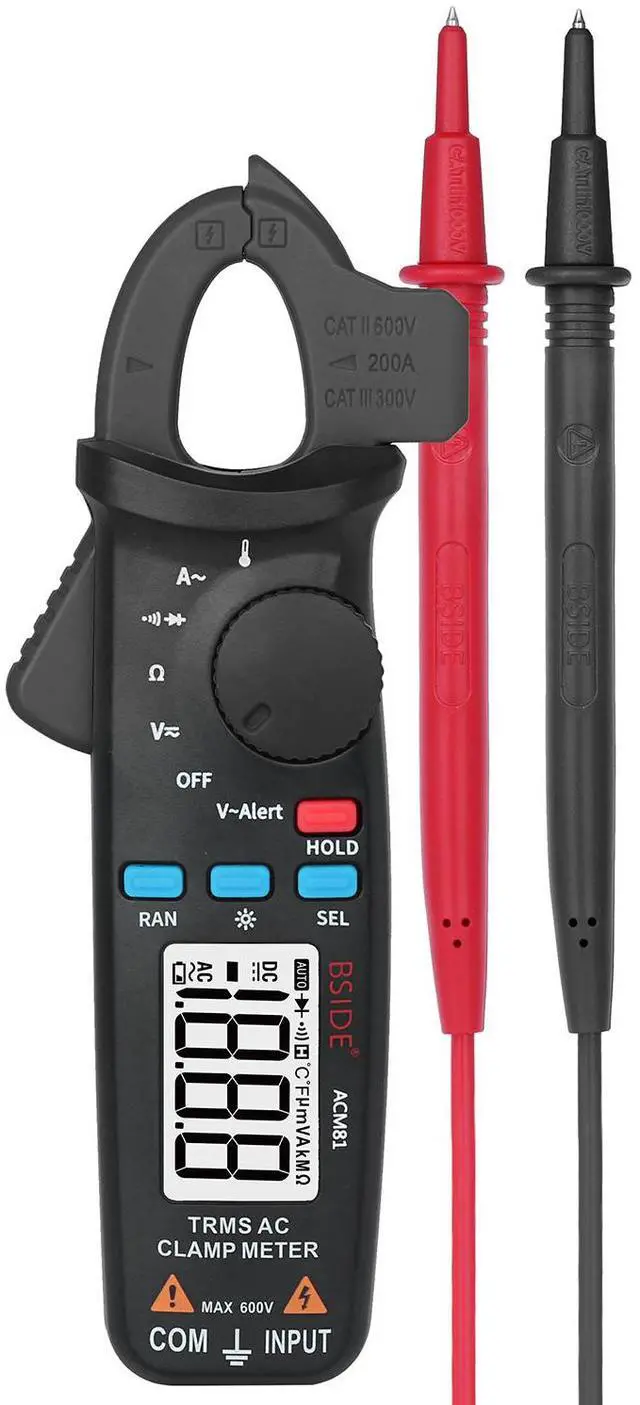

1 x Test Leads
1 x Screwdriver
1 x Storage Bag
1 x User Manual
Tips:
The actual product color may differ from the photo due to lighting.
There may be a slight deviation in the measurement of the product.
