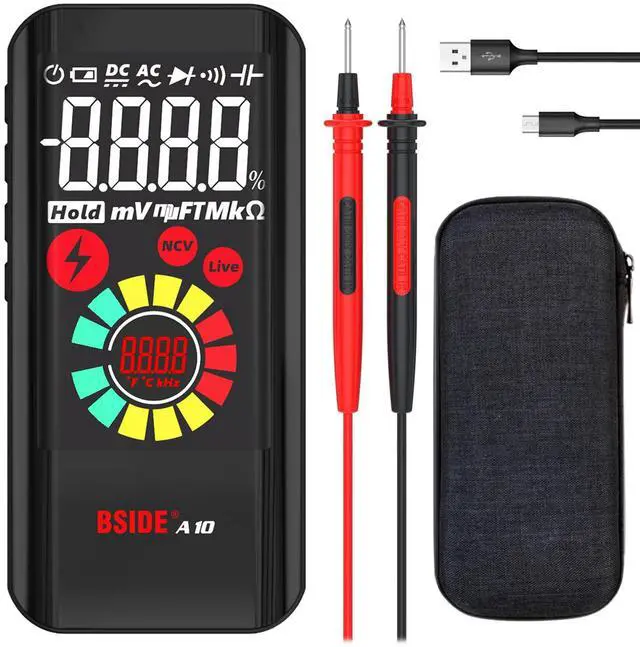

DURFICST A10 Mini Rechargeable Digital Multimeter Large Color LCD 6000 Counts Auto Range Voltage Resistance Continuity Tester, NCV Diode Capacitance Tester with Beep Sound Flashlight
- EASY TO USE - This smart digital multimeter defaults to smart mode, quickly and automatically identifying AC or DC voltage, resistance, continuity, and frequency. User-friendly for beginners.

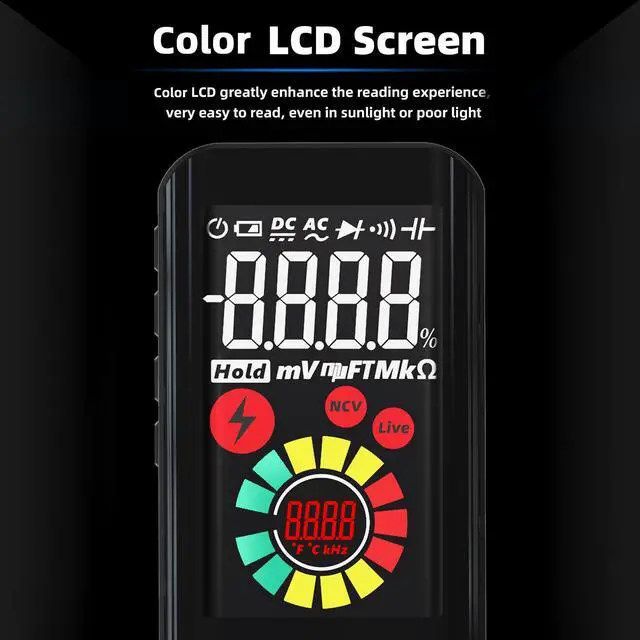

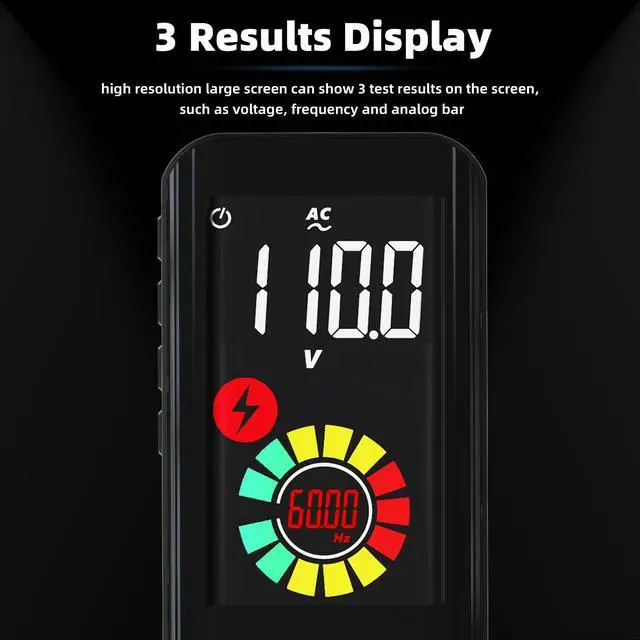

- LARGE COLOR DISPLAY - This automatic multimeter features a large, high-resolution EBTN display that's easy to read, especially in low light conditions. The LCD screen displays 3 test results, which can be locked with a single button.
- MULTIFUNCTION - The side switch allows you to test capacitance, diode, duty cycle, and other functions in manual mode. A beep will sound when checking for continuity or short circuits, detecting a live wire, a phase, etc.

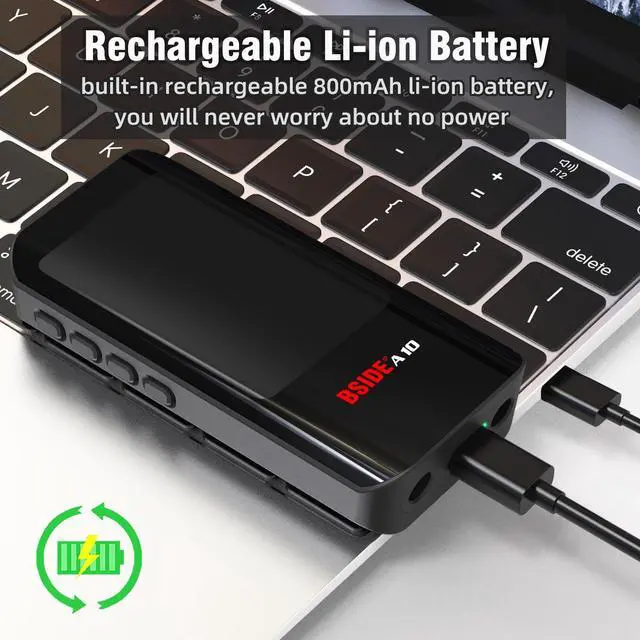

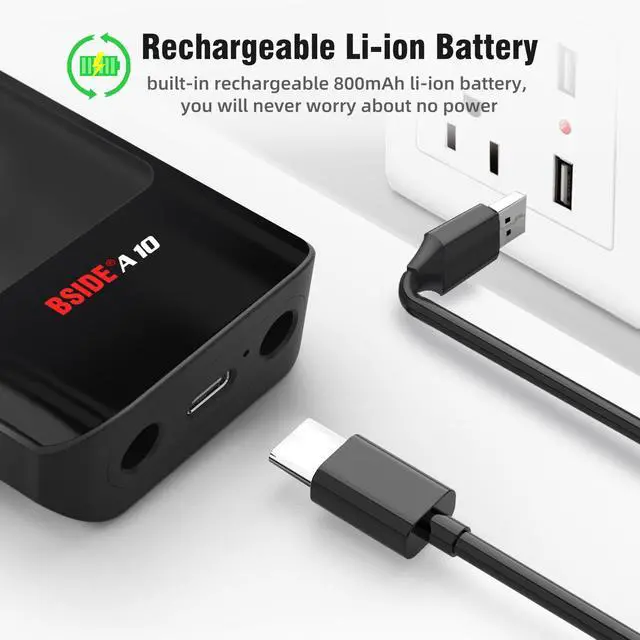

- RECHARGEABLE - With the built-in rechargeable battery and flashlight, frequent battery changes are no longer necessary, making long working hours and wiring in the dark a breeze. MINI MULTIMETER - IMD process, compact, stylish and fashionable design with side buttons to differentiate.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Are you looking for a versatile but mini size multimeter?
Our A10 multimeter can measure: - AC voltage, DC voltage, resistance, continuity and frequency in Auto/Manual mode - Capacitance, diode, duty cycle and live wires - Non-contact AC voltage detection Large color
EBTN display with: - Test value, Analog band, ambient temperature (frequency) - Measured reading lock function - Auto range, Auto power off Burn and overload protection Elegant and miniature appearance, comfortable in hand
Display: 6000 counts
Screen: Color EBTN
DC Voltage: 0V-600V, 1-600V (Auto Mode); ( 0.8 % + 3);
Resolution: 0.001V
AC Voltage: 0V-600V, 1-600V (Auto Mode); ( 1.2 % + 5);
Resolution: 0.001V
Resistance: 0.1 -60M, ( 1.2 %+3);
Resolution: 0.1

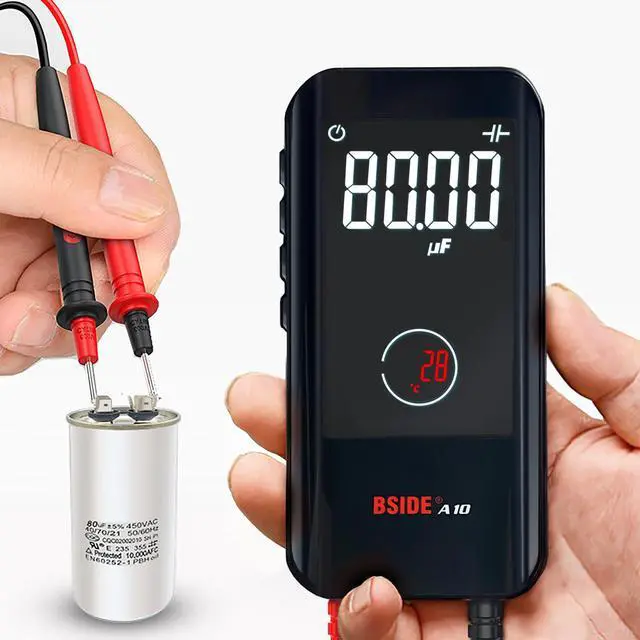

Capacitance: 1nF- 60.00 mF, ( 3.5 %+8);
Resolution: 0.001 nF
Frequency: 10Hz-10MHz, ( 2.0 %+10), ACV: 3V-600V;
Resolution: 0.1H z
Duty Cycle: 0.1 %- 99.9 %, ( 1.5 %+5);
Resolution: 0.1 %

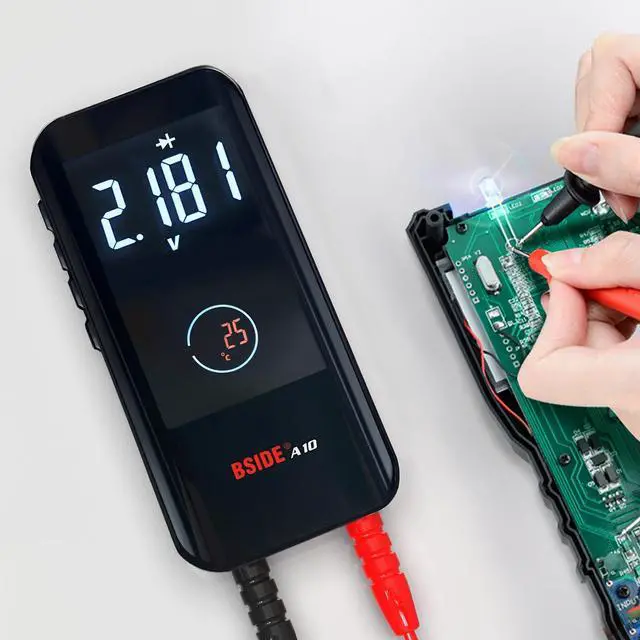

Diode: Automatic identification if less than 3V
NCV: For AC voltage up to 1000V with audible alarm
Live wire search: An audible alarm is emitted
Continuity: If the resistance is less than 50, the audible alarm is emitted
Power supply: 3.7V rechargeable battery
Dimensions: 113.3 x 54.2 x 22 mm
Weight: 102g
Scope of delivery: Rechargeable pocket multimeter Test leads Carrying case Charging cable English instructions
Our A10 multimeter can measure: - AC voltage, DC voltage, resistance, continuity and frequency in Auto/Manual mode - Capacitance, diode, duty cycle and live wires - Non-contact AC voltage detection Large color
EBTN display with: - Test value, Analog band, ambient temperature (frequency) - Measured reading lock function - Auto range, Auto power off Burn and overload protection Elegant and miniature appearance, comfortable in hand
Specifications
:Display: 6000 counts
Screen: Color EBTN
DC Voltage: 0V-600V, 1-600V (Auto Mode); ( 0.8 % + 3);
Resolution: 0.001V
AC Voltage: 0V-600V, 1-600V (Auto Mode); ( 1.2 % + 5);
Resolution: 0.001V
Resistance: 0.1 -60M, ( 1.2 %+3);
Resolution: 0.1
Capacitance: 1nF- 60.00 mF, ( 3.5 %+8);
Resolution: 0.001 nF
Frequency: 10Hz-10MHz, ( 2.0 %+10), ACV: 3V-600V;
Resolution: 0.1H z
Duty Cycle: 0.1 %- 99.9 %, ( 1.5 %+5);
Resolution: 0.1 %
Diode: Automatic identification if less than 3V
NCV: For AC voltage up to 1000V with audible alarm
Live wire search: An audible alarm is emitted
Continuity: If the resistance is less than 50, the audible alarm is emitted
Power supply: 3.7V rechargeable battery
Dimensions: 113.3 x 54.2 x 22 mm
Weight: 102g
Scope of delivery: Rechargeable pocket multimeter Test leads Carrying case Charging cable English instructions
