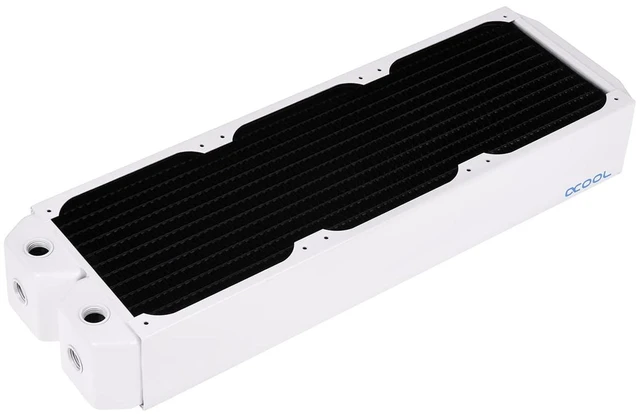

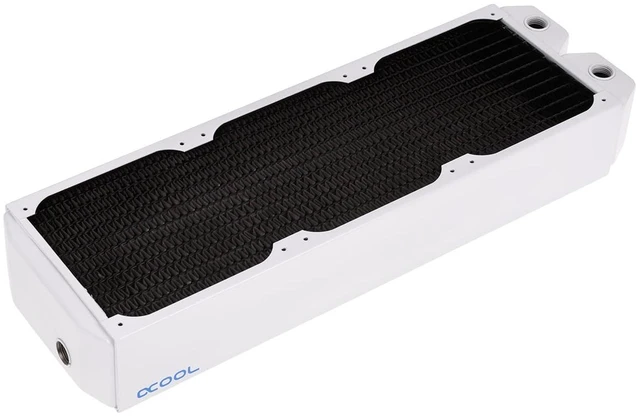

Alphacool NexXxoS UT60 Full Copper 360mm Radiator | White Special Edition (14194)
- The new Alphacool NexXxos radiators, a name that stands for experience and quality has come to bring a fresh breeze to the radiator market
- Every user of a water cooling system needs a radiator and everyone has different requirements towards the heat exchanger
- Of course the customer always demands the best in its class
- The Alphacool NexXxos radiators have come to compete with and to beat the best in their class and to be the best radiator in all sizes
- In the box: Radiator; 5x Plugs; 12x M3 x 30mm mounting screws; 12x M3 x 35mm mounting screws
+
+
Overview
Specs
Reviews
See all Q & A
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
The Alphacool Special Edition White radiators are a sleek way to add variety or color coordination to your rig. The gloss white finish is high quality with the same performance as it's unpainted counterpart. The Alphacool NexXxoS radiators are the highest value, most versatile radiators we carry here. They come in four different thicknesses, and in in just about every configuration imaginable! Perfect for nearly all fan speeds, the NexXxoS series radiators look sleek and will last multiple builds.

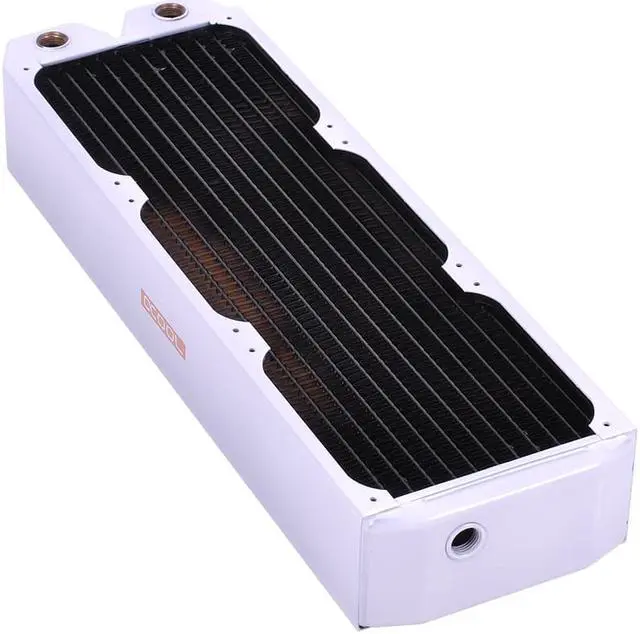

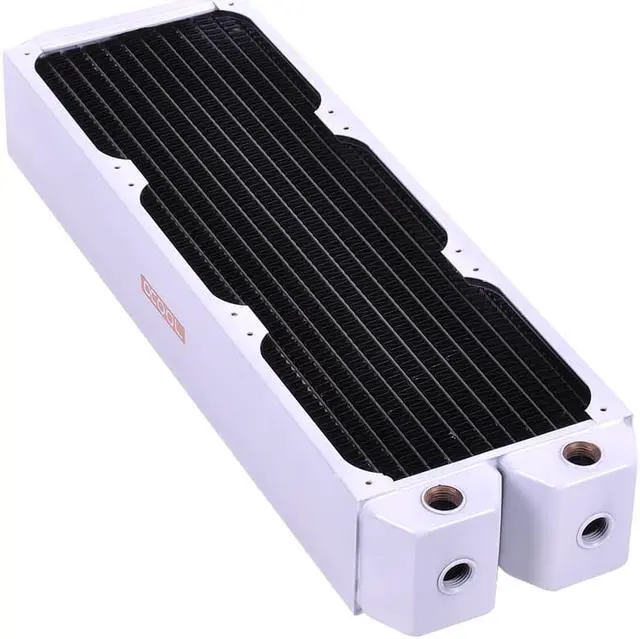

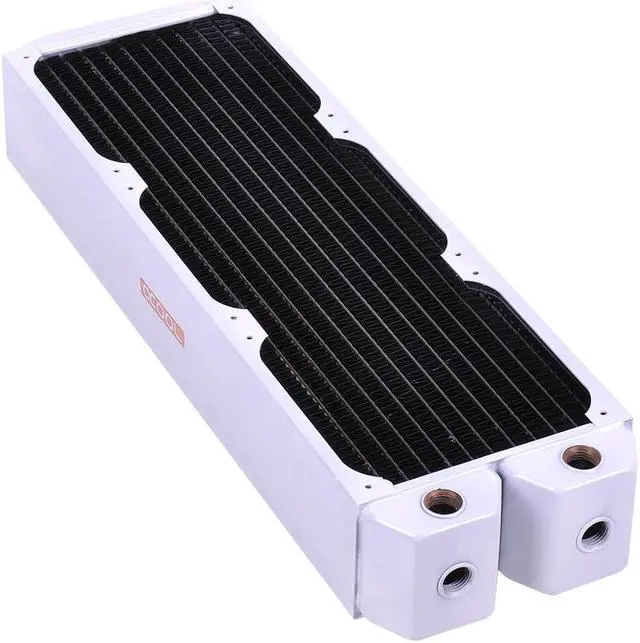

The Alphacool NexXxoS UT60 Full Copper 360mm Radiator, White Special Edition is a 360 mm radiator for three 120 mm fans, 60 mm thick, in white. It measures 397 x 124 x 60 mm and has six G1/4 connections and M3 fan threads. The same size in black is the NexXxoS UT60 Full Copper 360mm Radiator.
Properties
- Fans: 3 x 120 mm, M3 fan thread
- Size (L x W x H): 397 x 124 x 60 mm
- Thickness: 60 mm
- Ports: 6x G1/4
- Material: Copper cooling channels and slats, steel housing
- Color: White
Full copper
Alphacool says the new NexXxoS radiators are the first to truly deserve the "Full copper" attribute. Not only the fins and channels are made from copper, but all main parts, and the chambers also. According to Alphacool, this brings an improvement in performance where other radiators are left without a chance. It adds that the material already gives an advantage over the competition, with an inner structure that is up to par with it. Separated chambers give the coolant a clear direction, allowing high flow rates which improve the performance of the whole cooling loop. The chambers on the heat exchanger are flat. Thanks to the reduced overall length that brings, they increase mounting flexibility.
Ports and mounting

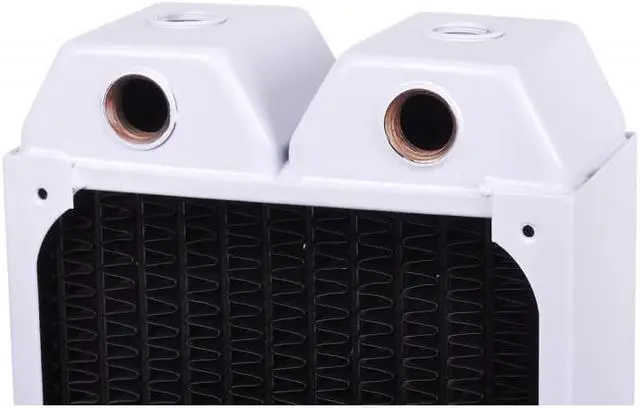

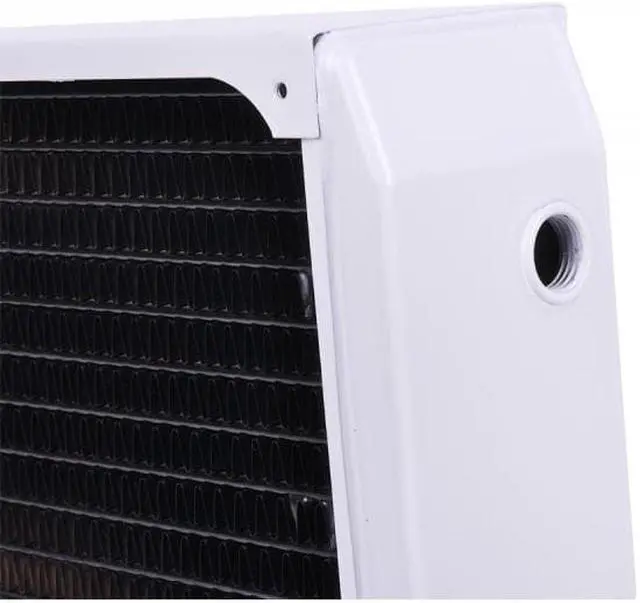

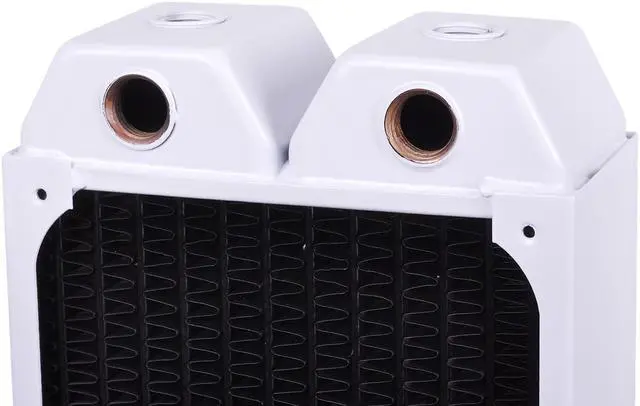

The research and development department at Alphacool focused on versatile and easy mounting as one of the main points. On both inlet and outlet, the chamber offers three possibilities for fitting installation (not on the NexXxoS ST30). Less angled fittings are needed that way, improving flow rates and offering more mounting possibilities. Hence the radiator can even be installed in tight enclosures, where internal installation is otherwise not a possibility. A G1/4 screw plug, found on all UT60 and NexXxoS Monsta radiators, allows easy de-aeration and hassle-free vertical installation of the heat exchanger. The threaded opening it closes can even be used for filling, e.g. in combination with a Fillport.
What the loop needs
The radiator has six G1/4 connections, three on the inlet and three on the outlet. A loop uses two of them, so it takes two fittings. The radiator takes three 120 mm fans, and the twelve M3 x 30mm and twelve M3 x 35mm mounting screws in the box go into its M3 fan threads.
Technical data
- Dimensions (L x W x H): 397 x 124 x 60 mm
- Quantity of cooling channels: 36
- Thickness: 49 - 69mm
- Cooling channels: Copper
- Fan thread: M3
- Connection: 6x G1/4
- Slats: Copper
- Color: white
- Number of fans: 3
- Fan size: 120mm
- Housing: Steel
- Manufacturer: Alphacool
- Pressure tested: 0.8 bar
- Fins per inch: 10
Notes
- Please use the radiator only in conjunction with clear, transparent water cooling fluids. Alphacool warns that the particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.
In the box
- Radiator
- 5x Plugs
- 12x M3 x 30mm mounting screws
- 12x M3 x 35mm mounting screws
