Alphacool NexXxoS UT60 Full Copper 420mm Radiator (14179)

The Alphacool NexXxoS UT60 Full Copper 420mm Radiator is a 420 mm radiator for three 140 mm fans, 60 mm thick. It measures 466 x 144 x 60 mm and has seven G1/4 connections and M3 fan threads.

Properties

• Fans: 3 x 140 mm, M3 fan thread
• Size (L x W x H): 466 x 144 x 60 mm
• Thickness: 60 mm
• Ports: 7x G1/4
• Material: Copper cooling channels and slats, steel housing
• Color: Black

Full copper

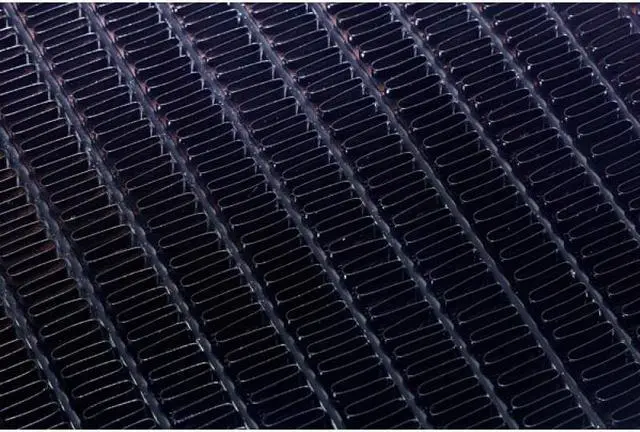

Alphacool says the new NexXxoS radiators are the first to truly deserve the "Full copper" attribute. Not only the fins and channels are made from copper, but all main parts, and the chambers also. According to Alphacool, this brings a dramatic improvement in radiator performance, where other radiators are left without a chance. It adds that the material already gives an advantage over the competition, with an inner structure that is up to par with it. Separated chambers give the coolant a clear direction, allowing high flow rates which improve the performance of the whole cooling loop. The chambers on the heat exchanger are flat. Thanks to the reduced overall length that brings, they increase mounting flexibility.

Ports and mounting

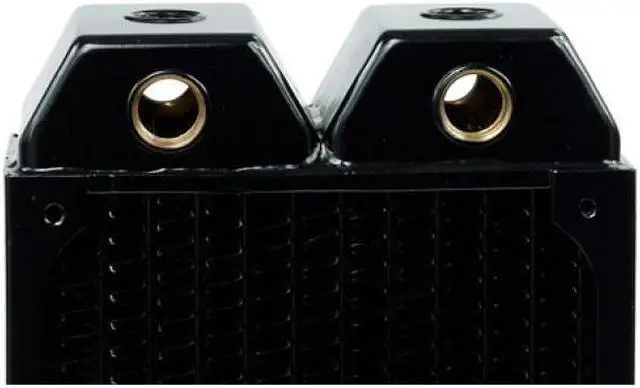

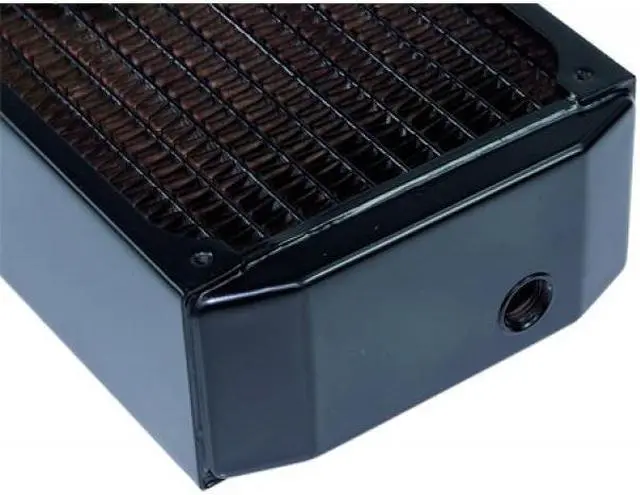

The research and development department at Alphacool focused on versatile and easy mounting as one of the main points. On both inlet and outlet, the chamber offers three possibilities for fitting installation (not on the NexXxoS ST30). Less angled fittings are needed that way, improving flow rates and offering more mounting possibilities. Hence the radiator can even be installed in tight enclosures, where internal installation is otherwise not a possibility. A G1/4 screw plug, found on all UT60 and NexXxoS Monsta radiators, allows easy de-aeration and hassle-free vertical installation of the heat exchanger. The threaded opening it closes can even be used for filling, e.g. in combination with a Fillport.

What the loop needs

The radiator has seven G1/4 connections: three on the inlet, three on the outlet and the de-aeration port. A loop uses two of them, so it takes two fittings. The box holds five screw plugs for the openings the loop leaves unused. The radiator takes three 140 mm fans, and the twelve M3x30mm and twelve M3x35mm hexagon bolts in the box go into its M3 fan threads.

The next thickness down in this fan size is the NexXxoS XT45 Full Copper 420mm Radiator, and the next one up is the NexXxoS Monsta 420mm Radiator.

Technical data

• Dimensions (L x W x H): 466 x 144 x 60 mm
• Quantity of cooling channels: 42
• Thickness: 49 - 69mm
• Cooling channels: Copper
• Color: black
• Fan thread: M3
• Number of fans: 3
• Connection: 7x G1/4
• Slats: Copper
• Housing: Steel
• Manufacturer: Alphacool
• Pressure tested: 0.8 bar
• Fins per inch: 10
• Fan size: 140mm

Notes

• Please use the radiator only in conjunction with clear, transparent water cooling fluids. Alphacool warns that the particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

In the box

• 1x Radiator
• 5x screw plugs
• 12x M3x30mm hexagon socket screws
• 12x M3x35mm hexagon socket screws
