Alphacool NexXxoS UT60 Full Copper X-Flow 480mm Radiator (14240)

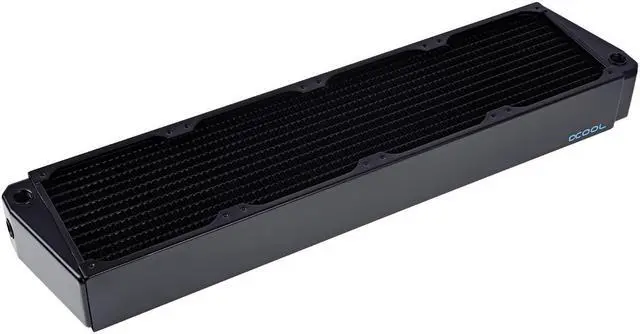

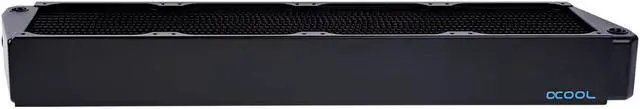

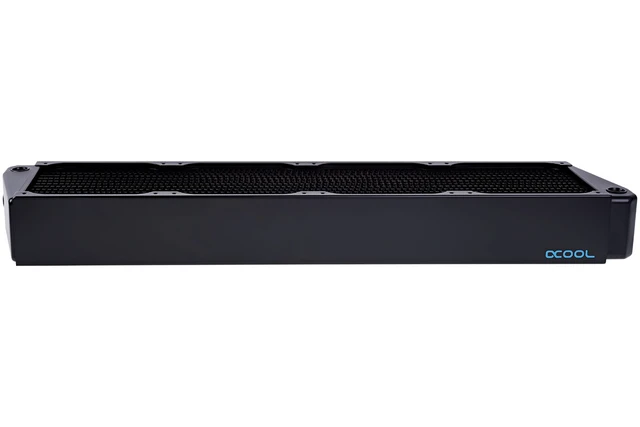

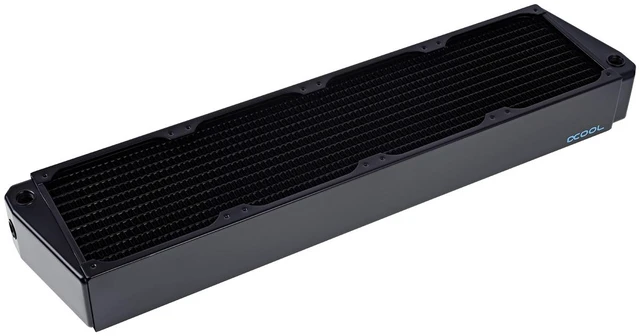

The Alphacool NexXxoS UT60 Full Copper X-Flow 480mm Radiator is a 480 mm radiator for four 120 mm fans, 60 mm thick, with six G1/4 connections. Water enters at one copper chamber and leaves at the opposite one. The thinner X-Flow radiator in the same fan size is the XT45 Full Copper X-Flow 480mm.

Properties

• Fans: 4x 120 mm
• Size (L x W x H): 532 x 124 x 60 mm
• Thickness: 60 mm
• Ports: 6x G1/4
• Material: copper fins, channels and chambers, steel housing
• Fins per inch: 10

Full copper

Alphacool says the new NexXxoS radiators are the first to truly deserve the "Full copper" attribute. All main parts are made from copper: not only the fins and channels, but the chambers also. In Alphacool's view this brings an improvement in performance where other radiators are left without a chance.

X-Flow

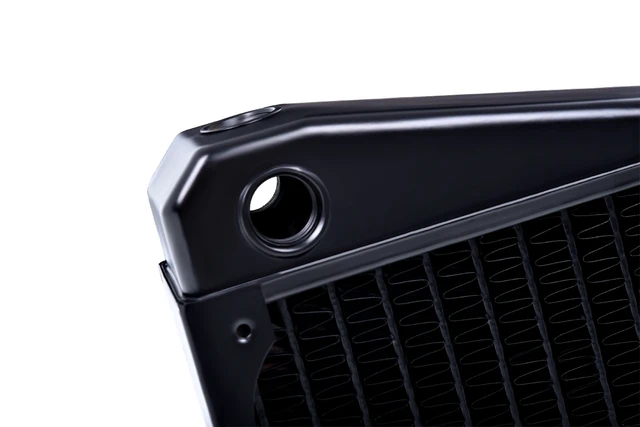

In structure, the X-Flow radiators differentiate materially from the standard radiators, because they are designed for high flow rates. The beveled copper chambers on both sides have an identical structure. From one chamber the water goes jetting through all available channels at the same time to the other chamber, from which it then leaves the radiator.

Mounting

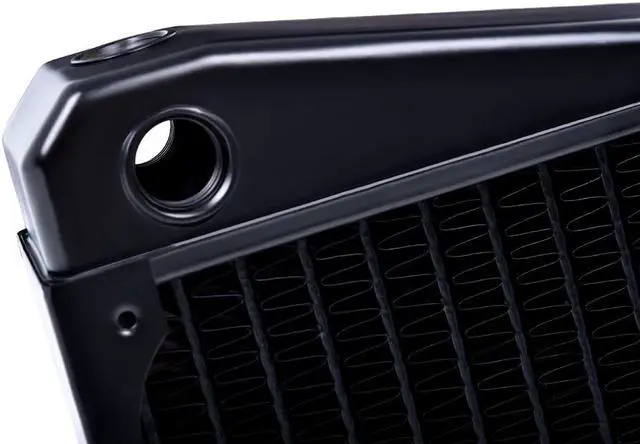

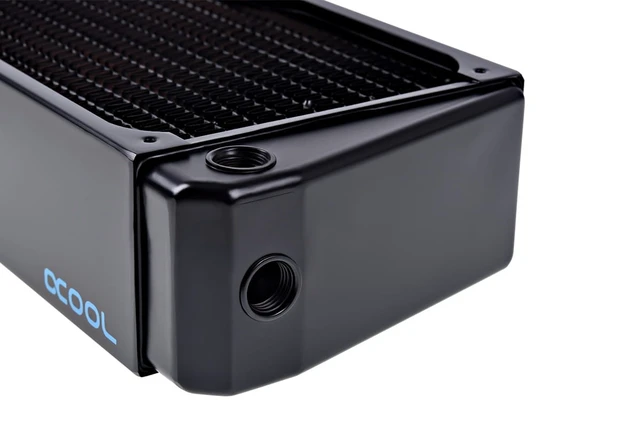

Versatile and easy mounting is one of the main points on which the research and development department at Alphacool focused. The chamber offers three possibilities for fitting installation on both inlet and outlet, which Alphacool notes is not so on the NexXxoS ST30. With three to choose from, less angled fittings are needed, improving flow rates and offering more mounting possibilities. Alphacool adds that even mounting and installation of fans and radiator grills is easy and versatile with these radiators. The M3 threads are standard in the radiator sector, and M3 screws are available in all lengths at an affordable price.

Screw protection

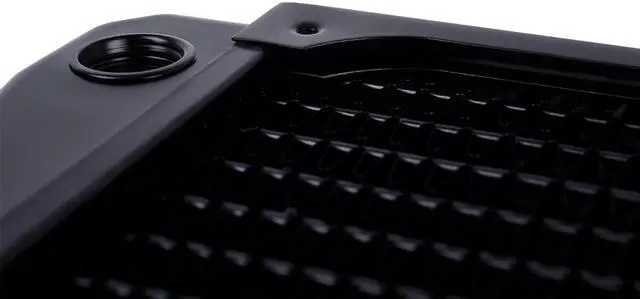

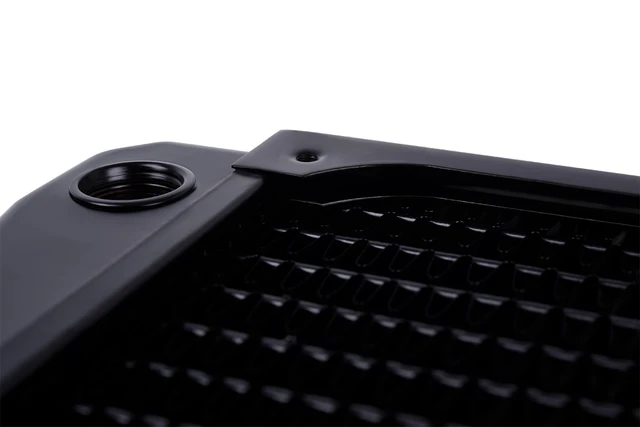

A screw that is too long is the dreaded mistake on any radiator. Here its insertion too far into the radiator does not result in expensive damage. Unlike other radiators, Alphacool says, the NexXxoS series is equipped with an internal protective ledge which stops the screw before it damages the fins.

What the loop needs

Six G1/4 connections, three on each chamber: two are used, so the loop takes two G1/4 fittings, and the other four take the four screw plugs in the box. The radiator holds four 120 mm fans on its M3 fan thread.

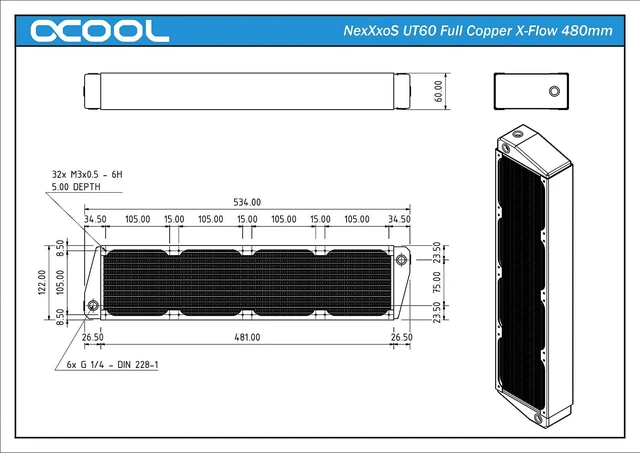

Technical data

• Dimensions (L x W x H): 532 x 124 x 60 mm
• Quantity of cooling channels: 36
• Thickness: 49 - 69 mm
• Cooling channels: Copper
• Color: black
• Fan thread: M3
• Connection: 6x G1/4
• Slats: Copper
• Fan size: 120 mm
• Housing: Steel
• Pressure tested: 0.8 bar
• Manufacturer: Alphacool
• Number of fans: 4
• Fins per inch: 10

Notes

• Use only clear, transparent water cooling fluids. Alphacool warns that the particles and additives in pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses, which can also void the manufacturer's warranty.

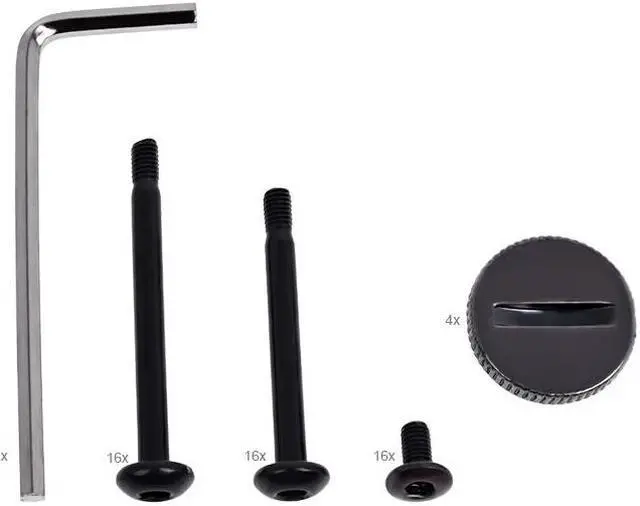

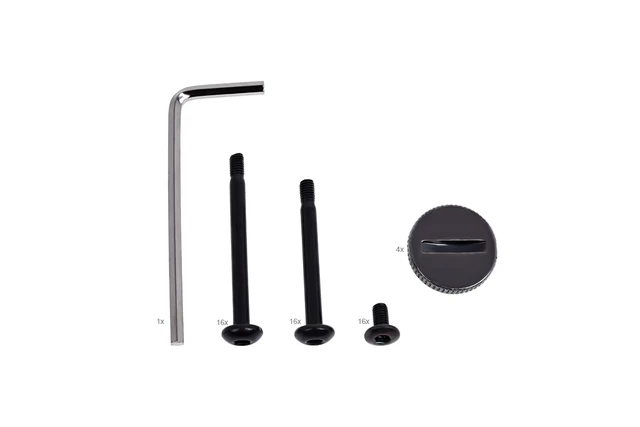

In the box

• 1x Radiator
• 4x screw plug
• Mounting Hardware
