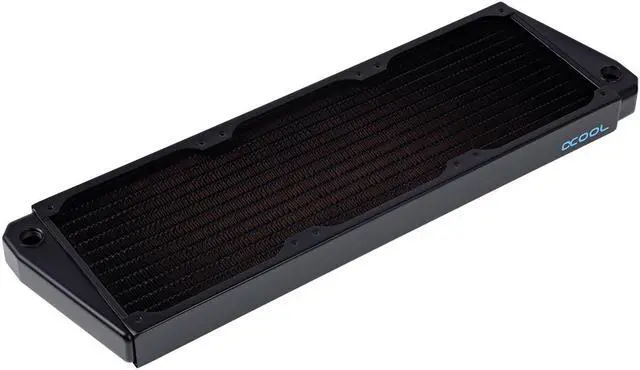

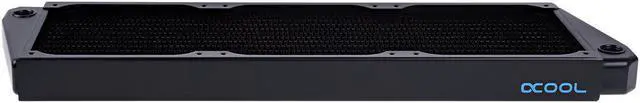

Alphacool NexXxoS ST30 Full Copper X-Flow 360mm Radiator (14230)
- The new Alphacool NexXxos radiators, a name that stands for experience and quality has come to bring a fresh breeze to the radiator market
- Every user of a water cooling system needs a radiator and everyone has different requirements towards the heat exchanger
- Of course the customer always demands the best in its class
- The Alphacool NexXxos radiators have come to compete with and to beat the best in their class and to be the best radiator in all sizes
- In the box: 1x Radiator; 2x screw plug; Mounting Hardware
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
The Alphacool NexXxoS ST30 Full Copper X-Flow 360mm Radiator is a 360 mm radiator for three 120 mm fans, 30 mm thick. It is the X-Flow type: the water goes in on one side and leaves on the other. It measures 413 x 124 x 30 mm and has M3 fan threads and four G1/4 connections.
Properties
- Fans: 3 x 120 mm, M3 fan thread
- Size (L x W x H): 413 x 124 x 30 mm
- Thickness: 30 mm (Alphacool's 29 - 39mm class)
- Ports: 4x G1/4
- Material: Copper cooling channels and slats, steel housing
- Fins per inch: 16
Full copper
Alphacool says the new NexXxoS radiators are the first to truly deserve the "Full copper" attribute. Not only the fins and channels but the chambers also are made from copper, which covers all main parts. Alphacool claims this brings an improvement in performance where other radiators are left without a chance.
X-Flow
In structure, Alphacool's X-Flow Radiators differentiate materially from the standard radiators: they are designed for high flow rates. There is a beveled copper chamber on each of the two sides, and both have an identical structure. Water jetting through all available channels at the same time reaches the other chamber, and from this chamber it then leaves the radiator.

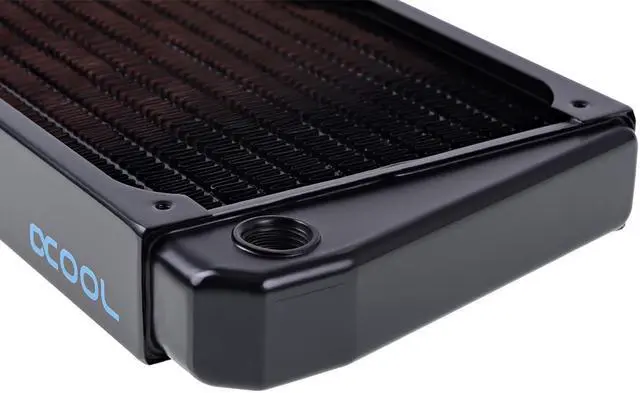

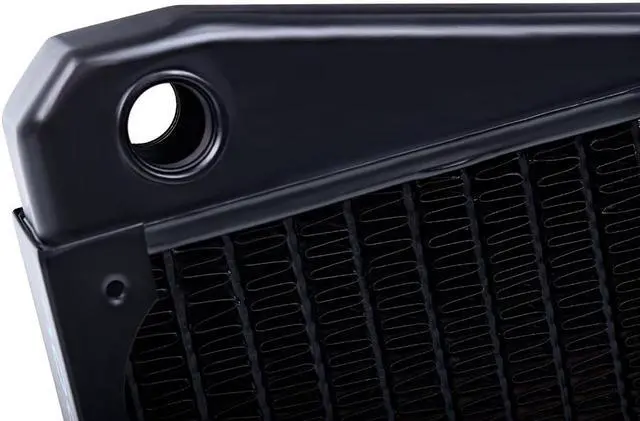

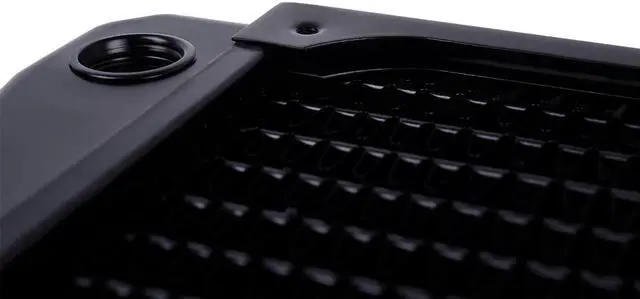

Ports and mounting
Versatile and easy mounting is one of the main points on which the research and development department at Alphacool focused. On the thicker radiators of the series the chamber offers three possibilities for fitting installation on both inlet and outlet (not on the NexXxoS ST30). Where they exist, less angled fittings are needed, improving flow rates and offering more mounting possibilities.
What the loop needs
Two of the four G1/4 connections are used, one as inlet and one as outlet, so the radiator takes two fittings. It takes three 120 mm fans on M3 threads, and mounting hardware is in the box.
The next thickness up in this fan size and type is the NexXxoS XT45 Full Copper X-Flow 360mm Radiator.
Technical data
- Dimensions (L x W x H): 413 x 124 x 30 mm
- Quantity of cooling channels: 12
- Cooling channels: Copper
- Color: black
- Connection: 4x G1/4
- Fan thread: M3
- Slats: Copper
- Number of fans: 3
- Fan size: 120mm
- Housing: Steel
- Pressure tested: 0.8 bar
- Manufacturer: Alphacool
- Thickness: 29 - 39mm
- Fins per inch: 16
Notes
- Alphacool asks that the radiator be used only in conjunction with clear, transparent water cooling fluids. It warns that the particles and additives in pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. That can also result in voiding the manufacturer's warranty.

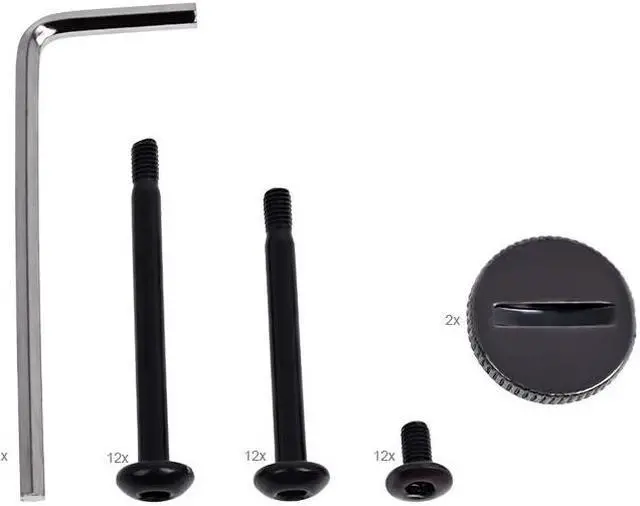

In the box
- 1x Radiator
- 2x screw plug
- Mounting Hardware
