Alphacool ES Quick Release Connector Kit AG/AG

The Alphacool ES Quick Disconnect Fittings Industry AG/AG are taken from the Alphacool Enterprise Solutions product range. Alphacool has concentrated on 3 main targets for the quick release fittings: a secure leak proof link, high tensile strength and a particularly low weight.

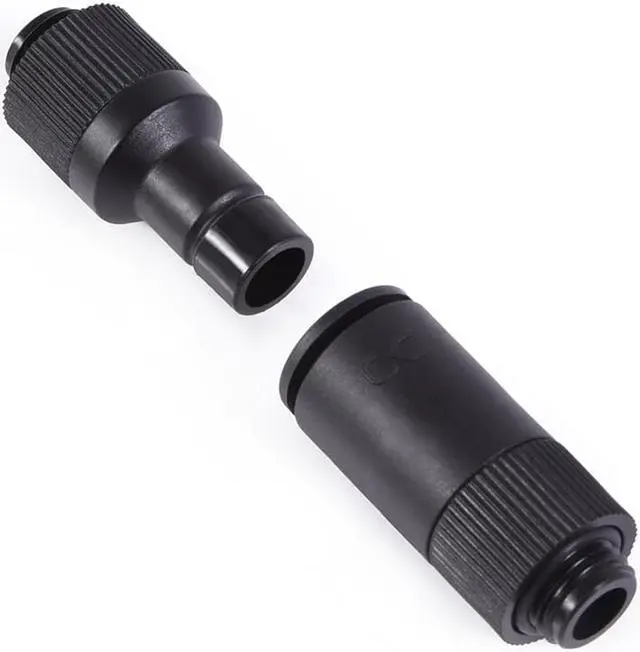

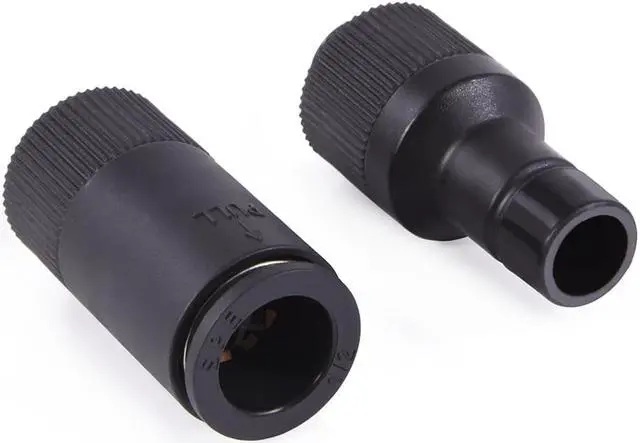

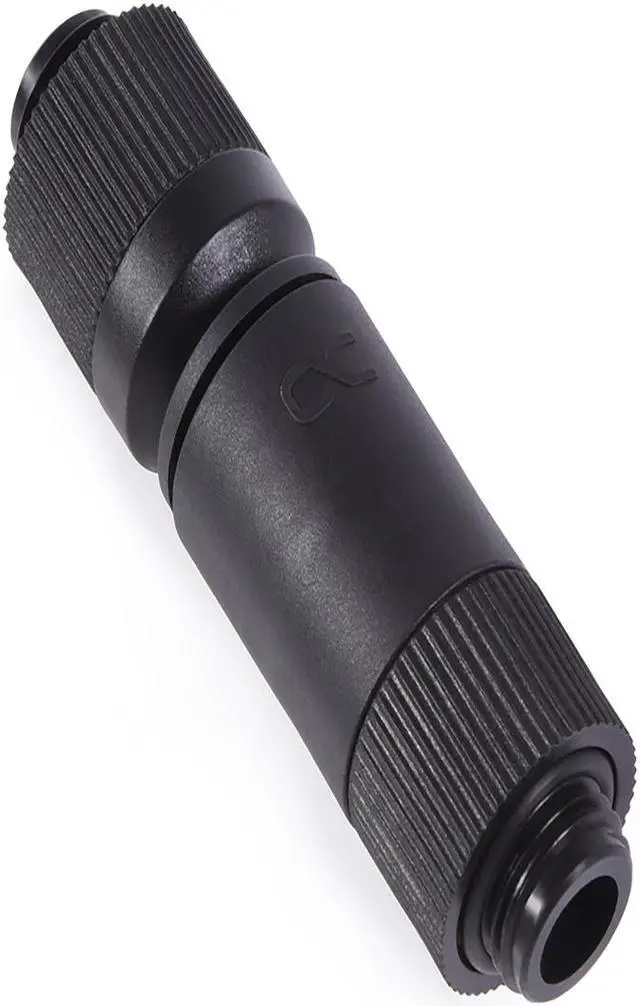

Common quick connectors can have a diameter of over 24mm. This Alphacool quick release connectors has a diameter of only 20 mm. To close the quick-release fastener, it only needs to be pushed together. To open it again, a small ring is pulled back. This makes the quick-release fastener pop open.

Due to the high packing density in modern servers, the quick release fastener is made of highly stable nylon. They are therefore non-conductive and cannot cause any short circuits. Nylon is also an ultra-light material, which makes it extremely easy to use.

With the Alphacool quick release connectors, the water flow is optimised to keep the resistance as low as possible. As with all Alphacool quick-release fasteners, this version also uses a double seal to ensure maximum tightness and therefore maximum safety. To further increase safety, a locking clip is also included to prevent accidental opening of the quick release fastener. An unlocking clip makes it easier to open the quick-release fastener if required.

Lightweight, extremely thin, high security and the non-conductive material are the basic characteristics of this quick release connector which has been developed especially for industry and servers.

Technical data:
L x D: 73.3 x 20 mm
Net weight: 22 g
Material: Nylon
Threads: 2 x G1/4“ male
Thread length: 5.5 mm
Type of quick release connector: Push In
Bore diameter: 8 mm

Model: 17537
