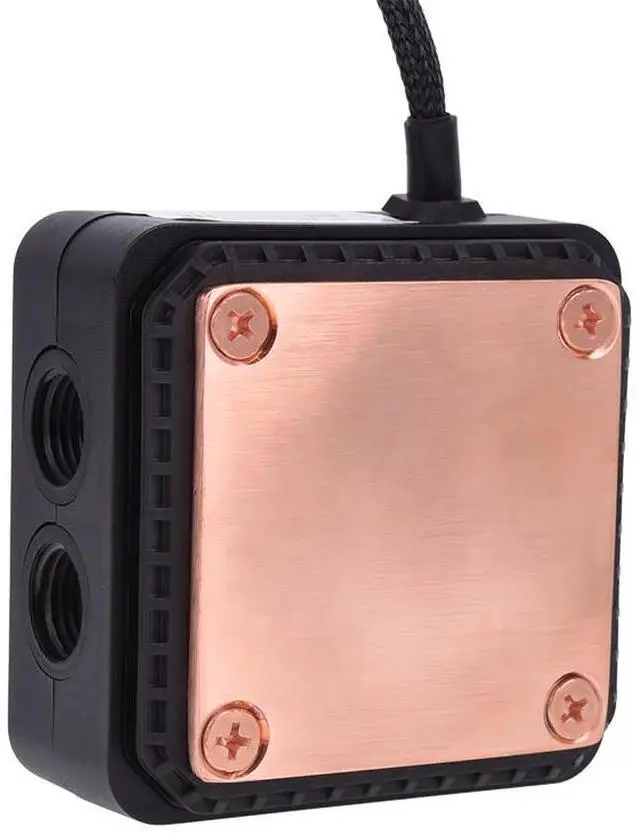

The Alphacool Eisbaer LT (Solo) - Black is the pump and cooler unit of the Eisbaer LT AiO liquid cooler on its own, without radiator, tubes and fans. It mounts on AMD AM4 and AM5 and on Intel LGA 1700 and 1851, among the sockets listed below. To build the loop you still need a radiator, hoses from our tubing and two G1/4 fittings.

Properties

• Intel sockets: LGA 775, 1150, 1151, 1155, 1156, 1200, 1700, 1851, 2011, 2011-3, 2066
• AMD sockets: AM2, AM2+, AM3, AM3+, AM4, AM5, FM1, FM2, FM2+, SP3, SP6, sTRX4, sWRX8
• Pump: DC-LT 2 2600, 2600 RPM

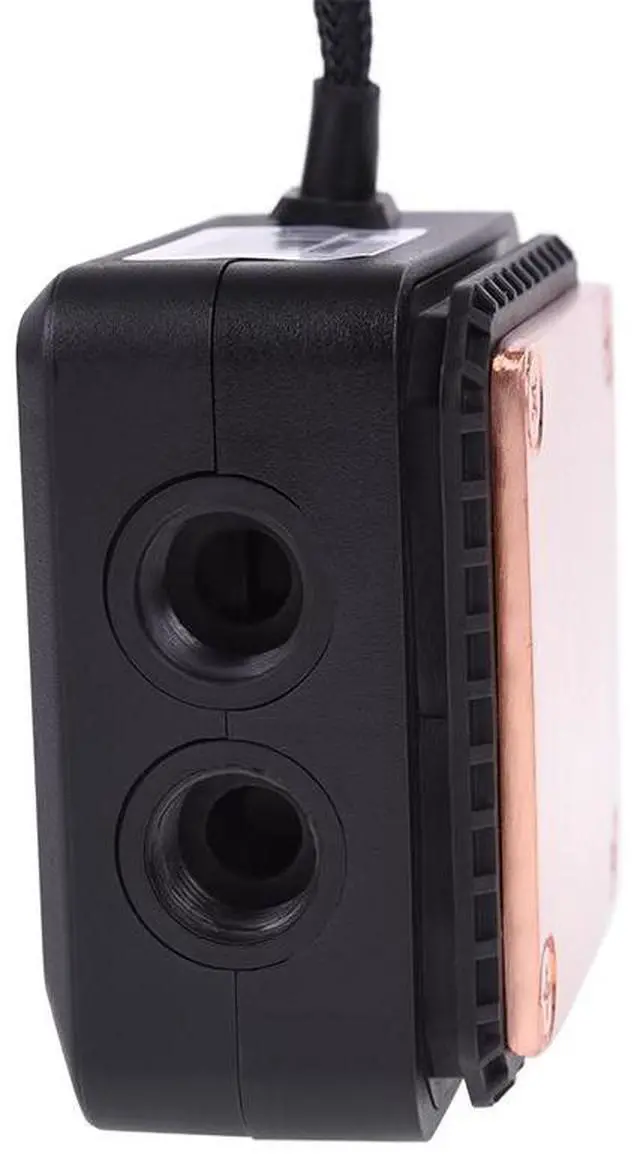

• Threads: 3 x G1/4: IN/OUT and fillport
• Size: 69 x 69 x 39 mm

Fit

Compatibility follows Alphacool's current list, which marks none of the sockets above as optional. Alphacool's manual shows brackets and screws for LGA 115x, LGA 1200, LGA 1700/1851 and LGA 2066 and for AM4 / AM5. It shows no mounting steps for the other sockets on the list. Our earlier scope of delivery named a socket for AMD/Intel and mounting material for AMD AM4 Ryzen. On LGA 115x, 1200 and 1700/1851 the enclosed backplate is fixed to the back of the mainboard with its tape.

Thermal paste is included. The manual has you remove the old paste from the CPU, apply a pea-sized blob and spread it with a plastic strip into an even, thin layer of less than 0.5 mm. Tighten the screws hand-tight only, without tools.

A solo version for your own design

Alphacool calls the Eisbaer LT popular and says it is now also available in a solo version. This gives you the opportunity to design your own AiO solution according to your wishes. You decide for yourself which hoses and radiators you want to use, so nothing stands in the way of your own design ideas, in Alphacool's words. Alphacool calls the unit the perfect base to create your own CPU AiO water cooling system, and adds: let your ideas run wild.

Pump

The basis of the unit is the DC-LT 2 2600 Ceramic Pump, which Alphacool calls well-known and which is also available separately as the DC-LT 2 - 2600rpm Ceramic. It was specially developed for compact systems and offers enough performance to create a loop for them. The pump can be regulated via a voltage from 6 to 13.5 V. Alphacool says this means the already high performance of the water cooling circuit is maintained. It also says this significantly reduces the volume of the already extremely quiet pump. The standard voltage is 12V DC, and Alphacool's page gives the permitted voltage as 6-13.5V DC and the power draw as 3.2 W. The pumped medium is water or a water/glycol mixture.

Technical data pump housing

• Dimensions (LxWxH): 69 x 69 x 39 mm
• Threads: 3x G1/4

Technical data pump

• Speed: 2600 RPM
• Voltage: 6-13.5V DC
• Power consumption: 3.2 W
• Maximum flow rate: 72 L/h
• Maximum head (pressure head at 12V, H2O): 1 m

In the box

• 1x Alphacool Eisbaer LT Solo
• 1x Thermal paste

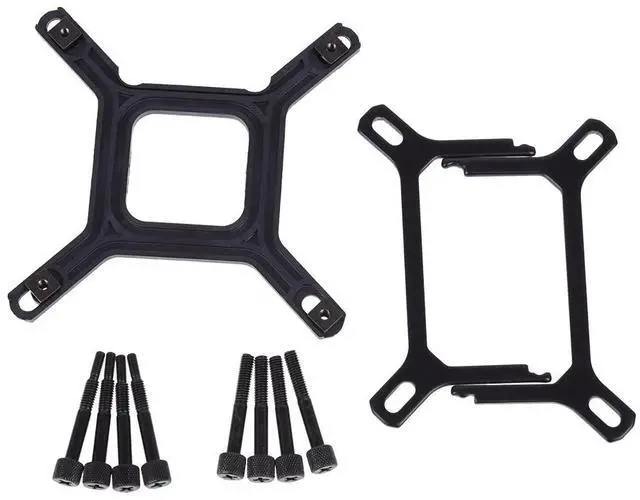

• 2x Bracket for LGA 2066, LGA 115x, LGA 1200, LGA 1700/1851
• 2x Bracket for AM4 / AM5
• 1x Backplate
• 4x Screws for LGA 115x, LGA 1200, LGA 1700/1851
• 4x Screws for LGA 2066
• 4x Screws for AM4 / AM5
• 4x Springs
• 4x 2mm Washer
• 4x 0.5mm Washer
• 1x G1/4 Screw plug
• 1x Tool
