EKWB EK-Quantum Reflection² PC-O11D XL D5 PWM D-RGB - Plexi
- Reservoir:
- Dimensions with the attached pump (W x D x H): 215 x 68 x 472mm
- Reservoir volume: ~787ml
- D-RGB LED count: 27
- D-RGB cable length: 800mm
- D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground)
- Pump Motor Technical Specifications:
- Motor: electronically commuted spherical motor
- Rated voltage: 12V DC
- Power consumption: 23W
- Maximum pressure head: 3.9m
- Maximum flow: 1500L/h
- Maximum system temperature: 60°C
- Materials: Stainless Steel, PPS-GF40, EPDM O-rings, Aluminum Oxide, Hard Coal
- Power connector: SATA and 4-pin PWM FAN connector
- Operational Regime:
- PWM duty cycle: ~ 20-100%
- Default behavior: runs at 100% duty cycle when no PWM feedback signal is present
- Enclosed:
- - EK-Quantum Reflection² PC-O11D XL D5 PWM D-RGB
- - All necessary mounting screws and a bottom radiator bracket
- - 6x Female threaded adapters
- - 1x 2.5mm Allen Key
- - 1x 2mm Allen Key
- - 1x EK-Loop Multi Allen Key (6mm, 8mm, 9mm)
- - 14x Nickel-plated brass plugs
- - 14x EK-Quantum Torque P
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

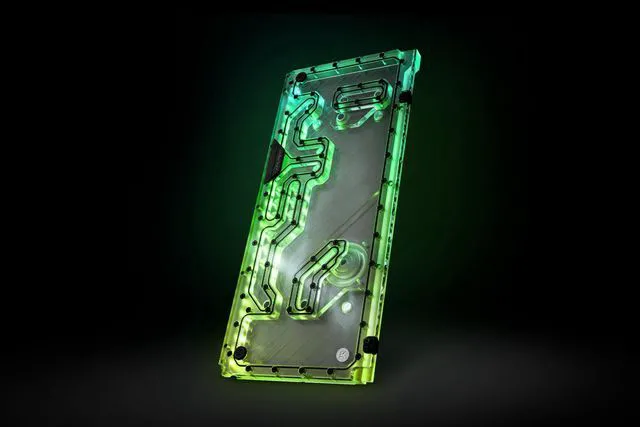

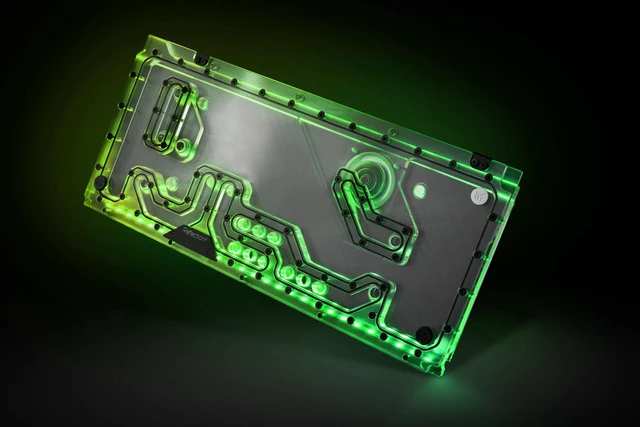

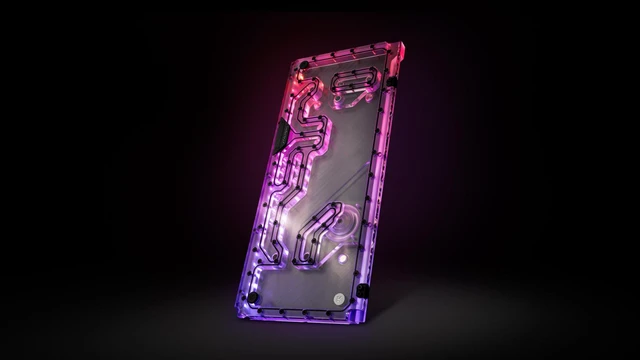

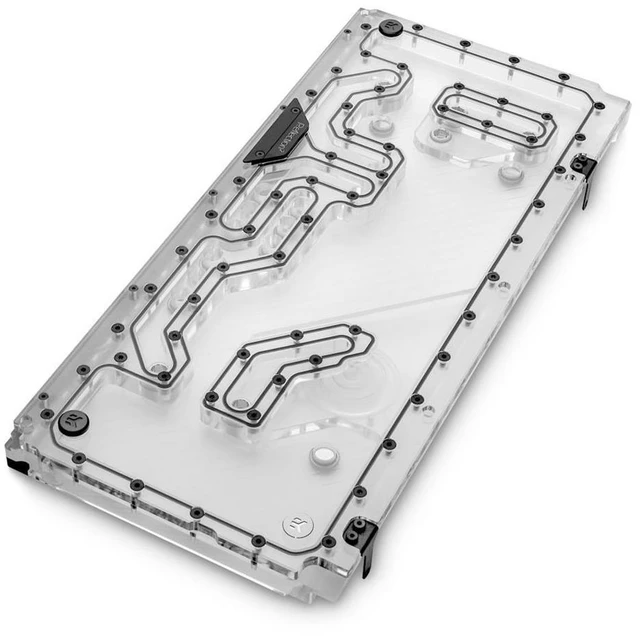

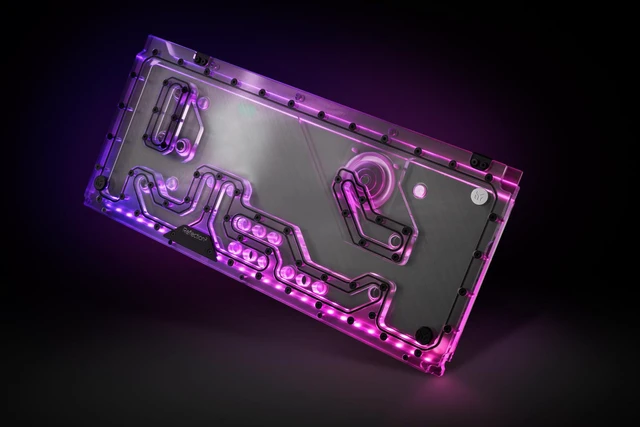

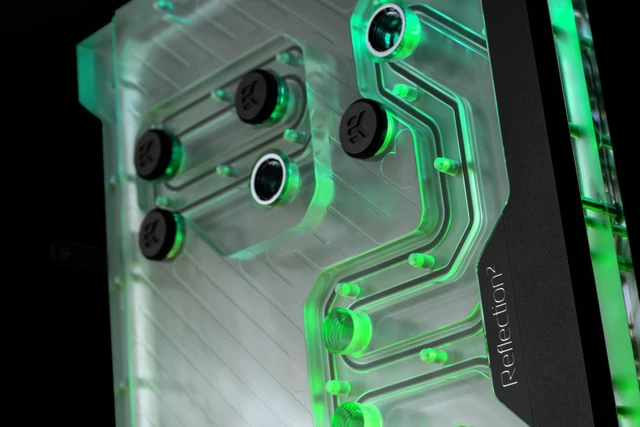

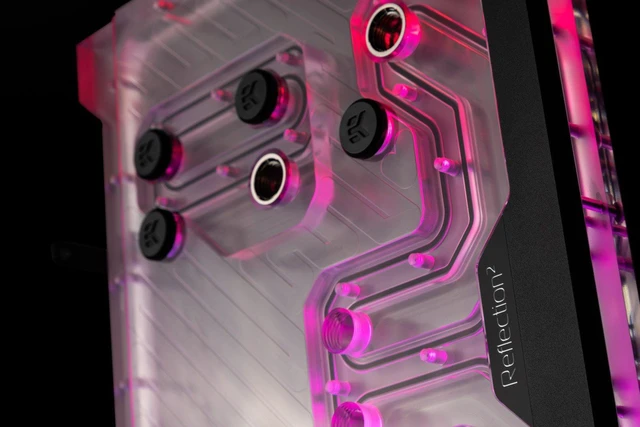

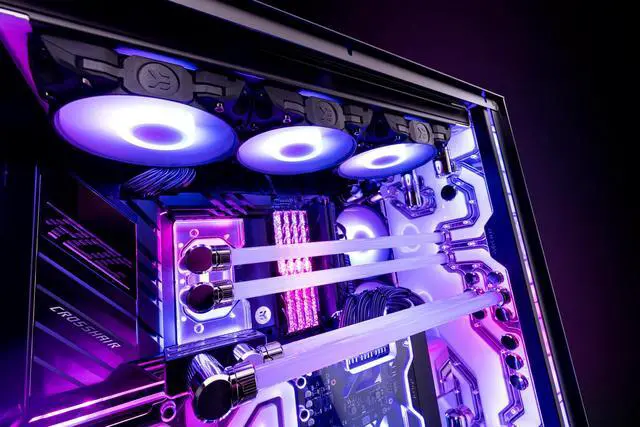

The EK-Quantum Reflection² PC-O11D XL D5 PWM D-RGB is a custom water cooling reservoir, routing, and pump solution that seamlessly fits into the front of the case. This waterway is also equipped with 6 innovative push-in ports that come with female G1/4 threaded adapters. The idea is that a user can assemble the whole radiator + fittings + tubing and use these push-in adapters to simply slide it into the distro plate.
With the installed distro plate, the maximum radiator size is the following:
Top: EK-Quantum Surface P360
Bottom: EK-Quantum Surface X360
Side: EK-Quantum Surface P360
With the installed distro plate, the maximum radiator size is the following:
Top: EK-Quantum Surface P360
Bottom: EK-Quantum Surface X360
Side: EK-Quantum Surface P360
