EKWB EK-Quantum Surface P360M 360mm Radiator - Black
- Enhanced Performance: The EK-Quantum P Series Surface radiators are designed to maximize cooling efficiency with a 44mm thickness, providing superior performance across the entire fan operational range.

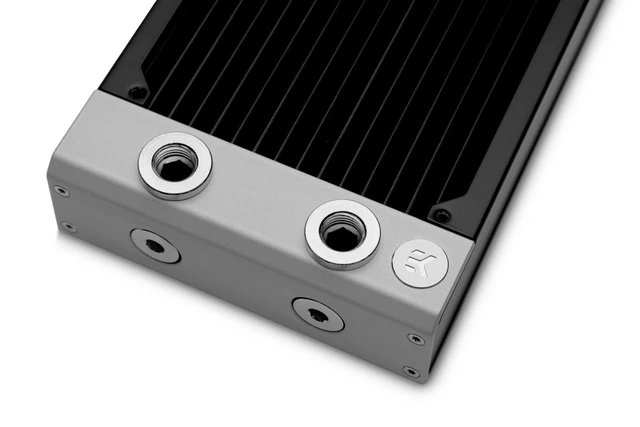

- Versatile Connection Ports: Equipped with four G1/4" threaded connection ports for loop planning flexibility, and a fifth port for easy draining and air bleeding, these radiators offer comprehensive connectivity options.

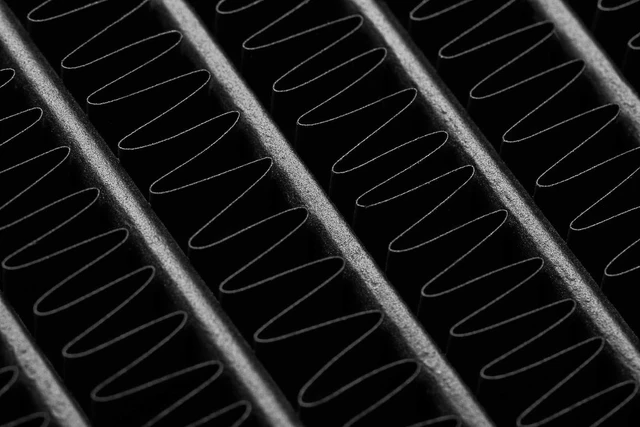

- Optimal Coolant Flow: Sixteen 2mm-wide copper tubes ensure smooth coolant flow without straining your cooling loop, while high-grade non-louvered copper fins with 18 FPI density balance thermal transfer and air resistance.
- Push/Pull Setup: To boost cooling performance, a Push/Pull configuration can be utilized with any P Series EK-Quantum Surface radiator.
- Premium Build: Featuring thick aluminum end caps with a silver finish, stainless-steel side plates in semi-gloss black, and black matte-coated fins, these radiators not only perform well but also exude a premium l
+
+
Overview
Specs
Reviews (1)
Any questions? Our AI mode will help you find out quickly.
Try me now
The EK-Quantum P Series Surface radiators are a remarkable blend of performance and aesthetics. With versatile connection ports, optimal coolant flow, and the option for a Push/Pull setup, these radiators are engineered for cooling perfection. Their premium build, including aluminum end caps and matte-coated fins, adds to their appeal.

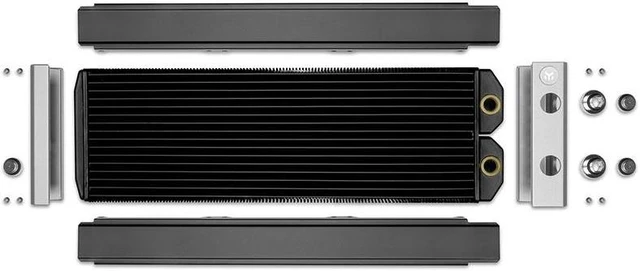

What sets them apart is their enhanced core performance, outperforming their predecessor by up to 10%. They are part of EK's Quantum Line, offering improvements in thermal performance, coolant flow, and airflow restriction. These radiators are compatible with standard 120mm fans and are designed to be easy to disassemble for DIY modding.

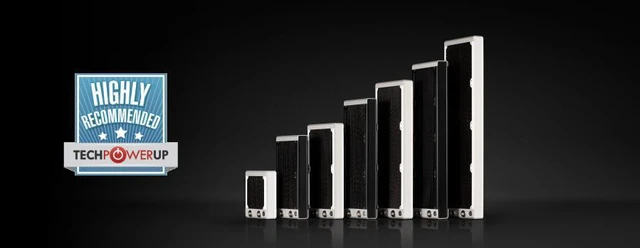

Moreover, their low flow restriction design ensures that your cooling loop remains stress-free, allowing you to add multiple radiators using a single pump. EK-Matrix7 compatibility simplifies the assembly of your liquid cooling loop. The accolades, including TechPowerUp's "Highly Recommended" award, speak volumes about their performance and versatility in the cooling world.
Technical and Material
- High-grade 99.9 % copper fins
- Copper H90 tubing
- Brass H62 end tank chambers
- Stainless Steel side plates
- Extruded Aluminum Silver anodized end piece covers
- Brass nickel-plated adapters and plugs

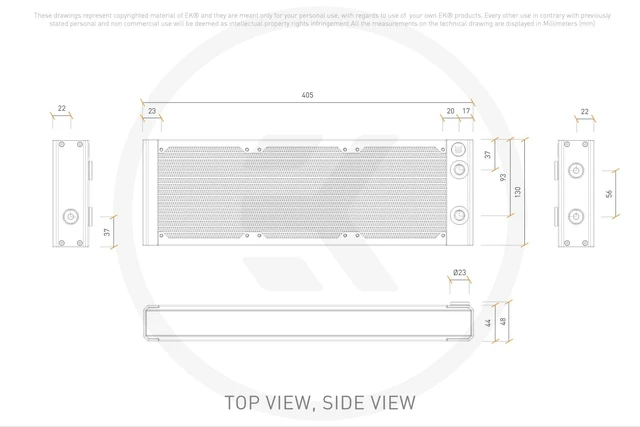

Dimensions: 405 x 130 x 44mm (L x W x H)
Weight: 1.6 kg
FPI: 18
Port threads: 5x G1/4"
Fan compatibility: 120x120x25mm fan
Pressure tested: 1bar
Enclosed:
- EK-Quantum Surface P series radiator
- 12x Phillips Slotted M4x30mm for 25mm thick fans
- 12x Phillips Slotted M4x5mm for mounting the radiator directly to the case
- 6mm steel Allen (Hex) key
- 9mm steel Allen (Hex) key
Designed and Engineered in Slovenia
What sets them apart is their enhanced core performance, outperforming their predecessor by up to 10%. They are part of EK's Quantum Line, offering improvements in thermal performance, coolant flow, and airflow restriction. These radiators are compatible with standard 120mm fans and are designed to be easy to disassemble for DIY modding.
Moreover, their low flow restriction design ensures that your cooling loop remains stress-free, allowing you to add multiple radiators using a single pump. EK-Matrix7 compatibility simplifies the assembly of your liquid cooling loop. The accolades, including TechPowerUp's "Highly Recommended" award, speak volumes about their performance and versatility in the cooling world.
Technical and Material
Specifications
:- High-grade 99.9 % copper fins
- Copper H90 tubing
- Brass H62 end tank chambers
- Stainless Steel side plates
- Extruded Aluminum Silver anodized end piece covers
- Brass nickel-plated adapters and plugs
Dimensions: 405 x 130 x 44mm (L x W x H)
Weight: 1.6 kg
FPI: 18
Port threads: 5x G1/4"
Fan compatibility: 120x120x25mm fan
Pressure tested: 1bar
Enclosed:
- EK-Quantum Surface P series radiator
- 12x Phillips Slotted M4x30mm for 25mm thick fans
- 12x Phillips Slotted M4x5mm for mounting the radiator directly to the case
- 6mm steel Allen (Hex) key
- 9mm steel Allen (Hex) key
Designed and Engineered in Slovenia
