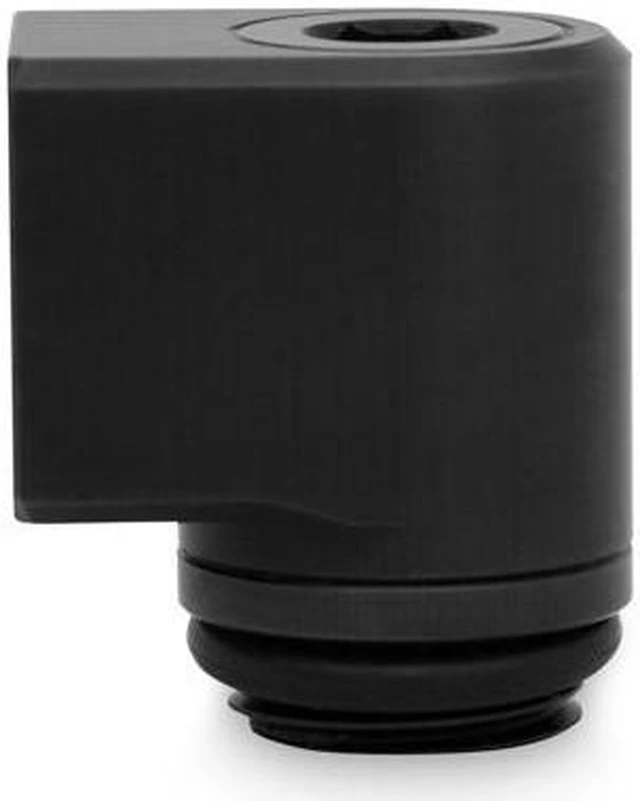

EKWB EK-Quantum Torque Micro Rotary 90° - Black

EK-Quantum Torque Micro Rotary adapter fittings allow you to make a simple 90° turn in the smallest possible footprint and installation height. With an overall installed height of just 21mm, Torque Micro Rotaries can squeeze into the most difficult places where it would be otherwise impossible to make a bend. This means it is 10mm lower in height than the standard 90° EK-Quantum Torque Rotary angled fitting.
This Quantum Line adapter fitting is CNC-machined from a solid brass bar and protected with a high-quality Satin Black finish. The two parts of the fitting are permanently assembled and sealed with high-quality rubber O-rings. Black EK-Quantum Torque series fittings are intentionally not painted on the inside to reduce the level of possible pollutants in the loop. This precision manufacturing ensures satisfying engagement and a consistent appearance.
A male G1/4 thread is screwed into the desired port, and a fully rotatable joint allows the female G1/4 port to be directed in any perpendicular direction. You can install components in very close proximity thanks to this.
The centreline of the female G1/4" port is 12.5 mm above the mounting surface, the EK-Quantum Torque Micro Rotary 90 rotary angled adapter is compatible with any STC or HDC EK-Quantum Torque fitting and EK-Quantum Torque Micro HDP fittings. The width and overall diameter of the base is 16.5 mm.
