EK-Quantum Surface X480M 480mm Radiator - Black
- Enhanced Cooling Power: These 58mm thick radiators are designed for maximum cooling efficiency, benefiting from medium to high-speed fans or Push/Pull setups.
- Versatile Connectivity: Four G1/4 threaded ports, including a fifth port for easy draining and air bleeding, offer flexibility during loop planning.
- Optimal Coolant Flow: Sixteen 2mm-wide copper tubes ensure smooth coolant circulation without stressing your cooling loop.

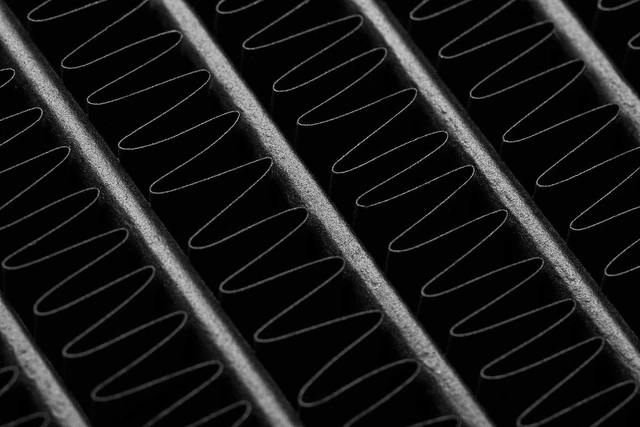

- Premium Copper Fins: High-grade non-louvered copper fins with 18 FPI density provide a perfect balance between thermal transfer and air resistance.
- Streamlined Cooling: Recommended for use with fans that maintain adequate airflow due to their thick core.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The EK-Quantum X Series Surface Radiators are your go-to choice for uncompromising cooling power, measuring a substantial 58mm in thickness. Engineered to excel with medium to high-speed fans or even in a Push/Pull configuration, these radiators offer peak performance for demanding cooling setups.
Featuring four G1/4 threaded connection ports and an additional fifth port for effortless draining and air bleeding, these radiators provide ultimate flexibility during your liquid cooling project. Sixteen 2mm-wide copper tubes span the entire length of the radiator, ensuring optimal coolant flow without adding undue stress to your cooling loop.
With high-grade non-louvered copper fins boasting an 18 FPI density, these radiators strike the perfect balance between efficient thermal transfer and air resistance. For the best results, we recommend pairing them with fans that maintain sufficient airflow, as their thick core demands efficient cooling.
Crafted with precision and innovation, these radiators are part of the EK Quantum Line, known for delivering top-tier performance. They've earned the prestigious "Highly Recommended" award from TechPowerUp, underscoring their exceptional thermal performance, low coolant flow restriction, and mod-friendly design. Upgrade your liquid cooling setup with the EK-Quantum X Series Surface Radiators, available in two striking color options.
Technical and Material
- High-grade 99.9 % copper fins
- Copper H90 tubing
- Brass H62 end tank chambers
- Stainless Steel side plates
- Extruded Aluminum Silver anodized end piece covers
- Brass nickel-plated adapters and plugs

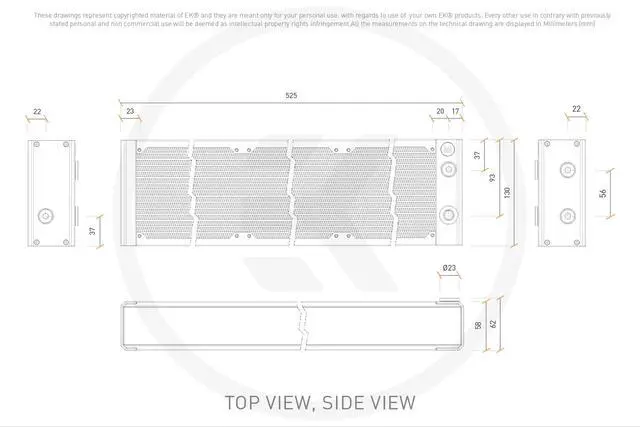

Dimensions: 525 x 130 x 58mm (L x W x H)
Weight: 2.57 kg
FPI: 18
Port threads: 5x G1/4"
Fan compatibility: 120x120x25mm fan
Pressure tested: 1bar

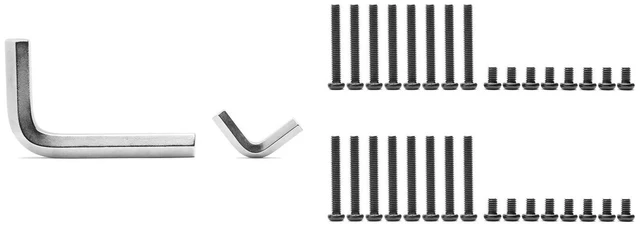

Enclosed:
- EK-Quantum Surface X series radiator
- 16x Phillips Slotted M4x30mm for 25mm thick fans
- 16x Phillips Slotted M4x5mm for mounting the radiator directly to the case
- 6mm steel Allen
- 9mm steel Allen
Designed and Engineered in Slovenia
Featuring four G1/4 threaded connection ports and an additional fifth port for effortless draining and air bleeding, these radiators provide ultimate flexibility during your liquid cooling project. Sixteen 2mm-wide copper tubes span the entire length of the radiator, ensuring optimal coolant flow without adding undue stress to your cooling loop.
With high-grade non-louvered copper fins boasting an 18 FPI density, these radiators strike the perfect balance between efficient thermal transfer and air resistance. For the best results, we recommend pairing them with fans that maintain sufficient airflow, as their thick core demands efficient cooling.
Crafted with precision and innovation, these radiators are part of the EK Quantum Line, known for delivering top-tier performance. They've earned the prestigious "Highly Recommended" award from TechPowerUp, underscoring their exceptional thermal performance, low coolant flow restriction, and mod-friendly design. Upgrade your liquid cooling setup with the EK-Quantum X Series Surface Radiators, available in two striking color options.
Technical and Material
Specifications
:- High-grade 99.9 % copper fins
- Copper H90 tubing
- Brass H62 end tank chambers
- Stainless Steel side plates
- Extruded Aluminum Silver anodized end piece covers
- Brass nickel-plated adapters and plugs
Dimensions: 525 x 130 x 58mm (L x W x H)
Weight: 2.57 kg
FPI: 18
Port threads: 5x G1/4"
Fan compatibility: 120x120x25mm fan
Pressure tested: 1bar
Enclosed:
- EK-Quantum Surface X series radiator
- 16x Phillips Slotted M4x30mm for 25mm thick fans
- 16x Phillips Slotted M4x5mm for mounting the radiator directly to the case
- 6mm steel Allen
- 9mm steel Allen
Designed and Engineered in Slovenia
