EK-Loop Fan FPT 120 - 120mm Black (550-2300rpm)
- High Static Pressure & Low Noise: Engineered for liquid cooling systems and high-performance air cooling, ideal for restrictive cases.
- Quality Motor & Bearings: Fluid dynamic bearings for durability, wide RPM range for silent operation, and precise PWM for performance control.
- Full Pressure Design: Square fan frame maximizes cooling capacity without hydraulic losses, perfect for liquid cooling radiators.
- OmniLink Technology: Daisy chain fan and pump power on a single cable, reducing cable clutter and enhancing cable routing.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

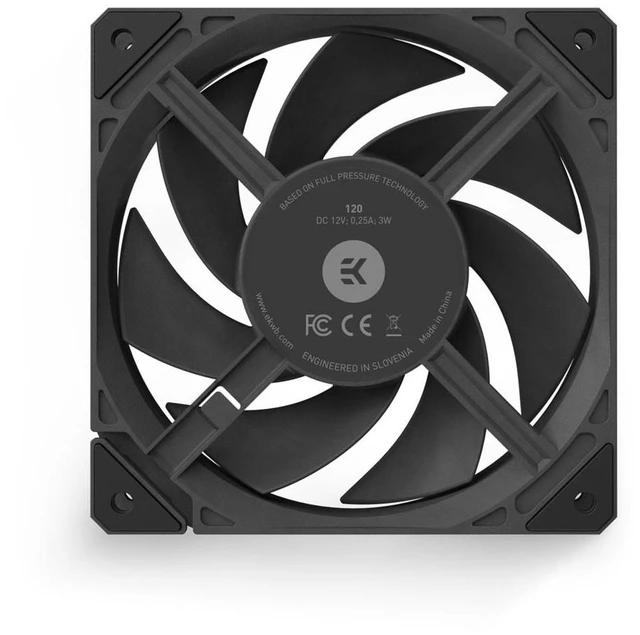

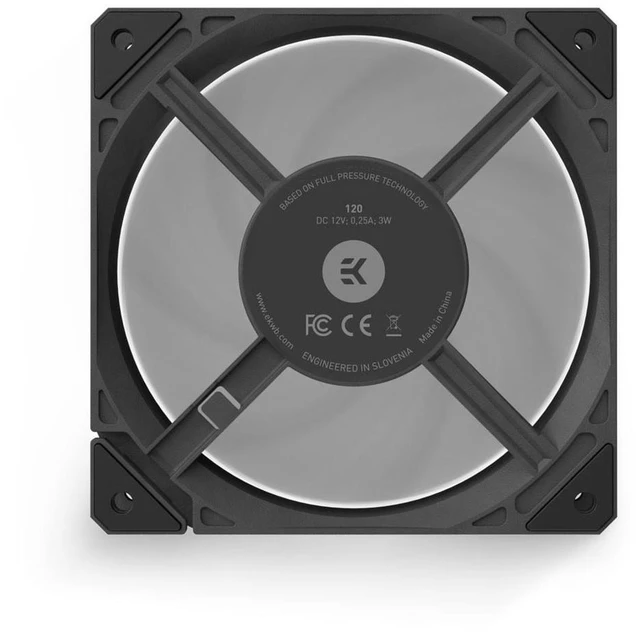

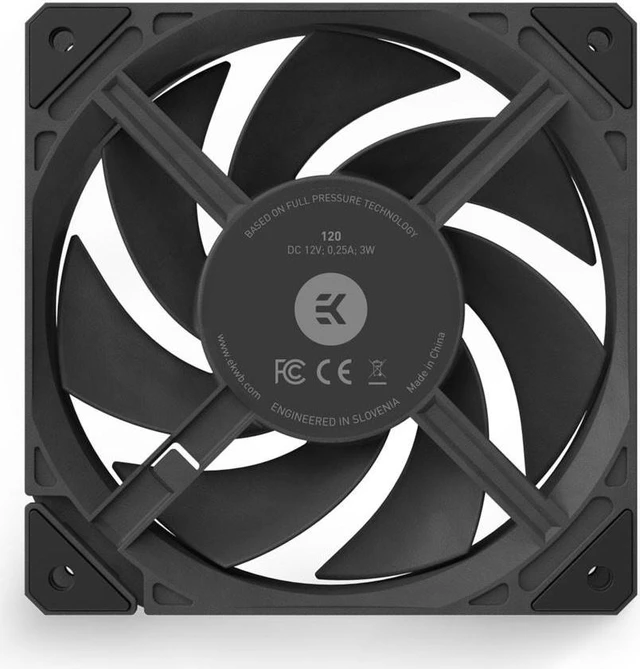

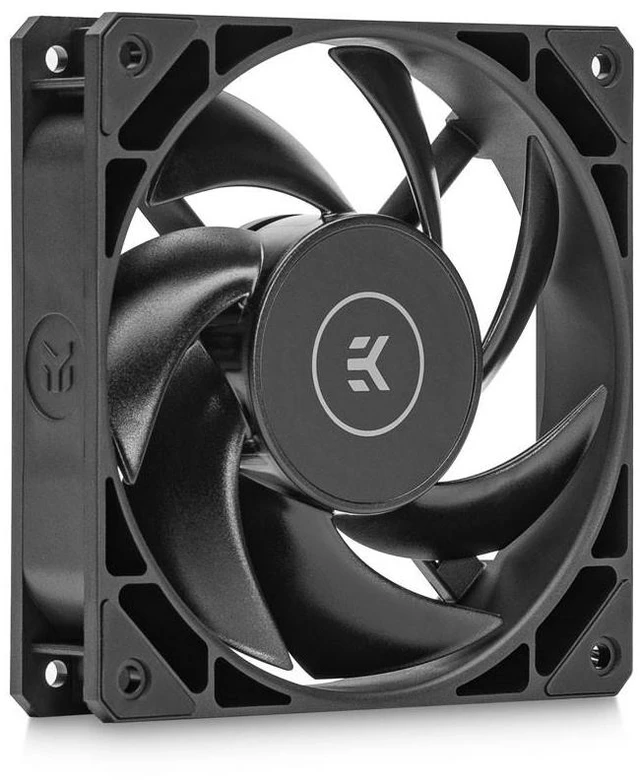

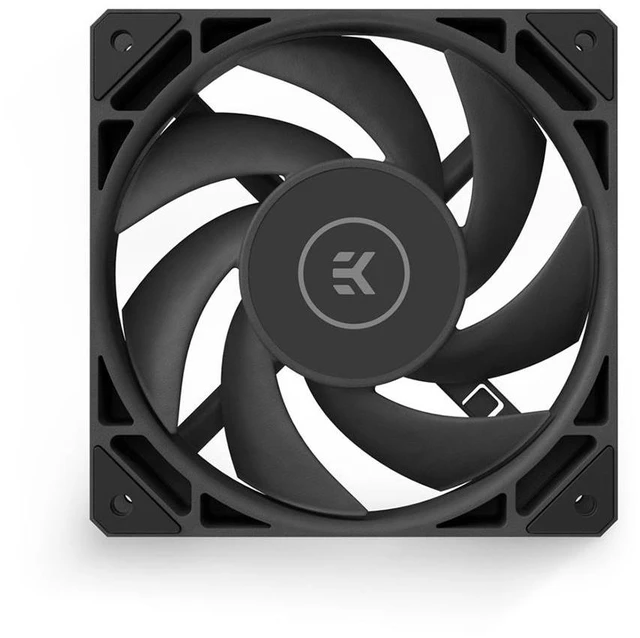

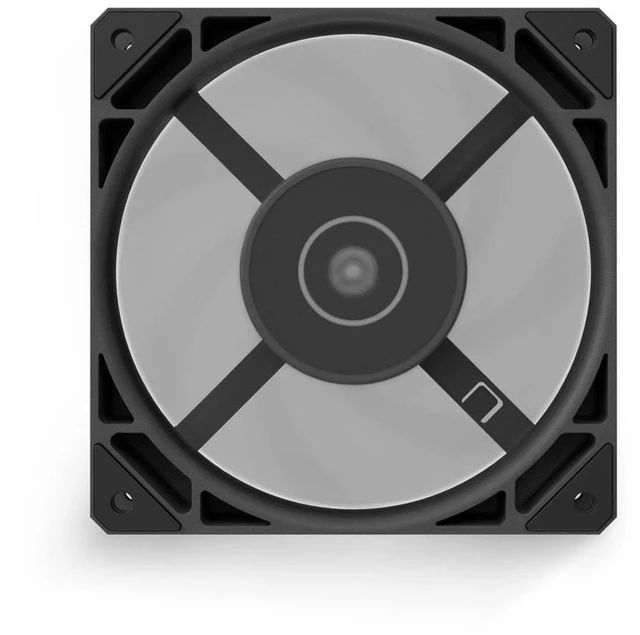

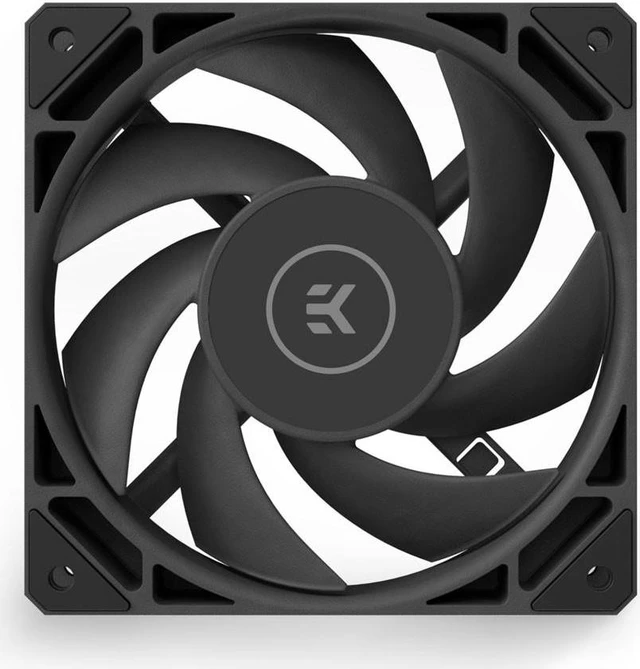

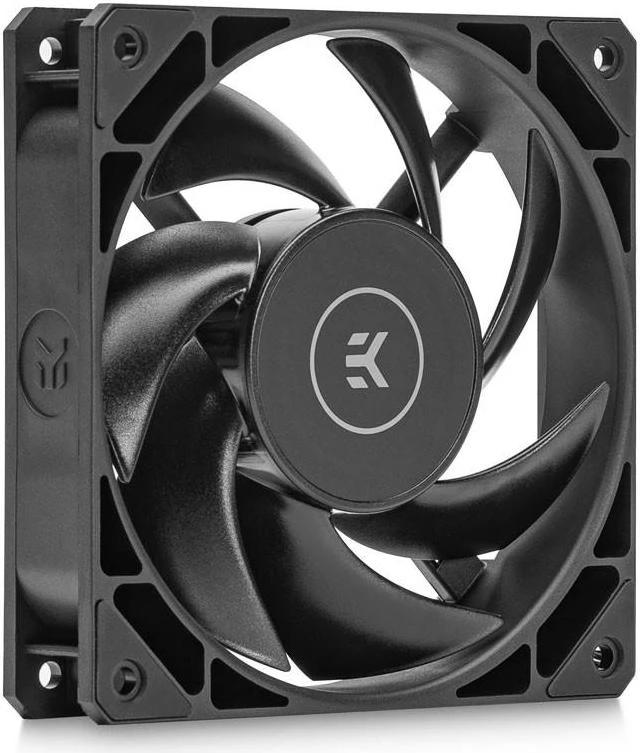

The EK-Loop Fan FPT 120 is a high-performance 120mm computer cooling fan specially designed for top-tier liquid cooling systems. It marks a significant improvement over the EK-Vardar series, delivering superior radiator performance while maintaining an excellent noise-to-performance balance across a wide RPM range.

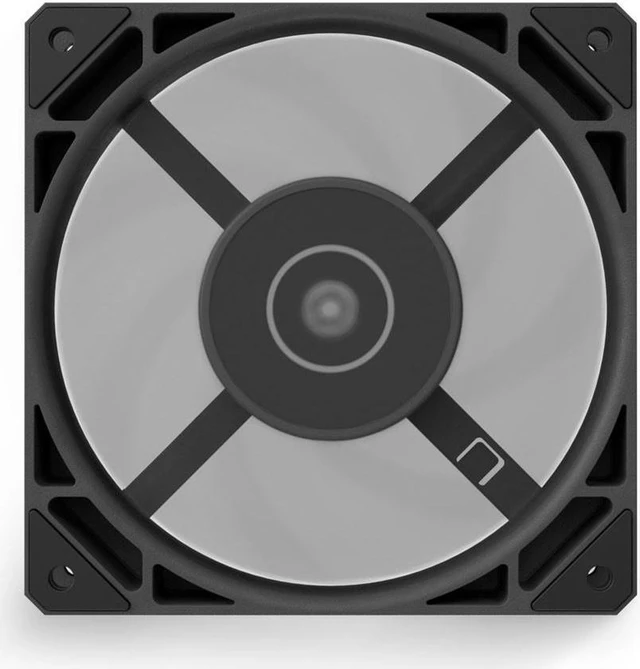

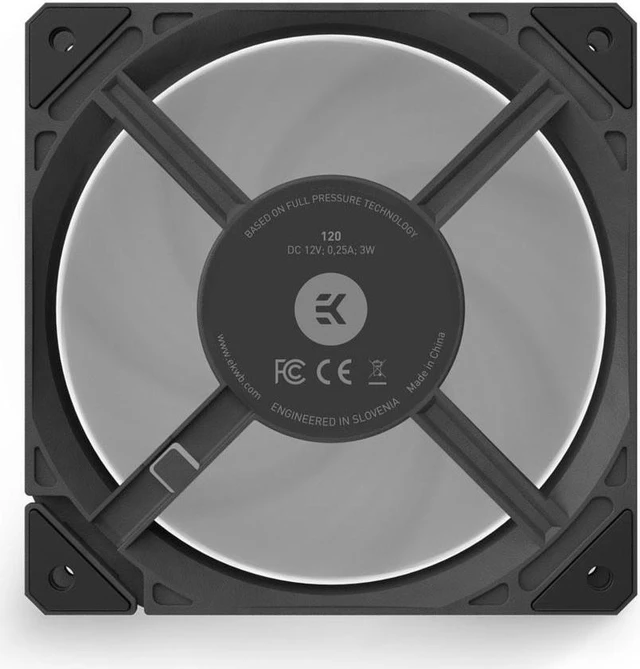

One of its standout features is the Full Pressure Technology (FPT) fan frame, which effectively seals the radiator, preventing air from escaping and ensuring optimal static air pressure. To reduce vibrations, rubber corners are incorporated on both sides of the fan. Moreover, the fan boasts a dual logo orientation for aesthetics, with the option to move the cable for easier routing.
The EK-OmniLink ecosystem allows for daisy-chaining multiple fans, simplifying cable management. It uses Micro-fit 8-pin connectors between products, offering flexibility without needing to remove the entire fan link for adjustments.
The FPT 120 fan utilizes a Fluid Dynamic Bearing (FDB) motor, reducing noise, especially at low RPMs, and ensuring longevity in both horizontal and vertical orientations. Innovative herringbone grooves maintain stable and silent operation at high speeds.
Key features of the EK-Loop Fan FPT 120 include high static pressure, a quality motor with FDB for quiet operation, Full Pressure Technology for optimal radiator performance, and OmniLink for flexible cable management, all in a sleek, unobtrusive design.
Mechanical and electrical specifications:
- RPM range: 550 2300 RPM
- Rated voltage: 12V
- Power draw: 3W
- PWM duty cycle: 20-100%
- Shaft bearing: FDB (fluid dynamic bearing)
- Bearing durability: 60000 hrs@ 25

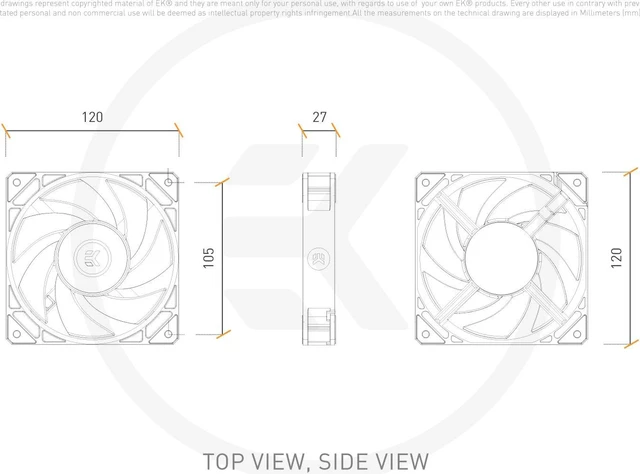

- Dimensions: 120mm x 120mm x 27mm
- Fan cable length: 100mm
- Fan daisy-chain connector: Micro-fit 8-pin connector
- Extender cable length: 500mm
- Extender connector: 4-Pin PWM Header
Performance characteristics:
- Max Air Flow: 77, 00 CFM = 130, 82 m³/h
- Static Pressure: 2, 7 mm H20 = 26, 81 Pa
- Noise Level: 36, 00 dBA (max. RPM)
Enclosed:
- 1x EK-Loop Fan FPT 120
- 1x Cable extender (PWM)
- 4x Self-tapping case screws
Designed and engineered by EK Water Blocks in Slovenia - Europe
One of its standout features is the Full Pressure Technology (FPT) fan frame, which effectively seals the radiator, preventing air from escaping and ensuring optimal static air pressure. To reduce vibrations, rubber corners are incorporated on both sides of the fan. Moreover, the fan boasts a dual logo orientation for aesthetics, with the option to move the cable for easier routing.
The EK-OmniLink ecosystem allows for daisy-chaining multiple fans, simplifying cable management. It uses Micro-fit 8-pin connectors between products, offering flexibility without needing to remove the entire fan link for adjustments.
The FPT 120 fan utilizes a Fluid Dynamic Bearing (FDB) motor, reducing noise, especially at low RPMs, and ensuring longevity in both horizontal and vertical orientations. Innovative herringbone grooves maintain stable and silent operation at high speeds.
Key features of the EK-Loop Fan FPT 120 include high static pressure, a quality motor with FDB for quiet operation, Full Pressure Technology for optimal radiator performance, and OmniLink for flexible cable management, all in a sleek, unobtrusive design.
Mechanical and electrical specifications:
- RPM range: 550 2300 RPM
- Rated voltage: 12V
- Power draw: 3W
- PWM duty cycle: 20-100%
- Shaft bearing: FDB (fluid dynamic bearing)
- Bearing durability: 60000 hrs@ 25
- Dimensions: 120mm x 120mm x 27mm
- Fan cable length: 100mm
- Fan daisy-chain connector: Micro-fit 8-pin connector
- Extender cable length: 500mm
- Extender connector: 4-Pin PWM Header
Performance characteristics:
- Max Air Flow: 77, 00 CFM = 130, 82 m³/h
- Static Pressure: 2, 7 mm H20 = 26, 81 Pa
- Noise Level: 36, 00 dBA (max. RPM)
Enclosed:
- 1x EK-Loop Fan FPT 120
- 1x Cable extender (PWM)
- 4x Self-tapping case screws
Designed and engineered by EK Water Blocks in Slovenia - Europe
