EK-Quantum Surface P240M 240mm Radiator - Black
- Optimal Performance: These 48mm thick radiators are designed for low noise and high performance throughout the fan operational range.

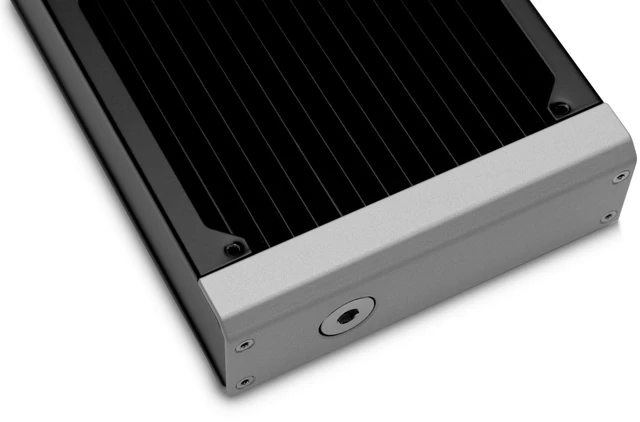

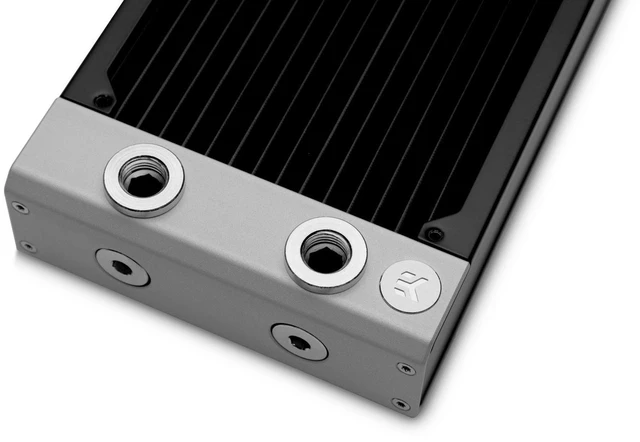

- Versatile Connectivity: Equipped with four G1/4 threaded connection ports for loop planning and an essential fifth port for easy draining and air bleeding.
- Efficient Cooling: Sixteen 2mm-wide copper tubes ensure smooth coolant flow without straining your cooling loop.

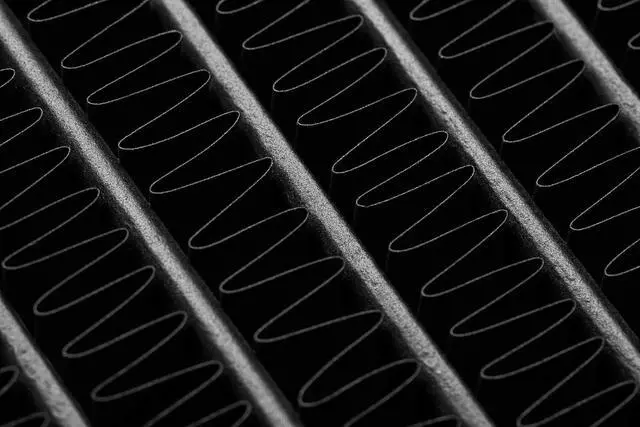

- Superior Fins: High-grade, non-louvered copper fins with 18 FPI density strike the ideal balance between thermal transfer and air resistance.
- Easy Setup: Compatible with 120mm fans, these radiators feature a classic square fan casing for peak performance in both pull and push configurations.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Elevate your liquid cooling system with the EK-Quantum P Series Surface Radiators. These 48mm thick radiators are engineered for exceptional performance across a wide range of fan speeds while maintaining a low noise profile. With four G1/4 threaded connection ports and an additional fifth port for draining and air bleeding, these radiators offer versatility in loop planning.
Featuring sixteen 2mm-wide copper tubes and high-grade copper fins with an 18 FPI density, these radiators ensure efficient coolant flow and optimal thermal transfer. The included M4 screws simplify installation, and their compatibility with 120mm fans makes setup a breeze.
Not only do these radiators offer superior performance, but they also boast a sleek appearance, with thick aluminum end caps and a contrasting silver finish. The EK-Quantum P Series Surface Radiators are designed with modders in mind, offering easy disassembly and compatibility with EK's Matrix7 system for streamlined liquid cooling setups. Plus, they have earned the prestigious "Highly Recommended" award from TechPowerUp, confirming their exceptional thermal performance and versatility.
Technical and Material
- High-grade 99.9 % copper fins
- Copper H90 tubing
- Brass H62 end tank chambers
- Stainless Steel side plates
- Extruded Aluminum Silver anodized end piece covers
- Brass nickel-plated adapters and plugs

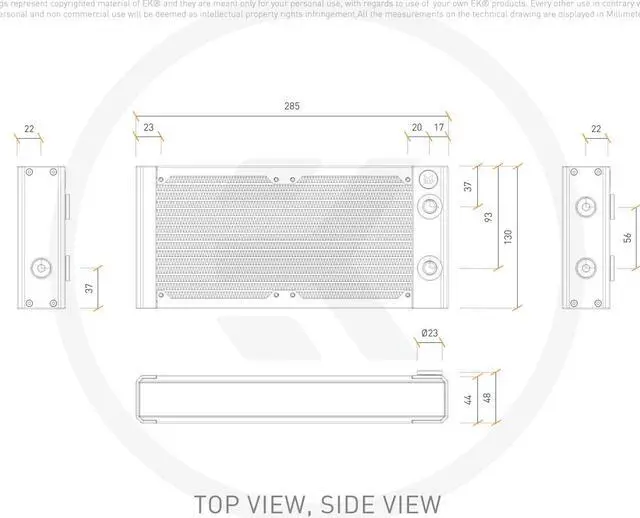

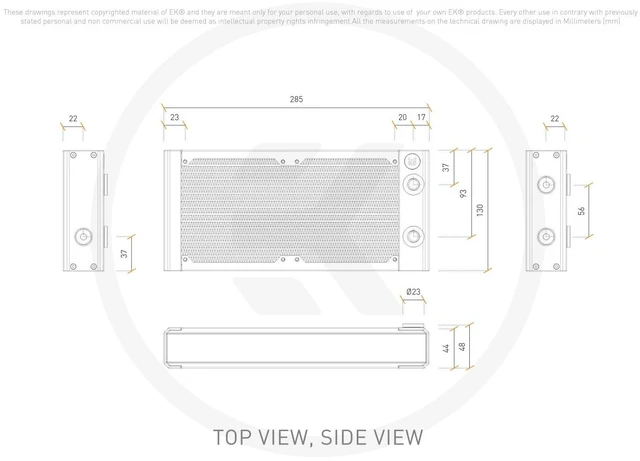

Dimensions: 285 x 130 x 48mm (L x W x H)
Weight: 1.21 kg
FPI: 18
Port threads: 5x G1/4"
Fan compatibility: 120x120x25mm fan
Pressure tested: 1bar
Enclosed:
- EK-Quantum Surface P series radiator
- 8x Phillips Slotted M4x30mm for 25mm thick fans
- 8x Phillips Slotted M4x5mm for mounting the radiator directly to the case
- 6mm steel Allen (Hex) key
- 9mm steel Allen (Hex) key
Designed and Engineered in Slovenia
Featuring sixteen 2mm-wide copper tubes and high-grade copper fins with an 18 FPI density, these radiators ensure efficient coolant flow and optimal thermal transfer. The included M4 screws simplify installation, and their compatibility with 120mm fans makes setup a breeze.
Not only do these radiators offer superior performance, but they also boast a sleek appearance, with thick aluminum end caps and a contrasting silver finish. The EK-Quantum P Series Surface Radiators are designed with modders in mind, offering easy disassembly and compatibility with EK's Matrix7 system for streamlined liquid cooling setups. Plus, they have earned the prestigious "Highly Recommended" award from TechPowerUp, confirming their exceptional thermal performance and versatility.
Technical and Material
Specifications
:- High-grade 99.9 % copper fins
- Copper H90 tubing
- Brass H62 end tank chambers
- Stainless Steel side plates
- Extruded Aluminum Silver anodized end piece covers
- Brass nickel-plated adapters and plugs
Dimensions: 285 x 130 x 48mm (L x W x H)
Weight: 1.21 kg
FPI: 18
Port threads: 5x G1/4"
Fan compatibility: 120x120x25mm fan
Pressure tested: 1bar
Enclosed:
- EK-Quantum Surface P series radiator
- 8x Phillips Slotted M4x30mm for 25mm thick fans
- 8x Phillips Slotted M4x5mm for mounting the radiator directly to the case
- 6mm steel Allen (Hex) key
- 9mm steel Allen (Hex) key
Designed and Engineered in Slovenia
