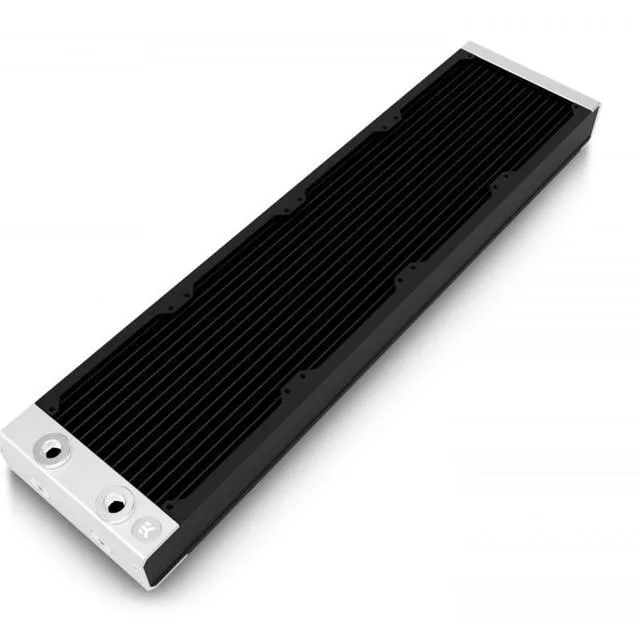

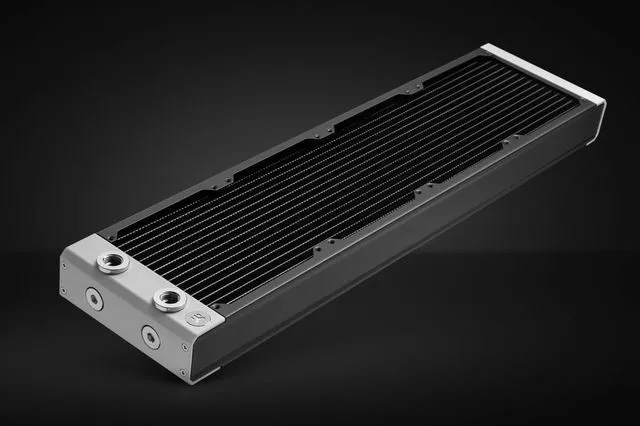

EK-Quantum Surface P480M 480mm Radiator - Black
- Enhanced Performance: At 44mm thick, these radiators redefine cooling, outperforming the previous generation by up to 10% thanks to advanced fin structure and core optimization.
- Flexible Ports: Four G1/4" threaded connection ports and an extra port for easy drainage and air bleeding provide unmatched adaptability during loop planning.
- Efficient Cooling: Sixteen 2mm-wide copper tubes ensure smooth coolant flow without strain, with high-grade copper fins balancing thermal transfer and airflow resistance.
- Modular Design: Easy disassembly and customization for DIY modders. Thick aluminum end caps, coated stainless-steel side plates, and matte black fins offer durability and style.
- Loop-Friendly: Engineered for low flow restriction, allowing multiple radiators on a single pump (D5 or DDC) and efficient low-speed fan operation for optimal ventilation.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Introducing the
EK-Quantum P Series Surface Radiator:
The EK-Quantum P Series Surface Radiator redefines liquid cooling with its remarkable 44mm thickness, delivering up to 10% better performance compared to its predecessor. Its modular design includes four G1/4" threaded connection ports and an additional port for convenient loop draining and air bleeding, offering unmatched flexibility.

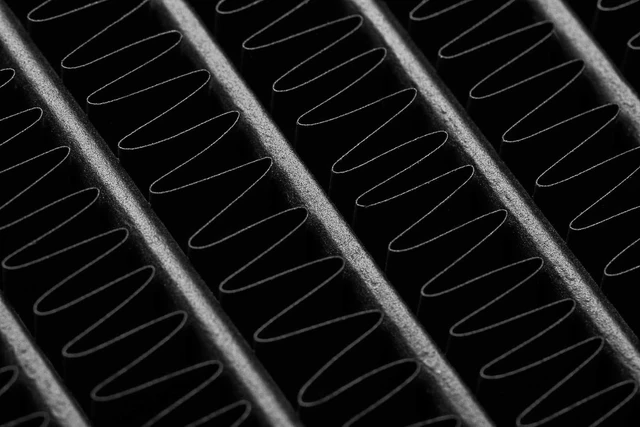

Inside, sixteen 2mm-wide copper tubes ensure efficient coolant flow without straining your cooling system. High-grade copper fins, non-louvered with an 18 FPI density, strike a balance between thermal transfer and airflow resistance, ensuring peak performance even at low-speed fan operation.

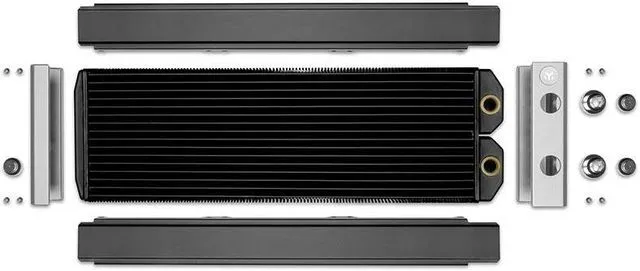

Modders will appreciate its easy disassembly and customization options. Thick aluminum end caps, coated stainless-steel side plates, and matte black fins provide both durability and an elegant aesthetic.
Engineered for low flow restriction, this radiator supports multiple radiators on a single pump (D5 or DDC), enabling efficient low-speed fan operation while maintaining optimal ventilation. Upgrade your liquid cooling experience with the EK-Quantum P Series Surface Radiator, offering superior performance, flexibility, and style. (TechPowerUp "Highly Recommended" Award Winner)
Technical and Material
- High-grade 99.9 % copper fins
- Copper H90 tubing
- Brass H62 end tank chambers
- Stainless Steel side plates
- Extruded Aluminum Silver anodized end piece covers
- Brass nickel-plated adapters and plugs

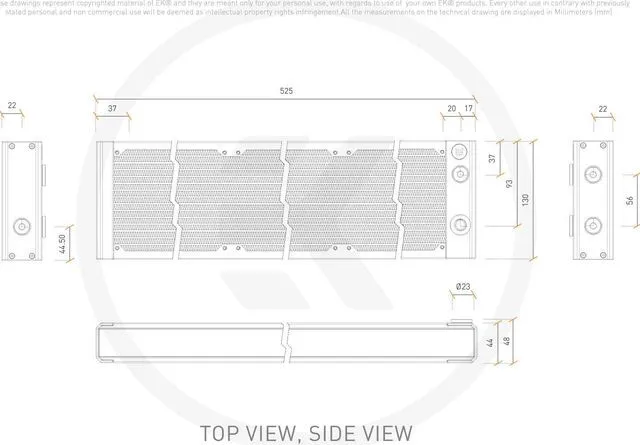

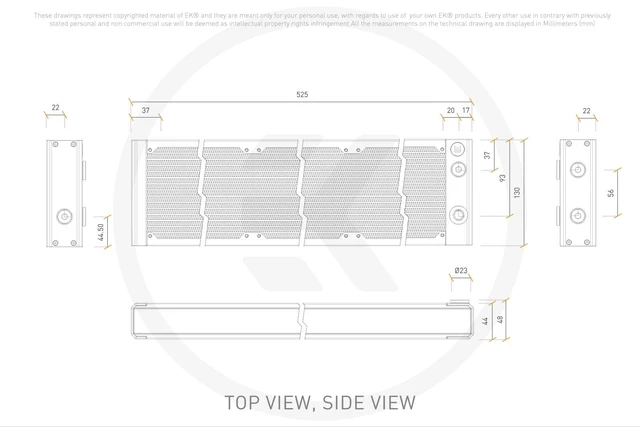

Dimensions: 525 x 130 x 44mm (L x W x H)
Weight: 1.95 kg
FPI: 18
Port threads: 5x G1/4"
Fan compatibility: 120x120x25mm fan
Pressure tested: 1bar
Enclosed:
- EK-Quantum Surface P series radiator
- 16x Phillips Slotted M4x30mm for 25mm thick fans
- 16x Phillips Slotted M4x5mm for mounting the radiator directly to the case
- 6mm steel Allen (Hex) key
- 9mm steel Allen (Hex) key
Designed and Engineered in Slovenia
EK-Quantum P Series Surface Radiator:
The EK-Quantum P Series Surface Radiator redefines liquid cooling with its remarkable 44mm thickness, delivering up to 10% better performance compared to its predecessor. Its modular design includes four G1/4" threaded connection ports and an additional port for convenient loop draining and air bleeding, offering unmatched flexibility.
Inside, sixteen 2mm-wide copper tubes ensure efficient coolant flow without straining your cooling system. High-grade copper fins, non-louvered with an 18 FPI density, strike a balance between thermal transfer and airflow resistance, ensuring peak performance even at low-speed fan operation.
Modders will appreciate its easy disassembly and customization options. Thick aluminum end caps, coated stainless-steel side plates, and matte black fins provide both durability and an elegant aesthetic.
Engineered for low flow restriction, this radiator supports multiple radiators on a single pump (D5 or DDC), enabling efficient low-speed fan operation while maintaining optimal ventilation. Upgrade your liquid cooling experience with the EK-Quantum P Series Surface Radiator, offering superior performance, flexibility, and style. (TechPowerUp "Highly Recommended" Award Winner)
Technical and Material
Specifications
:- High-grade 99.9 % copper fins
- Copper H90 tubing
- Brass H62 end tank chambers
- Stainless Steel side plates
- Extruded Aluminum Silver anodized end piece covers
- Brass nickel-plated adapters and plugs
Dimensions: 525 x 130 x 44mm (L x W x H)
Weight: 1.95 kg
FPI: 18
Port threads: 5x G1/4"
Fan compatibility: 120x120x25mm fan
Pressure tested: 1bar
Enclosed:
- EK-Quantum Surface P series radiator
- 16x Phillips Slotted M4x30mm for 25mm thick fans
- 16x Phillips Slotted M4x5mm for mounting the radiator directly to the case
- 6mm steel Allen (Hex) key
- 9mm steel Allen (Hex) key
Designed and Engineered in Slovenia
