EK-Quantum Impulse 120 D-RGB Computer Cooling Fan - 120mm Black (400-1800 rpm)

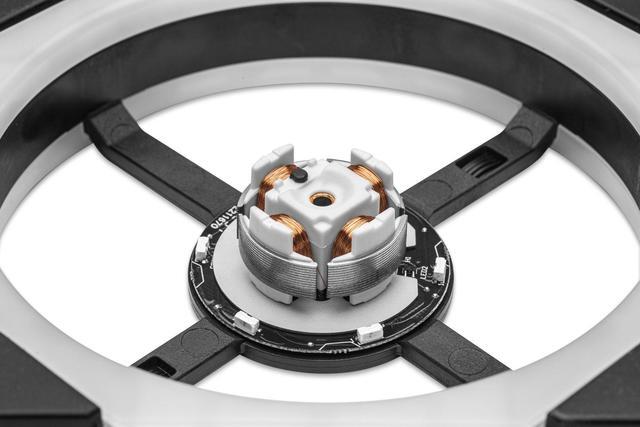

- Silent MagLev Fans: Whisper-quiet operation with VAPO bearing and Magnetic Levitation motor.
- Vibrant RGB Illumination: Dual-sided LED zones for rich D-RGB effects and stylish aesthetics.
- Cable Clutter Reduction: Daisy-chain with EK-OmniLink, simplifying cable management.
- Vibration Minimization: Rubber dampers and square frame for stability and airflow focus.
- Universal D-RGB Compatibility: Easy setup with standard 3-pin 5V addressable RGB connectors.
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Upgrade your PC cooling system with the EK-Quantum Impulse 120 D-RGB fan. This silent performer combines MagLev technology with dazzling RGB illumination for a harmonious blend of style and substance. Say goodbye to cable clutter with the EK-OmniLink feature, while vibration reduction ensures a stable and efficient cooling experience. Elevate your PC aesthetics effortlessly with universal D-RGB compatibility. The EK-Quantum Impulse 120 D-RGB fan is your key to a cooler, quieter, and more visually stunning PC.
Mechanical and electrical specifications:
- RPM range: 400 - 1800 RPM±10%
- Rated voltage: 12V
- Power draw: 1.44W = 0.12A
- LED power draw: 2, 3W (0, 45A)
- PWM duty cycle: 25-100%
- Shaft bearing: VAPO
- Bearing durability: 60000 hrs@ 40

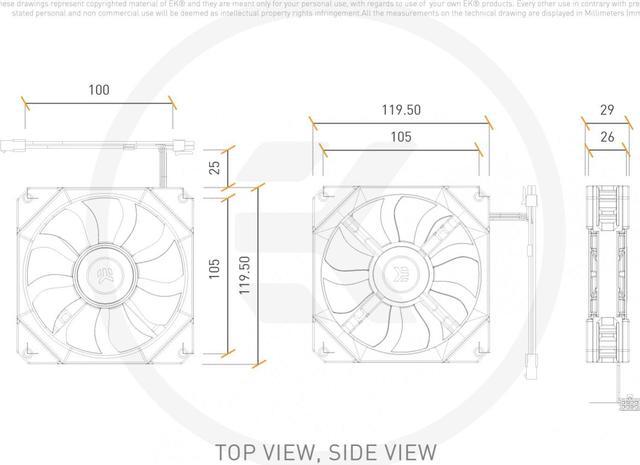

- Dimensions: 120mm x 120mm x 29mm (26mm just the fan without rubber dampers)
- Fan cable length: 100mm
- Fan daisy-chain connector: Micro-fit 8-pin connector
- Extender cable length: 500mm
- Extender connector: 4-Pin PWM Header and 3-Pin Addressable 5V D-RGB header
Performance characteristics:
- Max Air Flow: 57.5CFM = 97.8 m3/h
- Static Pressure: 1.94 mm-H2O
- Noise Level: 24.3 dBA (max. RPM)
Enclosed:
- 1x EK-Quantum Impulse 120
- 1x Cable extender (PWM+RGB)
- 4 self tapping fan screws 7/32 Color black
Designed and engineered by EK Water Blocks in Slovenia - Europe
Mechanical and electrical specifications:
- RPM range: 400 - 1800 RPM±10%
- Rated voltage: 12V
- Power draw: 1.44W = 0.12A
- LED power draw: 2, 3W (0, 45A)
- PWM duty cycle: 25-100%
- Shaft bearing: VAPO
- Bearing durability: 60000 hrs@ 40
- Dimensions: 120mm x 120mm x 29mm (26mm just the fan without rubber dampers)
- Fan cable length: 100mm
- Fan daisy-chain connector: Micro-fit 8-pin connector
- Extender cable length: 500mm
- Extender connector: 4-Pin PWM Header and 3-Pin Addressable 5V D-RGB header
Performance characteristics:
- Max Air Flow: 57.5CFM = 97.8 m3/h
- Static Pressure: 1.94 mm-H2O
- Noise Level: 24.3 dBA (max. RPM)
Enclosed:
- 1x EK-Quantum Impulse 120
- 1x Cable extender (PWM+RGB)
- 4 self tapping fan screws 7/32 Color black
Designed and engineered by EK Water Blocks in Slovenia - Europe
