Noctua NF-F12 iPPC-24V-3000 Q100 IP67 PWM, Heavy Duty Cooling Fan, 4-Pin, 3000 RPM, 24V Version (120mm, Black)

Brand: Noctua

Noctua NF-F12 iPPC-24V-3000 Q100 IP67 PWM Heavy Duty Cooling Fan 4-Pin 3000 RPM 24V Version (120mm Black)
Product Description

Conceived for industrial heavy-duty applications that require enhanced cooling performance and advanced ingress protection the NF-F12 industrialPPC (Protected Performance Cooling) is a ruggedised high-speed version of the award-winning retail model. The 24V Q100 variant uses Noctua’s AEC-Q100 qualified wide input range NE-FD4 motor driver IC in order to support 24V-based industrial and automotive applications. Its sophisticated inrush current suppression and extreme electrical robustness with extended burst and surge immunity allow it to operate safely in sensitive or hostile electronic environments. Thanks to the outstanding aerodynamic efficiency of the NF-F12 design and the use of a novel three-phase motor the industrialPPC version provides superior airflow and pressure capacity while keeping noise and power consumption at a moderate level as against comparable high-speed fans. While its fibre-glass reinforced polyamide construction and certified water and dust protection make the NF-F12 industrialPPC suitable for operation in challenging surroundings the renowned SSO2 bearing technology ensures an MTBF of over 150000hrs. Topped off with Noctua’s trusted reliability the NF-F12 industrialPPC is an ideal choice for highly demanding applications that require superior flow rates and ultimate dependability.

The industrialPPC 24V Q100 models use Noctua's NE-FD4 three-phase PWM motor driver IC. Supporting operating voltages from 6 to 30V these models are ideal for 24V-based industrial applications and voltage- or PWM-based speed control.

Running twice as fast as the 1500rpm retail version the NF-F12 industrialPPC-3000 PWM provides extreme airflow and pressure performance. Combined with the industrialPPC series' robust polyamide construction and advanced protection features this makes the fan ideal for challenging industrial applications.

Both the impeller and the frame of Noctua’s industrialPPC fans are made entirely from fibre-glass reinforced polyamide. This material can withstand temperatures up to 140°C and makes the fans even more robust and break-proof than Noctua’s standard fibre-glass reinforced PBT fans.

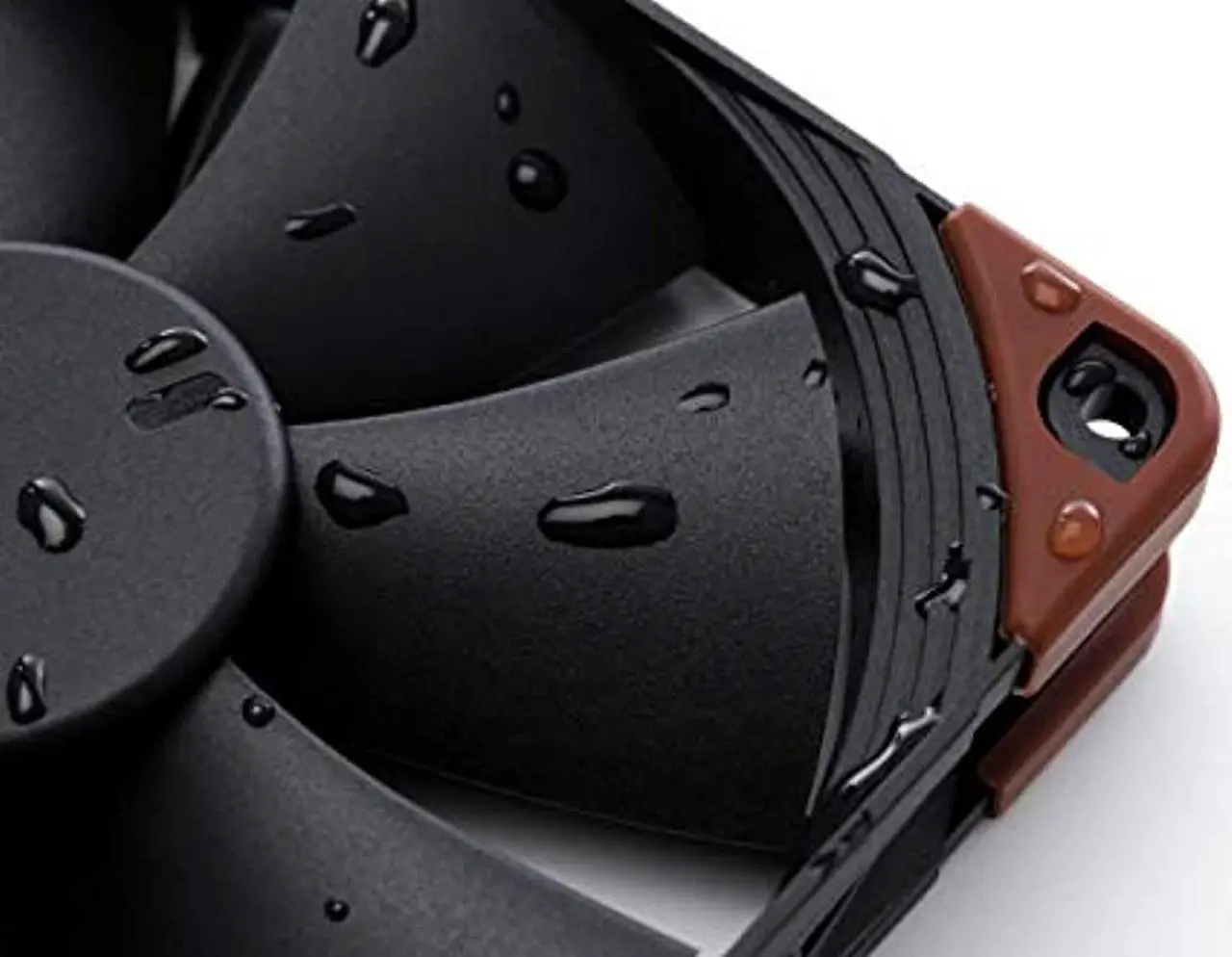

Thanks to a special varnish coating that covers the motor and PCB the NF-F12 industrialPPC complies with the ingress protection rating IP52. This means that it is not only highly dust resistant but also withstands dripping water equivalent to 3mm rainfall per minute.

The 24V Q100 version’s NE-FD4 motor driver IC complies with the Automotive Electronics Council’s highly rigorous AEC-Q100 failure-mechanism-based stress test qualification for integrated circuits which makes the fan ideal for use in automotive applications.

Whilst designed with 24V industrial applications in mind the fan will run at a maximum speed of around 1800rpm in 12V PC environments and can be slowed down further via PWM thus combining iPPC features and design with Noctua’s signature quietness.
