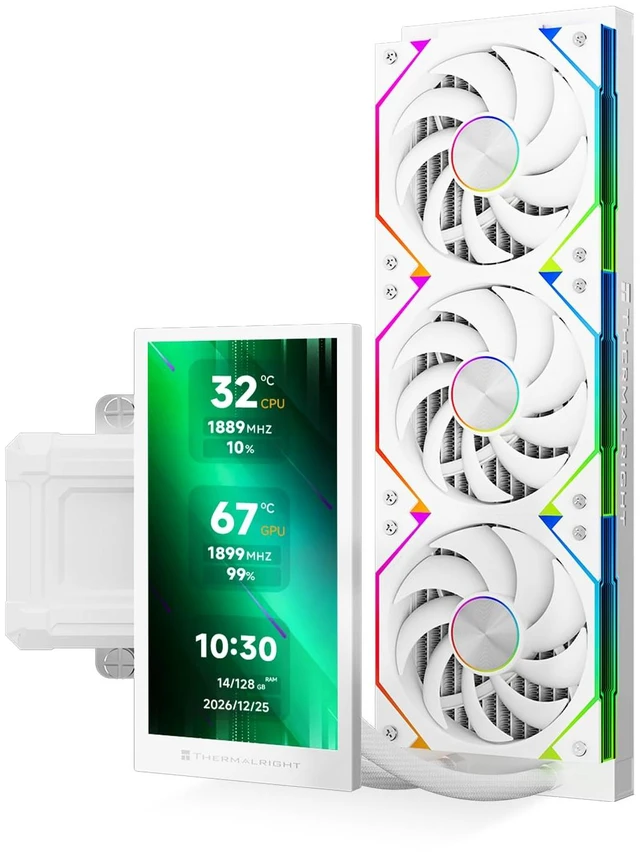

Thermalright Dynamic Vision 360 ARGB AIO Cooler, 5" LCD, White | 5-Inch Adjustable LCD | TRCC Custom Display | 360mm Radiator | 2400RPM PWM Fans | Pre-Installed TL-U12Q Fans | LGA1851 / AM5
- 5-Inch Adjustable LCD with TRCC The 854 × 480 display gives system data and custom content more room to be seen, with an adjustable screen angle for different case layouts. Thermalright TRCC supports CPU and GPU monitoring, preset and custom themes, images, GIFs and video on compatible Windows systems
- 360mm Cooling Performance A 397 × 120 × 27mm aluminum radiator works with a pump running up to 3000RPM to maintain coolant circulation through the loop, providing the cooling capacity expected from a full-size 360mm AIO for gaming and performance PC builds
- 2400RPM TL-U12Q Performance Fans Three 120mm TL-U12Q fans deliver up to 74.4 CFM airflow and 2.2mmHO static pressure at 2400RPM, with 4-Pin PWM control adjusting fan speed to cooling demand. ARGB lighting and the side infinity mirror add depth to the radiator area and complement the large LCD
- Pre-Installed for a Cleaner Setup The three radiator fans come pre-installed to reduce assembly steps during installation. 400mm tubing provides flexible routing for compatible top or front radiator layouts, while the 69.2 × 69.2 × 60mm pump housing keeps the large display within a relatively compact CPU-area profile
- Built for Current Intel and AMD Platforms Supports Intel LGA1851, LGA1700, LGA1200 and LGA115X together with AMD AM5 and AM4, covering current mainstream gaming and performance platforms. Backed by Thermalright's 5-year manufacturer warranty
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
5-Inch Display with TRCC Control
Dynamic Vision 360 puts a 5-inch 854 × 480 display at the center of the build, with an adjustable viewing angle for different radiator and case layouts. Thermalright TRCC software supports CPU and GPU monitoring, preset and custom themes, images, GIFs and video on compatible Windows systems.
Full-Size 360mm Cooling
The 397 × 120 × 27mm aluminum radiator is paired with a pump running up to 3000RPM and three TL-U12Q 120mm fans. The cooling system is built around a full-size 360mm radiator rather than treating the display as the only focus.
TL-U12Q 2400RPM PWM Fans
Each TL-U12Q fan reaches up to 2400RPM with 74.4 CFM airflow and 2.2mmHO static pressure. Standard 4-Pin PWM control allows the motherboard to raise or lower fan speed according to cooling demand instead of running the fans at maximum speed at all times.
ARGB with Side Infinity Mirror
The TL-U12Q fans combine ARGB illumination with a side infinity mirror effect, adding visual depth along the radiator while matching the large LCD at the pump head. A standard 5V 3-Pin ARGB connection supports synchronization with compatible motherboard lighting systems.
Less Assembly Before Installation
All three radiator fans are pre-installed to reduce setup steps before the cooler goes into the case. The 400mm tubing provides room for compatible top or front radiator routing, while the 69.2 × 69.2 × 60mm pump housing keeps the 5-inch display in a relatively compact profile around the CPU socket.
Current Intel and AMD Platform Support
Compatible with Intel LGA1851, LGA1700, LGA1200 and LGA115X together with AMD AM5 and AM4. Dynamic Vision 360 is backed by Thermalright's 5-year manufacturer warranty.
Key Specifications
Display: 5-Inch, 854 × 480
Software: Thermalright TRCC
Pump Speed: 3000RPM ±10% Max
Pump Size: 69.2 × 69.2 × 60mm
Radiator: 397 × 120 × 27mm Aluminum
Tubing Length: 400mm
Fans: 3 × TL-U12Q 120mm, Pre-Installed
Fan Speed: 2400RPM ±10% Max
Airflow: 74.4 CFM Max
Static Pressure: 2.2mmHO Max
Noise Level: 34.59 dBA Max
Fan Control: 4-Pin PWM
ARGB: 5V 3-Pin
Visual Effect: Side Infinity Mirror
Intel: LGA1851 / 1700 / 1200 / 115X
AMD: AM5 / AM4
Warranty: 5 Years
Product information
| Product Dimensions | 4.72"L x 1.06"W x 15.63"H |
| Brand | Thermalright |
| Power Connector Type | 4-Pin |
| Voltage | 5 volts |
| Wattage | 8 watts |
| Cooling Method | Water |
| Compatible Devices | Desktop |
| Noise Level | 34.59 db |
| Material | Aluminum |
| Maximum Rotational Speed | 2400 rpm |
| Air Flow Capacity | 74.4 cfm |
| Item Dimensions L x W x H | 4.72"L x 1.06"W x 15.63"H |
| Material Type | Aluminum |
| Brand Name | Thermalright |
| Item Highlight | 5-Inch Adjustable LCD | TRCC Custom Display | 360mm Radiator | 2400RPM PWM Fans | Pre-Installed TL-U12Q Fans | LGA1851 / AM5 |
| UPC |
