ALTRONIX AL176ULX Power Supply/Charger

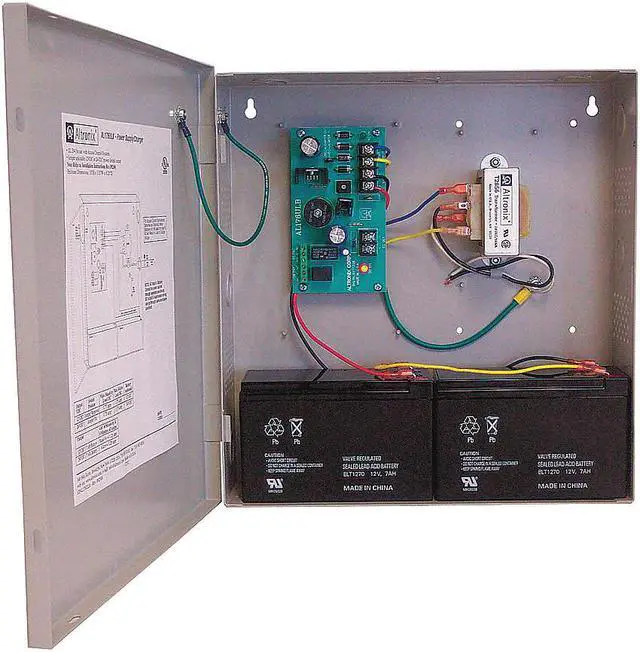

AL176ULX Overview Model AL176ULX power supply/charger converts a 115VAC 60Hz input, to a 1.75 amp of continuous supply current @ 12VDC or 24VDC Class 2 Rated power limited output. Agency Listings • UL Listed for Access Control Systems (UL294), CUL Listed - CSA Standard C22.2 -M1983, Signal Equipment. File# BP6714. Features/Specifications • 12VDC or 24VDC selectable output. • 1.75 amp of continuous supply current output. • Class 2 Rated power limited output. • 115VAC 60Hz, .6 amp input. • Filtered and electronically regulated outputs. • Short circuit and thermal overload protection. • Built-in charger for sealed lead acid or gel type battery backup. • Maximum charge current .4 amp. • Zero voltage drop upon transfer to battery backup. • AC input and DC output LED indicators. • AC fail supervision (form C contact rated @ 1 amp 28VDC). • Low battery supervision (form C contact rated @ 1 amp 28VDC). • Lifetime Warranty. Enclosure • Accommodates up to two (2) 12VDC/7AH batteries. • Dimensions: 13.5H x 13W x 3.25D. • 1/2 and 3/4 combination knockouts. Product Type: Proprietary Power Supply Input Voltage: 110 V AC Output Voltage: 24 V DC Output Voltage: 12 V DC Product Type: Proprietary Power Supply Compatibility: Access Control System Signal Equipment Input Voltage: 110 V AC Manufacturer Part Number: AL176ULX Limited Warranty: Lifetime Output Voltage: 24 V DC @ 1.75 A Output Voltage: 12 V DC @ 1.75 A Weight (Approximate): 8.50 lb Form Factor: Wall Mount Form Factor: Wall Mount Manufacturer: Altronix Corporation Product Model: AL176ULX Product Name: AL176ULX Proprietary Power Supply Brand Name: Altronix Brand Name: Altronix Height: 13.5 Width: 13 Depth: 3.3 Number of +12V Rails: 1 Environmentally Friendly: Yes Environmental Certification: RoHS Number of +12V Rails: 1
