150PSI Pressure Transducer Sensor, 1/8NPT Thread Stainless Steel Pressure Sensor 0.5-4.5V, Fuel Oil Pressure Transducer Sensor with Connector Harness for Gas, Water, Air

Specifications: The thread Type of stainless steel pressure sensor is 1/8" NPT, voltage is DC 5V. Mating connector and wire harness (pigtail), which are water sealed quick disconnect. The PSI pressure sensor output error is small, accuracy is ±1.0% FS

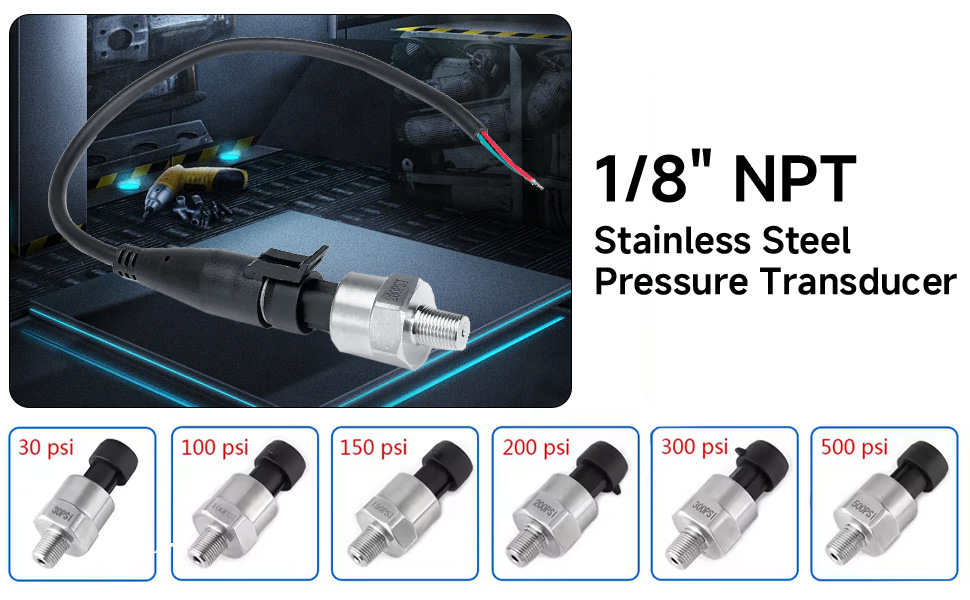

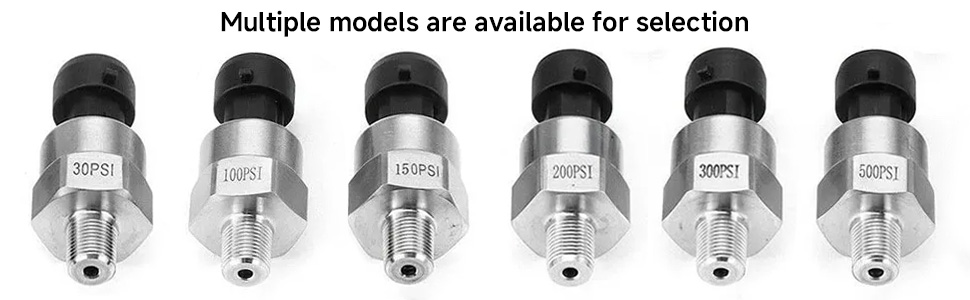

Pressure Range: It has 6 rangs of pressure transducers to choose from, 30psi, 100psi, 150psi, 200psi, 300psi, 500psi. Please confirm the pressure input value range before purchasing pressure sensor. Note: Different input values have different threads
Easy to Install: Pressure transducer sensor with deep and clear thread is easy and quick to install , and the sealing is good after screwing. Match the connector and harness,line sequence is red for +5V, black for ground, tellow (green) for signal output
Industrial Materials: Pressure sensors use a stainless steel shell, which is strong and not easy to wear. And the stainless steel pressure transducer has a built-in pressure ceramic core, which can sense the pressure and make a judgment in a short time
Widely Use: Pressure sensor transmitter can be used for oil, fuel, gas and other media. It is used for air pressure testing of oil tanks and air tanks. The pressure sensor 0.5-4.5v can be installed behind the engine, on the cylinder block and oil filter

Features:

It's a pressure transducer than traditional mechanical pressure transducer.
±2%FS small output error, including nonlinear, hysteresis error and repeatability, full temperature range.
Fuel oil pressure transducer sensor is light weight and small size, convenient to install and use.
Stainless steel pressure transducer has complete surge voltage protection function.
Works for oil, fuel, diesel, gas, water, air pressure, can be used in oil tank, gas tank, diesel tank etc.

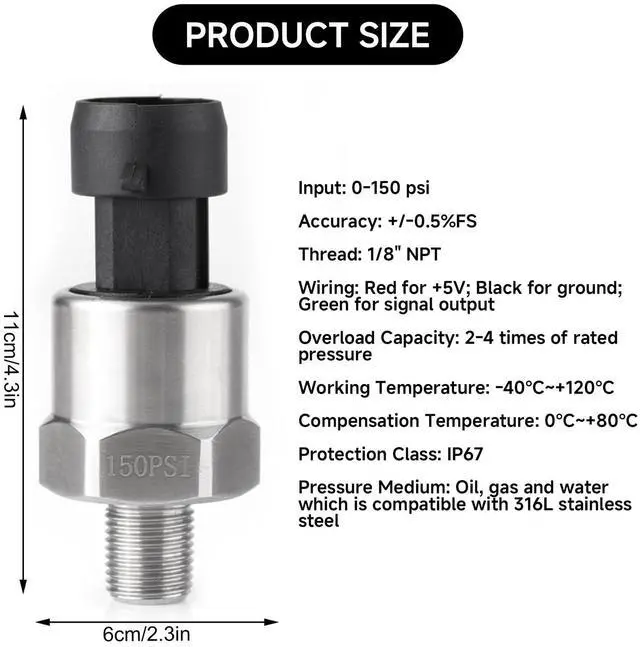

150 psi

Input	0-150 psi
Output	0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 75 psi outputs 2.5V, 150 psi outputs 4.5V
Accuracy	+/-0.5%FS
Thread	1/8" NPT
Wiring	Red for +5V; Black for ground; Green for signal output
Overload Capacity	2-4 times of rated pressure
Working Temperature	-40?~+120?
Compensation Temperature	0?~+80?

Protection Class	IP67
Pressure Medium	Oil, gas and water which is compatible with 316L stainless steel
Load Resistance	=(supply power-6.5V/0.02A)O
Long-term Stability	Less than 0.1%FS/year
Temperature Effect on Zero	Typical:0.02%FS/?; Maximum:0.05%FS/?
Temperature Effect Sensitivity	Typical: 0.02%FS/?; Maximum: 0.05%FS/?
Shock Resistance	1000g
Anti-Shock	=+/-0.01%FS(X,Y,Z axes, 200Hz/g)

Response Time	=1ms
Insulation Resistance	>100mO 500VDC

Explosion-proof Class	ExiaTTCT6
Electromagnetism Compatibility	EN50051-1

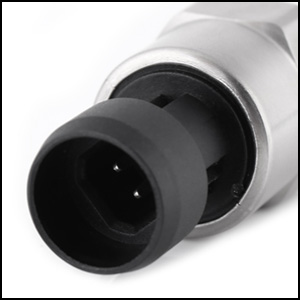

Oil Pressure Switch

Material: Stainless steel

Voltage: DC 5V

Thread Type: 1/8" NPT

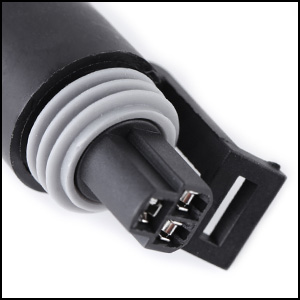

Fuel Pressure Regulator

Package Includes:

1 x Pressure Transducer (With cable)

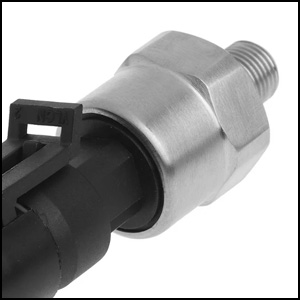

Oil Pressure Sensor Switch

Works for oil, fuel, diesel, gas, water, air pressure, can be used in oil tank, gas tank, diesel tank etc.

Features:

It's a pressure transducer than traditional mechanical pressure transducer.
±2%FS small output error, including nonlinear, hysteresis error and repeatability, full temperature range.
Fuel oil pressure transducer sensor is light weight and small size, convenient to install and use.
Stainless steel pressure transducer has complete surge voltage protection function.
Works for oil, fuel, diesel, gas, water, air pressure, can be used in oil tank, gas tank, diesel tank etc.

150 psi

Input	0-150 psi
Output	0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 75 psi outputs 2.5V, 150 psi outputs 4.5V
Accuracy	+/-0.5%FS
Thread	1/8" NPT
Wiring	Red for +5V; Black for ground; Green for signal output
Overload Capacity	2-4 times of rated pressure
Working Temperature	-40?~+120?
Compensation Temperature	0?~+80?
Protection Class	IP67
Pressure Medium	Oil, gas and water which is compatible with 316L stainless steel
Load Resistance	=(supply power-6.5V/0.02A)O
Long-term Stability	Less than 0.1%FS/year
Temperature Effect on Zero	Typical:0.02%FS/?; Maximum:0.05%FS/?
Temperature Effect Sensitivity	Typical: 0.02%FS/?; Maximum: 0.05%FS/?
Shock Resistance	1000g
Anti-Shock	=+/-0.01%FS(X,Y,Z axes, 200Hz/g)

Response Time	=1ms
Insulation Resistance	>100mO 500VDC
Explosion-proof Class	ExiaTTCT6
Electromagnetism Compatibility	EN50051-1

Oil Pressure Switch

Material: Stainless steel

Voltage: DC 5V

Thread Type: 1/8" NPT

Fuel Pressure Regulator

Package Includes:

1 x Pressure Transducer (With cable)

Oil Pressure Sensor Switch

Works for oil, fuel, diesel, gas, water, air pressure, can be used in oil tank, gas tank, diesel tank etc.
