Compressed Air Dryer, 125CFM Refrigerated Air Dryer, 110-120V Industrial Refrigerated Air-Drying System for 20HP, 25HP & 30HP Compressors - with Color Screen Control Panel and Automatic Drainage
- Key Specifications: Voltage: 110-120V 60Hz; Flow Rate: 125 CFM; Working Pressure: 87 - 232 PSI; Dew Point Temperature: 35.6 - 50°F; Inlet Air Temperature: 59 - 149°F; Compatible Air Compressors: 20HP & 25HP & 30HP; Refrigerant Type: R410a, Connection Size: RC 1"

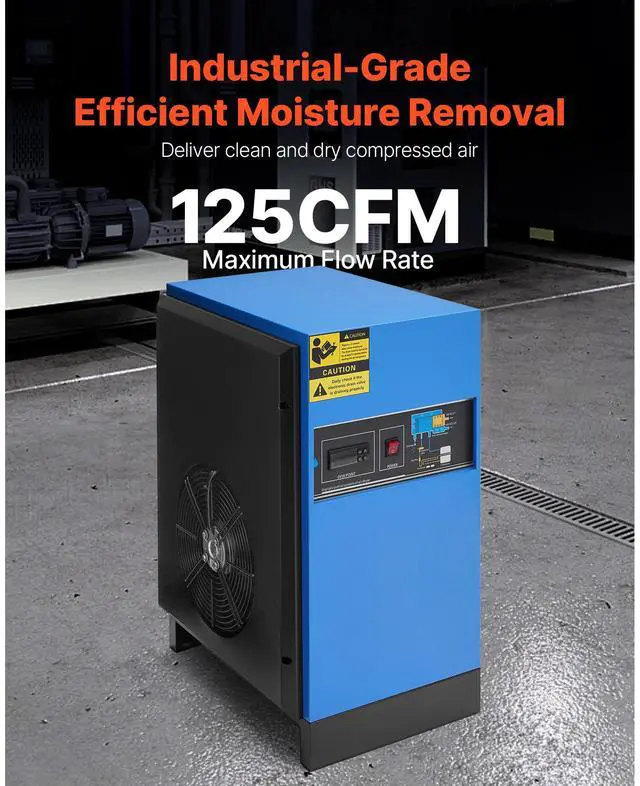

- Efficient Moisture Removal: This compressed air dryer handles up to 125 CFM air flow rate, effectively removing moisture, oil, and impurities from compressed airan ideal solution for efficient, energy-saving air drying in industrial applications

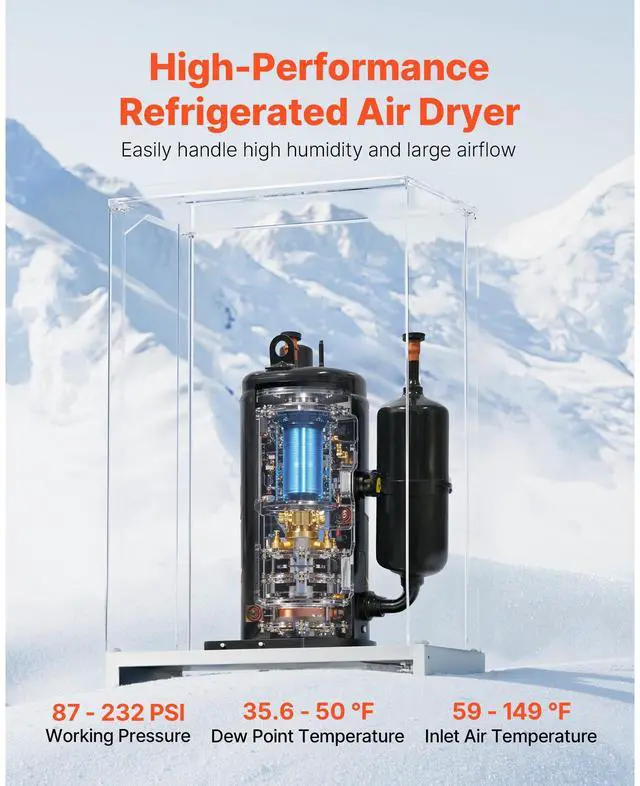

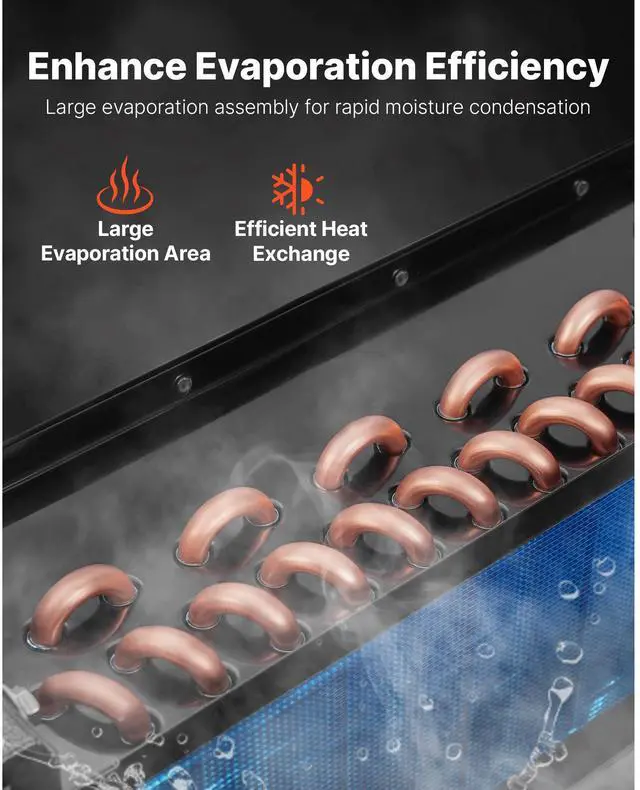

- High Performance: Equipped with a refrigeration compressor and a large-area evaporator assembly, our refrigerated air dryer ensures efficient heat exchange and fast moisture condensation for rapid, reliable moisture removal

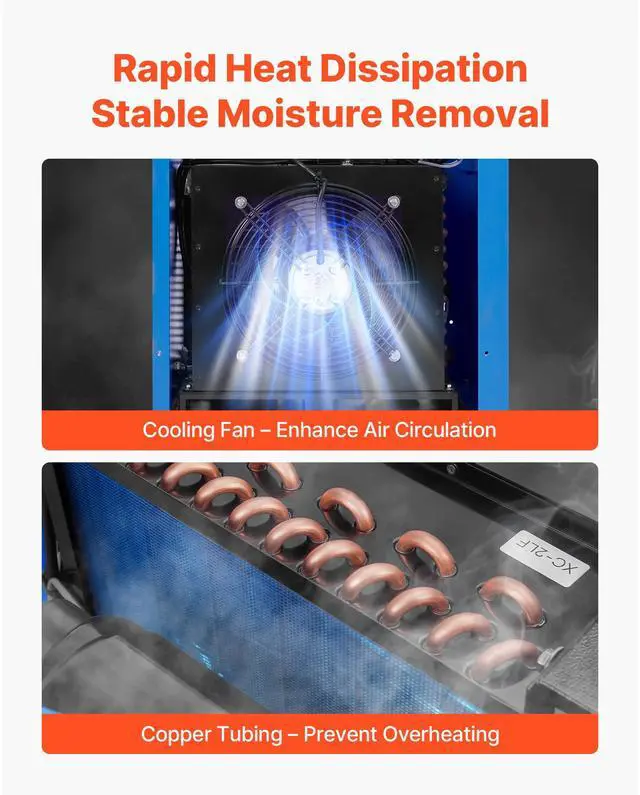

- Rapid Heat Dissipation: Featuring a high-efficiency cooling fan and premium copper tubing, our refrigerated air drying system enhances airflow and effectively prevents overheating - ensuring your compressed air system runs smoothly under demanding conditions
- Easy to Operate: The compressed air dryer features a color screen control panel for simple operation and real-time monitoring of the air-drying system. Paired with an electronic drain valve, it ensures efficient and automatic drainage
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

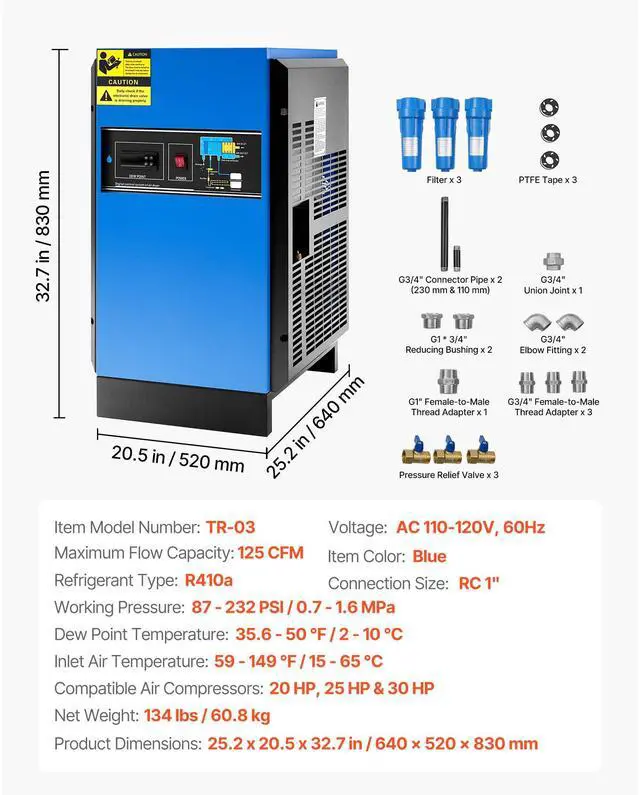

Specifications
Item Model Number: TR-03
Voltage: AC 110-120V, 60Hz
Maximum Flow Capacity: 125 CFM
Item Color: Blue
Working Pressure: 87 - 232 PSI / 0.7 - 1.6 MPa
Dew Point Temperature: 35.6 - 50 °F / 2 - 10 °C
Inlet Air Temperature: 59 - 149 °F / 15 - 65 °C
Compatible Air Compressors: 20 HP, 25 HP & 30 HP
Refrigerant Type: R410a
Connection Size: RC 1"
Net Weight: 134 lbs / 60.8 kg
Product Dimensions: 25.2 x 20.5 x 32.7 in / 640 x 520 x 830 mm
Package Content
1 x Compressed Air Dryer
