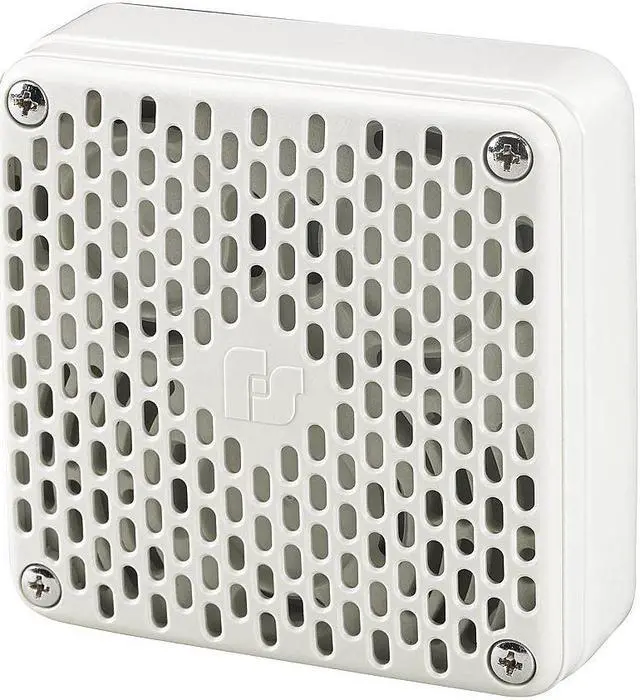

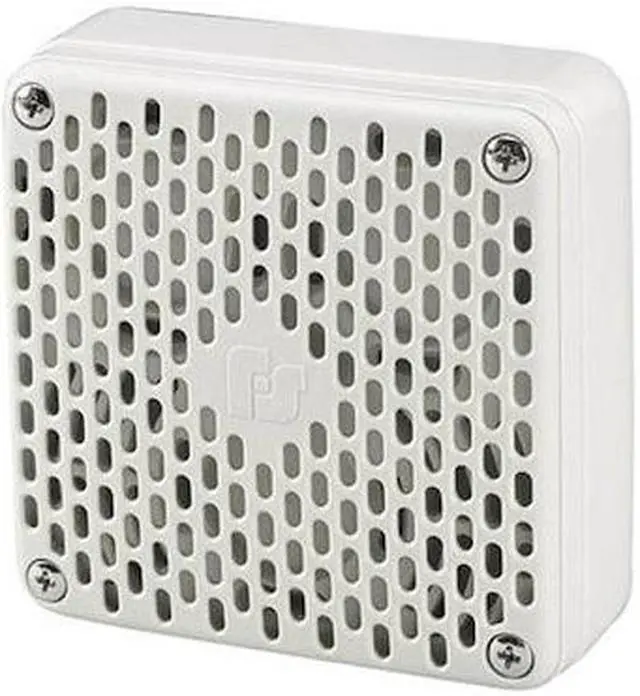

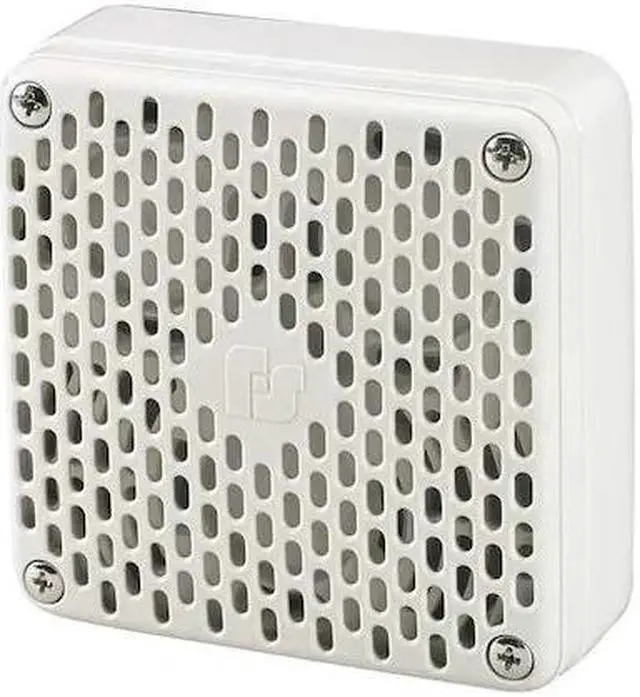

Federal Signal Horn Gray Includes Panel Mount Gasket 450E-024

FEDERAL SIGNAL 4.50E-22 is a surface-mount audible horn for signaling applications in locations consistent with the products listed enclosure ratings. It produces a continuous horn sound and supports coded or sustained tones. The unit operates on 12 to 24V DC and 16 to 33V DC, with a wired power source and terminal block connection. Its gray polycarbonate housing is designed for surface installation and includes mounting hardware and a panel mount gasket.

Key Features:

• Audible horn with no visual indicator.
• 90 dB nominal sound output, with maximum sound levels of 108 dBA at 1 m and 98 dBA at 10 ft.
• Continuous horn sound with coded or sustained tone operation.
• 12 to 24V DC and 16 to 33V DC operating voltage range.
• 0.25 A current draw and 5 W wattage.
• Gray polycarbonate housing.
• Surface-mount design with mounting hardware included.
• Terminal block connection.
• IP66 and NEMA 4X enclosure ratings.
• Operating temperature range: -65 degrees F to 150 degrees F.
• Includes multiple CSFM, cUL, UL, ULC, and marine ratings.
• Panel mount gasket included.
