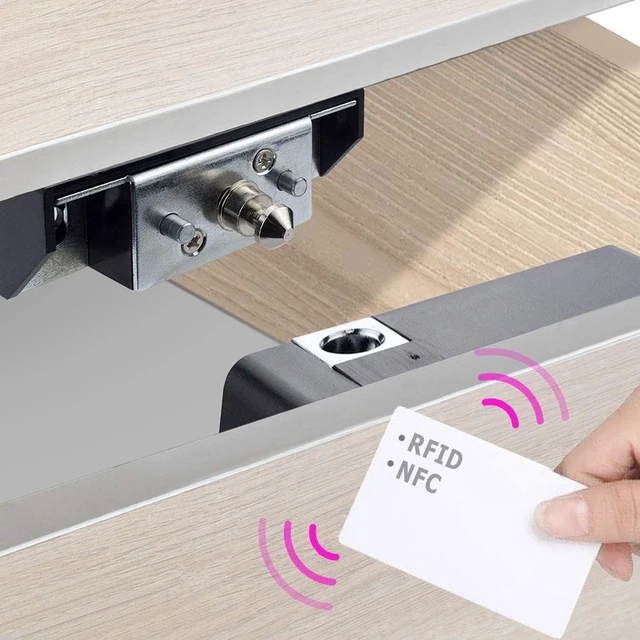

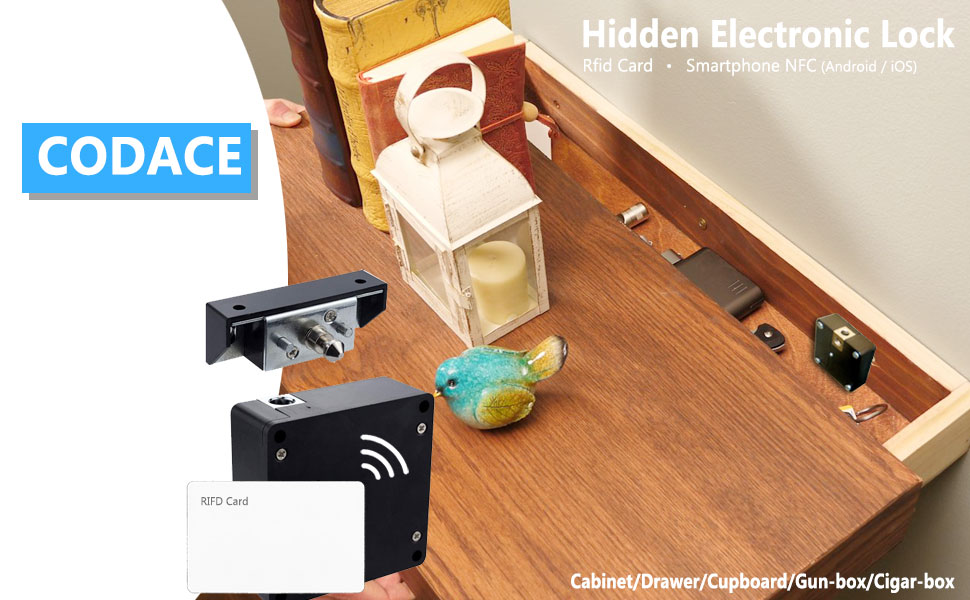

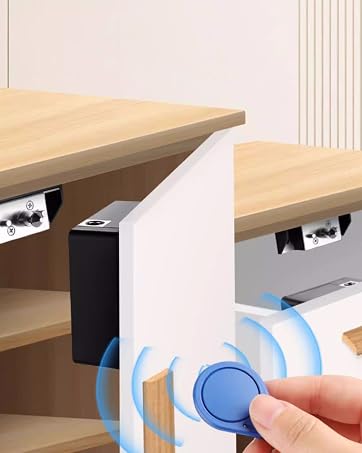

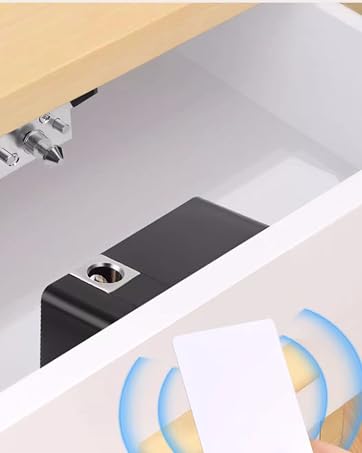

CODACE Hidden RFID/NFC Locks for Cabinet Drawer
- 1)3 Modes: single card, dual card (up to 13 cards can be configured), NFC function.

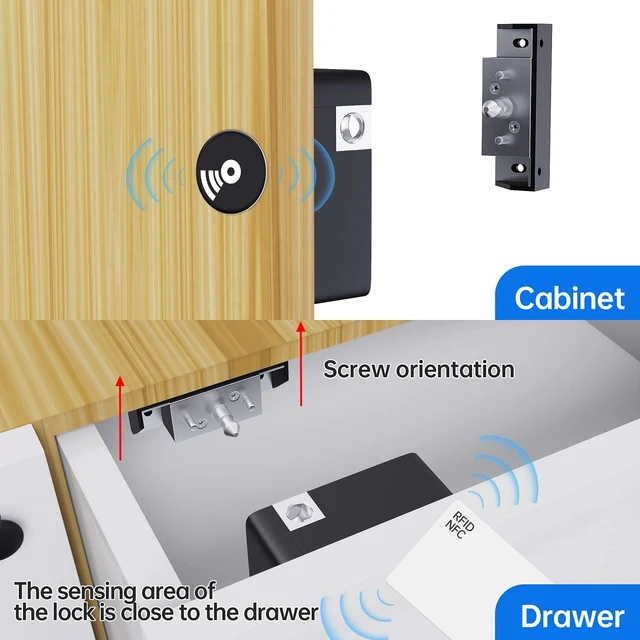

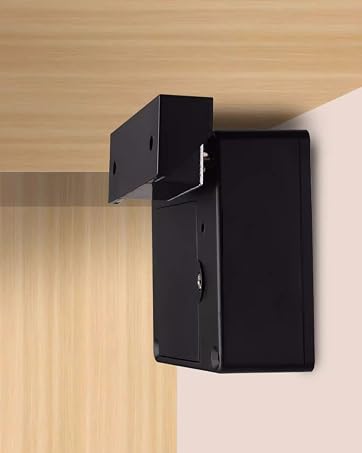

- 2)Sensing area up tp 50mm, installed vertically or horizontally.
- 3)4 AAA 1.5V alkaline batteries or USB cable. (Normal can be used for 18 months.)
- 3)The sound alarm will alert when the voltage is low, the door will open automatically.

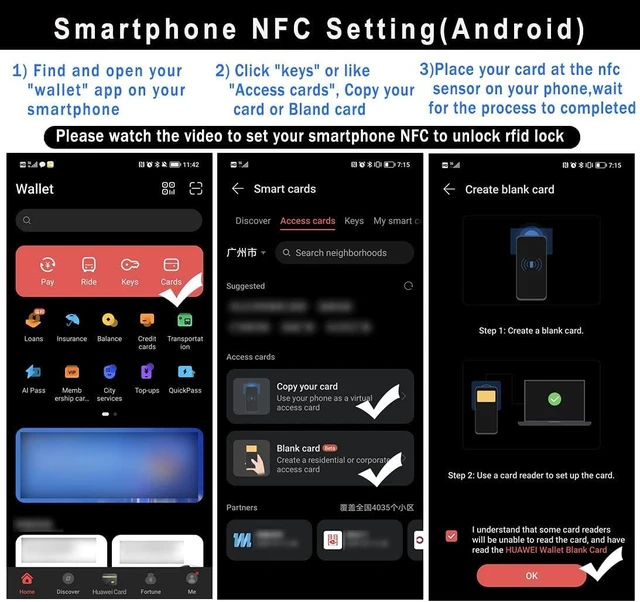

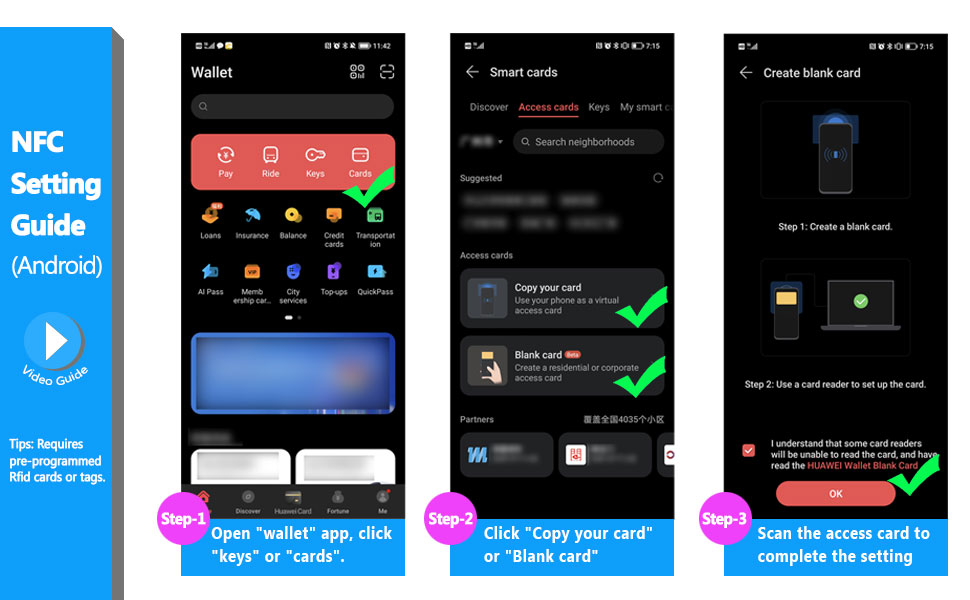

NFC Key Card Installation Guide — Android
- Note: For Android, copy rfid key to your phone's wallet via NFC fucntion.

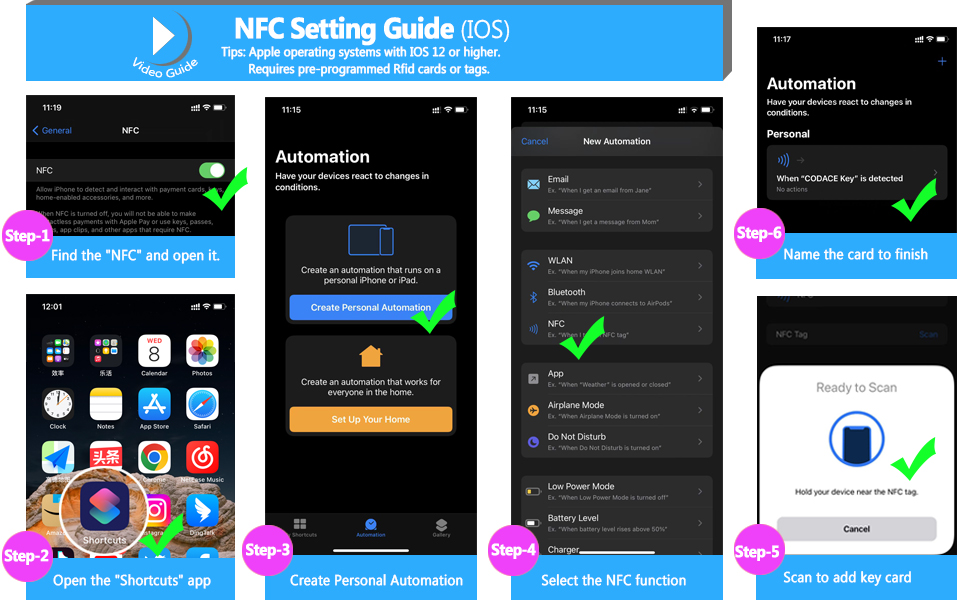

NFC Key Card Installation Guide — IOS
- Note: For iOS, you need to hold an existing transit card or bank card, the card needs to be configured successfully, and add this card to IPhone Wallet.
Pre-Installation Preparation(IOS)
1. need an existing transportation card or bank card X1
2. an Iphone with wallet function X 1
3. electronic lock with AAA battery X 1
Add an existing transportation card or bank card

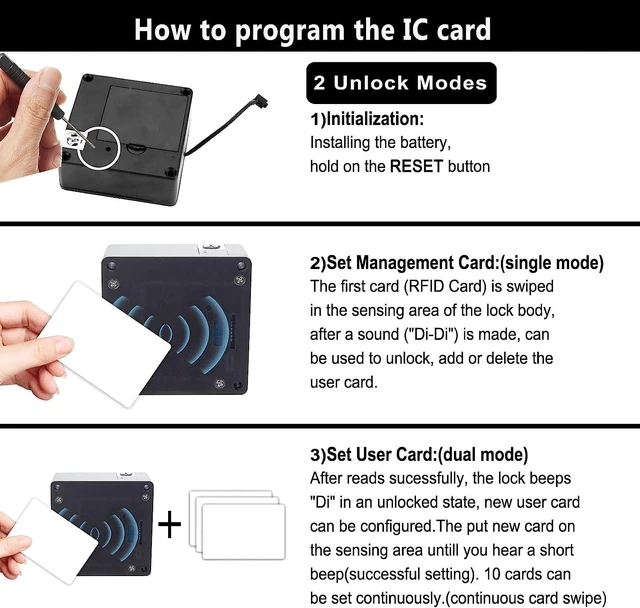

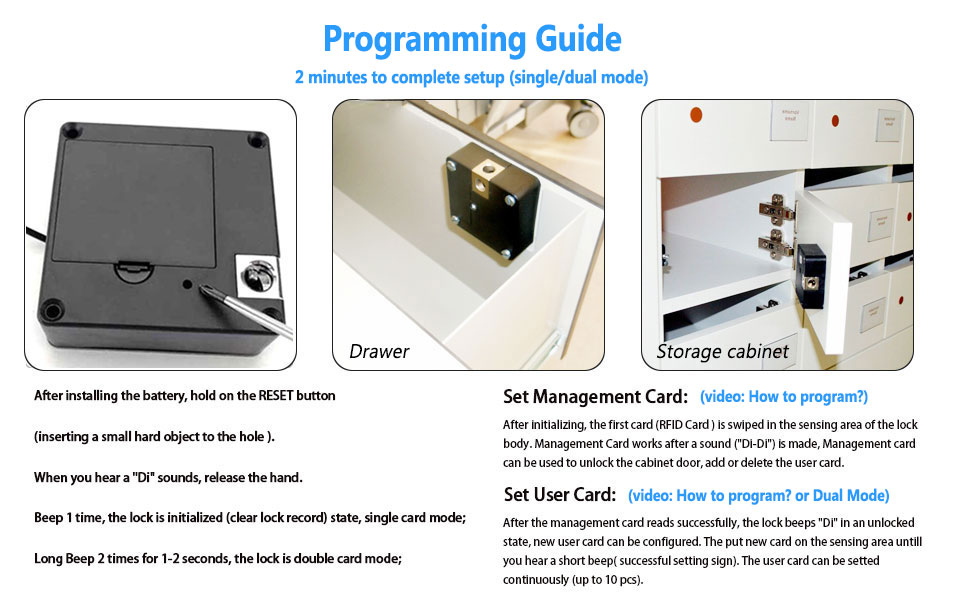

1. Install the battery, then use the included screwdriver to insert it into the hole of the reset button (it can be reset when you hear the sound of Di).
2. Hold the traffic card or bank card near the induction area of the lock until you hear a short sound (successful configuration).
3. Open your IPhone wallet and add this existing card scan to your phone
Input NFC Signal
1. Re-open the wallet and click Use Card.
2. After the electronic lock is unlocked, enter the mobile phone card information and confirm the input with two beeps.
QA about Lock:
1.What is the rfid lock made of ?
A: Stainless steel latch and ABS plastic lock body, durable and anti-corrosion
2.What specific rfid cards does this locker require?
A: M1 13.56MHz Card

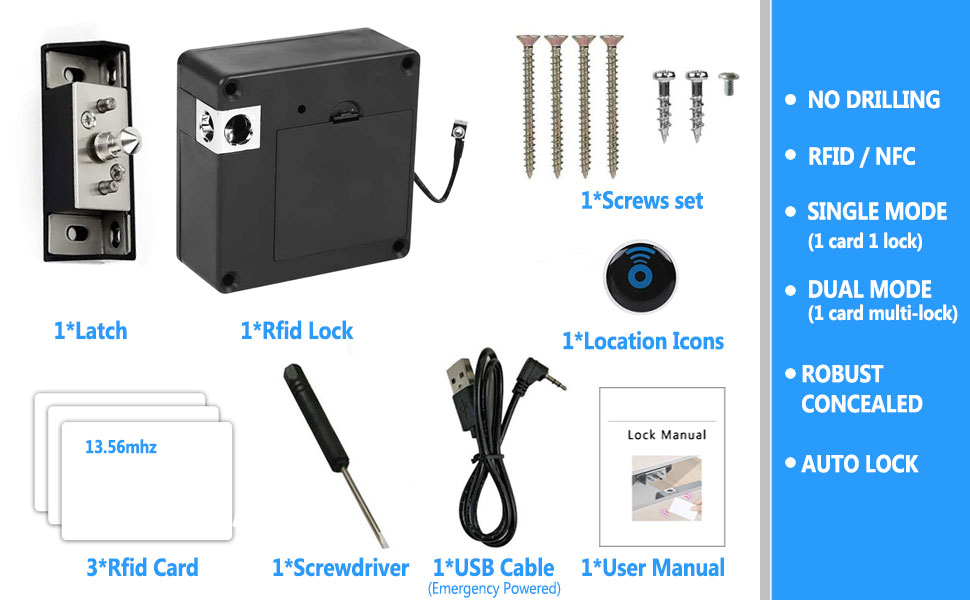

3.What is the wire cable sticking out the box used for?
A: The cable is external power supply for emergency. When installing the cabinet lock, you could leave the cable outside for emergency to get power( the other way is powered by 4pcs AAA batteries)
QA about Application:
1.Will this electronic drawer lock serve for door?
A: This mini lock fits doors up to 0"-1.3" thick, used for wooden cabinet door/drawer/lockers/pantry/cupboard etc.

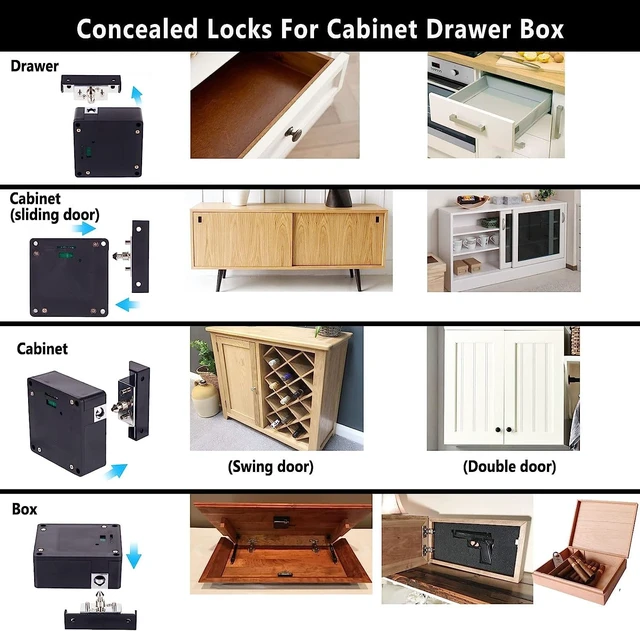

2.Where can i install this rfid lock?
A: This is a mini intelligent cabinet lock, which can be installed in the lockers or drawers for home, gym, supermarket, school, etc.
QA about Operation:

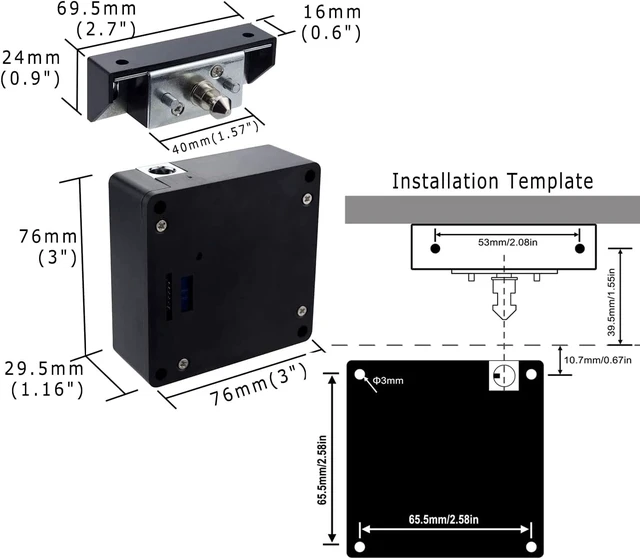

1.How can i install this cabinet lock rfid?
A: This cabinet lock include the screws, you just use a screwdriver to secure the lock in the appropriate place of the cabinet. No Drilling. Easy to install.
2.How to do all the locks with the same key?
A: Please use the management card to sense the lock and then quickly sense the key. Use the same way to set another lock.
Case You May have:
1.How to open my drawer if the rfid hidden drawer lock has been installed to use for a month then it suddenly stopped working?
A: Attention: Do not swipe the management card 9 times continuously, it will turn off the low-power unlock function

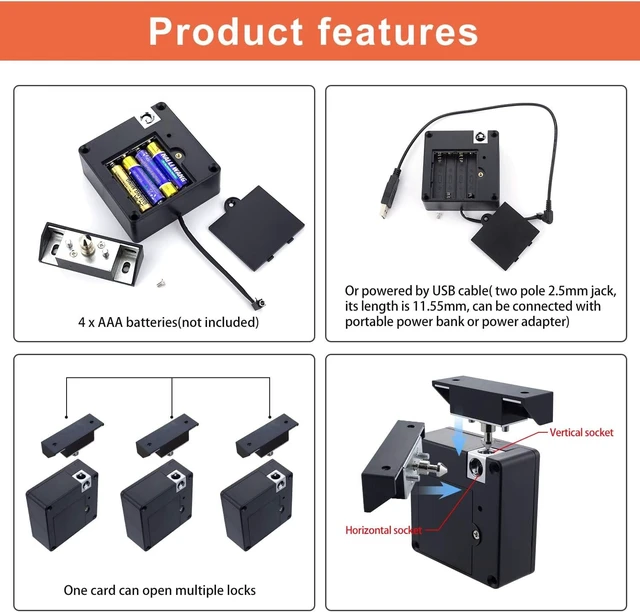

2.Can't get them to work only on 2.5 mini jack / usb with 5v. only battery option works. am i doing something wrong?
A: You can use two pole 2.5 jack, length is 11.55mm. If you can't get this jack, you can cut off the cable, and connect directly without jack. But please make sure connect cathode&anode correctly. And when you use USB to power, please take out batteries.
3.What happens if the batteries go dead while it is locked?
A: It will unlock automatically shortly before the batteries go dead. And there will be warming beep to remind you while it is in lower power status.
4.Can use only a power adapter and no batteries?
A: Yes, it's not problem, but it should be 5VDC. If you want 5V DC instead of 4xAAA batteries, the lock maybe have lower power alert.

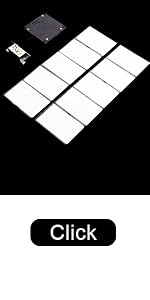

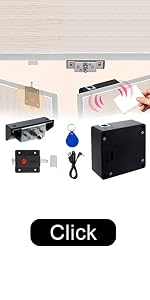

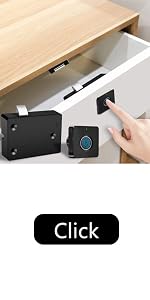

 Double Door Cabinet Lock |  10 Pcs RFID Cards-13.56Mhz |  Smart Fingerprint Cabinet Lock | |
|---|---|---|---|
| Customer Reviews | — | — | — |
| Price | — | — no data | — no data |
| Electronic Induction | ? | ? | Fingerprint Sensing |
| Cabinet/Drawer/Cupboard/Box | ? | no data | ? |
| Powered | Battery/USB Cable | no data | Battery/USB Cable |
