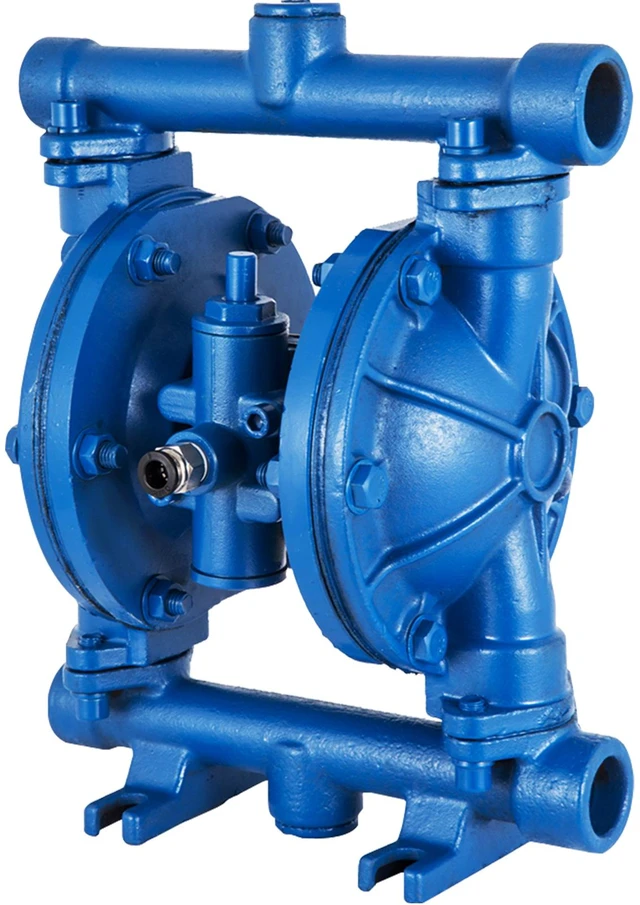

Air-Operated Double Diaphragm Pump, 1/2 in Inlet & Outlet, Cast Iron Body, 3 GPM & Max 90 PSI, Nitrile Diaphragm Pneumatic Transfer Pump for Petroleum, Diesel, Oil & Low Viscosity Fluids
- Premium Double Nitrile Diaphragms: Our air-operated double diaphragm pump adopts nitrile diaphragms, durable, corrosion-proof, and long-lasting. Max. Temperature: 150 /66 ; Max. Pressure: 90 psi; Max. Flow Rate: 3 GPM; Max Head Lift196.85 ft/60 m±15%.

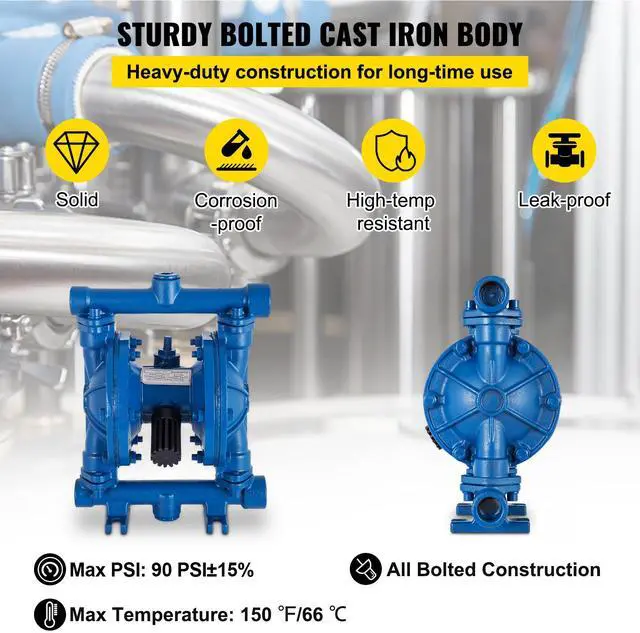

- Sturdy & Leak-proof Construction: The diaphragm pump housing is made of cast iron material, bolted against leakage, sturdy, and corrosion-proof for long-time use.

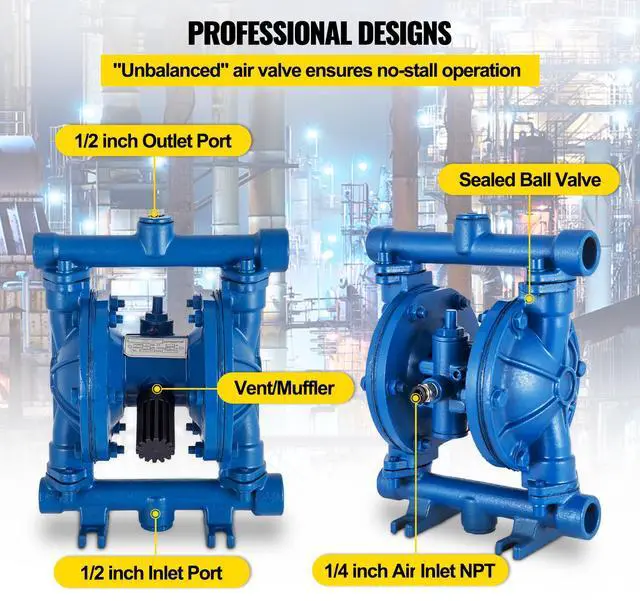

- Excellent Air-operated Performance: Inlet/Outlet Port Size: 1/2 inch; Air Inlet Size: FNPT 1/4 inch. A high-quality glyd ring, the double-acting sealing, strengthens air performance.
- Unique & Professional Designs: Our double diaphragm pump features an externally available air distribution system. The modular air valve is stainless. This low pulsation air valve provides smooth and rapid changeover for increased efficiency and minimizes downtime
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
Model: QBK-15
Color: Blue
Body Material: Cast iron
Inlet Port: 1/2 inch ( 12.7 mm)
Outlet Port: 1/2 inch ( 12.7 mm)
Air Inlet Size: 1/4 inch ( 6.35 mm)
Gas Nozzle: 0.32 inch (8 mm)
Max Flow Rate: 3 GPM
Suction: 0-5 m (0- 16.4 ft)
Max Head: 196.85 ft/60 m±15%
Max PSI: 90 psi
Package Content
1 x Air-Operated Double Diaphragm Pump
1 x Product Manual
