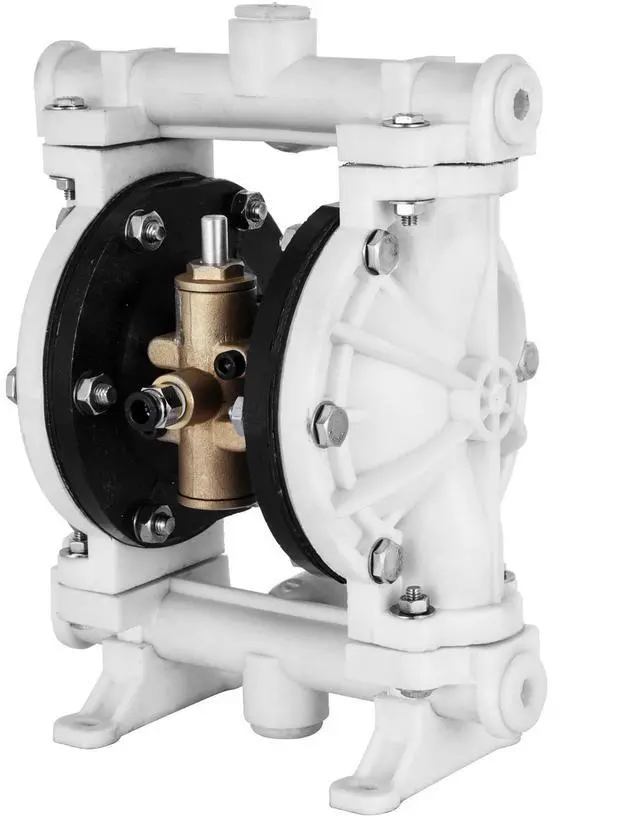

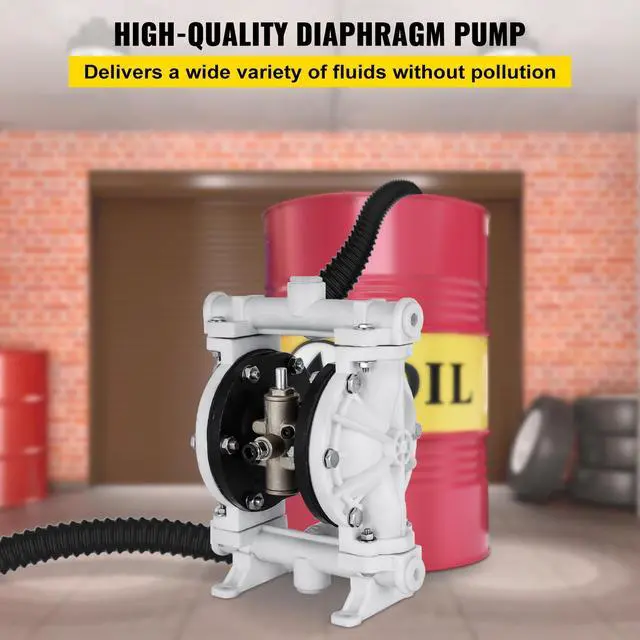

Air-Operated Double Diaphragm Pump, 1/2 in Inlet & Outlet, Polypropylene Body, 2.5 GPM & Max 80PSI, PTFE Diaphragm Pneumatic Transfer Pump for Petroleum, Diesel, Oil & Low Viscosity Fluids
- Premium Double PTFE Diaphragms: Our air-operated double diaphragm pump adopts PTFE diaphragms, durable, corrosion-proof, and long-lasting. Max. Temperature: 150 /66 ; Max. Pressure: 80 PSI; Max. Flow Rate: 2.5 GPM; Max Head Lift: 226.4 ft/69 m.

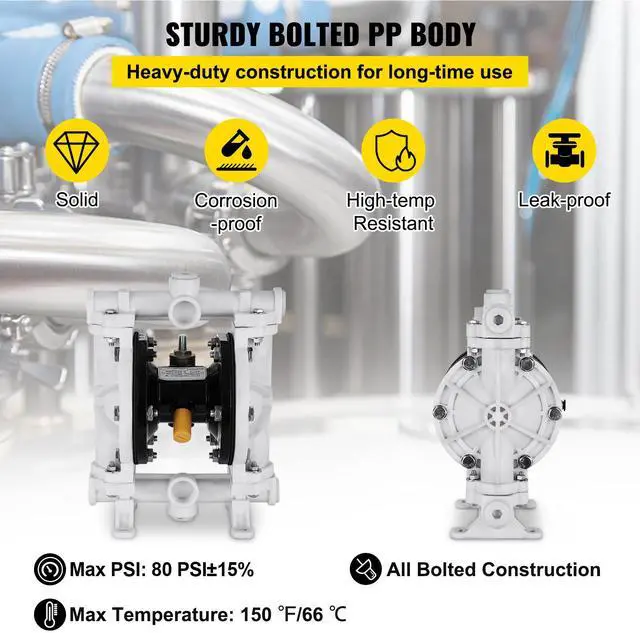

- Sturdy & Leak-proof Construction: The diaphragm pump housing is made of polypropylene material, bolted against leakage, sturdy, and corrosion-proof for long-time use.
- Excellent Air-operated Performance: Inlet/Outlet Port Size: 1/2 inch (12.7 mm); Air Inlet Size: FNPT 1/4 inch (6.35 mm). A quality glyd ring, the double-acting sealing, strengthens air performance.

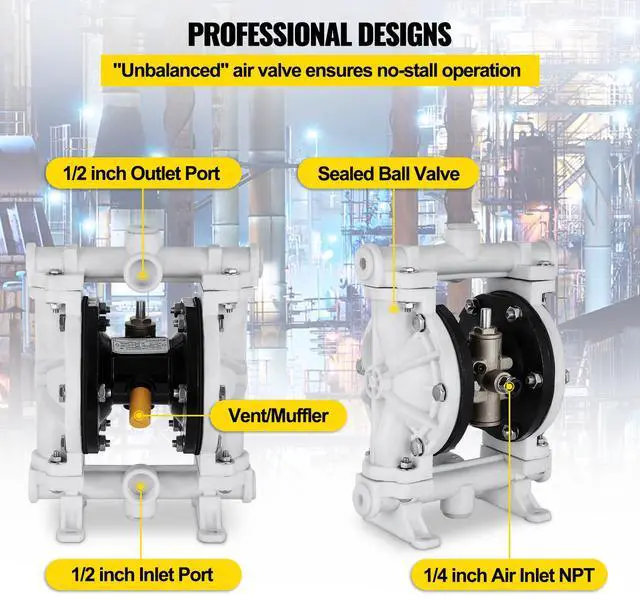

- Unique & Professional Design: Our double diaphragm pump features an externally available air distribution system. The modular air valve is stainless. This low pulsation air valve provides smooth and rapid changeover for increased efficiency and minimizes downtime
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

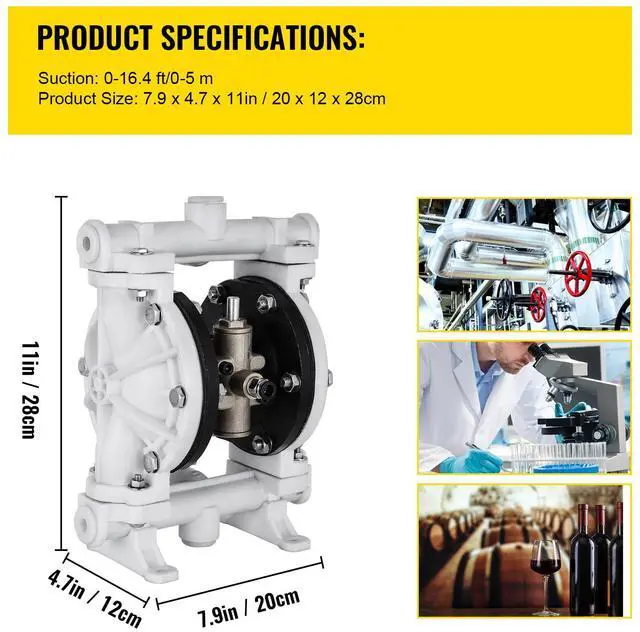

Specifications
Model: QBY-15PP
Body Material: Polypropylene
Inlet Port: 1/2 inch ( 12.7 mm)
Outlet Port: 1/2 inch ( 12.7 mm)
Air Inlet Size: FNPT 1/4 inch ( 6.35 mm)
Max Flow Rate: 2.5 GPM
Suction: 0-5 m (0- 16.4 ft)
Max Suspended Solids: 2.38 mm (3/32 inch)
Max Head: 69 m ( 226.4 ft)
Max PSI: 80 psi
Temp.
Rating: -20 ~ 150
Self-Priming Dry: 3 m (10 ft)
Self-Priming Wet: 4.6 m (15 ft)
Ball Material: Santoprene (R)
Package Content
1 x Air-Operated Double Diaphragm Pump
1 x Product Manual
