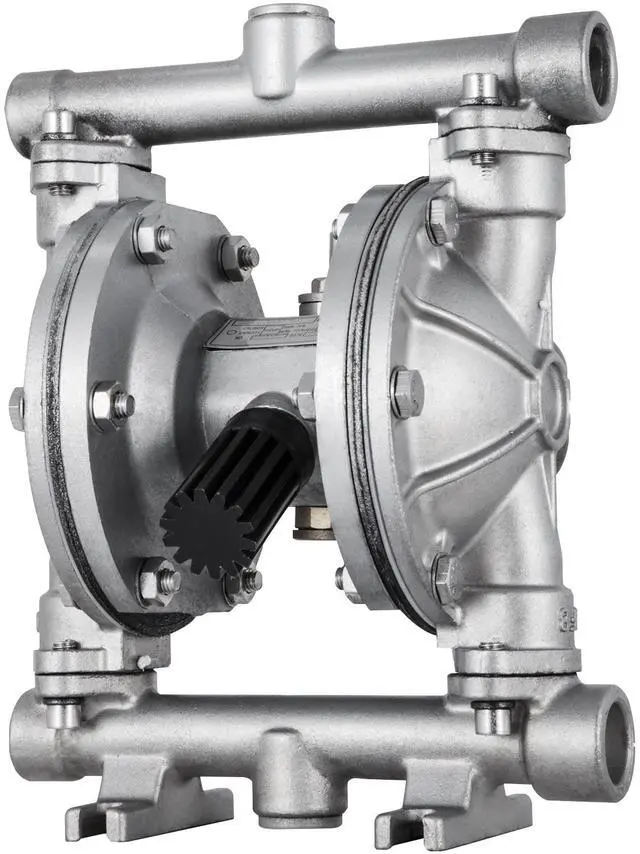

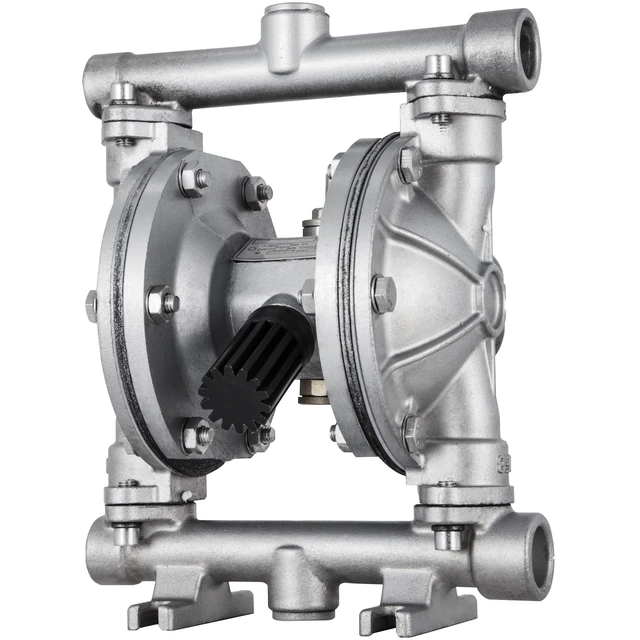

Air-Operated Double Diaphragm Pump, 1/2 in Inlet & Outlet, Stainless Steel Body, 8.8 GPM & Max 120PSI, PTFE Diaphragm Pneumatic Transfer Pump for Petroleum, Diesel, Oil & Low Viscosity Fluids
- Premium Double PTFE Diaphragms: Our air-operated double diaphragm pump adopts PTFE diaphragms, durable, corrosion-proof, and long-lasting. Max. Temperature: 150 /66 ; Max. Pressure: 90 psi; Max. Flow Rate3 GPM; Max Head Lift196.85 ft/60 m±15%.
- Sturdy & Leak-proof Construction: The diaphragm pump housing is made of stainless steel material, bolted against leakage, sturdy, and corrosion-proof for long-time use.
- Excellent Air-operated Performance: Inlet/Outlet Port Size: 1/2 inch; Air Inlet Size: FNPT 1/4 inch. A high-quality glyd ring, the double-acting sealing, strengthens air performance.
- Unique & Professional Designs: Our double diaphragm pump features an externally available air distribution system. The modular air valve is stainless. This low pulsation air valve provides smooth and rapid changeover for increased efficiency and minimizes downtime
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
Model: QBK-15P
Pump Body Material: Stainless Steel
Inlet Port: 1/2 inch ( 12.7 mm)
Outlet Port: 1/2 inch ( 12.7 mm)
Air Inlet Size: 1/4 inch ( 6.35 mm)
Gas Nozzle: 0.32 inch (8 mm)
Max.
Suspended Solids: 1/8 inch ( 3.18 mm)
Max Flow Rate: 2 GPM
Suction: 0-5 m (0- 16.4 ft)
Max Head: 196.85 ft/60 m±15%
Max PSI: 90 psi
Max. Fluid Temp.: 122
Average Air Consumption: 10 CFM
Package Content
1 x Air-Operated Double Diaphragm Pump
1 x Product Manual
