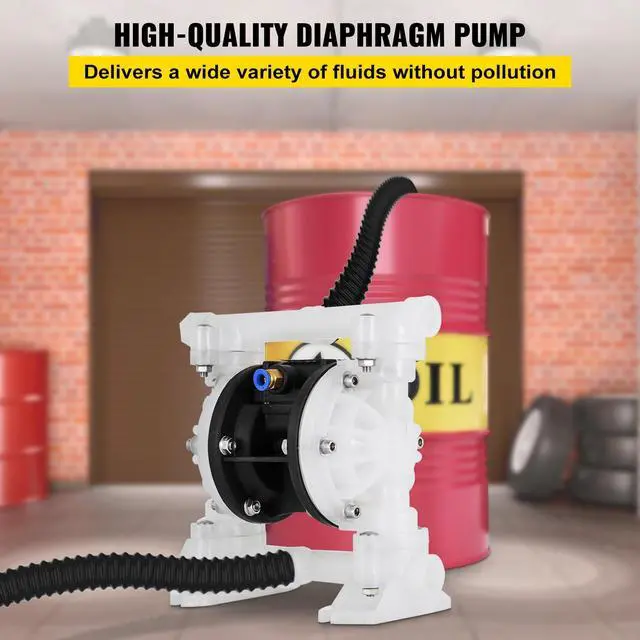

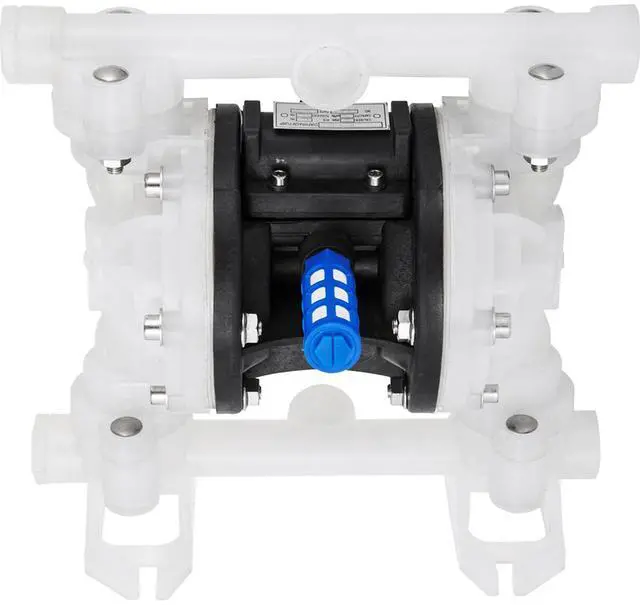

Air-Operated Double Diaphragm Pump, 1/2 in Inlet & Outlet, Polypropylene Body, 8.8 GPM & Max 120PSI, PTFE Diaphragm Pneumatic Transfer Pump for Petroleum, Diesel, Oil & Low Viscosity Fluids

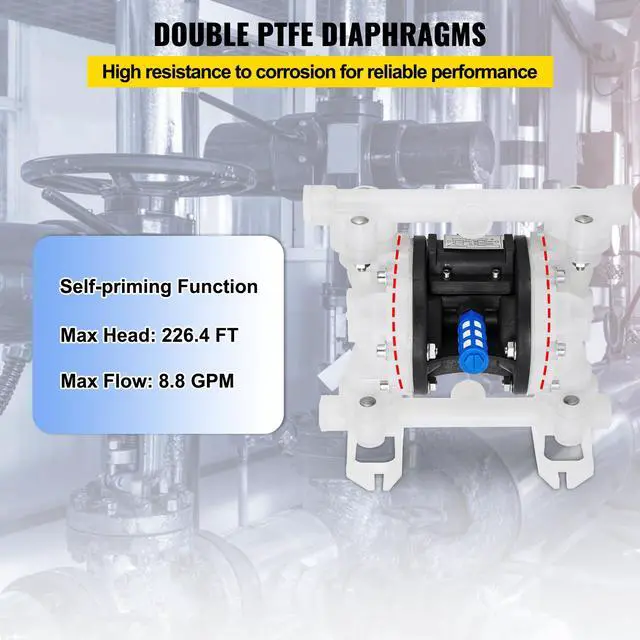

- Premium Double PTFE Diaphragms: Our air-operated double diaphragm pump adopts PTFE diaphragms, durable, corrosion-proof, and long-lasting. Max. Temperature: 150 /66 ; Max. Pressure: 100 psi; Max. Flow Rate8.8 GPM; Max Head Lift226.4 ft/69 m.

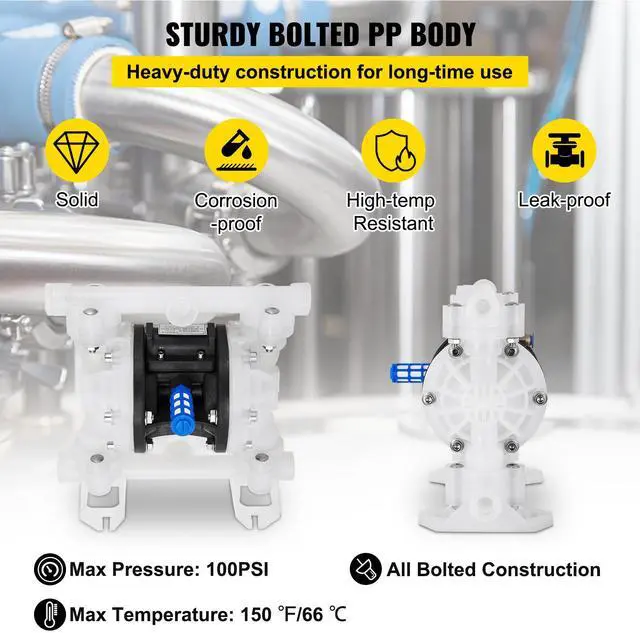

- Sturdy & Leak-proof Construction: The diaphragm pump housing is made of polypropylene material, bolted against leakage, sturdy, and corrosion-proof for long-time use.
- Excellent Air-operated Performance: Inlet/Outlet Port Size: 1/2 inch; Air Inlet Size: FNPT 1/4 inch. A high-quality glyd ring, the double-acting sealing, strengthens air performance.

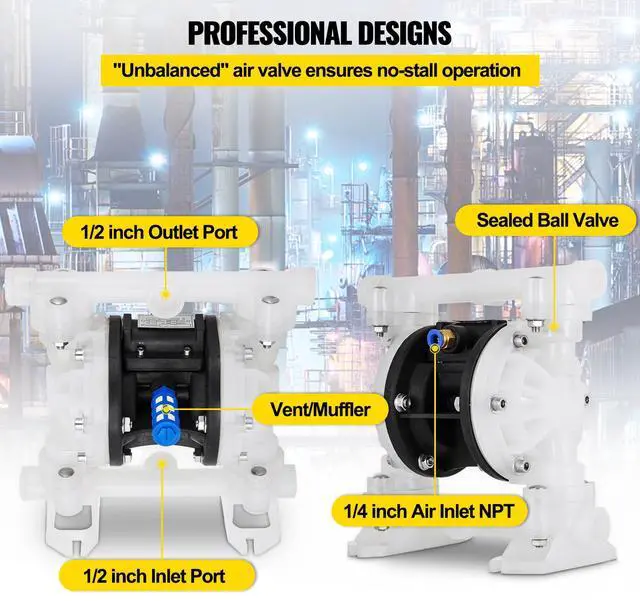

- Unique & Professional Designs: Our double diaphragm pump features an externally available air distribution system. The modular air valve is stainless. This low pulsation air valve provides smooth and rapid changeover for increased efficiency and minimizes downtime
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

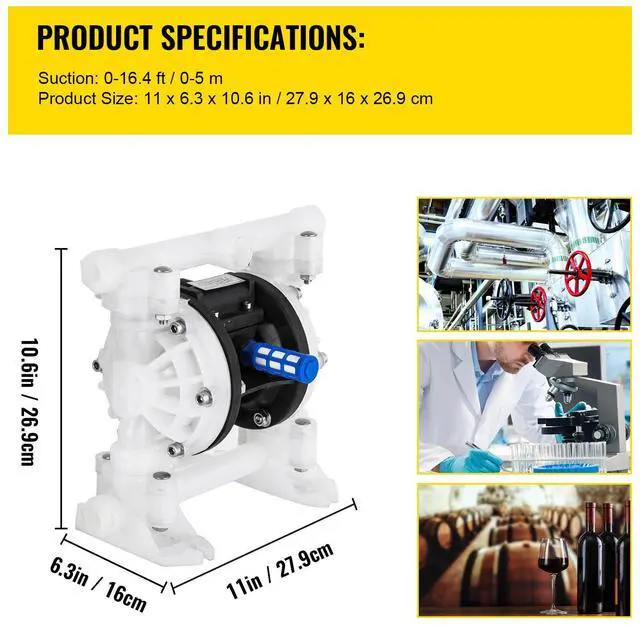

Specifications
Model: QBY4-15
Body Material: Polypropylene
Diaphragm Material: PTFE
Inlet Port: 1/2 inch ( 12.7 mm)
Outlet Port: 1/2 inch ( 12.7 mm)
Air Inlet Size: 1/4 inch ( 6.35 mm)
Gas Nozzle: 0.32 inch (8 mm)
Max Flow Rate: 8.8 GPM
Suction: 0-5 m (0- 16.4 ft)
Max Suspended Solids: 2.38 mm (3/32 inch)
Max Head: 69 m ( 226.4 ft)
Check Seat Material: Polypropylene
Package Content
1 x Air-Operated Double Diaphragm Pump QBY4-15
1 x Product Manual
