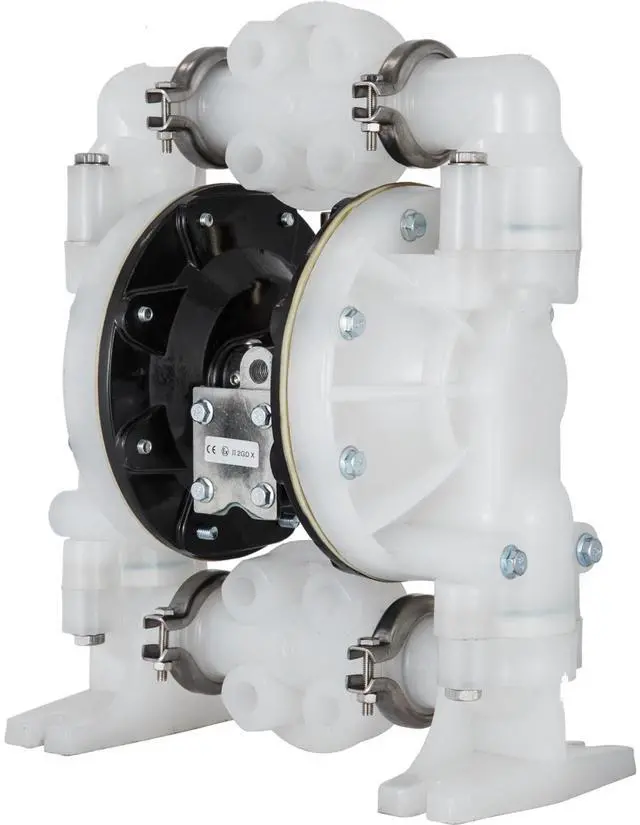

Air-Operated Double Diaphragm Pump 1 inch Inlet/Outlet 30GPM Polypropylene Max 120PSI for Chemical and Industrial Use
- Premium Double PTFE Diaphragms: Our air-operated double diaphragm pump adopts PTFE diaphragms, durable, corrosion-proof, and long-lasting. Max. Temperature: 150 /66 ; Max. Pressure: 120 psi; Max. Flow Rate79.6 GPM; Max Head Lift275.6 ft/84 m.
- Sturdy & Leak-proof Construction: The diaphragm pump housing is made of polypropylene material, bolted against leakage, sturdy, and corrosion-proof for long-time use.
- Excellent Air-operated Performance: Inlet/Outlet Port: DN25PN10 Flange Connection; Air Inlet Size: FNPT 1/2 inch. A high-quality glyd ring, the double-acting sealing, strengthens air performance.

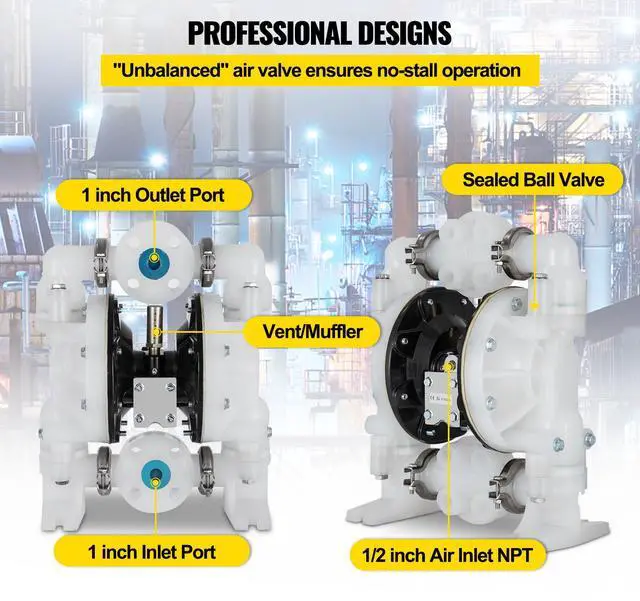

- Unique & Professional Designs: Our double diaphragm pump features an externally available air distribution system. The modular air valve is stainless. This low pulsation air valve provides smooth and rapid changeover for increased efficiency and minimizes downtime
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

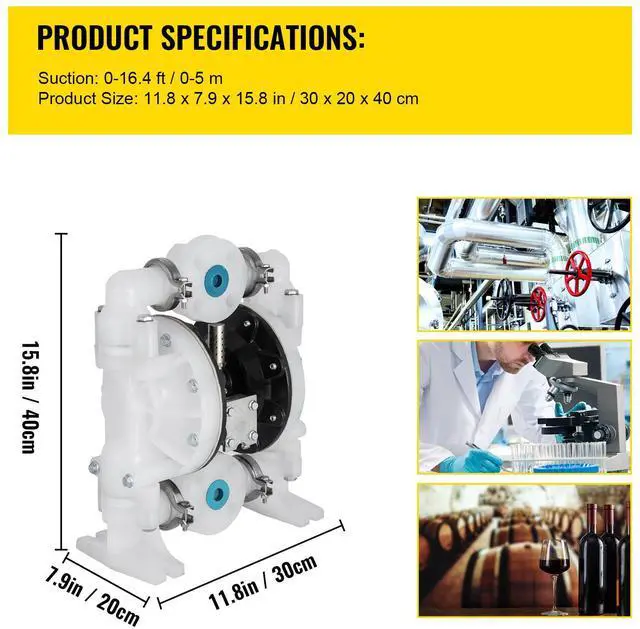

Specifications
Model: QBY4-25PP
Type: Double diaphragm
Body Material: Polypropylene
Inlet Port: DN25PN10 Flange Connection
Outlet Port: DN25PN10 Flange Connection
Air Inlet Size: 1/2 inch ( 12.7 mm)
Max Flow Rate: 79.2 GPM
Suction: 0-5 m (0- 16.4 ft)
Max Suspended Solids: 3 mm (1/8 inch)
Max Head: 84 m ( 275.59 ft)
Max PSI: 120 psi
Self-Priming Dry: 3 m (10 ft)
Self-Priming Wet: 4.6 m (15 ft)
Package Content
1 x Air-Operated Double Diaphragm Pump QBY4-25PP
1 x Product Manual
