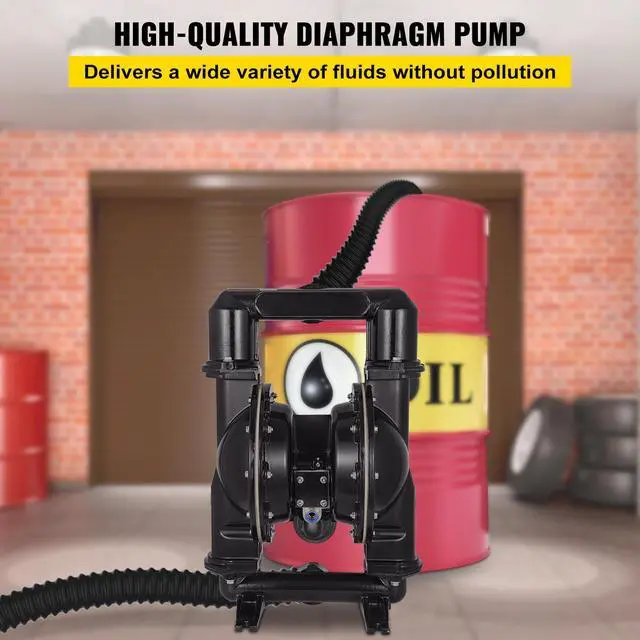

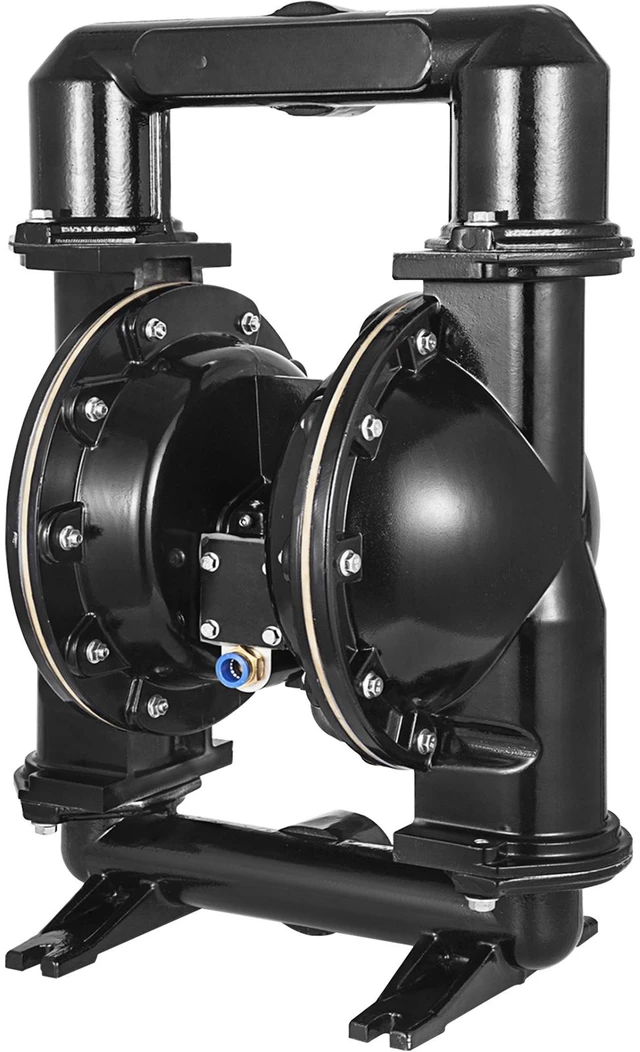

Air-Operated Double Diaphragm Pump, 2 inch Inlet & Outlet, Aluminum Alloy Body, 75 GPM & Max 120PSI, Nitrile Diaphragm Transfer Pump for Petroleum, Diesel, Oil and Low Viscosity Fluids
- Premium Double Nitrile Diaphragms: Our air-operated double diaphragm pump adopts nitrile diaphragms, durable, corrosion-proof, and long-lasting. Max. Temperature: 150 /66 ; Max. Pressure: 120 psi; Max. Flow Rate75 GPM; Max Head Lift275.6 ft/84 m.
- Sturdy & Leak-proof Construction: The diaphragm pump housing is made of aluminum alloy material, bolted against leakage, sturdy, and corrosion-proof for long-time use.
- Excellent Air-operated Performance: Inlet/Outlet Port Size: 2 inch; Air Inlet Size: FNPT 1/2 inch. A high-quality glyd ring, the double-acting sealing, strengthens air performance.

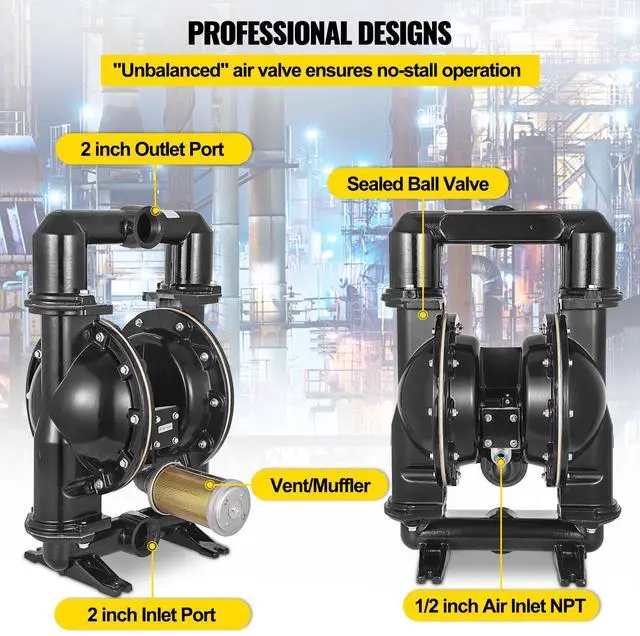

- Unique & Professional Designs: Our double diaphragm pump features an externally available air distribution system. The modular air valve is stainless. This low pulsation air valve provides smooth and rapid changeover for increased efficiency and minimizes downtime
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
Model: QBY4-50L
Type: Air-operated Double diaphragm
Diaphragm Material: Nitrile
Body Material: Aluminum Alloy
Inlet/Outlet Port: 2 inch (50 mm)
Air Inlet Size: NPT 1/2 inch ( 12.7 mm)
Max Flow Rate: 75 GPM
Max Head: 84 m ( 275.59 ft)
Valve Type: Ball
Suction: 0-5 m (0- 16.4 ft)
Max Suspended Solids: 3 mm (1/8 inch)
Average Air Consumption: 38 CFM
Self-Priming Dry: 3 m (10 ft)
Self-Priming Wet: 4.6 m (15 ft)
Package Content
1 x Air-Operated Double Diaphragm Pump
1 x Product Manual
