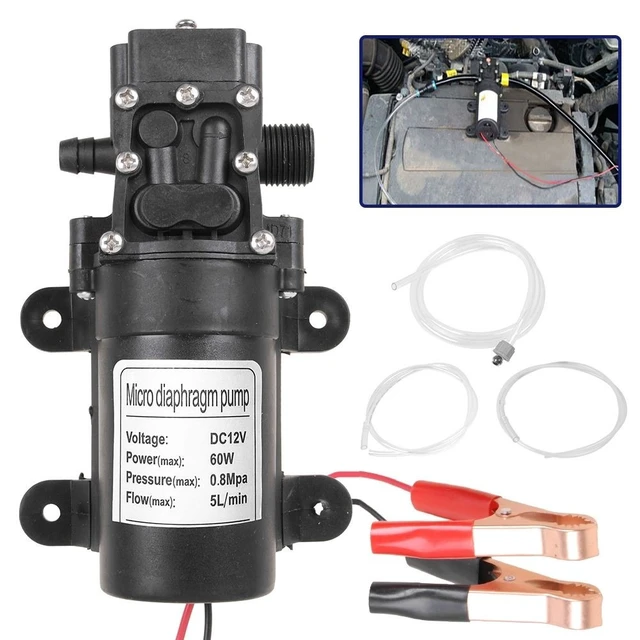

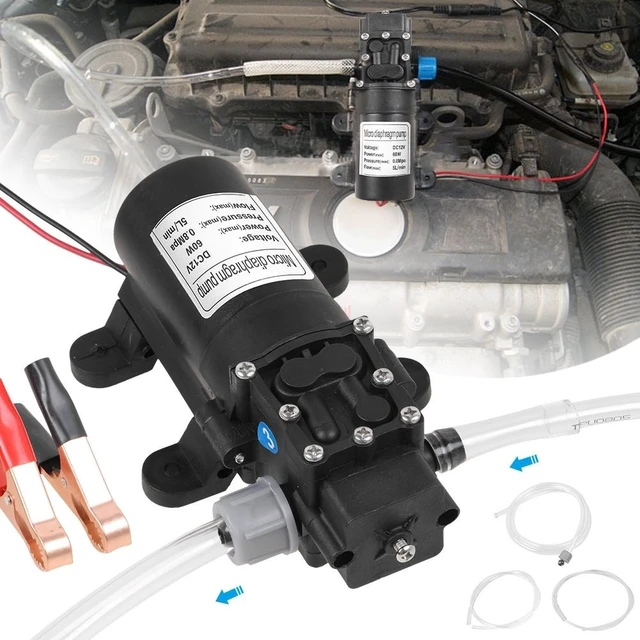

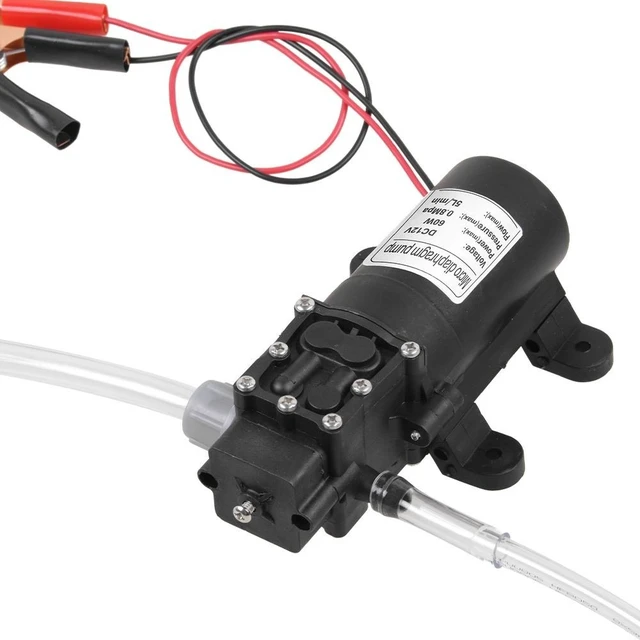

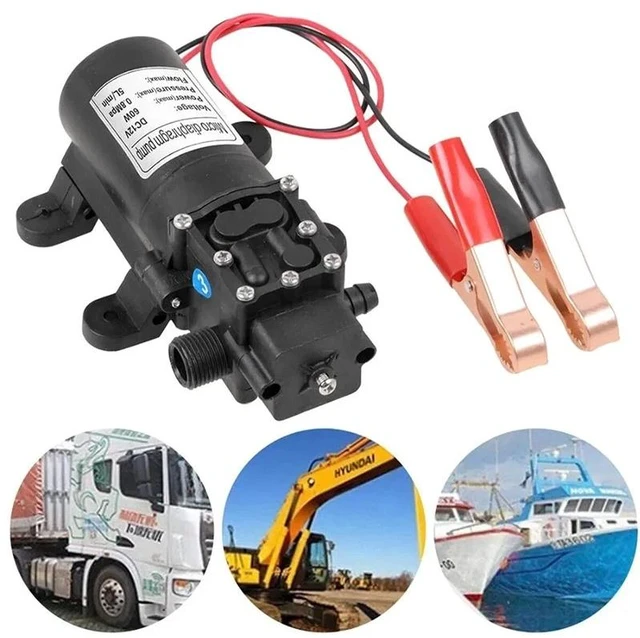

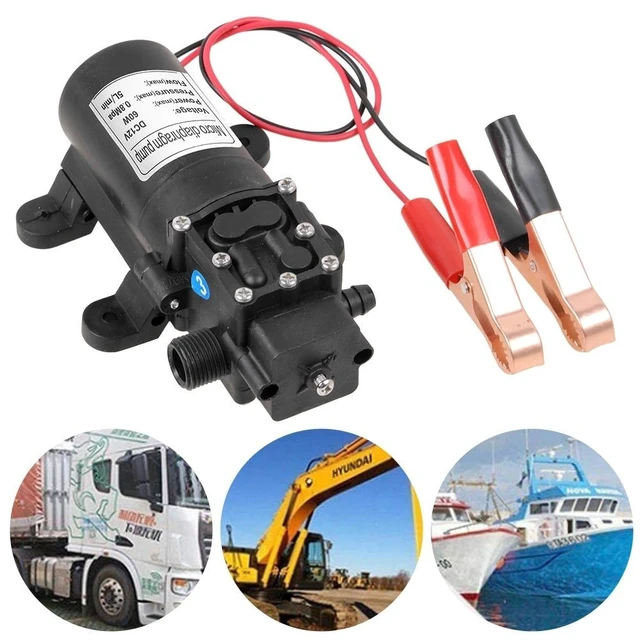

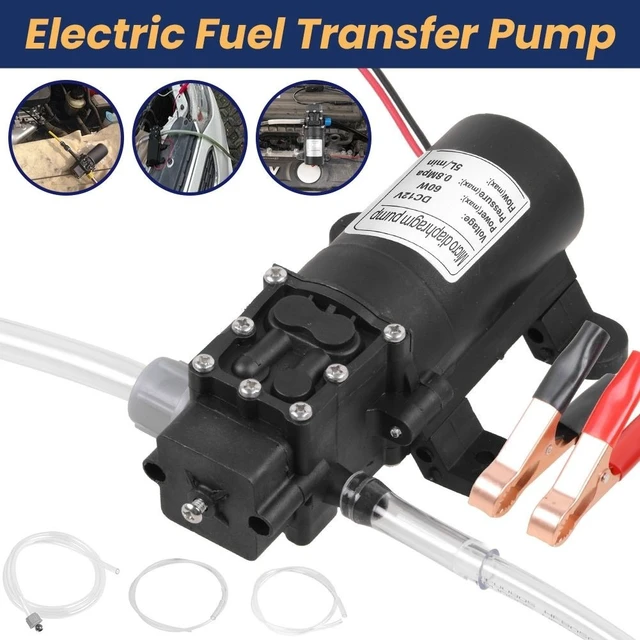

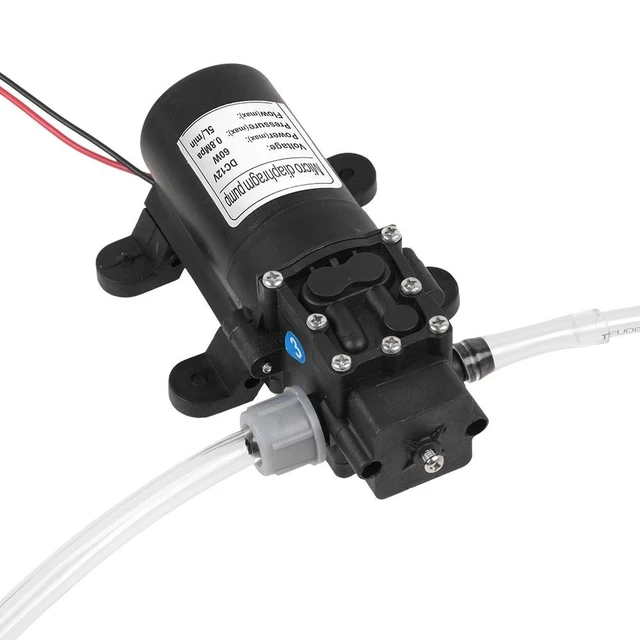

DC 12V Fuel Transfer Pump Oil for Pumping Engine Oil Transmission Oil Brake Oil

Features:

1. 100% brand new and high quality
2. Widely used in general industrial equipment, medical equipment, chemical equipment, shipbuilding, drinks, carpet and floor cleaning, water purification and water treatment equipment, vehicle cleaning, agricultural spraying, zo pipeline pressure, air cleaning cooling, coal and metallurgical industries.
3. The advantage of the plastic tube relative to the copper tube is that it is more resistant to high temperatures and has high applicability.

Note:

1. If you want to connect this pump to AC power, you will need a power converter(not include).
2. This pumping unit is designed for pumping engine oil, transmission oil, brake oil. Due the gasoline is highly corrosive, not recommended use.

Using Method:

1. 1. Start to run the car engine for a while, when oil temperature turns to be about 50 degrees, start pumping oil.
2. 2. Connect the pump to the power, run it for a while, and observe whether the inlet and outlet is normal.
3. 3. Open the filler cap,get dipstick out, force the tube into the bottom of the joint, until the tube does not move.
4. 4. Put the inlet pipe from the oil dipstick into in end (the tube into the bottom of the tank, the bottom concave place, in order to pump the oil completely.As no oil or pumping up very slowly or intermittently, it is generally caused by loose pipes and fittings. You have to install the pipes and fittings again.)
5. 5. After oil pumping, remove the tube, and then run the pump for a while, pump the remaining oil inside the pumping clean, or pump water for a while until the pump head gets clean.
6. 6. If you have not used it for a long time, it may have no suction, then just pour the water in the pump, and run the pump for a few minutes until the air is all out.

Specification:

1. Rated Voltage: DC 12V
2. Rated Power: 60W
3. Maximum Flow: 5L/min
4. Maximum Pressure: 0.8MPA
5. Pump Diameter: Approx. 4.5cm
6. Length: Approx. 14.5cm
7. Cable Length: Approx. 36cm
8. Clips Length: Approx. 8cm
9. PVC Outlet pipe Length:145cm
10. Nylon pipe Length:100cm
11. Plastic pipe Length:100cm
12. Color:as picture show

Package Included:

1. 1x Oil Pump
2. 1x Outlet pipe
3. 1x 6X4mm Nylon pipe
4. 1x 8X5mm Plastic pipe
