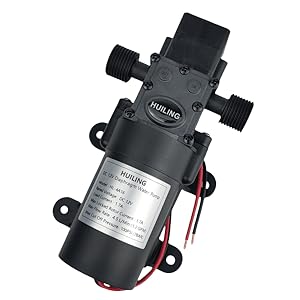

DC 12V Diaphragm Pump
This water pump is professionally designed to provide stable and consistent flow across all operating ranges, while consuming low current. It can provide a flow rate of up to 1.2 GPM and can self suction at 6.6FT. The pump body is sealed to prevent water mist and dust from entering the pump body. It has a compact structure but powerful functions, stable performance, corrosion resistance, low noise, and long service life, making it very suitable for RV, camping, garden, marine, irrigation, shower sprinklers, and home water supply.
Product Features :
- Rated Voltage : DC 12V
- Load Current : 1.7A
- Locked Rotor Current : 3.7A

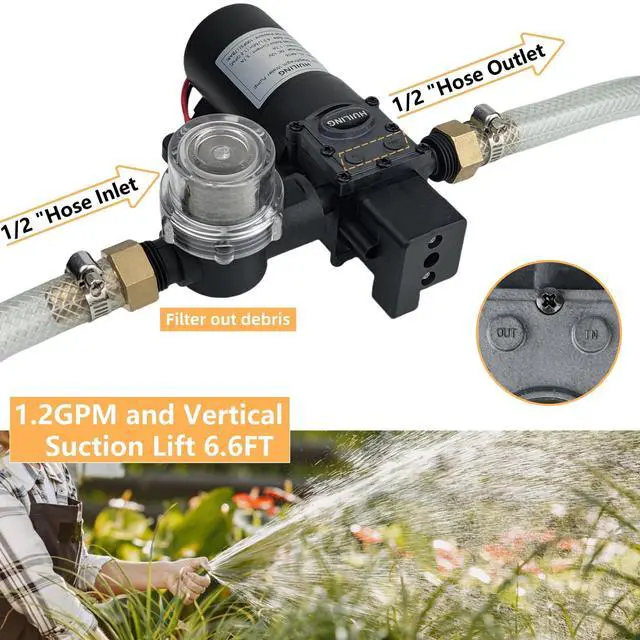

- Max Flow Rate : 4.5L/min (1.2GPM)
- Vertical Suction : 6.6 FT
- Working Noise : = 40DB
- Protection Pressure : 80-100PSI
- Water Temperature Range : 0 ? -80 ?
What's In The Box?
- 1 x Diaphragm Pump
- 1 x 1/2 inch twist-on water strainer
- 1 x quick connect terminals

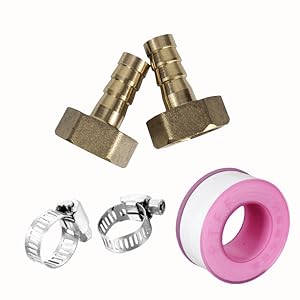

- 2 x brass couplings
- 2 x hose clamps
- 1 x pipe tape
- 1 x User manual

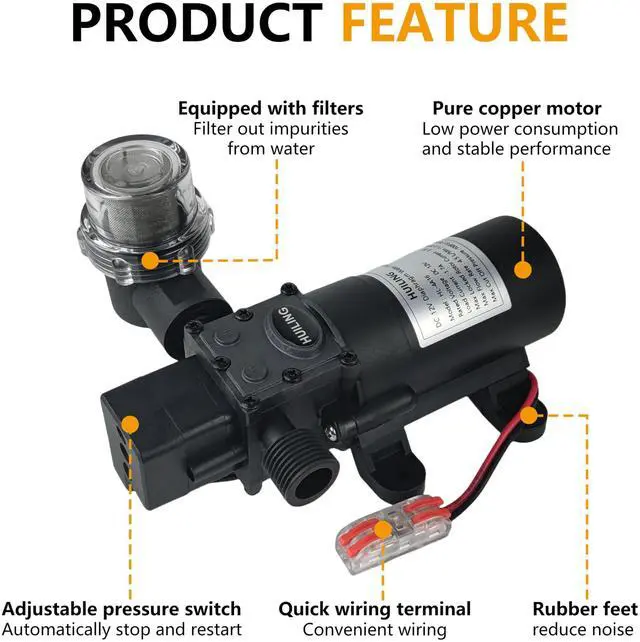

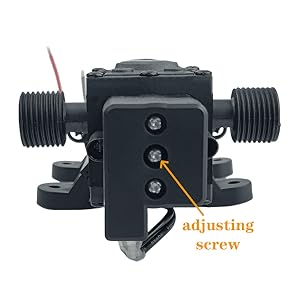

Pressure Protection Switch
- Automatic pressure switch: As needed, it starts automatically with water and stops automatically when water is turned off. Pressure can be adjusted (not necessary in non essential situations).
- The factory default setting is 80PSI, with a Max pressure of 100PSI. Clockwise rotation increases pressure, while counterclockwise rotation decreases pressure.

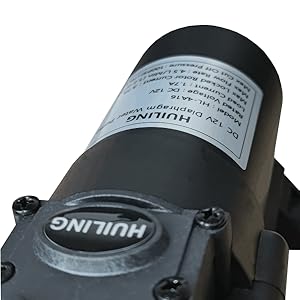

Copper Motor
- Made of high-quality pure copper motors to improve service life
- Low noise, low power consumption, and high performance

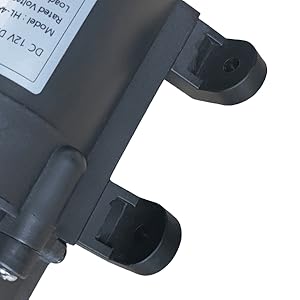

Rubber Bracket
- Durable soft rubber feet can provide good vibration cushioning and reduce noise

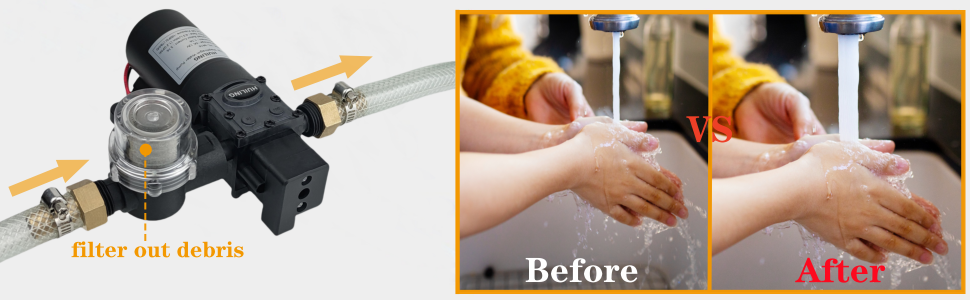

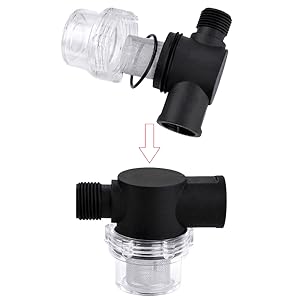

Strainer
- installed at the pump inlet,effectively filter out debris and other particles from the pump. Easy to clean and assemble
- Tip: please combine seal tape with our Strainer & Adapter to better prevent leaks on pipes and plumbing

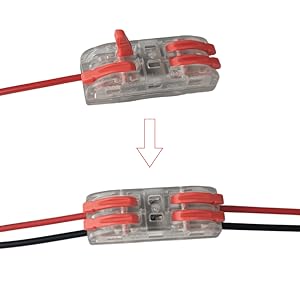

Quick Wiring Terminal
- Quick and simple wiring
- good conductivity, sturdy and durable
More Free Accessories
- Complete accessories that give you everything you need.
- No need to buy separately, save worry and effort
WARNING :
- All pumps have been tested for water in the factory, so there may be a small amount of water remaining in the pumps, which is normal. The water pumps are all brand new products.
- The packaging includes a filter. If there are impurities in the water quality, a filter should be installed at the inlet of the pump to prevent hard particles from damaging the pump.
- After installing a filter at the inlet, the water flow rate will slightly decrease, but it will not affect normal operation. (If there are no impurities in the water, a filter can be omitted.)
- Do not immerse the pump in water. Please do not pump flammable/corrosive/highly viscous liquids.
- To extend the service life of the water pump, it is recommended to turn off the pump for 10 minutes after running continuously for 4 hours (due to the influence of ambient temperature, the continuous running time may vary).
