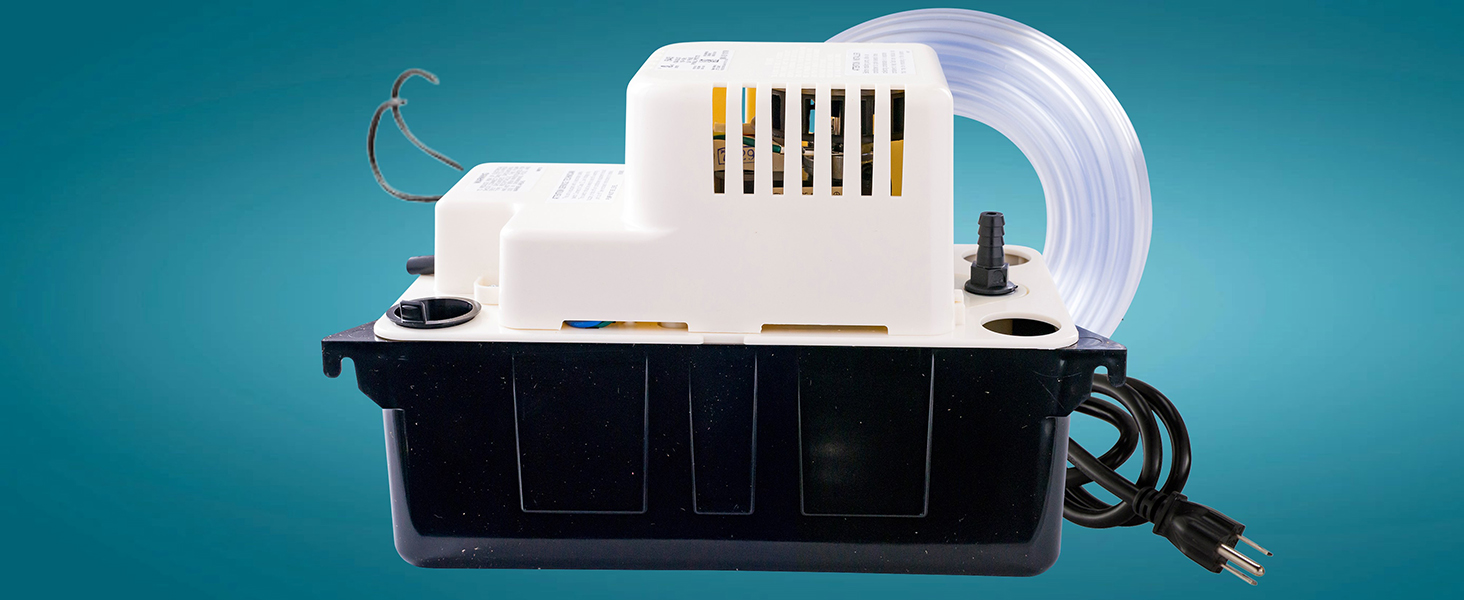

VCMA-20ULST (554415) Condensate Pump
What is the difference between 230-volt and 115-volt?
Standard outlets in North American homes are 115-volt. 230-volt outlets have 3 prongs but the two straight prongs are sideways so a special 230-volt outlet is needed. Stoves and dryers and some furnaces usually have 230-volt outlets.
Does this pump come with vinyl tubing?
Yes, this unit comes with 20' of 3/8" I.D. vinyl tubing
Does this come with an overflow safety switch?
Yes, this model comes with an overflow safety switch.
What is an overflow safety switch and how does it work?
On models that come with an overflow safety switch, the switch activates when condensate exceeds 2.7". The switch can be set to NO (Normally Open) to shut the system off or NC (Normally Closed) to activate an audible alarm (alarm not included).
The pump is louder than it should be. What can I do?
The unit must be level and installed on an even surface or wall mounted. Wall mount the unit or add a rubber mat under the pump to help absorb the vibration. Check to ensure lines aren't blocked and the check valve works properly.
Little Giant VCMA-20 Series
 VCMA-20ULST, 554435 |  VCMA-20ULS, 554425 |  VCMA-20UL, 554451 |  VCMA-20ULST, 554461 | |
|---|---|---|---|---|
Customer Reviews | — | — | — | — |
Price | — | — | — | — |
Voltage | 115 volts | 115 volts | 230 volts | 230 volts |
1/30 hp | ? | ? | ? | ? |
Hertz | 60 Hz | 60 Hz | 50/60 Hz | 50/60 Hz |
Amperage | 1.5 running Amps | 1.5 running Amps | 0.5 running Amps | 0.5 running Amps |
Wattage | 93 Watts | 93 Watts | 75 Watts | 75 Watts |
Thermally protected motor | ? | ? | ? | ? |
Discharge | 3/8" O.D. barbed check valve | 3/8" O.D. barbed check valve | 3/8" O.D. barbed check valve | 3/8" O.D. barbed check valve |
Maximum performance at 1' lift | 80 gph | 80 gph | 80 gph | 80 gph |
Shut-off/maximum pressure | 20'/8.7 psi | 20'/8.7 psi | 17'/7.4 psi | 17'/7.4 psi |
Power cord | 6' cord with 3-prong 115V plug | 6' cord with 3-prong 115V plug | 6' cord with 3-prong 230V plug | 6' cord with 3-prong 230V plug |
Overflow switch included? | Yes, dual function NO/NC | Yes, dual function NO/NC | Not included | Yes, dual function NO/NC |
20' tubing included? | Yes | Not included | Not included | Yes |
Little Giant VCMA Condensate Pump
About Us
Together, we've pumped a lot of water in 80 years. There's a reason we've been the go-to pump for residential and commercial applications: EXPERIENCE.
Little Giant's brand name is appropriate in every aspect of the business. Our pumps are compact but powerful; manufacturing and technical know-how are streamlined and impactful; and the people behind the brand are knowledgeable and reliable.
Shop Utility Pumps
Shop Condensate Removal Pumps
Shop Sump Pumps
Shop Sewage and Grinder Pumps
Shop Sump/Sewage Accessories
Shop Pond and Fountain Pumps
Shop Pond/Fountain Accessories
Do you support your products?
Yes, please see below.
30 Day Return Policy
For items purchased within 30 days, please refer to 's 30-day return policy.
After 30 Days
Please check your invoice or order. If the seller indicates a company other than .com, please contact the seller directly for more information. If .com is the seller, your product is covered by the terms outlined in our manual. Please refer to you owner's manual for more information. Our staff are also able to assist with troubleshooting or installation assistance.
About Us
Together, we've pumped a lot of water in 80 years. There's a reason we've been the go-to pump for residential and commercial applications: EXPERIENCE.
Little Giant's brand name is appropriate in every aspect of the business. Our pumps are compact but powerful; manufacturing and technical know-how are streamlined and impactful; and the people behind the brand are knowledgeable and reliable.
Shop Utility Pumps
Shop Condensate Removal Pumps
Shop Sump Pumps
Shop Sewage and Grinder Pumps
Shop Sump/Sewage Accessories
Shop Pond and Fountain Pumps
Shop Pond/Fountain Accessories
Do you support your products?
Yes, please see below.
30 Day Return Policy
For items purchased within 30 days, please refer to 's 30-day return policy.
After 30 Days
Please check your invoice or order. If the seller indicates a company other than .com, please contact the seller directly for more information. If .com is the seller, your product is covered by the terms outlined in our manual. Please refer to you owner's manual for more information. Our staff are also able to assist with troubleshooting or installation assistance.
Motor
115-volt thermally protected, fan-cooled motor; CSA listed in the USA and Canada
Overflow Detection Switch
This system is equipped with a dual-function overflow detection switch that can be wired to turn off the appliance or activate an audible alarm (not included) when high water is detected
Built-in Wall Mount Tabs
Unit can be installed on the floor or use the built-in wall mount tabs to attach to the wall at the desired height.
Check Valve
3/8" O.D. barbed check valve fits 3/8" I.D. vinyl tubing
Inlet Openings
Three 1-1/8" inlet openings (two with removable caps)
Vinyl Tubing
20' (6.1 m) of 3/8" I.D. vinyl tubing is included
VCMA-20ULST (554415) Condensate Pump
| Motor | 1/30 hp, 115-volt, 60 Hz thermally protected, fan-cooled motor; CSA listed in the USA and Canada |
|---|---|
| Amperage | 1.5 running Amps |
| Wattage | 93 Watts |
| Inlet | Three 1-1/8" inlet holes are included, two with covers, to accommodate up to 3 appliances; please check performance specifications to ensure pump can adequately support the three appliances |
| Discharge | 3/8" O.D. barbed discharge with check valve; fits 3/8" I.D. vinyl tubing |
| Performance at 1' lift | 80 gph (303.2 lph) |
| Performance at 5' lift | 70 gph (265.3 lph) |
| Performance at 10' lift | 48 gph (181.9 lph) |
| Shut-off | 20' (6.1 m) |
| Maximum pressure | 8.7 psi (0.60 bar) |
| Power cord | 6' (1.8 m) power cord with 3-prong 115-volt plug |
| Switch | Vertical switch; on at 2.5" (63.5 mm); off at 1.1" (27.9 mm) |
| Overflow switch | Dual function Normally Open (NO)/Normally Closed (NC); comes factory set to Normally Open which shuts down equipment if high water is detected; can be changed to Normally Closed to activate an audible alarm (not included) |
| Dimensions (LxWxH) | 11" x 5" x 7.03" (279 mm x 127 mm x 179 mm) |
| Vinyl tubing | 20' (6.1 m) of 3/8" I.D. vinyl tubing is included |
What is the difference between 230-volt and 115-volt?
Standard outlets in North American homes are 115-volt. 230-volt outlets have 3 prongs but the two straight prongs are sideways so a special 230-volt outlet is needed. Stoves and dryers and some furnaces usually have 230-volt outlets.
Does this pump come with vinyl tubing?
Yes, this unit comes with 20' of 3/8" I.D. vinyl tubing
Does this come with an overflow safety switch?
Yes, this model comes with an overflow safety switch.
What is an overflow safety switch and how does it work?
On models that come with an overflow safety switch, the switch activates when condensate exceeds 2.7". The switch can be set to NO (Normally Open) to shut the system off or NC (Normally Closed) to activate an audible alarm (alarm not included).
The pump is louder than it should be. What can I do?
The unit must be level and installed on an even surface or wall mounted. Wall mount the unit or add a rubber mat under the pump to help absorb the vibration. Check to ensure lines aren't blocked and the check valve works properly.
Little Giant VCMA-20 Series
VCMA-20ULST, 554435 | VCMA-20ULS, 554425 | VCMA-20UL, 554451 | VCMA-20ULST, 554461 |
|---|---|---|---|
| Customer Reviews | |||
| — | — | — | — |
| Price | |||
| — | — | — | — |
| Voltage | |||
| 115 volts | 115 volts | 230 volts | 230 volts |
| 1/30 hp | |||
| ? | ? | ? | ? |
| Hertz | |||
| 60 Hz | 60 Hz | 50/60 Hz | 50/60 Hz |
| Amperage | |||
| 1.5 running Amps | 1.5 running Amps | 0.5 running Amps | 0.5 running Amps |
| Wattage | |||
| 93 Watts | 93 Watts | 75 Watts | 75 Watts |
| Thermally protected motor | |||
| ? | ? | ? | ? |
| Discharge | |||
| 3/8" O.D. barbed check valve | 3/8" O.D. barbed check valve | 3/8" O.D. barbed check valve | 3/8" O.D. barbed check valve |
| Maximum performance at 1' lift | |||
| 80 gph | 80 gph | 80 gph | 80 gph |
| Shut-off/maximum pressure | |||
| 20'/8.7 psi | 20'/8.7 psi | 17'/7.4 psi | 17'/7.4 psi |
| Power cord | |||
| 6' cord with 3-prong 115V plug | 6' cord with 3-prong 115V plug | 6' cord with 3-prong 230V plug | 6' cord with 3-prong 230V plug |
| Overflow switch included? | |||
| Yes, dual function NO/NC | Yes, dual function NO/NC | Not included | Yes, dual function NO/NC |
| 20' tubing included? | |||
| Yes | Not included | Not included | Yes |
