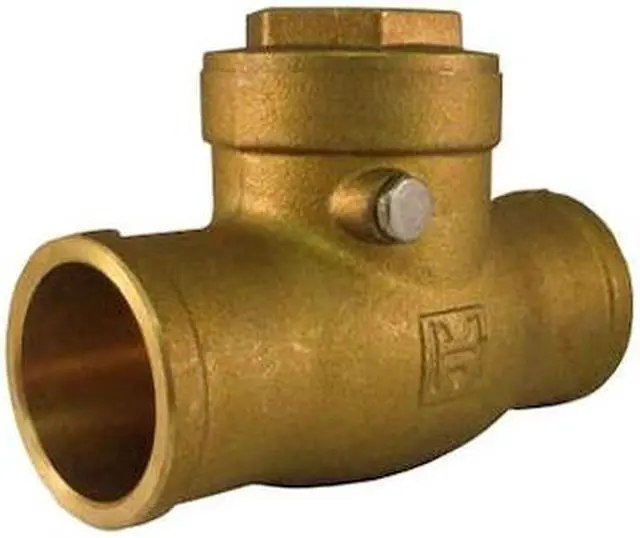

HAMMOND VALVE 968 1 1/2 1-1/2" Solder Brass Swing Check Valve

HAMMOND VALVE Series 968 is a 1-1/2 in swing check valve with a brass body and solder connections. It uses an inline swing mechanism to allow one-way flow and help prevent reverse flow in gas, oil, and water piping systems. This valve is rated for horizontal or vertical mounting and has a listed flow rate of 76 gpm and Cv of 76.

Key Features:

• Valve type: Swing check valve with inline body design
• Size: 1-1/2 in nominal valve size with 1-1/2 in connections on both sides
• Connection type: Solder/sweat, female x female
• Body and internal materials: Brass body, brass check mechanism, brass seat, and brass seal
• Pressure rating: 200 psi maximum operating pressure; 200 psi non-shock CWP; 200 psi at 150 Degrees F maximum water pressure
• Temperature range: -20 Degrees F minimum to 150 Degrees F maximum
• Cracking pressure: 0.5 psi; listed cracking pressure range: 0.750 to 1.000 psi
• Flow capacity: 76 gpm
• Mounting orientation: Horizontal or vertical
• Overall length: 4.33 in; length: 5 in
• Standards: ASTM B283, ASTM B584, C37700, C85700
