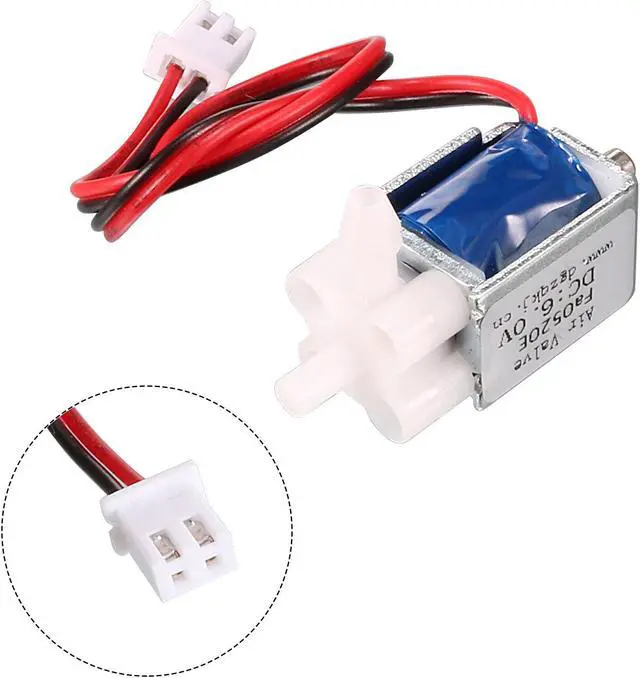

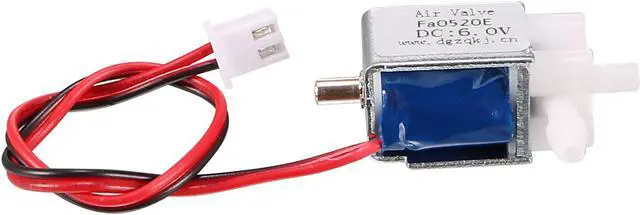

Miniature Solenoid Valve 2 Position 3 Way DC6V 0.38A Air Solenoid Valve
- Rated voltage: DC 6V ; Rated Current: 0.38A ; Type: 2 Position 3 Way ;Port 2 Outer DIameter: 3.5mm ; Port 2 Fit for Tube DIameter:4mm ; Port 3 Outer DIameter: 3.5mm
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
DescriptionKEY_TAB
It has low vibration and low power consumption.Reliable, compact, and simple to install.
Can be used for gas valve and pump.Widely used in automatic control equipment.
It will become hot when it works because there are so many coils inside. Its normal phenomenon.
KEY_TAB
KEY_TAB
Features
Rated voltage: DC 6V
Rated Current: 0.38A
Type: 2 Position 3 Way
Port 2 Outer DIameter: 3.5mm
Port 2 Fit for tube dia:4mm
Port 3 Outer DIameter: 3.5mm
Wire Length: 11cm / 4.3inch
Air Pressure Range0-350mmHg

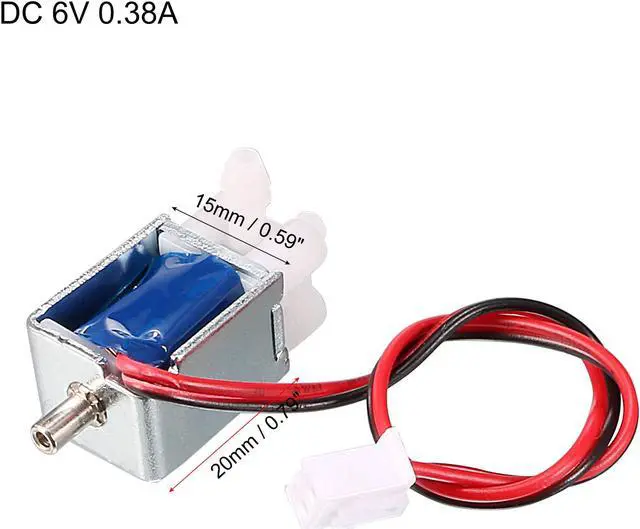

Total Size: 34 x 15 x 20mm / 1.34 x 0.59 x 0.79inch(L*W*H)
KEY_TAB
Solenoid operating instructions:
Power off : 2-3 pass , 1 is blocked ; Power on : 1-2 pass, 3 is blocked.
Note : Wires are not divided for +/- connecting , both can do.
KEY_TAB
KEY_TAB
KEY_TAB
Package Content:
1 x Solenoid Valve
