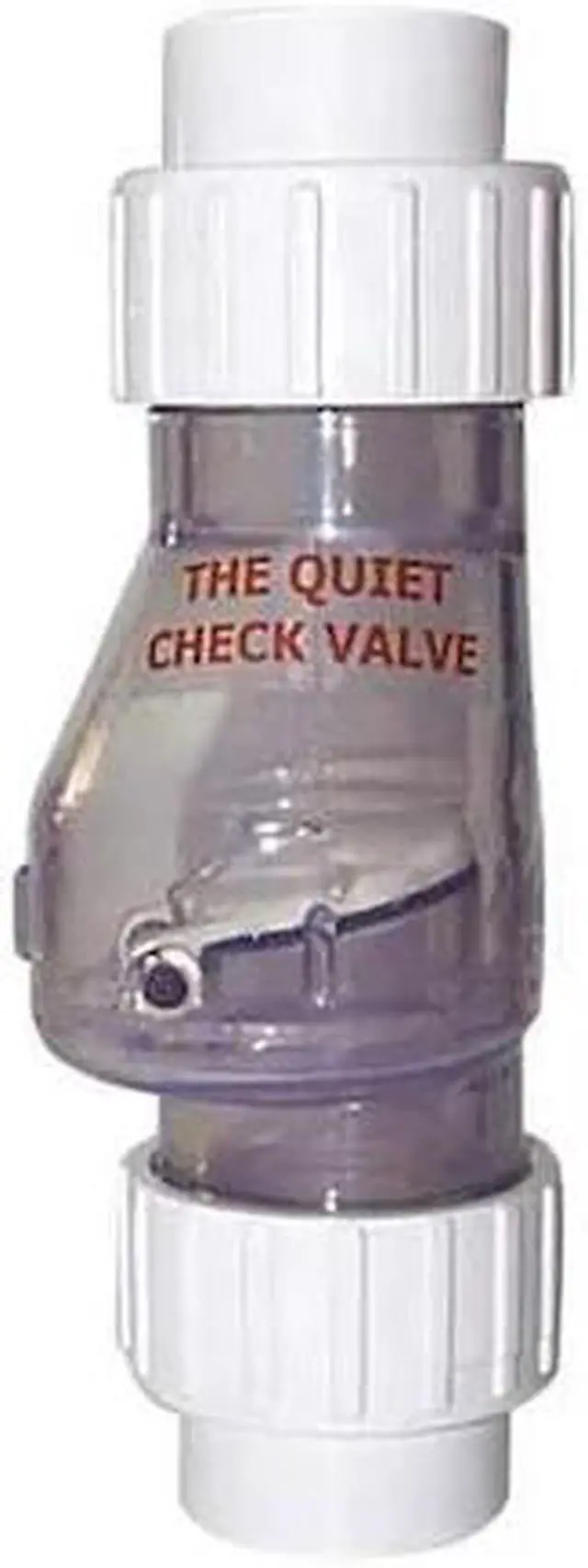

MAGIC B-0823-15C 1-1/2" Slip Clear PVC Silent Check Valve

The MAGIC B-0823-15C is a 1-1/2 in silent check valve with an inline body and slip x slip socket connections. It features a clear PVC body, PVC seat, Buna-N seal, and 316 stainless steel spring and check mechanism components. This valve is intended for backwater and sanitary service and is configured for single-direction flow in horizontal or vertical mounting positions. The inline check valve design includes a spring-assisted check mechanism for flow reversal applications.

Key Features:

• Valve type: Silent check valve with inline body design
• Size: 1-1/2 in nominal valve and pipe size with 1-1/2 in connections on both sides
• Connections: Slip x slip with female socket ends
• Body material: Clear PVC
• Seat material: PVC
• Seal material: Buna-N
• Internal components: 316 stainless steel spring and check mechanism
• Cracking pressure: 0.5 psi
• Flow rating: 100 gpm
• Full flow: Yes
• Pressure rating: 150 psi at 73 degrees F
• Maximum water pressure: 150 psi at 72 degrees F
• Temperature range: 35 degrees F minimum to 120 degrees F maximum
• Mounting: Horizontal or vertical
• Mounting position: Any
• Valve series: B-0823
