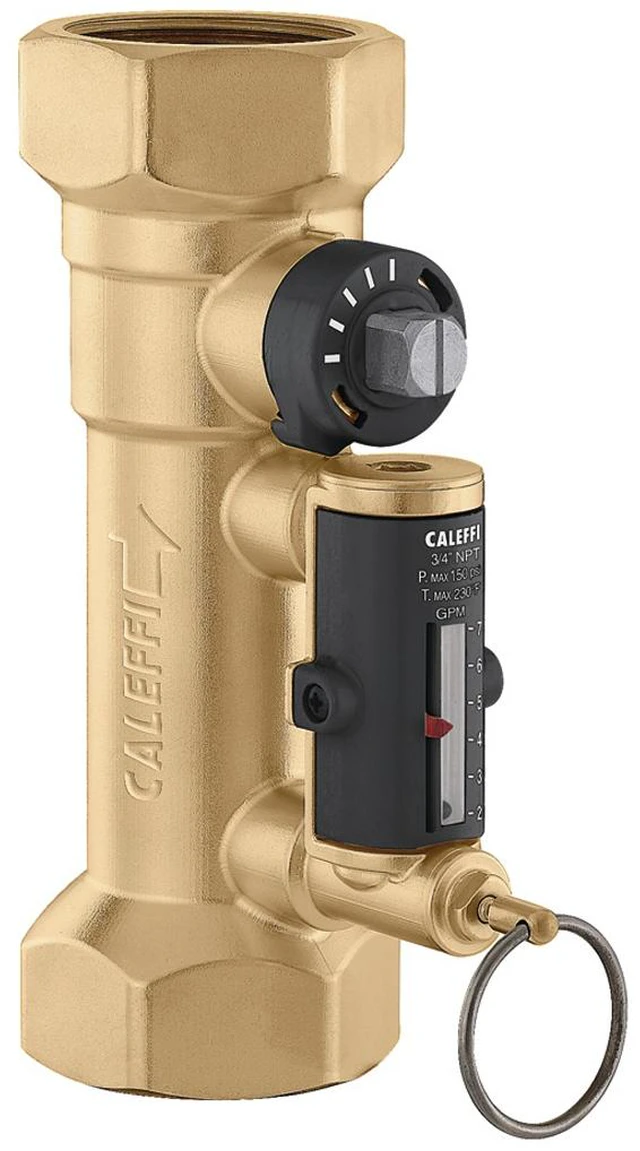

Caleffi 132552A QuickSetter 3/4-Inch FNPT Balancing Valve Flow Meter 2-7 GPM
- Direct-reading built-in flow meter with 2-7 GPM working range
- 3/4-inch FNPT brass balancing valve for hydronic systems
- Rated to 150 psi with 14-230°F medium temperature range
- Full-open Cv 6.3 and compatible with up to 50% glycol
- Includes pre-formed insulation jacket for heating, cooling and solar-thermal circuits
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
New Caleffi QuickSetter 132552A adjustable static balancing valve for hydronic heating and cooling systems. This 3/4-inch female NPT valve combines manual flow adjustment with a built-in direct-reading flow meter, allowing fast and accurate circuit balancing without separate differential-pressure gauges or reference charts.
Manufacturer: Caleffi
Model / part number: 132552A
Series: 132 QuickSetter
Connection: 3/4-inch FNPT
Flow-rate working range: 2.0-7.0 GPM
Full-open Cv: 6.3
Valve material: Brass
Maximum operating pressure: 150 psi
Medium temperature range: 14-230°F (-10-110°C)
Maximum glycol concentration: 50%
Built-in flow meter for direct, accurate readings
Includes pre-formed insulation jacket
The balancing valve can be manually adjusted to the required design flow. Its flow meter is housed in a bypass circuit and can be isolated during normal operation, helping protect the scale while maintaining system performance. Suitable for hydronic applications including heating, cooling, fan-coil, terminal-unit, and solar-thermal circuits where dependable flow balancing is required.
UPC: 8016615299793
Condition: New
