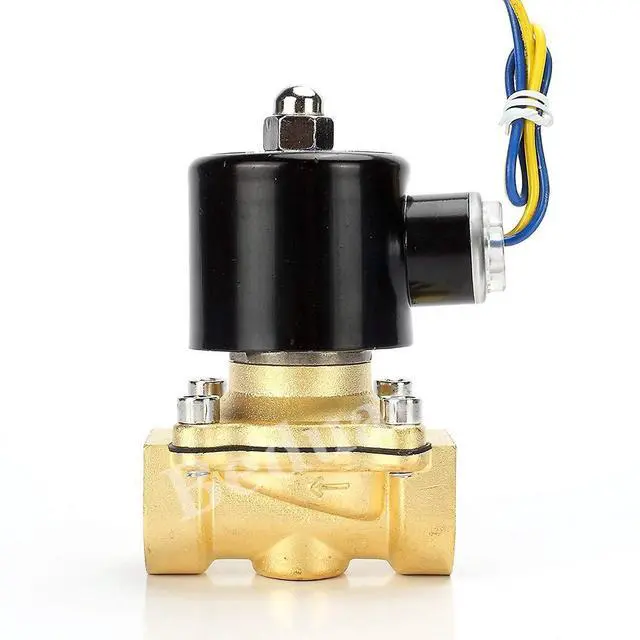

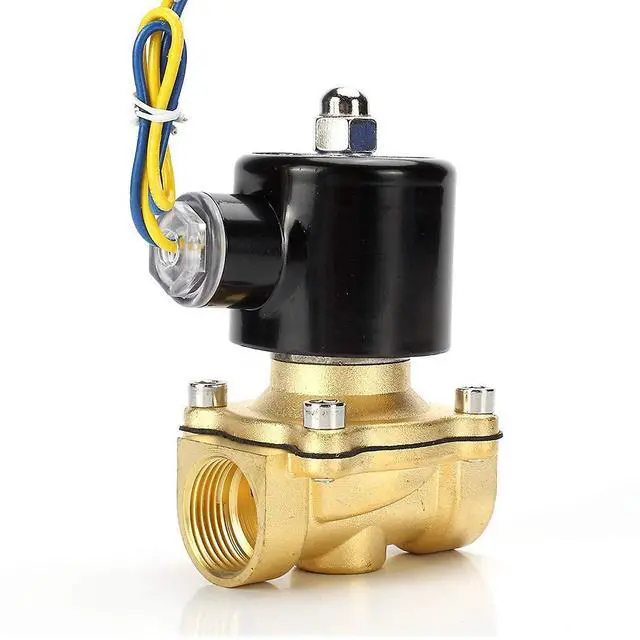

Beduan Normally Closed Electiric Solenoid Valve
Body Material: Solid Brass

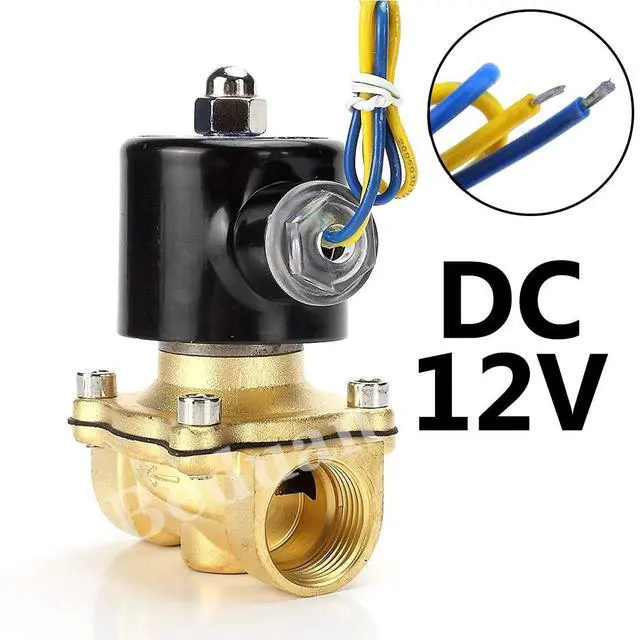

Voltage: DC12V/ DC24V/ AC110V/ AC220V
Working Pressure: 0-145psi
Working Temperature: 23-176°F
Available : Water, Gas, Oil (non-corrosive)
- Keep piping clean before installation
- When installing solenoid valves, be sure to wrap the pipe threads with Teflon Tape
- Note the insulation of the circuit
- Install solenoid valve in the direction of water flow
- The wire has no requirements for positive and negative poles.
- If there are impurities in the fluid (such as gray water), it is necessary to regularly clean the valve to prevent it from being blocked.
PRODUCT FEATURE

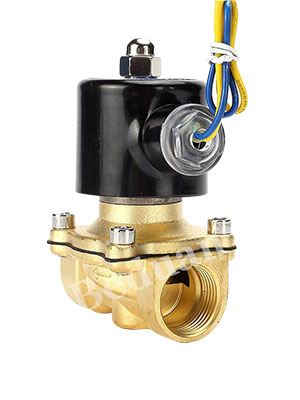

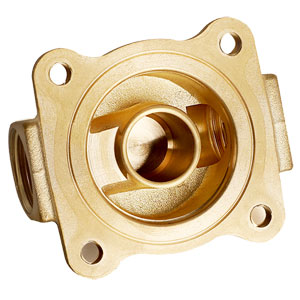

Made of Solid Brass
Thick smooth inner wall without burr, long service life

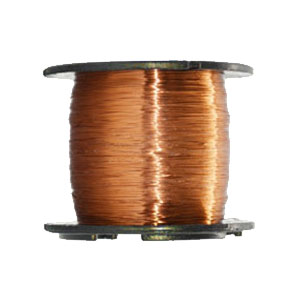

High quality copper coil
- The resistance is lower than that of aluminum wire
- Strong electrical and thermal conductivity
- Good stability, corrosion resistance and oxidation resistance

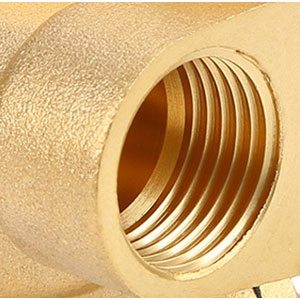

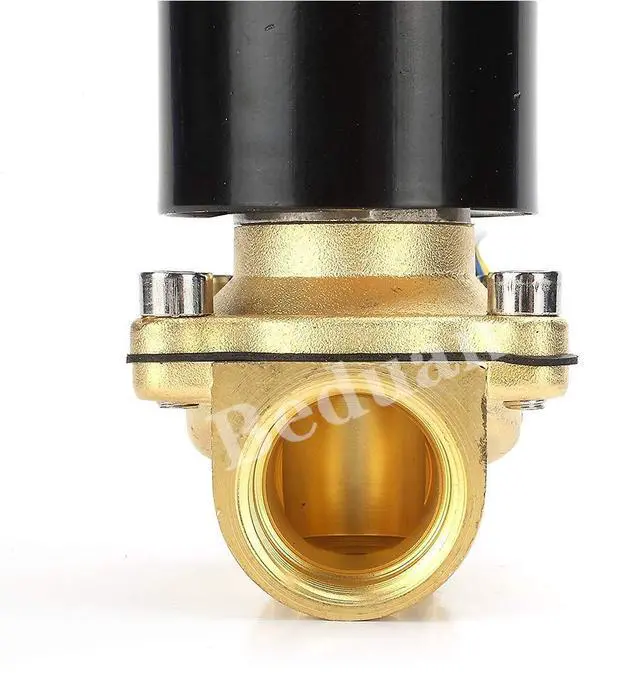

Thread clear
The interface thread is clear and not easy to slip, the connection is precise and not easy to leak

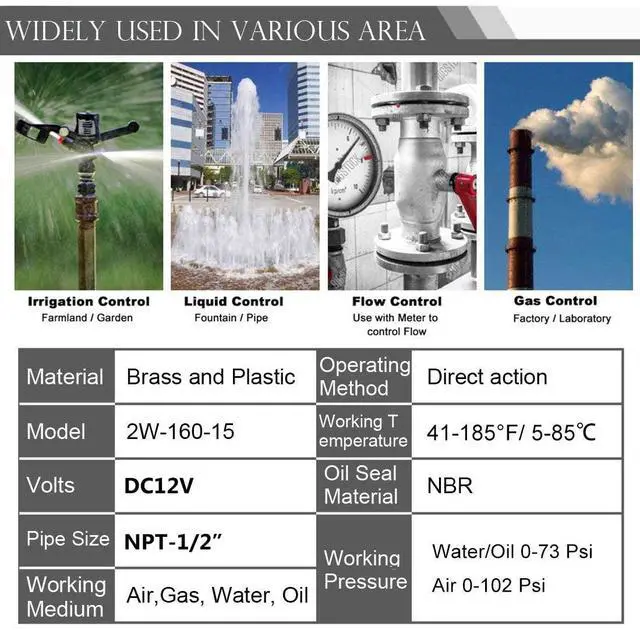

Usage Scenarios
Solenoid Valve Installation Instructions
- Solenoid valves are not suitable for fluids under the following conditions: A.Changing into a liquid by heating and into a solid by cooling. B.Viscosity greater than CST50. C.Fluid with impurities, impurities are easy to block the valve.
- It is recommended to filter the fluid before use to avoid impurities blocking the valve, which may cause the valve to not fully close.
- The solenoid valve will produce heat when the solenoid valve is opened. Be careful not to touch it directly with your hands. As long as the valve body temperature does not exceed 176 degrees Fahrenheit, it can be used normally.If the temperature is too high, it may burn out the coil and cause the solenoid valve to fail.
- If it is necessary to open the valve for a long time, it is recommended to use a PWM controller to control the power and heat of the valve to avoid overheating caused by prolonged power on.
- Clean and rinse the impurities in the pipeline before installation;The thread should be wound with Teflon Tape. Be careful not to drop the debris into the pipeline to prevent blocking the solenoid valve.
- When installing, keep the arrow direction on the valve body consistent with the flow direction of the medium;If there is reverse pressure, a check valve shall be installed.
- In order to ensure and extend the service life of the solenoid valve, the installation should be horizontal, the coil is vertical up, not vertical or backward installation
- After the solenoid valve coil outlet wire (connector) is connected, it should be confirmed that whether the contact of electrical components should be firmly connected should not shake, looseness will cause the solenoid valve not to work.
- Solenoid valves that are out of service for a long time should be cleaned of impurity condensation before use.

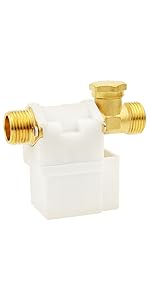

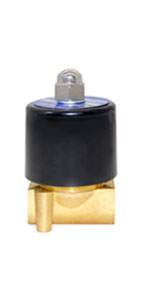

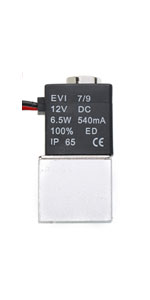

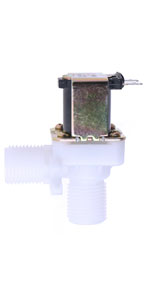

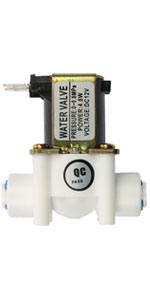

 Water Solenoid Valve |  Air Solenoid Valve |  Water Solenoid Valve |  Brass Solenoid Valve |  Nylon Solenoid Valve |  Water Solenoid Valve | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — no data | — no data | — |
| Size | 1/2" | 1/8" | 1/4" | 1/4" | 1/8" | 1/2" |
| Style | DC 12V | DC 24V | DC 24V | DC 24V | DC 24V | DC 12V |
| Maximum Pressure | 145PSI | 145PSI | 145PSI | 145PSI | 145PSI | 145PSI |

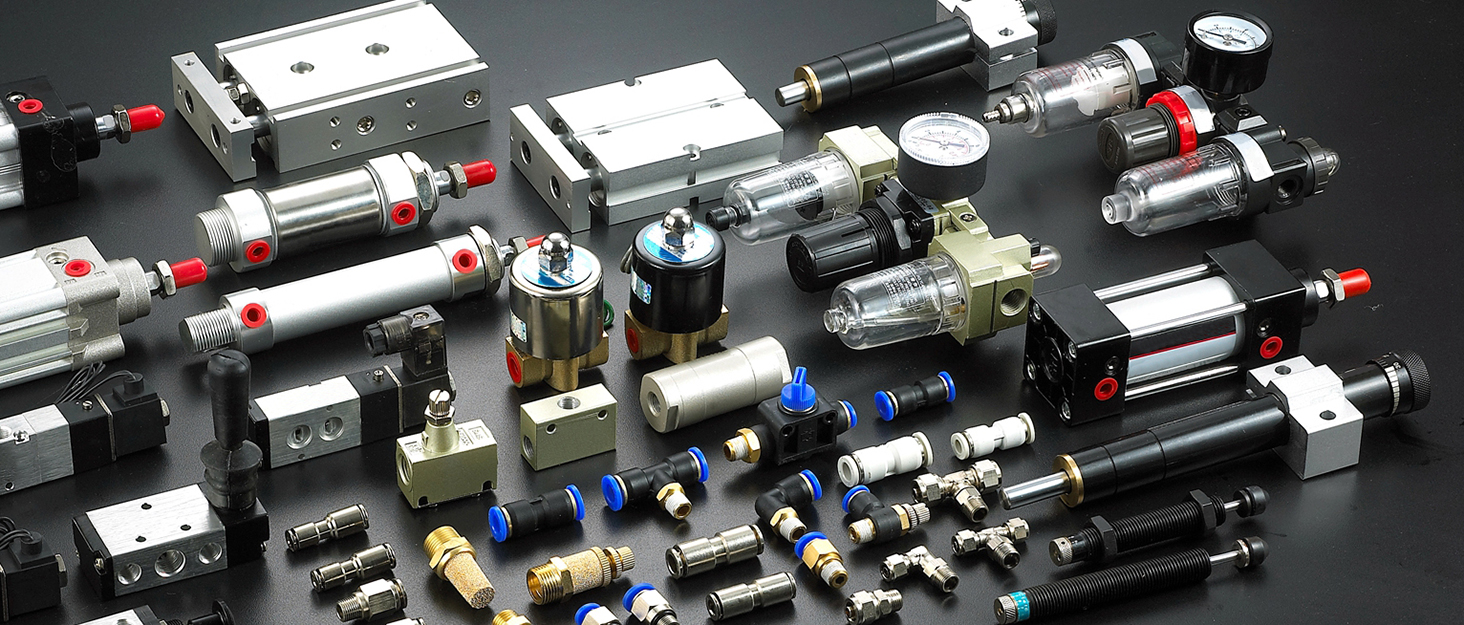

Beduan is a professional factory with 15 years exprience in producing ball valves,pipe fittings, barbed fittings,pneumatic fittings,tubings,improvement tools,Misting System and so on.
