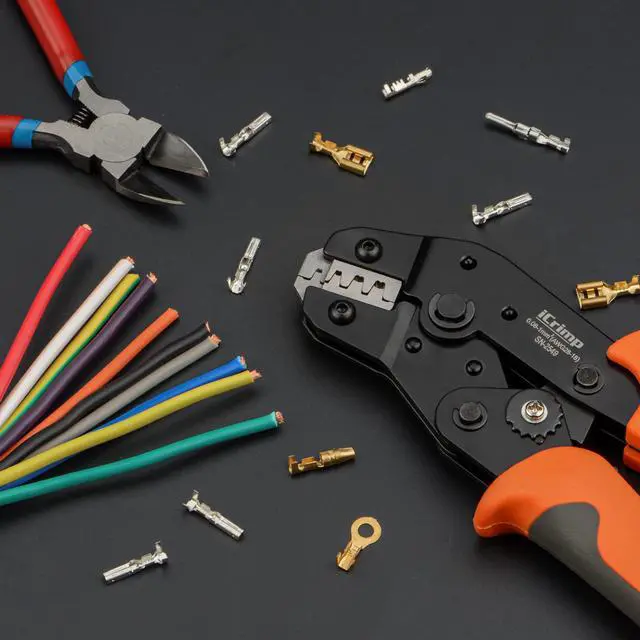

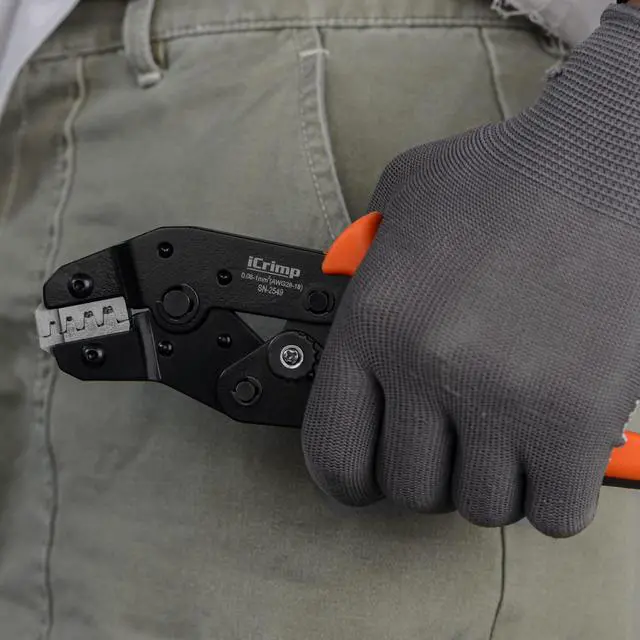

    SN-2549 Ratcheting Wire Crimping Tools for JST ZH 1.5mm, PH 2.0mm, XH 2.5mm, VH 3.96mm, JWPS 4.0mm Pitch, Dupont 2.54mm Pitch Open Barrel Terminals, AWG28-18 (0.08-1.0mm²)

    Be the first to review this product...
    • Purpose: SN-2549 Dupont ratcheting wire crimper is designed to crimp AWG28-18 uninsulated open barrel terminals such as JST, Dupont, Molex. A combination of SN-01BM & SN-28B wire crimper.

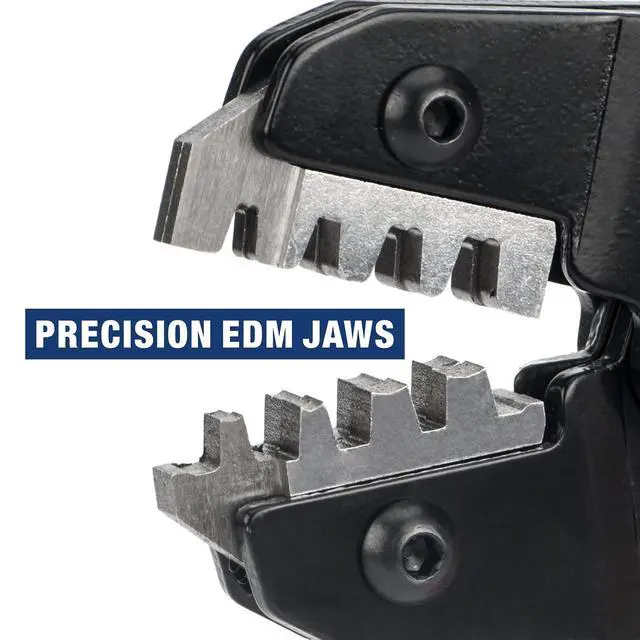

    • Crimp Jaws: High-precision ratchet mechanism for complete crimps. Parallel crimping performance for even crimps.

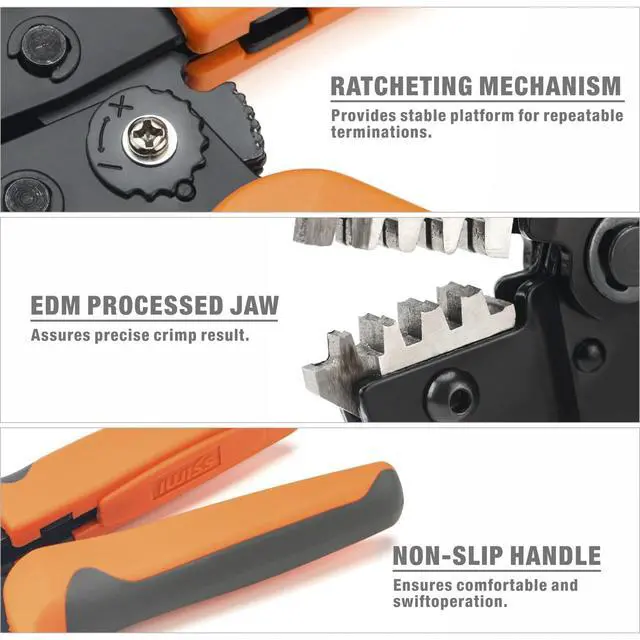

    • Ratcheting Mechanism: Ratcheting style crimpers ensure consistent crimping pressure as they must be cycled through their full range for the jaws to crimp and then release the terminal.
    • Applications: Used to connect electrical wires on rechargeable battery packs, battery balancers, battery eliminator circuits, 3D printers, and radio controlled servos.
    • Capability: Capable of crimping AWG28-18(0.08-1.0mm²) open barrel connectors, typically 1.5mm, 2.0mm, 2.5mm, 2.54mm, 3.96mm pitch terminals from JST, Dupont, Molex.
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    Previous page

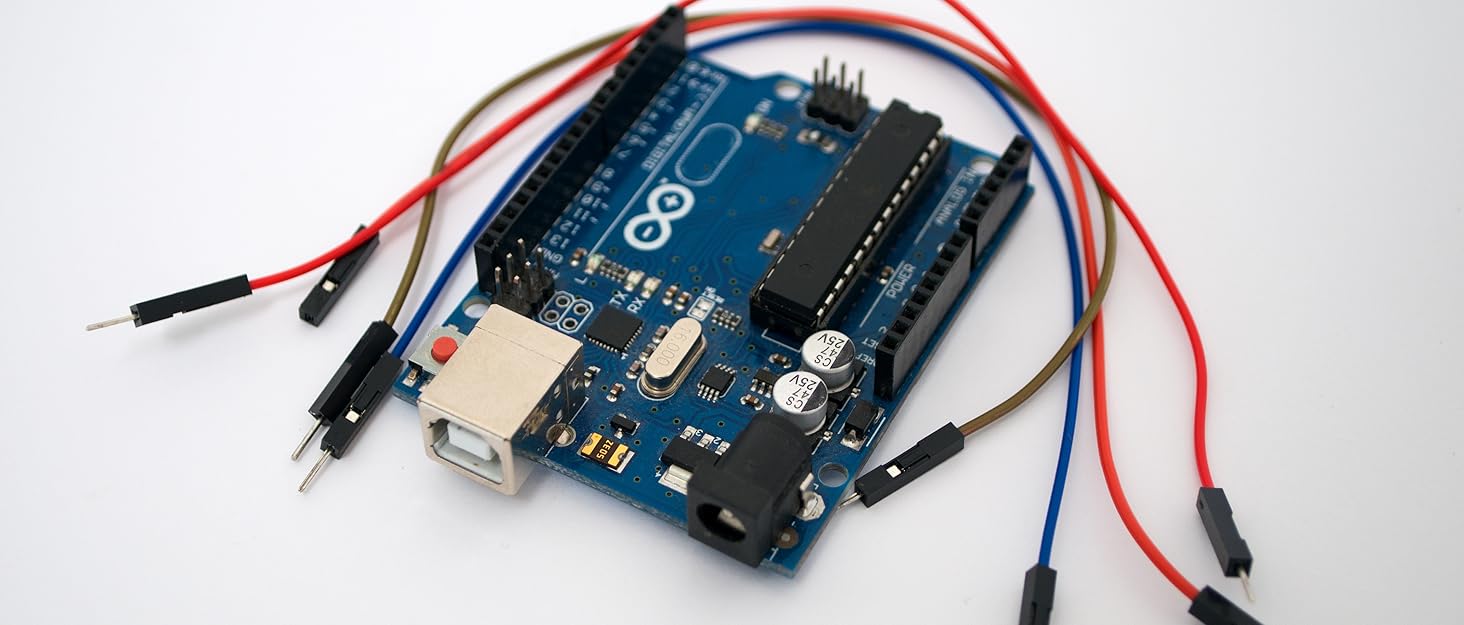

    2. https://m.media-amazon.com/images/S/aplus-media-library-service-media/e62d1e41-2afa-4bcc-8fa3-2c6243bd28b0.__CR0,0,630,290_PT0_SX315_V1___.png

      Open Barrel Terminal Crimpers

      iCrimp open barrel crimping tools are for crimping JST, Molex, Dupont and other similar style terminals. Making jump wires which are normally used to interconnect the components of a breadboard or other prototype or test circuit, internally or with other equipment or components, without soldering.

    3. IWISS SN-28B Dupont Crimping Tool for 3.96mm, 2.54mm, 2.5mm Pitch Dupont, JST XH VH Connectors, A...
      Iwiss XH2.0mm XH2.54mm XH3.96mm Dupont D-Sub Terminals JST Pin Crimper SN-01BM Crimping Tools for...
      IWISS SN-2549 Ratcheting Wire Crimping Tools for JST ZH 1.5mm, PH 2.0mm, XH 2.5mm, VH 3.96mm, JWP...
      Iwiss SN-48B Pin Crimping Tools 3.96/4.8/5.08/6.3 mm 26-16AWG Crimper 0.14-1.5mm² for Dupont & JS...

      Open Barrel Terminal Crimpers

    Next page

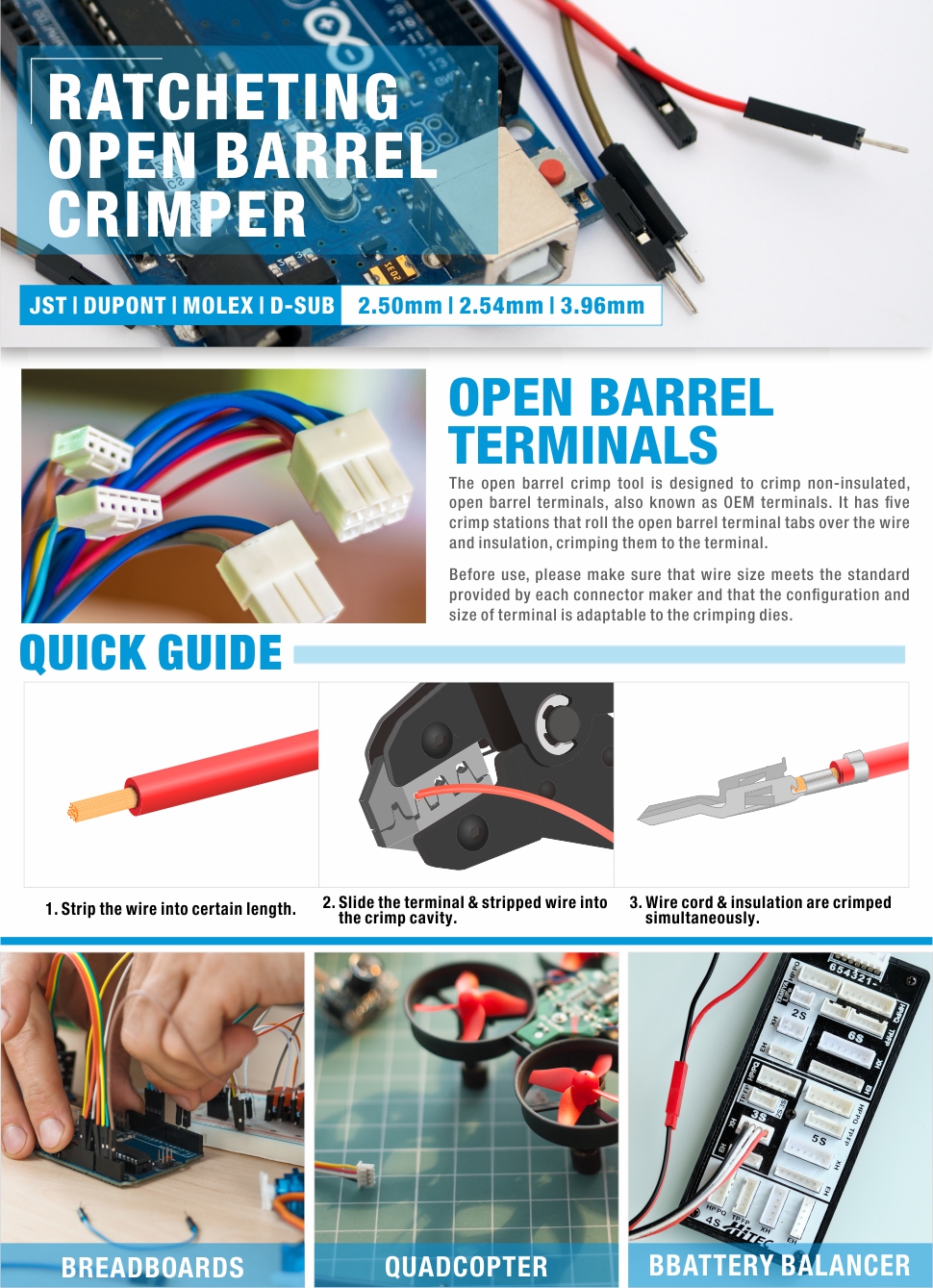

    jst molex dupont crimping tool

    SN-2549 Open Barrel Terminal Crimping Tool

    Applications:

    • Rechargeable battery packs
    • Battery balancers
    • Battery eliminator circuits
    • Radio controlled servos.
    • RGB LED decorative light strips
    • Seat wiring and actuation
    • Passenger service units
    • 3D Printer
    • Duet 2/ Duet 3

    Applicable Chart

    • JST

    VH 3.96mm Pitch 22-16AWG

    RE 2.54mm Pitch 30-24AWG

    EH 2.50mm Pitch 32-22AWG

    XA 2.50mm Pitch 30-20AWG

    XH 2.50mm Pitch 30-20AWG

    PA 2.0mm Pitch 22AWG

    PH 2.0mm Pitch 24AWG

    ZH 1.5mm Pitch 26AWG

    • Dupont

    2.54mm Pitch

    • D-SUB Terminals

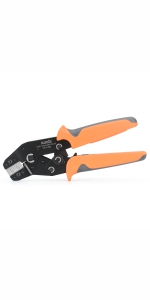

    https://m.media-amazon.com/images/S/aplus-media/sc/d612f3bd-efa5-4354-90fd-2313380a57cd.__CR0,0,150,300_PT0_SX150_V1___.jpg
    SN-01BM

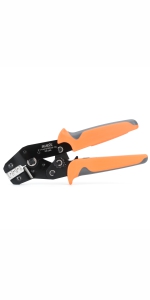

    https://m.media-amazon.com/images/S/aplus-media/sc/ca40bc4a-9515-4ea1-930d-0887bed3eb4a.__CR0,0,150,300_PT0_SX150_V1___.jpg
    SN-28B

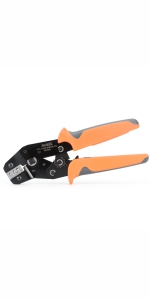

    https://m.media-amazon.com/images/S/aplus-media/sc/5618f17a-ed29-4b5f-a3cc-28468391d2dc.__CR0,0,150,300_PT0_SX150_V1___.jpg
    SN-48B
    https://m.media-amazon.com/images/S/aplus-media/sc/5b11f456-68e1-4950-8ba8-6313cfb00314.__CR0,0,150,300_PT0_SX150_V1___.jpg
    SN-2549
    Customer Reviews ————
    Price ————
    Application Open Barrel Open Barrel Open Barrel Open Barrel
    If Ratcheting ? ? ? ?
    Capacity AWG28-20 AWG28-18 AWG26-16 AWG28-18
    Cavity 2 3 3 4
    1. https://m.media-amazon.com/images/S/aplus-media-library-service-media/e62d1e41-2afa-4bcc-8fa3-2c6243bd28b0.__CR0,0,630,290_PT0_SX315_V1___.png

      Open Barrel Terminal Crimpers

      iCrimp open barrel crimping tools are for crimping JST, Molex, Dupont and other similar style terminals. Making jump wires which are normally used to interconnect the components of a breadboard or other prototype or test circuit, internally or with other equipment or components, without soldering.

    2. IWISS SN-28B Dupont Crimping Tool for 3.96mm, 2.54mm, 2.5mm Pitch Dupont, JST XH VH Connectors, A...
      Iwiss XH2.0mm XH2.54mm XH3.96mm Dupont D-Sub Terminals JST Pin Crimper SN-01BM Crimping Tools for...
      IWISS SN-2549 Ratcheting Wire Crimping Tools for JST ZH 1.5mm, PH 2.0mm, XH 2.5mm, VH 3.96mm, JWP...
      Iwiss SN-48B Pin Crimping Tools 3.96/4.8/5.08/6.3 mm 26-16AWG Crimper 0.14-1.5mm² for Dupont & JS...

      Open Barrel Terminal Crimpers

    jst molex dupont crimping tool

    SN-2549 Open Barrel Terminal Crimping Tool

    Applications:

    • Rechargeable battery packs
    • Battery balancers
    • Battery eliminator circuits
    • Radio controlled servos.
    • RGB LED decorative light strips
    • Seat wiring and actuation
    • Passenger service units
    • 3D Printer
    • Duet 2/ Duet 3

    Applicable Chart

    • JST

    VH 3.96mm Pitch 22-16AWG

    RE 2.54mm Pitch 30-24AWG

    EH 2.50mm Pitch 32-22AWG

    XA 2.50mm Pitch 30-20AWG

    XH 2.50mm Pitch 30-20AWG

    PA 2.0mm Pitch 22AWG

    PH 2.0mm Pitch 24AWG

    ZH 1.5mm Pitch 26AWG

    • Dupont

    2.54mm Pitch

    • D-SUB Terminals

    https://m.media-amazon.com/images/S/aplus-media/sc/d612f3bd-efa5-4354-90fd-2313380a57cd.__CR0,0,150,300_PT0_SX150_V1___.jpg
    SN-01BM
    https://m.media-amazon.com/images/S/aplus-media/sc/ca40bc4a-9515-4ea1-930d-0887bed3eb4a.__CR0,0,150,300_PT0_SX150_V1___.jpg
    SN-28B
    https://m.media-amazon.com/images/S/aplus-media/sc/5618f17a-ed29-4b5f-a3cc-28468391d2dc.__CR0,0,150,300_PT0_SX150_V1___.jpg
    SN-48B

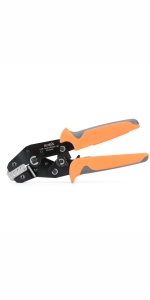

    https://m.media-amazon.com/images/S/aplus-media/sc/5b11f456-68e1-4950-8ba8-6313cfb00314.__CR0,0,150,300_PT0_SX150_V1___.jpg
    SN-2549
    Customer Reviews ————
    Price ————
    Application Open Barrel Open Barrel Open Barrel Open Barrel
    If Ratcheting ? ? ? ?
    Capacity AWG28-20 AWG28-18 AWG26-16 AWG28-18
    Cavity 2 3 3 4

    Product information

    Brand IWISS
    Color Orange
    Item Weight 0.86 Pounds
    Handle Material multicolor
    Grip Type Ergonomic
    Brand Name IWISS
    Model Number SN-2549 0.08-1.0mm²
    UPC 709619251635
    Manufacturer ZHEJIANG IWISS ELECTRIC CO.,LTD
    Manufacturer Part Number SN-2549
    Unit Count 1.0 Count
    Specific Uses For Product connecting electrical wires on rechargeable battery packs, battery balancers, battery eliminator circuits, 3D printers, and radio-controlled servos
    Size Small
    Handle Type Ergonomic
    Specification Met CSA, UL
