Features
Tamper Resistant and Overcurrent Protection
- TR (Tamper Resistant) can protect children from sticking objects into the outlet and improper insertion of foreign objects.
- When the output is greater than 4.8AMP, the outlet will automatically stop working for safety. Unplug it first, and then reinsert it again to allow the outlet to resume operation.
Type C Supports PD & QC 3.0
- The outlet with 4.8A USB type C and type A charging port.

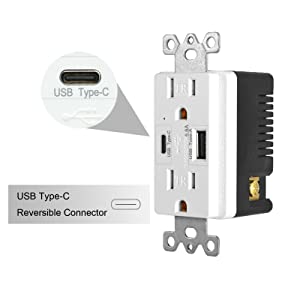

- The reversible (never miss) design of the USB-C port ensures that no matter which direction your connector is facing, you will be able to plug the connector in.
Wide Application
- USB Charging suitable for all kinds USB 5V charge, such as a variety of cellphones , digital cameras and other electronic digital products.

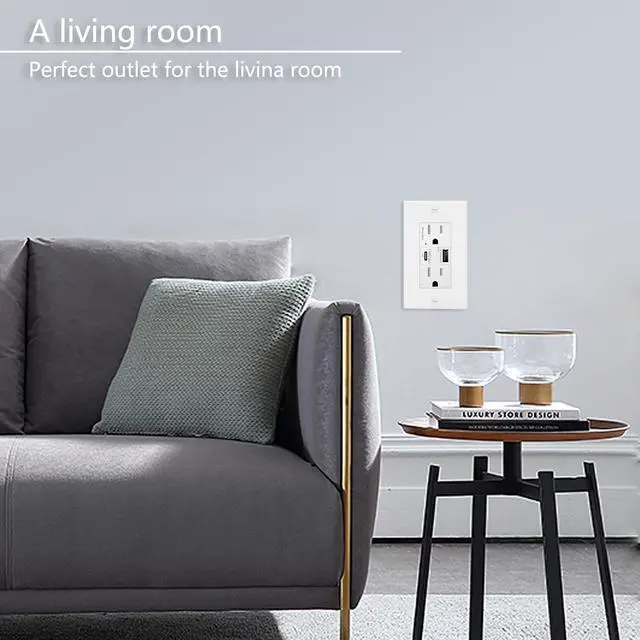

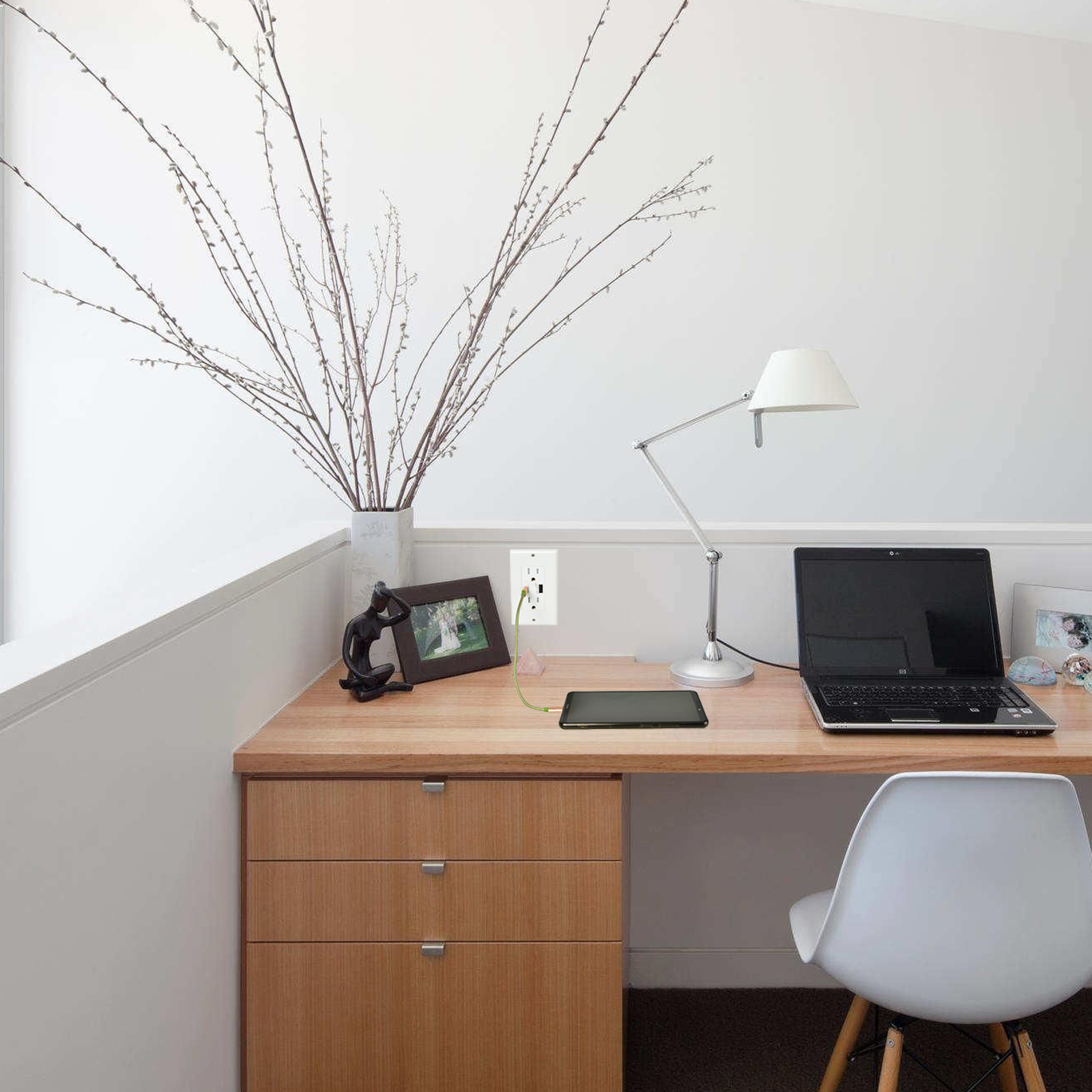

- Suitable for site dormitory, school dormitories, offices quarters, corporate offices, railway stations, etc.
Notice
- 15A/125/1875W. Four sockets allow 4 devices to be charged or used at the same time.
- This USB charger cannot charge laptops
Specifications
Color: White
Panel material: PC
Input parameters: AC 80-125V/ 15A
USB output: DC 5V/ 4.8A (Total)

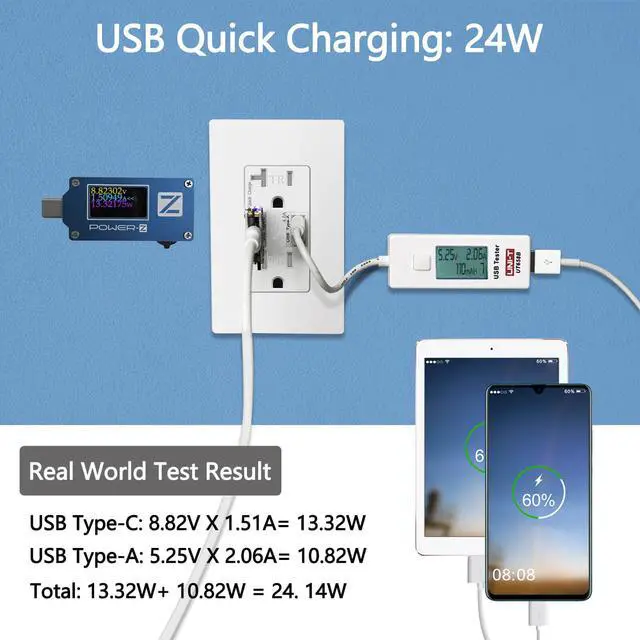

Wattage output for Type-C: 24W (Max)
Wattage output for Type-A: 29W (Max)
Overcurrent protection: Yes

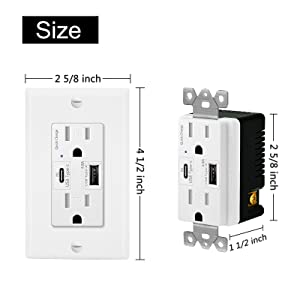

Dimensions: 4 1/2" x 2 3/4" x 1 7/8"

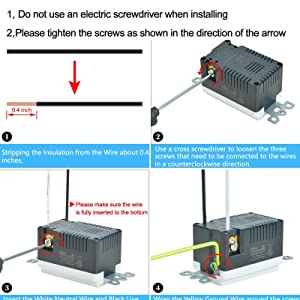

Easy Installation
- Stripping 0.4 inches of insulation from the end of the wire that needs to be wired.
- Please use a screwdriver to loosen the screws that need to be connected. (Do Not use an electric screwdriver)
- Insert the White Neutral Wire and Black Live Wires as shown in the picture (please make sure the wires are fully inserted into the bottom), and then tighten the screws clockwise.
- Please wrap the Yellow Ground Wire around the screws as shown in the picture, and then tighten the screws clockwise.

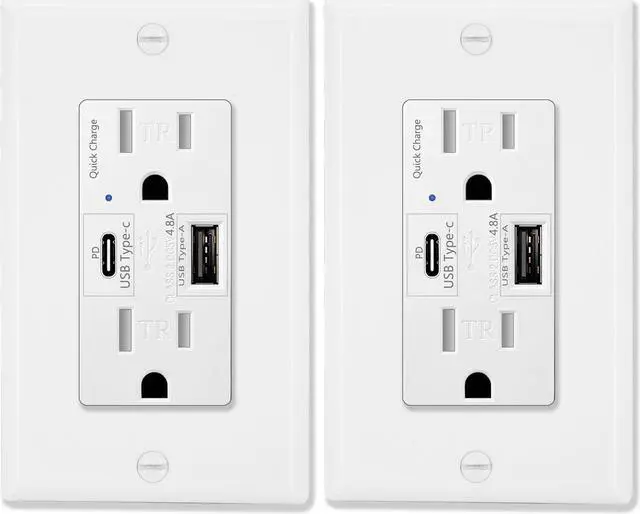

4.8A Dual USB Ports Quick Charger Outlet with Type-C

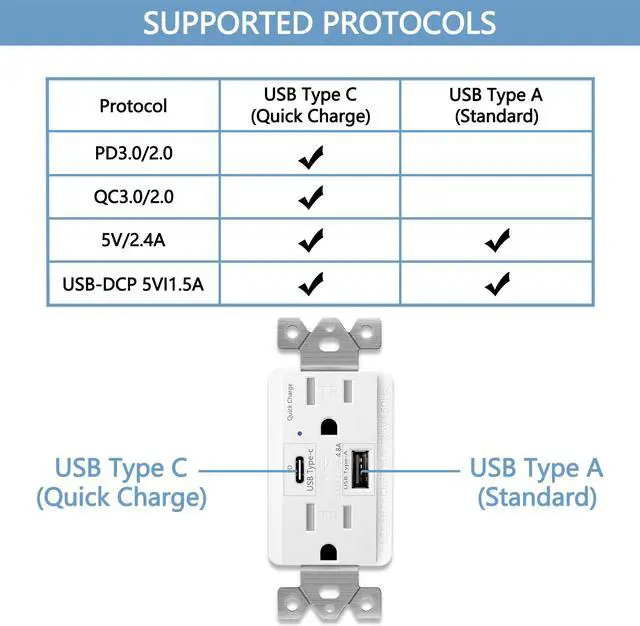

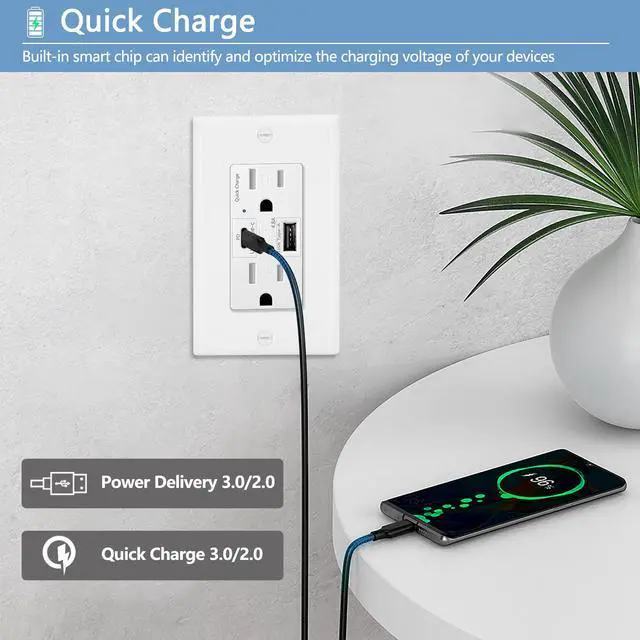

- USB Type-C port supports Power Delivery (PD) 3.0 and Quick Charge 3.0, USB Type-A port supports max 5V/2.4A. Max 24W

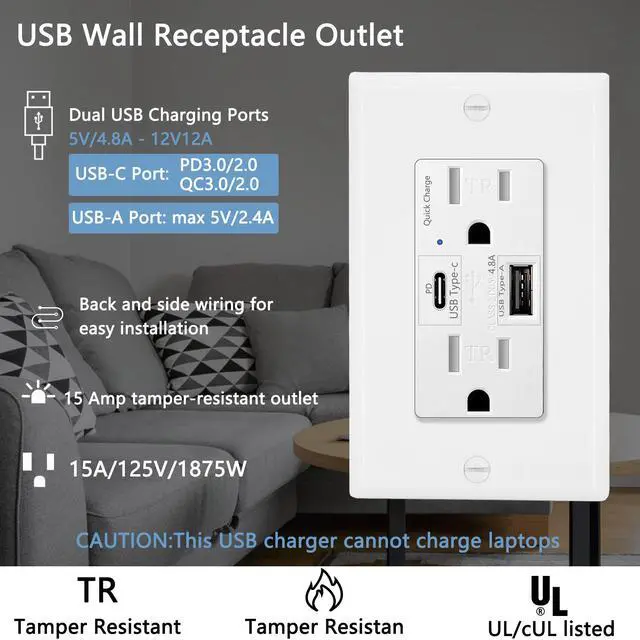

- This USB Charger/ Tamper-Resistant Duplex Receptacle offers two high-speed USB charging ports with 4.8A charging power and two 15A/ 125V Tamper-Resistant AC power outlets.
- It can easily charge two USB powered electronic devices at the same time, and leaving two AC power outlets for your other uses. (Please note that the usb outlets do not support Qualcomm Quick Charge Tech)
- Charging your USB devices directly with this wall receptacle without any other power adapters. Type-C (USB-C) charging is suitable for most of the latest USB devices on the market.
