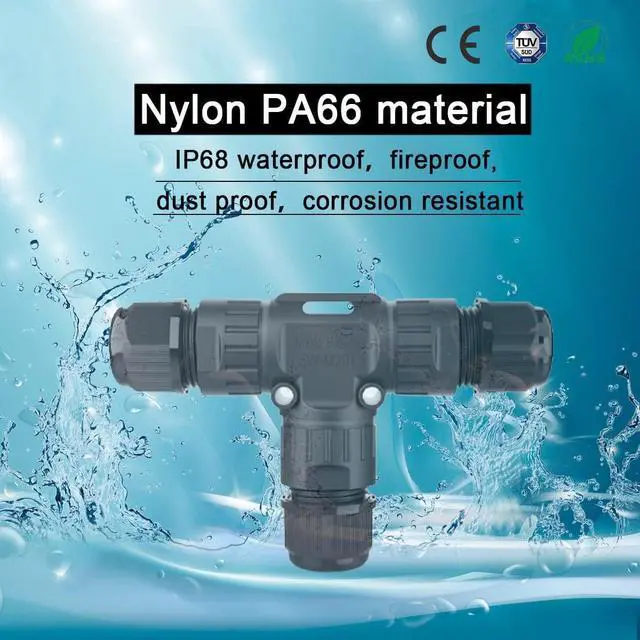

Waterproof Cable Connectors 3-pin 3 Way IP68 Waterproof Electrical Junction Box for Cables Ø 5-12 mm, TUV Listed, Pack of 3
- Body: nylon PA66;Contact: brass;CE,ROHS,UL certificated
- IP68 Waterproof Cable Connector Junction Box: Rubber ring and clamping nut were built in the junction box, which provide the perfect waterproof and excellent sealing; 3 pin IP68 Waterproof connectors can be used in water but not more than 2 meters
+
+
Overview
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Body: nylon PA66;
Contact: brass; CE, ROHS, UL certificated
IP68 Waterproof Cable Connector Junction Box: Rubber ring and clamping nut were built in the junction box, which provide the perfect waterproof and excellent sealing; 3 pin IP68 Waterproof connectors can be used in water but not more than 2 meters
Strudy Materials: The casing is made of nylon PA66 with high-temperature resistance( -20° C - 110° C); The screws are made of long-lasting brass; The inner conductor is copper core filling for better abrasion resistance and electronic conductivity; It will not crack or fade in sunlight, corrosion-resistant, long
life: The outdoor junction box can be also installed underground or outdoor temperature extremes.
Suitable Cable Size: Apply
to cable size: Ø5-9mm (thick grommet built in the body), Ø9-12mm (thin grommet included in the package for options use); apply to wire diameter: Ø 0.5 - 2.5 mm²AWG24-13); the nut size of this 3 way junction box IP68 is M20; the outdoor electrical box includes " live wire" " neutral wire" and " earth wire";
Rated voltage: 500v, rated
current: 24A;
Product dimensions: 10.4 x 6.8 x 2.42 cm (Length*Width*Height )
Easy TO Install: Unscrew the end of connector casing, insert wire through directly, fix the wires inside the poles by screwdriver, then tighten the nuts
Wide Application: These 3 way waterproof junction box are suitable for connecting and extending power cables for outdoor lighting; Widely used for garden lamps, patio light and other outdoor LED light, underwater engineering, underground engineering, mining engineering, solar panel system and electrical wire connecting
Designed for IP68 waterproof performance: ideal for fresh water, outdoor splashes, or temporary submersion in non-saltwater environments (e. g., garden, underground projects, freshwater pools). Perfect for splicing for fixing outdoor extension cords; Not suitable for long-term use in seawater. Seawaters high salt content may accelerate aging of the nylon PA66 casing and corrosion of brass contacts, which could impact sealing reliability and service life over time
Contact: brass; CE, ROHS, UL certificated
IP68 Waterproof Cable Connector Junction Box: Rubber ring and clamping nut were built in the junction box, which provide the perfect waterproof and excellent sealing; 3 pin IP68 Waterproof connectors can be used in water but not more than 2 meters
Strudy Materials: The casing is made of nylon PA66 with high-temperature resistance( -20° C - 110° C); The screws are made of long-lasting brass; The inner conductor is copper core filling for better abrasion resistance and electronic conductivity; It will not crack or fade in sunlight, corrosion-resistant, long
life: The outdoor junction box can be also installed underground or outdoor temperature extremes.
Suitable Cable Size: Apply
to cable size: Ø5-9mm (thick grommet built in the body), Ø9-12mm (thin grommet included in the package for options use); apply to wire diameter: Ø 0.5 - 2.5 mm²AWG24-13); the nut size of this 3 way junction box IP68 is M20; the outdoor electrical box includes " live wire" " neutral wire" and " earth wire";
Rated voltage: 500v, rated
current: 24A;
Product dimensions: 10.4 x 6.8 x 2.42 cm (Length*Width*Height )
Easy TO Install: Unscrew the end of connector casing, insert wire through directly, fix the wires inside the poles by screwdriver, then tighten the nuts
Wide Application: These 3 way waterproof junction box are suitable for connecting and extending power cables for outdoor lighting; Widely used for garden lamps, patio light and other outdoor LED light, underwater engineering, underground engineering, mining engineering, solar panel system and electrical wire connecting
Designed for IP68 waterproof performance: ideal for fresh water, outdoor splashes, or temporary submersion in non-saltwater environments (e. g., garden, underground projects, freshwater pools). Perfect for splicing for fixing outdoor extension cords; Not suitable for long-term use in seawater. Seawaters high salt content may accelerate aging of the nylon PA66 casing and corrosion of brass contacts, which could impact sealing reliability and service life over time
