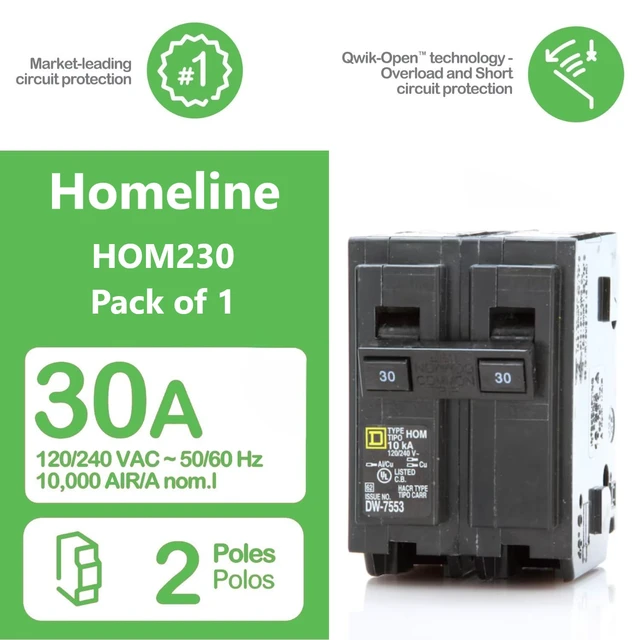

Genuine Square D HOM230 30 Amp Double Pole Circuit Breaker Kit UL Listed, Plug-On Replacement for Homeline Load Center Panel Box, 30A, 120/240V, 10kAIC, 30Amp, 2 Pole HOM Series, 1 Pack

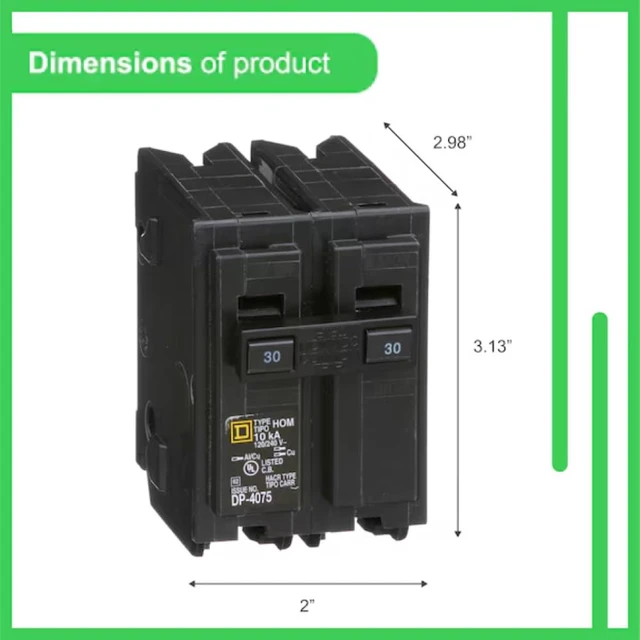

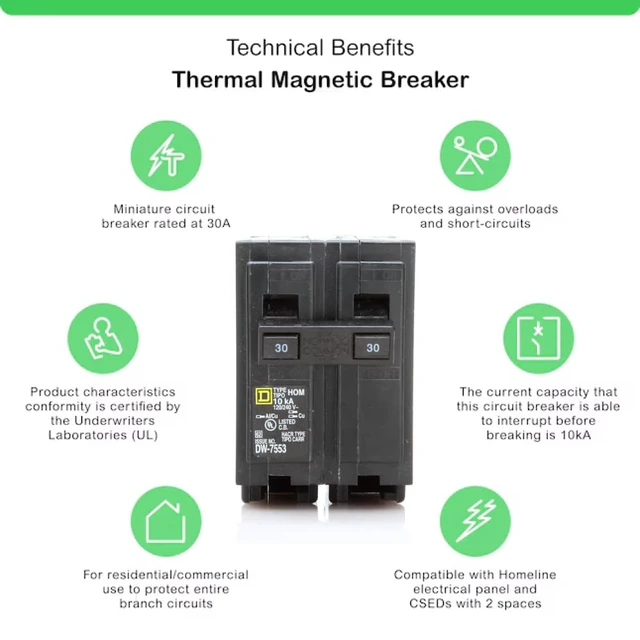

GENUINE OEM BREAKER This offer contains one (1) authentic HOM230 30-Amp double-pole circuit breaker from Square D's reliable Homeline series. The robust thermal-magnetic mechanism is engineered for dependable dual-action protection, responding to both sustained low-level overcurrents and instantaneous high-current short-circuit events. This component is a factory-new, unused Original Equipment Manufacturer (OEM) part, ensuring full compatibility for 240V branch circuits. HOMELINE PANEL COMPATIBILITY Designed with a plug-on mounting system for exclusive use in Square D Homeline load centers, CSEDs (Combined Service Entrance Devices), and breaker boxes. This standard 2-inch format (2-space) breaker provides a secure and reliable connection to the panel's aluminum bus bar.

It is not compatible with the different bus bar design of Square D QO-series panels, which ensures you are sourcing the specific component required. 240V APPLIANCE APPLICATION The 30-Amp, 120/240V capacity is suitable for dedicated 240V circuits that use 10-gauge copper wiring (NM-B). Common applications include powering major household appliances such as electric clothes dryers, medium-sized electric water heaters, and some central air conditioning units or heat pumps. This is a direct replacement for existing 30A double-pole Homeline breakers. TECHNICAL SPECIFICATIONS This circuit breaker is Underwriters Laboratories (UL) Listed and American National Standards Institute (ANSI) Certified.

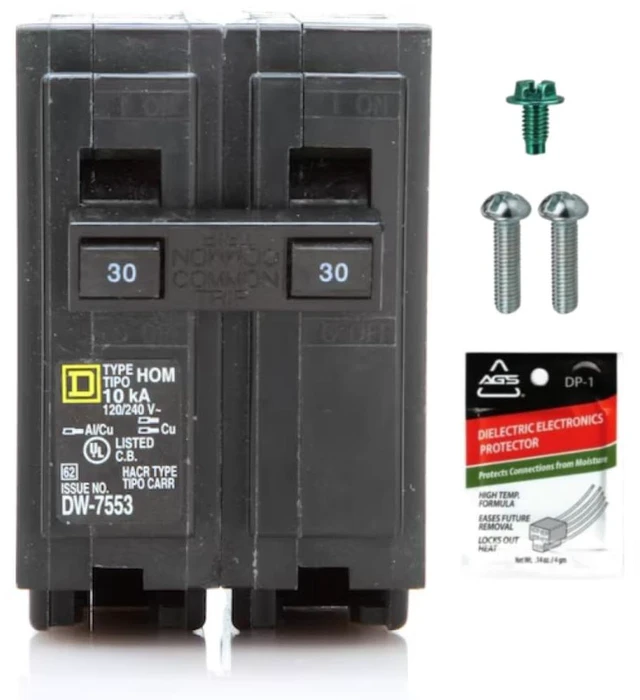

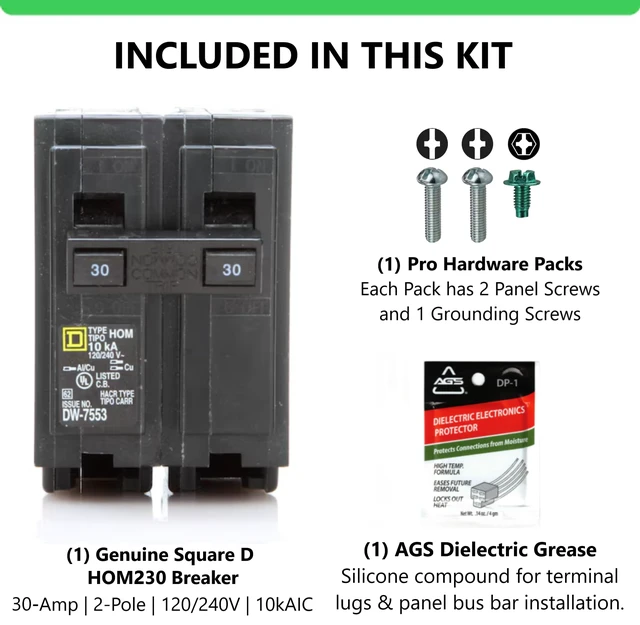

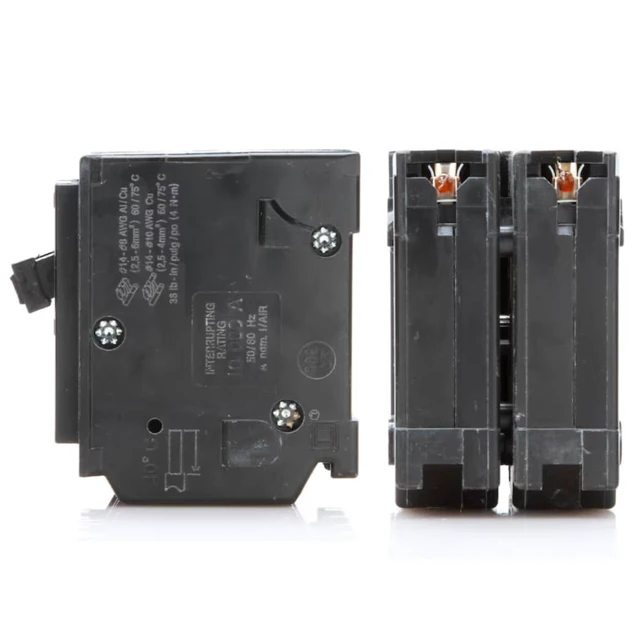

It features a standard 10, 000 Ampere Interrupting Capacity (10kAIC) for residential safety. The box lug terminals accept a wire size range of #14 to #8 AWG for copper (Cu) and #12 to #8 AWG for aluminum (Al) conductors and have a recommended tightening torque of 35 lb-in. INSTALLATION KIT The box includes one (1) HOM230 breaker, one (1) packet of AGS dielectric grease for terminal lug and bus bar contact lubrication, and one (1) Pro-Finishing Hardware Pack providing two zinc-plated steel combination-drive panel cover machine screws and one green hex-head grounding machine screw
